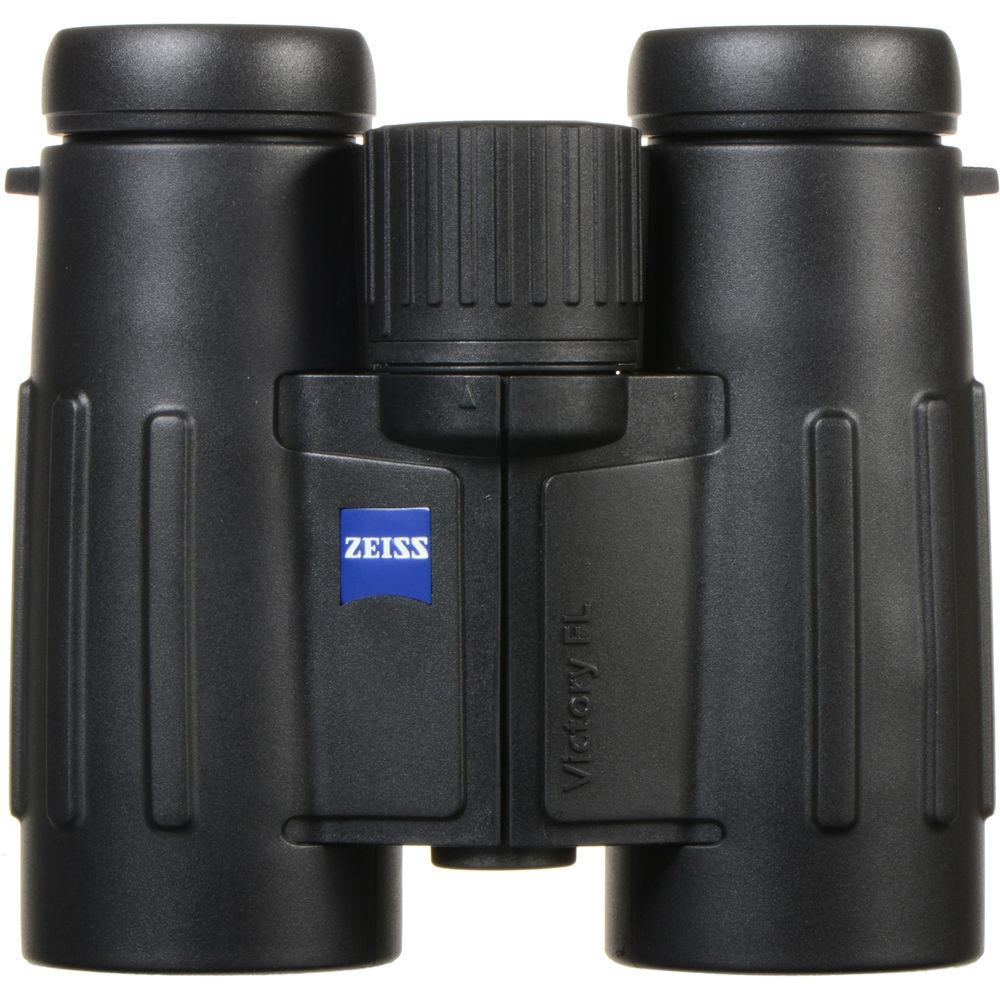

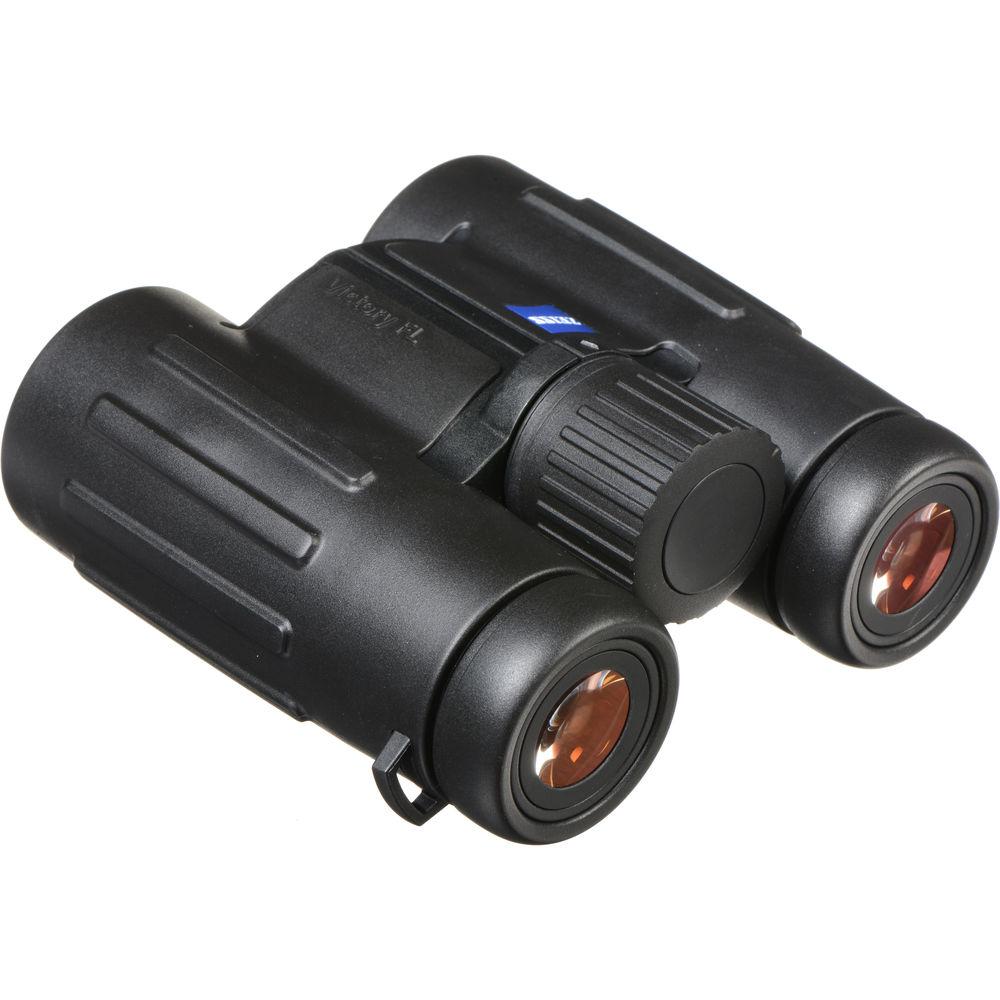

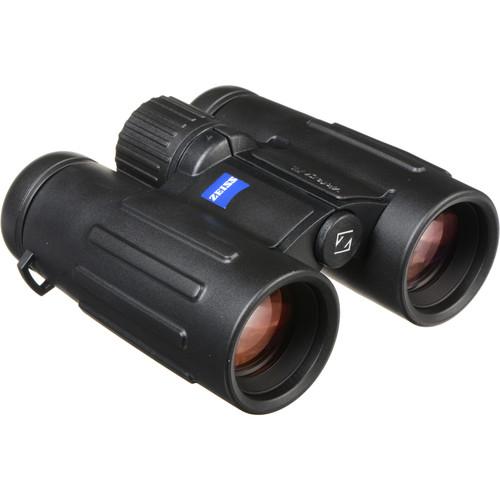

Product description The B&H Binocular Buying Guide Read More The ZEISS 10x32 Victory T* FL Binocular walks the fine line between compact and full-sized models to give users enhanced low-light capabilities while maintaining a compact form factor. It features a wide field of view and comfortable eye relief, with a high magnification that brings subjects in close to provide users with an immersive observational experience.This model maintains the optical technology of earlier iterations to ensure the overall visual performance users have come to expect from ZEISS. The optical path features phase-corrected Schmidt-Pechan roof prisms with dielectric mirror coatings. These prisms maximize acuity and light throughput while eliminating aberrations and distortion. The lenses are fully multi-coated with ZEISS' iconic T* anti-reflective multi-coatings and their LotuTec protective coating. T* multi-coatings increase light transmission while eliminating lens flare and glare, while improving color rendition, clarity, and contrast. The LotuTec coating helps maintain the integrity of each external lens surface by repelling liquids and debris for a clear view in any conditions, weather, or situation.The Victory's housing is made of a lightweight and strong magnesium alloy and is wrapped in a protective rubber armor that provides a slip-resistant grip. Its optical tubes are nitrogen filled and O-ring sealed to deliver waterproof performance, while resisting internal fogging when moving through extreme temperature changes or environmental conditions. - Optical Performance
-
- 10x magnification
- 32mm objectives
- Compact Schmidt-Pechan roof prism light path
- Phase-corrected dielectric mirror prism coatings limit internal diffraction to enhance clarity, light transmission, and contrast
- Extra-low dispersion fluoride glass limits chromatic aberrations to produce clearer and sharper views with little or no color fringing
- T* fully multi-coated optics improve light transmission, color rendition, clarity, and contrast while reducing lens flare and glare
- LotuTec coating: Sheds water, dirt, grease, and grime; lenses can be easily wiped clean without smearing
- Wide 69° apparent angle of view
- 360' field of view at 1000 yards
- Use and Handling
-
- Closed-bridge/single-hinge configuration
- Fast and accurate large center focusing wheel is easy to manipulate, even when wearing gloves
- ±4 right-eye dioptric correction
- Broad 52-74mm interpupillary adjustment range to accommodate a wide variety of users
- Twist-up rubber eyecups for comfortable use with or without eyewear
- Comfortable 15.2mm eye relief
- 3.2mm exit pupil
- Construction Details
-
- Prism design is slimmer than traditional roof prisms, providing similar performance with thinner optical tubes
- Impact-resistant and lightweight magnesium-alloy chassis
- Nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes and environmental conditions
- Protective rubber armoring provides a secure non-slip grip
- Raised, ridged palm pads improve grip security
- Broad -22 to 145°F (-30 to 63°C) operating temperature
- Compact: 4.6x4.6"
- Weight: 19.75 ounces

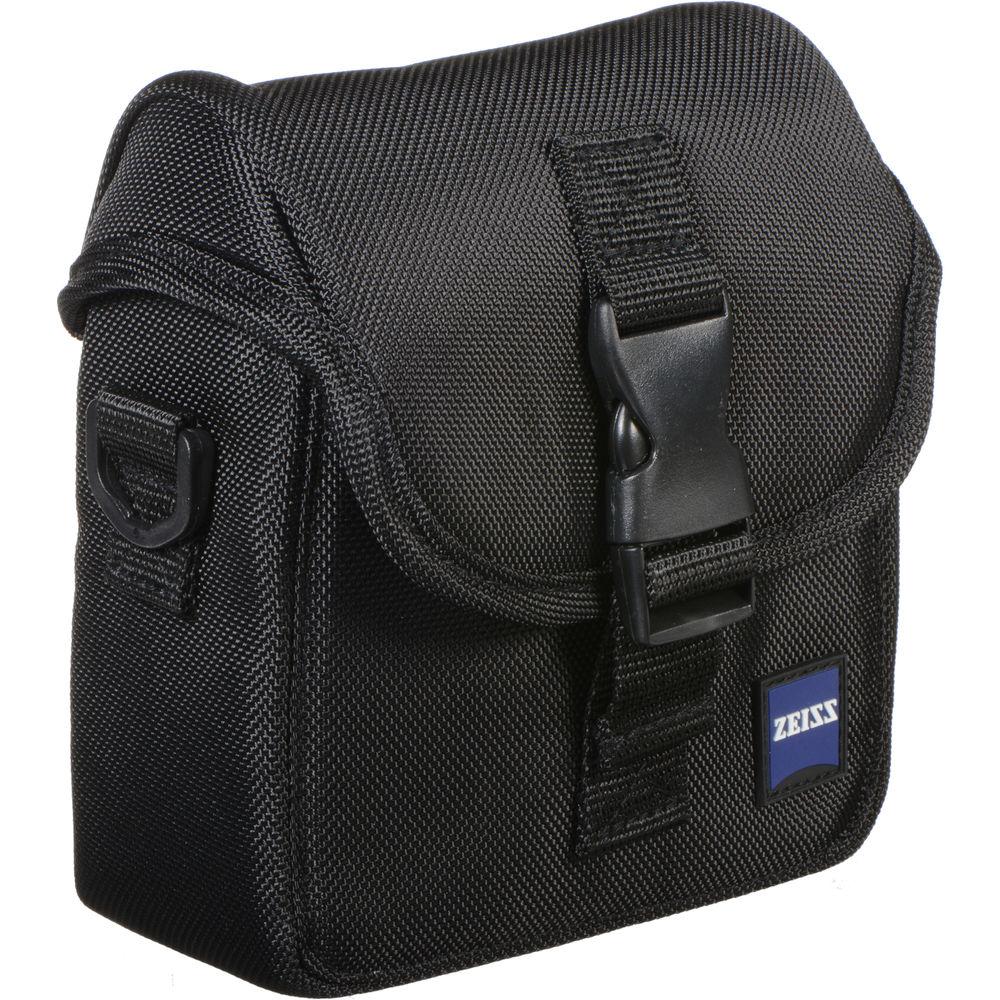

UPC: 740035602359 In the Box ZEISS 10x32 Victory T* FL Binocular (Black) Carrying Case Neoprene Strap Cleaning Cloth 2 x Objective Caps One-Piece Ocular Rainguard Limited Lifetime Transferable Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 tbswtadt A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 tbswtadt A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 10x32 Victory T* FL Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 523231-0000-000 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 32 mm | | Angle of View | 6.9° (actual) | | Field of View | 362.2' @ 1000 yd / 120.7 m @ 1000 m | | Minimum Focus Distance | 6.6' / 2 m | | Exit Pupil Diameter | 3.2 mm | | Eye Relief | 15.2 mm | | Interpupillary Adjustment | 52 to 74 mm / 2 to 2.9" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 4.6 x 4.6" / 11.7 x 11.7 cm | | Weight | 19.75 oz / 560 g | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 10.8 x 10.7 x 4.4" |
