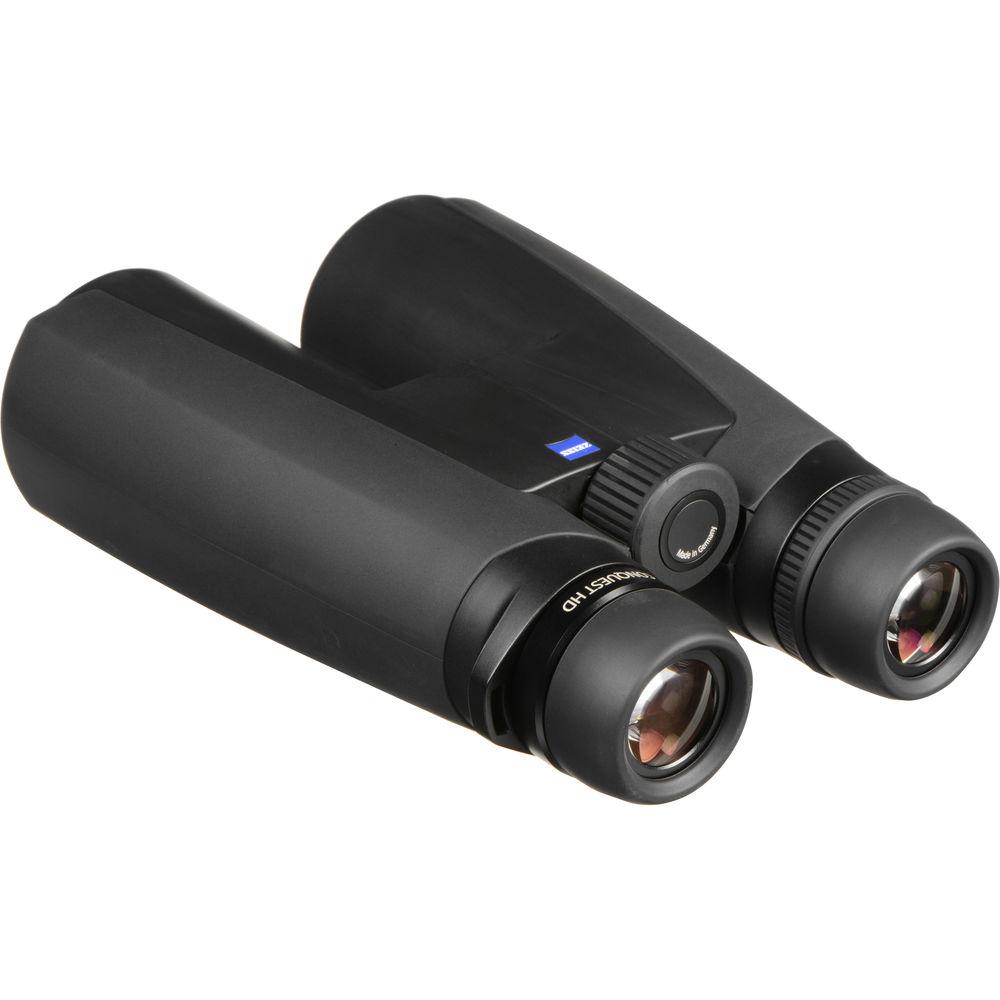

User Manual for ZEISS 15x56 Conquest HD Binocular Click to enlarge the picture
Contents of the user manual for the ZEISS 15x56 Conquest HD Binocular
- Product category: Binoculars ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Binoculars
 |
User manual for the ZEISS 15x56 Conquest HD Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|

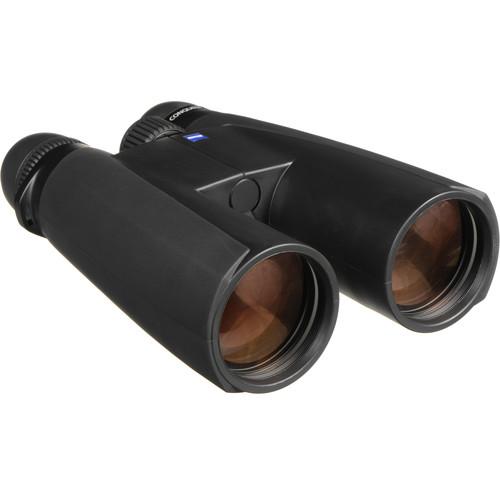

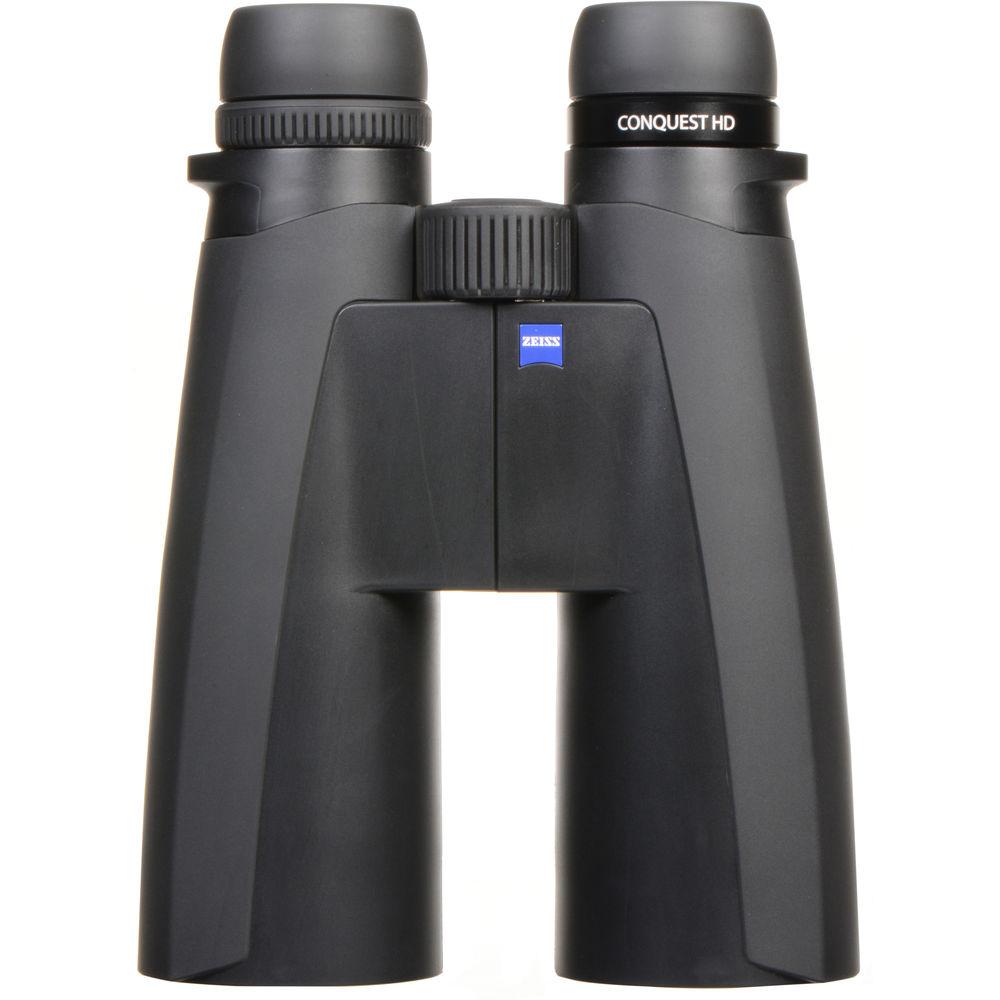

Product description The B&H Binocular Buying Guide Read More zcdxbttzzsx The 15x56 Conquest HD Binocular from ZEISS is designed to provide optimal performance in all light and weather conditions. Its performance comes from a combination of extra-low dispersion (ED) glass and fully multi-coated lenses and prisms. The ED glass corrects for chromatic aberration across the entire field of view, ensuring true color transmission with little to no distortion. Taking full advantage of the large 56mm objectives, the lenses have ZEISS' T* anti-reflective coatings, which minimize light loss and maximize the amount of light getting through the optics. The prisms are phase corrected to increase contrast. These optical coatings and glass produce a binocular that performs well, especially in low-light conditions, with bright high-contrast images and true color transmission across the entire 69° apparent angle of view.Designed for rigorous use in the field, it is nitrogen filled and O-ring sealed for water and fogproof performance year-round in all weather conditions. The large center focus wheel is accessible with either hand and easy to use, even with gloves. Rubber armoring on the outside of the body provides a safe and secure non-slip grip in wet or cold conditions and offers protection against drops and impacts. The click-stop twist-up eyecups let you customize your eye relief whether you wear glasses or not. If you're going to be glassing for prolonged periods, the Conquest HD is tripod mountable with the included adapter. - Performance
-
- 15x magnification
- Large 56mm objective lenses boost light-gathering ability for improved views in low light, produce a wide exit pupil to limit vignetting, and present a generous field of view
- Compact Abbe-Koenig roof prism design produces a less folded light path than conventional roof prisms to decrease spherical and chromatic aberration
- Fully multi-coated with ZEISS' T* anti-reflective coatings for more than 90% light transmission
- Extra-low dispersion (ED) glass elements eliminate chromatic aberration across the entire field of view with little to no distortion
- Phase-corrected prisms produce high-contrast images with true color saturation
- LotuTec moisture/abrasion-resistant coating causes moisture, including snow and rain, to bead up and roll off the lens surface
- Wide 69° apparent angle of view limits the appearance of distracting hand shake that is common when holding high-power optics such as this
- 241.4-foot field of view at 1000 yards
- Use and Handling
-
- Closed-bridge configuration provides a solid and steady platform for the internal focusing mechanism
- Large slip-resistant center focus wheel is easy to manipulate, even in cold and wet weather or while wearing gloves
- ±4 right-eye dioptric adjustment enables tack-sharp focus even for those who wear corrective eyewear
- 57-74mm interpupillary adjustment range
- Tripod mountable with included adapter
- Click-stop twist-up eyecups for customized eye relief with or without eyewear
- Long 18mm eye relief improves viewing comfort and reduces eyestrain, especially during long glassing sessions
- 3.7 mm exit pupil
- Construction Details
-
- Lightweight and durable aluminum-alloy chassis
- Nitrogen filled, waterproof to 200mbar of pressure and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
- Rubber-armored exterior provides impact protection and non-slip grip
- Wide -4 to 145°F (-20 to 63°C) operating temperature range
- Includes tripod adapter for hands-free use to reduce vibration and arm fatigue
UPC: 740035996656 In the Box ZEISS 15x56 Conquest HD Binocular 2 x Eyepiece Caps 2 x Objective Lens Caps Neck/Lens Cap Strap Carry Case with Strap Lens Cloth Tripod Adapter Limited Lifetime USA/Canada Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 zcdxbttzzsx A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 zcdxbttzzsx A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 6.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 15x56 Conquest HD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 525633-0000-000 Specs | Prism Type | Roof | | Magnification | 15 x | | Objective Lens Diameter | 56 mm | | Angle of View | 69° (Apparent) | | Field of View | 241.4' @ 1000 yd / 80.5 m @ 1000 m | | Minimum Focus Distance | 1.1' / .3 m | | Exit Pupil Diameter | 3.7 mm | | Eye Relief | 18 mm | | Interpupillary Adjustment | 8.4 to 11.5 mm / 21.3 to 29.1" | | Dioptric Correction | +4 / +4 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Included) | | Dimensions | 8.3 x 5.7" / 21.0 x 14.5 cm | | Weight | 45.68 oz / 1295.03 g | | | | Package Weight | 5.05 lb | | Box Dimensions (LxWxH) | 10.2 x 7.8 x 6.5" |
