User Manual for ZEISS 3-12x44 Conquest V4 Riflescope Click to enlarge the picture
Contents of the user manual for the ZEISS 3-12x44 Conquest V4 Riflescope
- Product category: Riflescopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Riflescopes
 |
User manual for the ZEISS 3-12x44 Conquest V4 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|

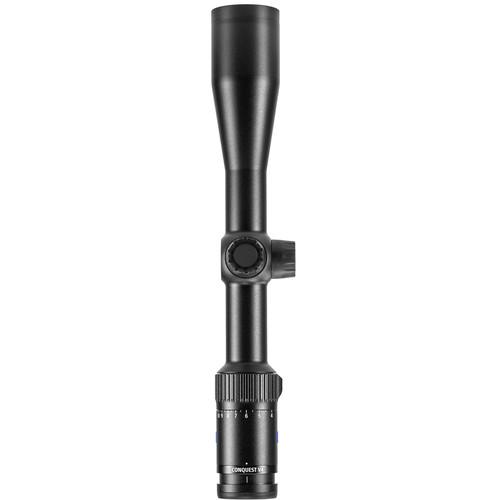

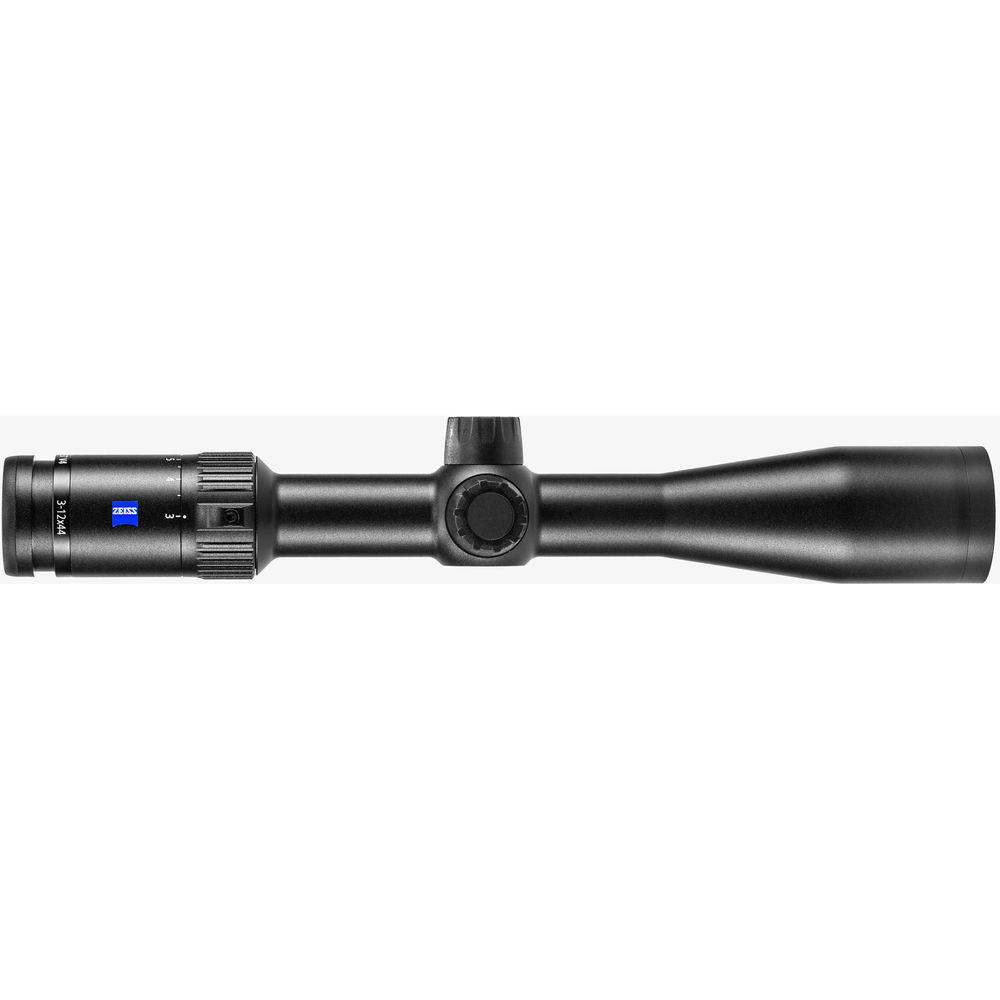

Product description This ZEISS 3-12x44 Conquest V4 Riflescope is engineered for hunting and shooting at longer ranges and in low-light conditions. While its 3-12x magnification allows you to zoom in on distant targets, the 44mm objective lens gathers sufficient light to deliver bright and high-contrast images. The optical system is outfitted with precision elements made from high-definition optical glass and treated with T* multi-coatings, which produce a total light transmission of 90%. The exterior lenses are also treated with proprietary LotuTec hydrophobic coatings that shed droplets from the lenses' surfaces and can be wiped off without visible traces. For accuracy and precision with placing shots, the scope is equipped with a non-illuminated ZBR-1 Reticle 91 in the second focal plane and features three posts and a milling crosshair with a stadia tree under the center. The scope is designed to be parallax error-free at 100 yards.
The aluminum housing is crafted with strength, durability, and precision in mind. It has a 30mm maintube and offers waterproof, nitrogen-filled fogproof, and submersible performance. The capped elevation and windage turrets include the ZEISS Ballistic Stop feature to ensure an absolute and positive return to zero under any conditions. - Optical Performance
-
- 3-12x magnification range
- 44mm objective diameter produces bright images in low-light conditions
- High-definition glass improves resolution and contrast
- T* optical coatings increase brightness and resolution
- Total transmission of light up to 90%
- LotuTec water-repellent lens coating sheds water droplets, which can be removed without a trace
- Wide field of view: 38-9.5' at 100 yards
- Parallax-free at 100 yards
- Use and Handling
-
- 1/4 MOA impact point correction
- 70 MOA total windage and elevation range
- 8.9-3.7mm exit pupil
- 3.5" eye relief
- Construction
-
- 30mm diameter maintube
- Aluminum construction
- Capped windage and elevation turrets
- Nitrogen filled, fogproof
- Waterproof to 400 mbar

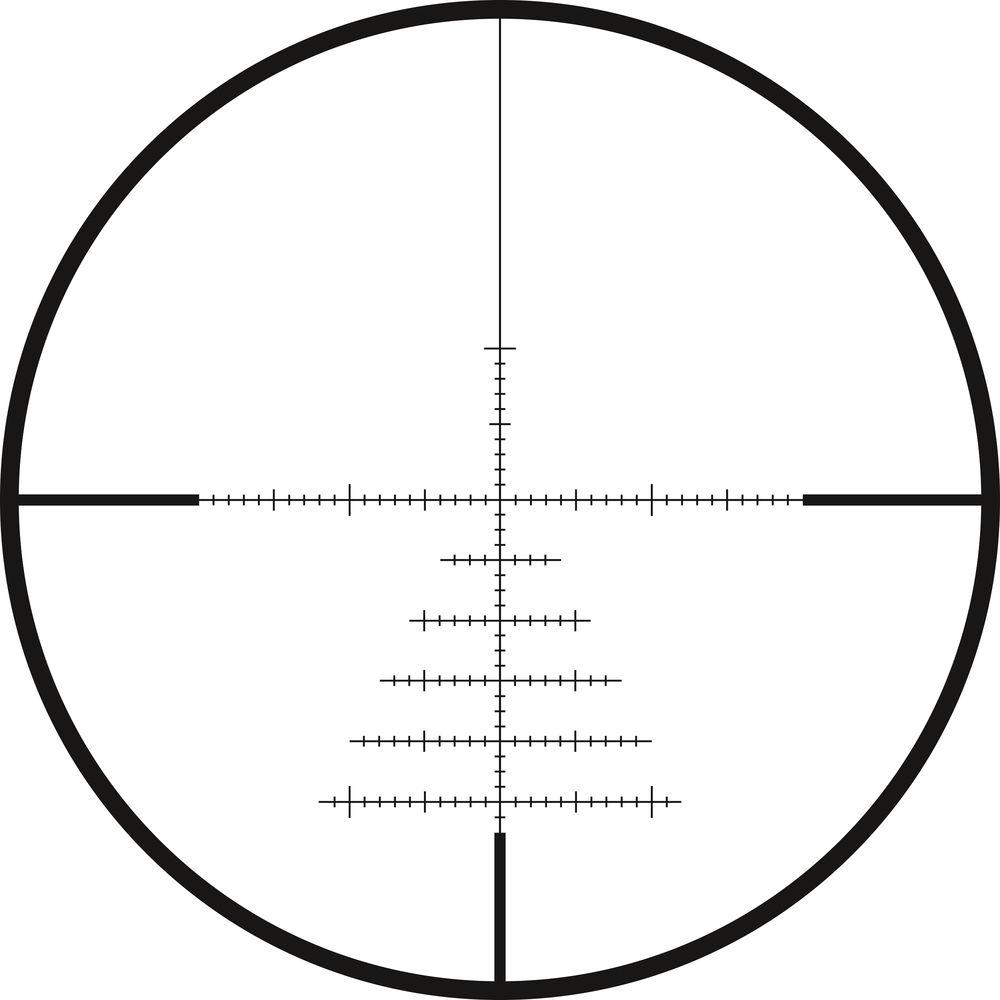

- ZBR-1 Reticle 91
-
- Second focal plane
- Three posts
- Milling crosshair with a stadia tree under the center
- MOA-based markings
UPC: 740031000197 In the Box ZEISS 3-12x44 Conquest V4 Riflescope (ZBR-1 Reticle 91) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 3-12x44 Conquest V4 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 522961-9991-000 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 44 mm | | Field of View | 3x: 38' @ 100 yd / 12.7 m @ 100 m
12x: 9.5' @ 100 yd / 3.2 m @ 100 m | | Exit Pupil Diameter | 3x: 8.9 mm
12x: 3.7 mm | | Eye Relief | 3.5" / 89 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | ZBR-1 Reticle 91 Reticle (Second Focal Plane) | | Illumination | Non-Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 70 MOA | | Elevation Adjustment | 70 MOA | | Parallax Correction | No, 100 yd / 91.4 m | | | | Water Resistance | Waterproof to 13' / 4 m | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -4 to 131°F / -20 to 55°C | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 13.8" / 35.1 cm | | Weight | 18.2 oz / 516 g |
