Product description

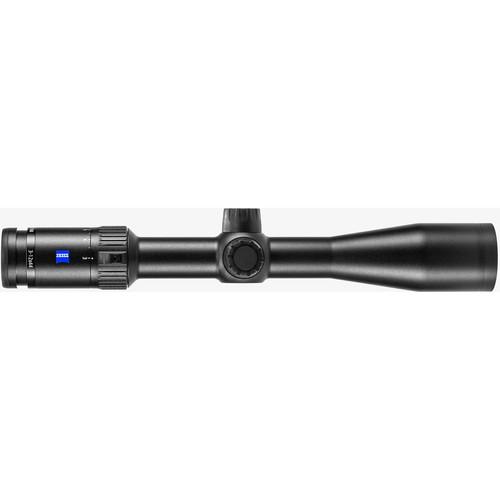

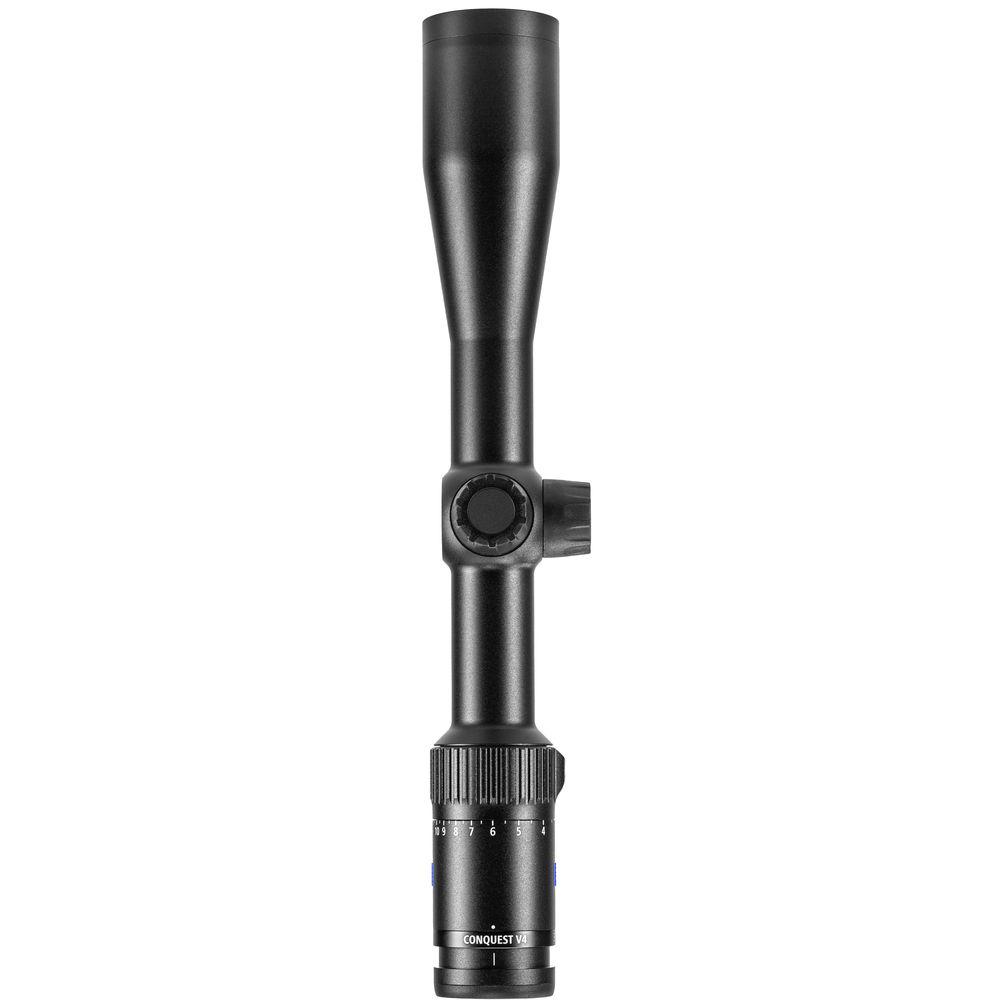

This ZEISS 3-12x44 Conquest V4 Riflescope is engineered for hunting and shooting at longer ranges and in low-light conditions. While its 3-12x magnification allows you to zoom in on distant targets, the 44mm objective lens gathers sufficient light to deliver bright and high-contrast images. The optical system is outfitted with precision elements made from high-definition optical glass and treated with T* multi-coatings, which produce a total light transmission of 90%. The exterior lenses are also treated with proprietary LotuTec hydrophobic coatings that shed droplets from the lenses' surfaces and can be wiped off without visible traces. For accuracy and precision with placing shots, the scope is equipped with a non-illuminated Z-Plex Reticle 20 in the second focal plane and features four tapered posts with a thin crosshair. It is recommended for long-range shooting in daylight. The scope is designed to be parallax error-free at 100 yards.

The aluminum housing is crafted with strength, durability, and precision in mind. It has a 30mm maintube and offers waterproof, nitrogen-filled fogproof, and submersible performance. The capped elevation and windage turrets include the ZEISS Ballistic Stop feature to ensure an absolute and positive return to zero under any conditions.
    Optical Performance
    • 3-12x magnification range
    • 44mm objective diameter produces bright images in low-light conditions
    • High-definition glass improves resolution and contrast
    • T* optical coatings increase brightness and resolution
    • Total transmission of light up to 90%
    • LotuTec water-repellent lens coating sheds water droplets, which can be removed without a trace
    • Wide field of view: 38-9.5' at 100 yards
    • Parallax-free at 100 yards
    Use and Handling
    • 1/4 MOA impact point correction
    • 70 MOA total windage and elevation range
    • 8.9-3.7mm exit pupil
    • 3.5" eye relief
    Construction
    • 30mm diameter maintube
    • Aluminum construction
    • Capped windage and elevation turrets
    • Nitrogen filled, fogproof
    • Waterproof to 400 mbar

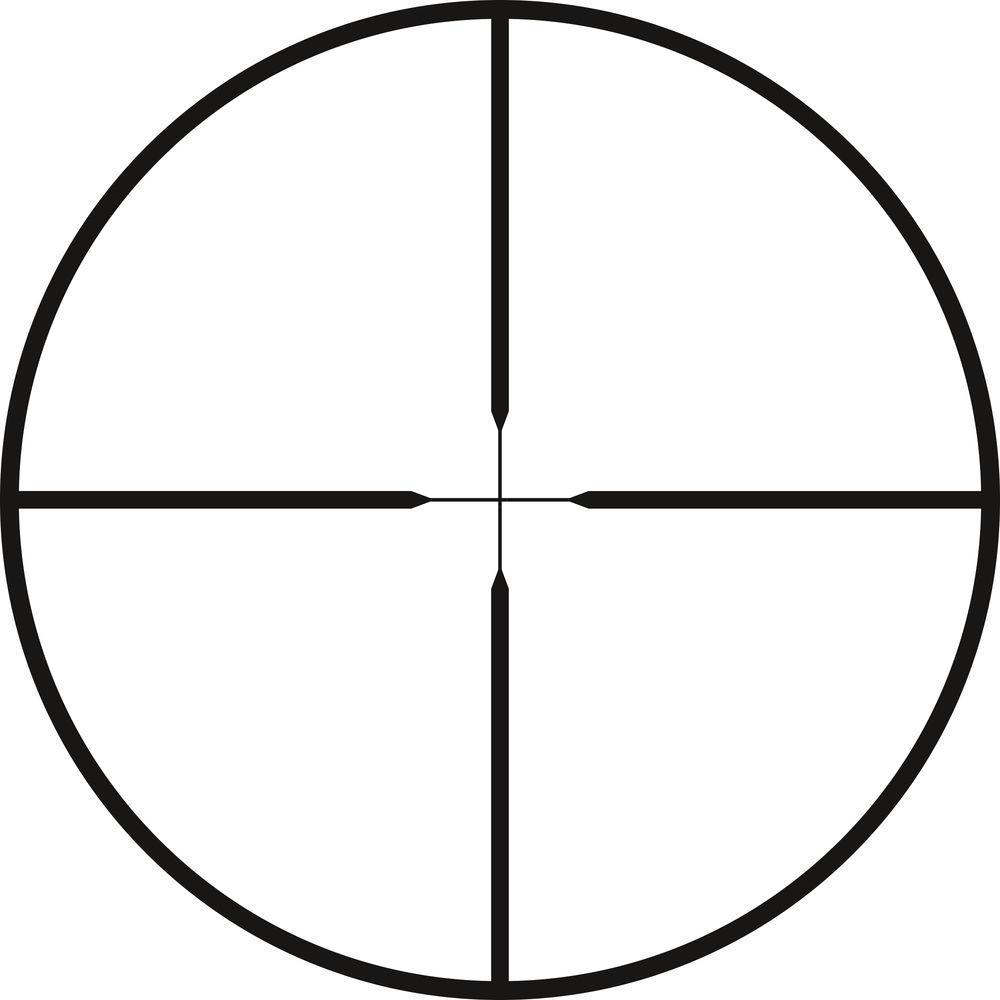

    Z-Plex Reticle 20
    • Second focal plane
    • Four tapered posts
    • Thin crosshair
    • For long-range shooting in daylight
UPC: 740031000180 In the Box ZEISS 3-12x44 Conquest V4 Riflescope (Z-Plex Reticle 20)
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ZEISS 3-12x44 Conquest V4 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ZEISS 522961-9920-000 Specs

    Magnification 3 to 12x
    Objective Lens Diameter 44 mm
    Field of View 3x: 38' @ 100 yd / 12.7 m @ 100 m
    12x: 9.5' @ 100 yd / 3.2 m @ 100 m
    Exit Pupil Diameter 3x: 8.9 mm
    12x: 3.7 mm
    Eye Relief 3.5" / 89 mm
    Diopter Correction -3.0 to +2.0
    Reticle Type Plex Reticle 20 Reticle (Second Focal Plane)
    Illumination Non-Illuminated
    Impact Point Correction 1/4 MOA per Click
    Windage Adjustment 70 MOA
    Elevation Adjustment 70 MOA
    Parallax Correction No, 100 yd / 91.4 m
    Water Resistance Waterproof to 13' / 4 m
    Fogproof Yes, Nitrogen Filled
    Operating Temperature -4 to 131°F / -20 to 55°C
    Maintube Diameter 30 mm
    Battery None
    Dimensions Length: 13.8" / 35.1 cm
    Weight 18.2 oz / 516 g
