User Manual for ZEISS 3-12x56 Conquest V4 Riflescope Click to enlarge the picture
Contents of the user manual for the ZEISS 3-12x56 Conquest V4 Riflescope
- Product category: Riflescopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Riflescopes
 |
User manual for the ZEISS 3-12x56 Conquest V4 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|

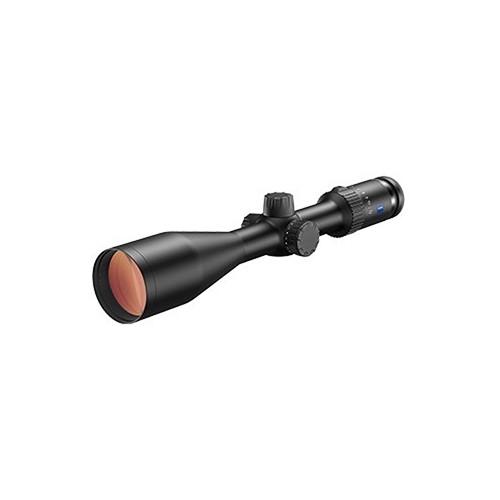

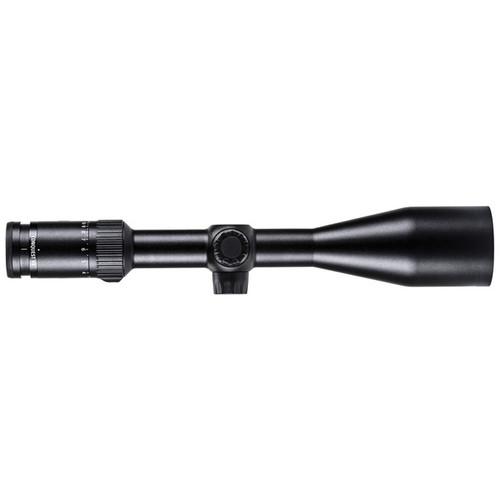

Product description This ZEISS 3-12x56 Conquest V4 Riflescope is engineered for hunting and shooting at longer ranges and in low-light conditions. While its 3-12x magnification allows you to zoom in on distant targets, the extra-wide 56mm objective lens will scoop up more light in twilight to deliver brighter and higher contrast images. The optical system is outfitted with precision elements, made from high-definition optical glass and treated with T* multi-coatings, which produce a total light transmission of 90% and generate bright and sharp images. To reduce the amount of maintenance required in the field, the exterior lenses are also treated with proprietary LotuTec hydrophobic coatings that let water droplets run off the lens' surfaces and can be wiped off without visible traces. For accuracy and precision with placing shots, the scope also features an Illuminated Reticle 60. It is in the 2nd focal plane and has three posts, a thin crosshair, and an illuminated center dot.

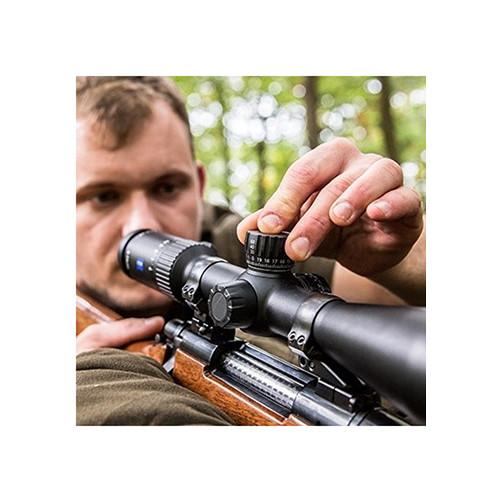

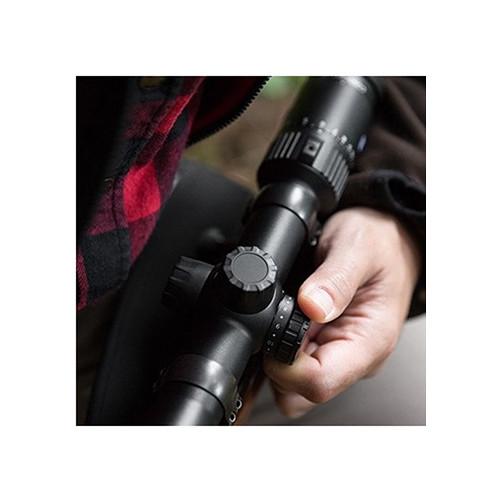

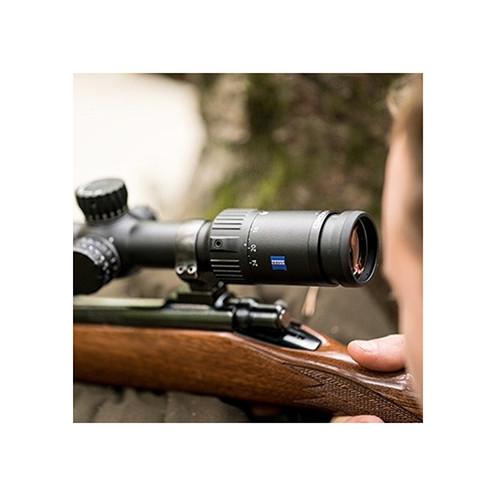

The aluminum housing is crafted with strength, durability, and precision in mind. It has a 30mm maintube and offers waterproof, nitrogen-filled fogproof, and submersible performance. Among other highlights are knurled capped turrets and a magnification ring on the eyepiece with a low-profile lever for instant zoom adjustments. - Optical Performance
-
- 3 - 12x magnification range
- Extra-wide 56mm objective diameter produces bright images in low-light conditions
- High-definition glass improves resolution and contrast
- T* optical coatings increase brightness and resolution
- Total transmission of light up to 90%
- LotuTec water-repellent coating allows water droplets to run off the lenses and be removed without a trace
- Wide field of view: 38 - 9.5' at 100 yards
- Parallax-free at 100 yards
- Use and Handling
-
- 1/4 MOA impact point correction
- 70 MOA total windage and elevation range
- 9.2 - 4.7mm exit pupil
- 3.5" eye relief
- Construction
-
- 30mm diameter maintube
- Aluminum construction
- Capped windage and elevation turrets
- Nitrogen-filled, fogproof
- Waterproof to 400 mbar

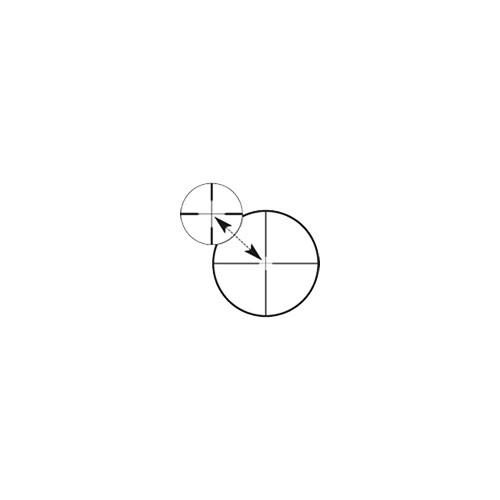

- Illuminated Reticle 60
-
- 2nd focal plane
- German #4 style reticle
- Three posts and a thin crosshair
- Illuminated center dot
UPC: 740035998896 In the Box ZEISS 3-12x56 Conquest V4 Riflescope (Illuminated Reticle 60, Matte Black) - CR-2032 Battery
- Limited 5-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 3-12x56 Conquest V4 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 522925-9960-000 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 56 mm | | Field of View | 3x: 38' @ 100 yd / 12.7 m @ 100 m
12x: 9.5' @ 100 yd / 3.2 m @ 100 m | | Exit Pupil Diameter | 3x: 9.2 mm
12x: 4.7 mm | | Eye Relief | 3.5" / 89 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | 60 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 70 MOA | | Elevation Adjustment | 70 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -4 to 131°F / -20 to 55°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.5" / 36.8 cm | | Weight | 21.5 oz / 609.5 g | | | | Package Weight | 2.67 lb | | Box Dimensions (LxWxH) | 16.75 x 4.7 x 4.4" |
