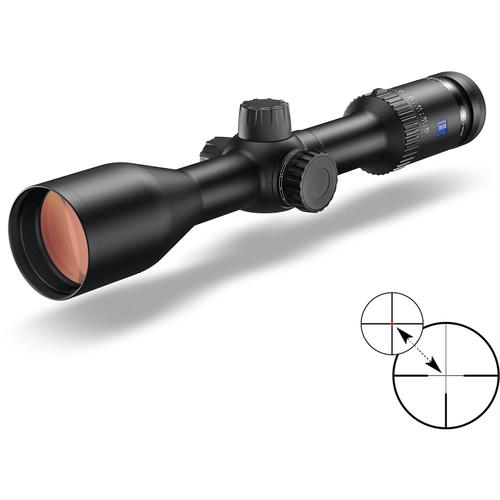

User Manual for ZEISS 3-18x50 Conquest V6 Riflescope Click to enlarge the picture
Contents of the user manual for the ZEISS 3-18x50 Conquest V6 Riflescope
- Product category: Riflescopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Riflescopes
 |
User manual for the ZEISS 3-18x50 Conquest V6 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description Harness a lifetime of the legendary optical craftsmanship, engineering, and mechanical precision with the ZEISS 3-18x50 Conquest V6 Riflescope. This fine telescopic sight is centered around an expertly designed 6x SuperZoom optical system that utilizes superior components such as high-transmission ZEISS FL fluoride lenses for delivering high-contrast, high-detail, and true-color vivid images. To enhance optical performance and image brightness even further, bringing total throughput to 92%, the lenses are fully multi-coated with ZEISS' proprietary T* anti-reflection coatings. To maintain this high standard of performance even in adverse weather conditions, the exterior lens surfaces are enhanced with LotuTec hydrophobic coatings, which let droplets slide without streaks and allow wiping off dust and dirt without traces.

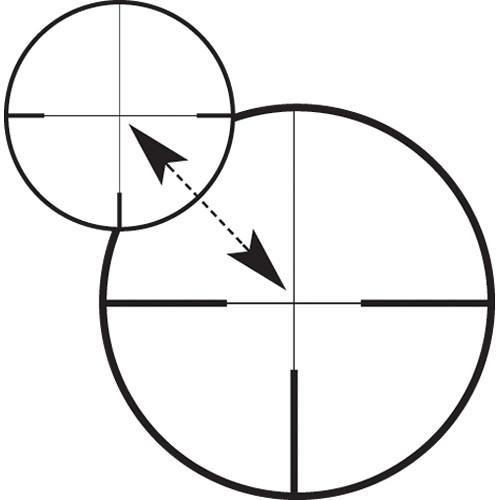

To help with precision shot placements, this riflescope also provides a German #4 style Reticle 6. This second focal plane reticle offers three posts and a thin crosshair.

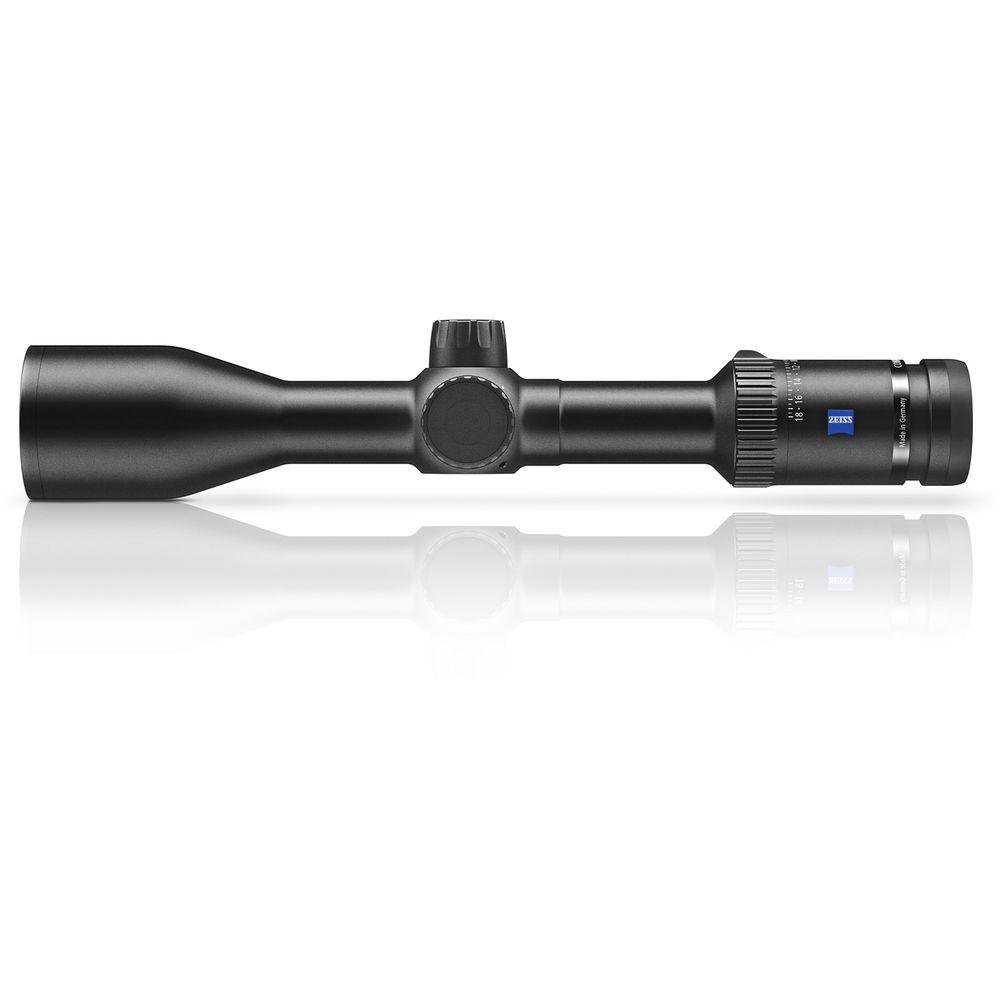

Measuring only 13.3" (33.4 cm) in length, the high-quality aluminum housing is engineered with strength, durability, precision in mind. It features a 30mm maintube and offers a waterproof, fogproof, and submersible performance. Among other highlights are HT finger-adjustable graduated turrets and knurled knobs and rings. The magnification ring also features a low-profile lever for instant zoom adjustments. - Optical Performance
-
- Fully multi-coated optics
- 6x SuperZoom for powerful magnification
- 37.2 - 6.3' at 100 yard linear field of view
- Wide 50mm objective diameter allows for improved visibility in challenging lighting conditions
- ZEISS T* full multi-layer coatings increase total transmission to 92%
- ZEISS FL (Fluoride) glass exhibits low-absorption and delivers sharp, high-contrast images and reduces
- LotuTec water-repellent coating allows water droplets to run-off the lenses and be removed without a trace
- Parallax-free at 100 yards
- Reticle 6
-
- 2nd focal plane
- German #4 style pattern: three posts with a thin crosshair
- Offers clear views with minimum coverage
- Use and Handling
-
- 1/4 MOA impact point correction
- 58 MOA windage and 103 MOA elevation ranges
- 9.5 - 2.8mm exit pupil
- 3.5" eye relief
- Construction
-
- 30mm diameter maintube
- Robust construction with impeccable mechanical precision
- HT windage and elevation turrets
- Nitrogen-filled, fogproof
- Waterproof to 400 mbar
UPC: 740035998421 In the Box ZEISS 3-18x50 Conquest V6 Riflescope (Reticle 6, Matte Black) - 2 x Elastic Lens Protectors
- Lens Cleaning Cloth
- Limited 5-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 3-18x50 Conquest V6 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 522241-9906-000 Specs | | | Magnification | 3 to 18x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 37.2' @ 100 yd / 12.4 m @ 100 m
18x: 6.3' @ 100 yd / 2.1 m @ 100 m | | Exit Pupil Diameter | 3x: 9.5 mm
18x: 2.8 mm | | Eye Relief | 3.5" / 89 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | 6 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 58 MOA | | Elevation Adjustment | 103 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -12 to 122°F / -24 to 50°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.3" / 33.8 cm
Objective Diameter: 2.2" / 5.6 cm | | Weight | 22.2 oz / 629.4 g |
