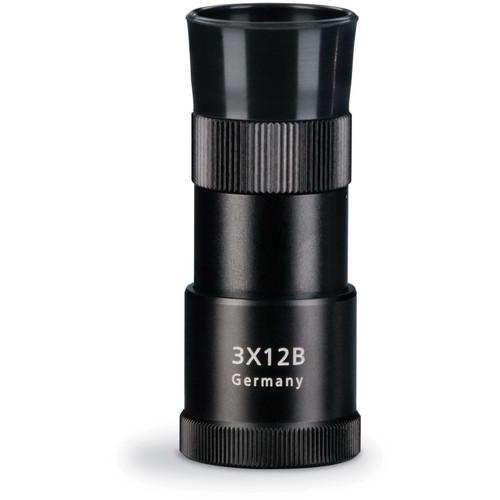

User Manual for ZEISS 3x12B Mono Tripler Monocular with Adapter Click to enlarge the picture
Contents of the user manual for the ZEISS 3x12B Mono Tripler Monocular with
- Product category: Monoculars ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Monoculars
|
User manual for the ZEISS 3x12B Mono Tripler Monocular with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description The 3x12B Mono Tripler Monocular with Adapter from ZEISS is a compact, multi-purpose optic that comes with an adapter ring to connect the monocular to the eyepiece of Victory series binoculars. When not using the adapter to triple the magnification of your glasses, this monocular's 8-inch minimum focus distance and fully multicoated lens system make it a premium-quality pocket-sized magnifying glass.ZEISS configured the 3x12B Mono with glass to match its functionality; it features achromatic lenses that produce detail-rich, color faithful images. Multiple layers of ZEISS' T* anti-reflective lens coating complement the color fidelity of the glass and enhance the contrast and sharpness of the transmitted view. Included with the monocular is a carrying strap and leather carrying case.The included adapter will not fit Victory RF, Victory FL, Victory HT binoculars. - Optical Performance
-
- 3x magnification, 12mm objective
- Achromatic lenses, Schmidt-Pechan roof prisms
- Fully multicoated optics, T* anti-reflective lens coating
- 38° apparent viewing angle
- 8" minimum focus distance
- 12mm eye relief
UPC: 740035992320 In the Box ZEISS 3x12B Mono Tripler Monocular with Adapter (Victory) Binocular Adapter Ring Carrying Strap Ocular Plug Limited Lifetime North America Warranty (Transferable) Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 3x12B Mono Tripler Monocular with Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 49 01 43 Specs | Magnification | 3.0x | | Objective Lens Diameter | 12 mm | | Field of View | 660 ft (200 m) at 1000 yd | | Apparent Angle of View | 38° | | Eye Relief | 12 mm | | Exit Pupil | 4 mm | | Minimum Focus Distance | 8" (20 cm) | | Dioptric Correction Range | ±4 | | Operating Temperature | -4 to 104°F (-20 to 40°C) | | Length | 1.9" (5 cm) | | Weight | 1.9 oz (54 g) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.2 x 6.4 x 4.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
