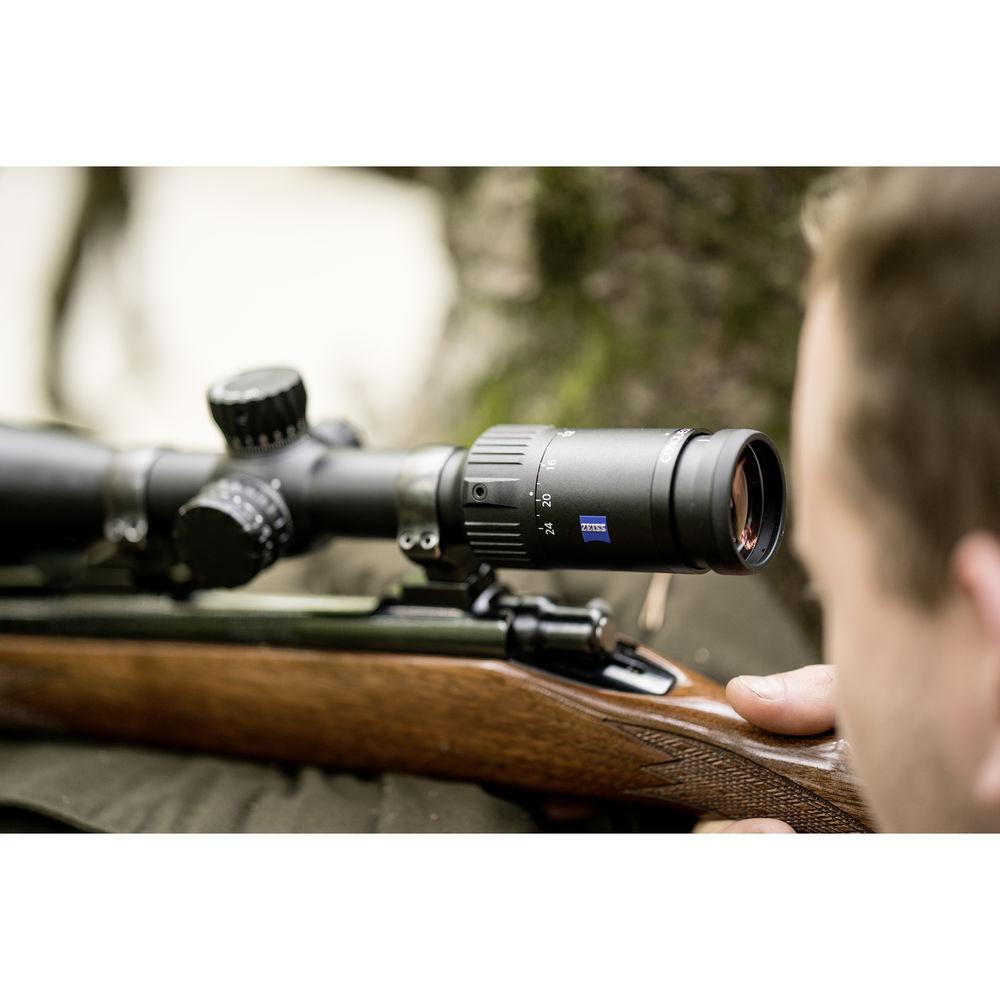

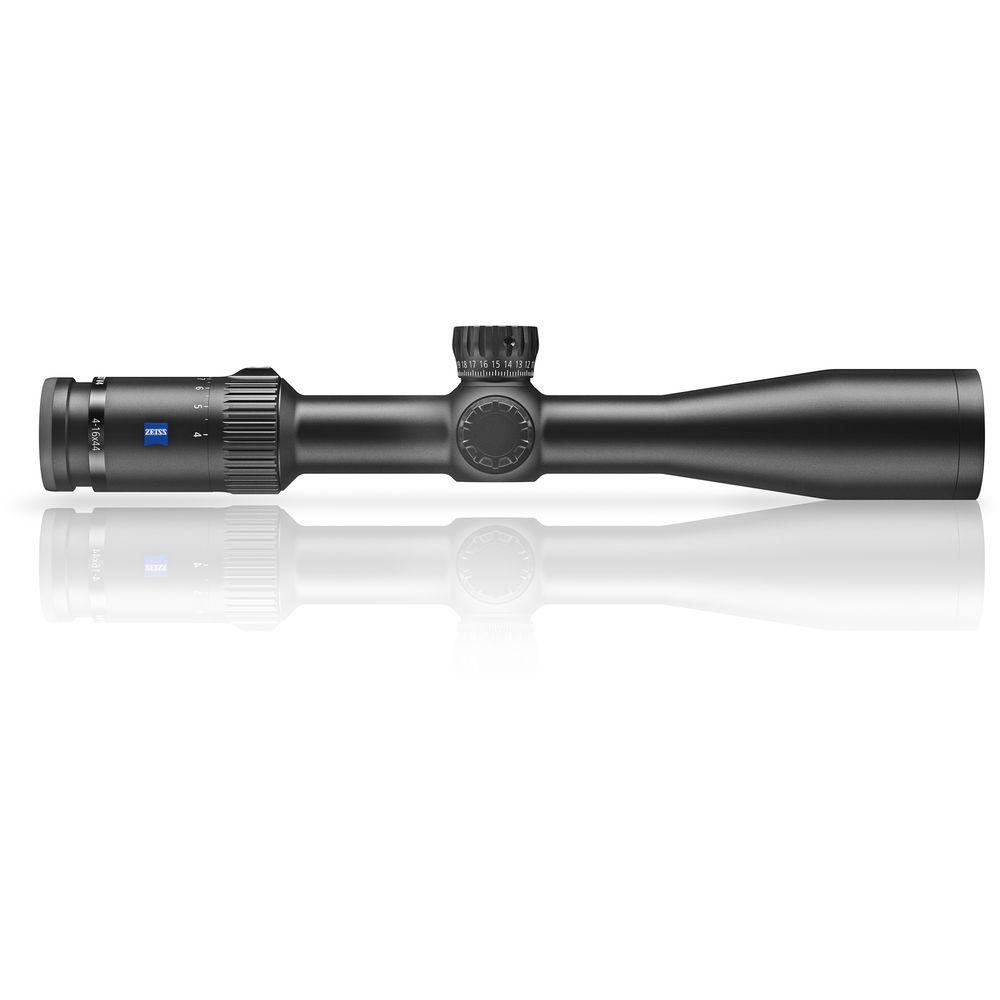

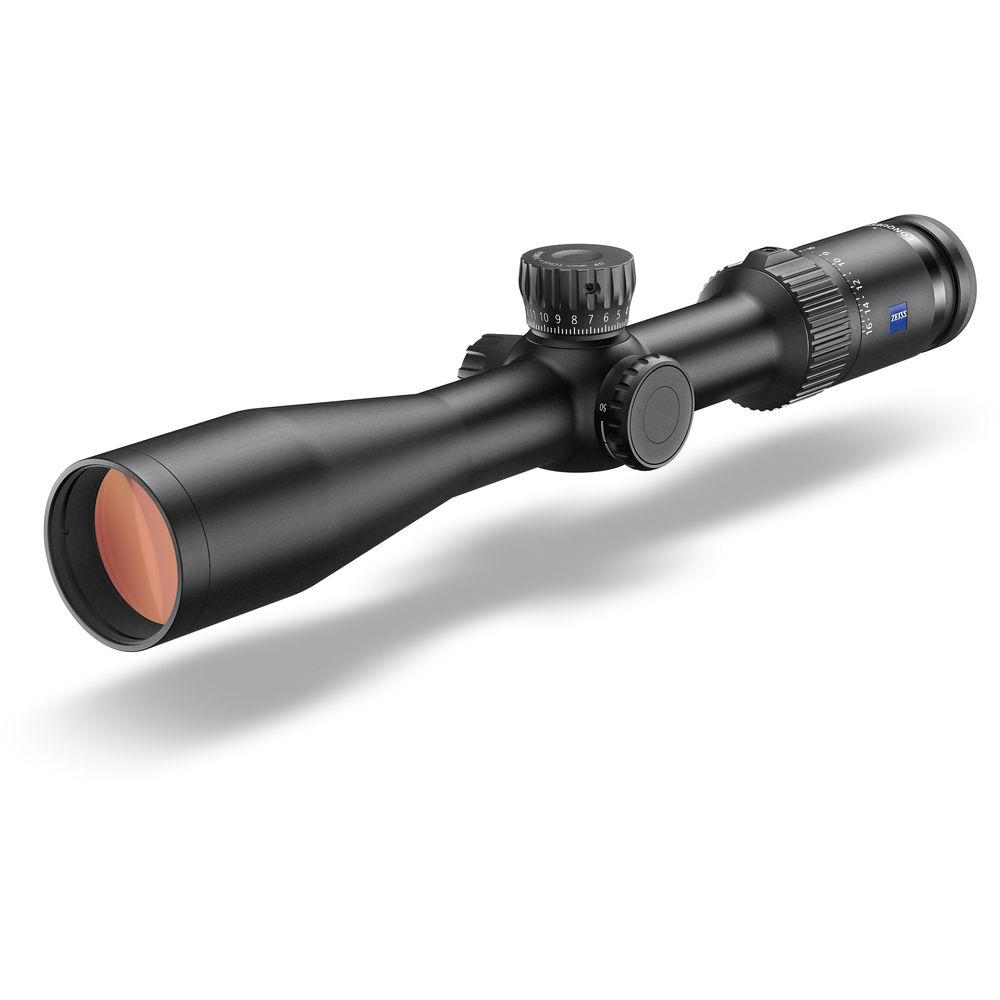

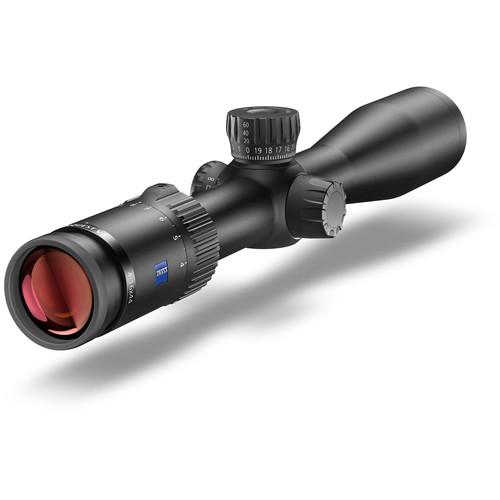

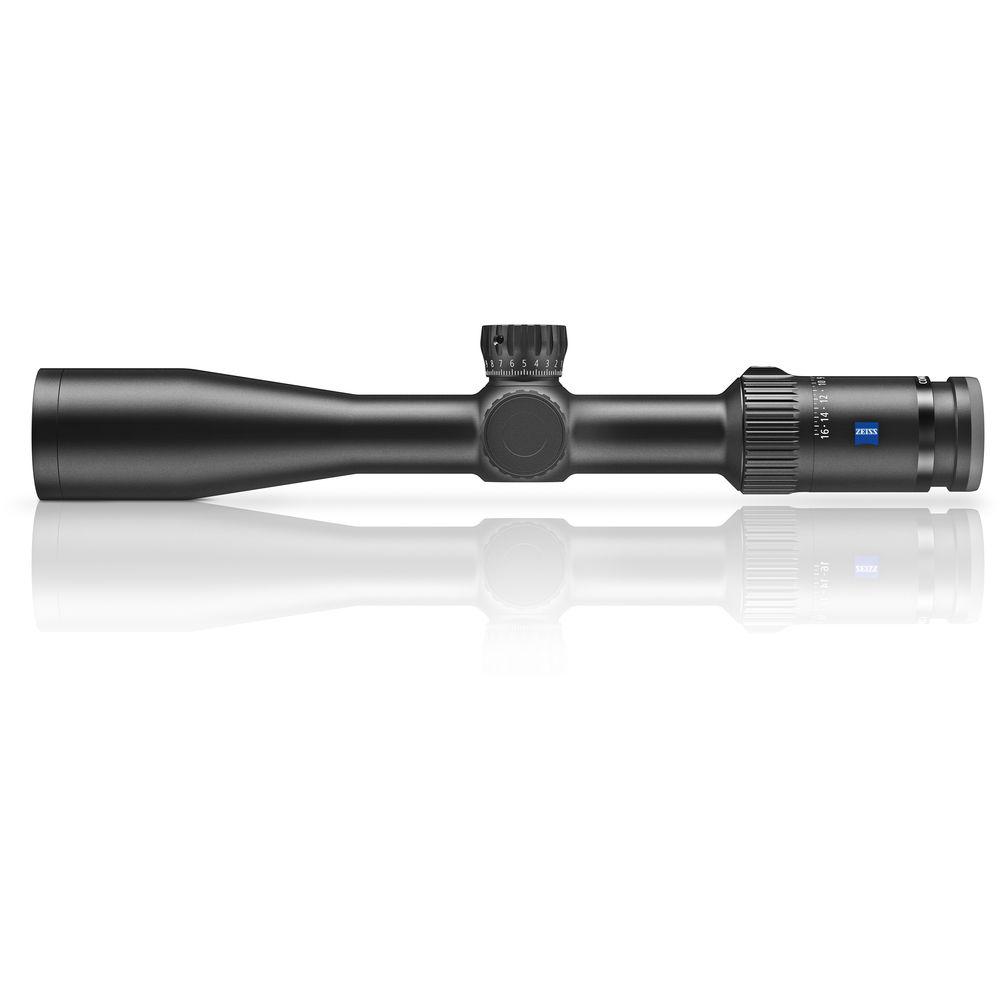

User Manual for ZEISS 4-16x44 Conquest V4 Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the ZEISS 4-16x44 Conquest V4 Side Focus
- Product category: Riflescopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Riflescopes
 |
User manual for the ZEISS 4-16x44 Conquest V4 Side Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description This ZEISS 4-16x44 Conquest V4 Side Focus Riflescope is engineered for hunting and shooting at longer ranges and in low-light conditions. While its 4-16x magnification allows you to zoom in on distant targets, the wide 44mm objective lens will generate bright and high contrast images in most lighting conditions. The optical system is outfitted with precision elements, made from high-definition optical glass and treated with T* multi-coatings, which produce a high light transmission and create bright and sharp images. To reduce the amount of maintenance required in the field, the exterior lenses are also treated with a proprietary LotuTec hydrophobic coating that lets water droplets run off the lens' surfaces and can be wiped off without visible traces. For accuracy and precision with placing shots, the scope also features a Z-Plex Reticle 20. It is in the 2nd focal plane and has four tapered posts with a thin crosshair. It is recommended for long-range shooting in daylight. For ensuring a parallax-free aiming, the scope also has a side focus parallax corrector with a range from 50 yards to infinity.
The aluminum housing is crafted with strength, durability, and precision in mind. It has a 30mm maintube and offers waterproof, nitrogen-filled fogproof, and submersible performance. Among other highlights are a low-profile lever for instant zoom adjustments and an external one-turn locking turret with ZEISS Ballistic Stop to ensure an absolute and positive return to zero. - Optical Performance
-
- 4 - 16x magnification range
- Wide 44mm objective diameter produces bright images in low-light conditions
- High-definition glass improves resolution and contrast
- T* optical coatings increase brightness and resolution
- Total transmission of light up to 90%
- LotuTec water-repellent coating allows water droplets to run off the lenses and be removed without a trace
- Field of view: 28.5 - 7.1' at 100 yards
- Use and Handling
-
- 1/4 MOA impact point correction
- 60 MOA windage and 80 MOA elevation range
- Side focus parallax corrector with a range from 50 yd to infinity
- 8.5 - 2.8mm exit pupil
- 3.5" eye relief
- Construction Details
-
- 30mm diameter maintube
- Aluminum construction
- External locking one-turn elevation turret with ballistic stop provides repeatable adjustments
- Nitrogen-filled, fogproof
- Waterproof to 400 mbar

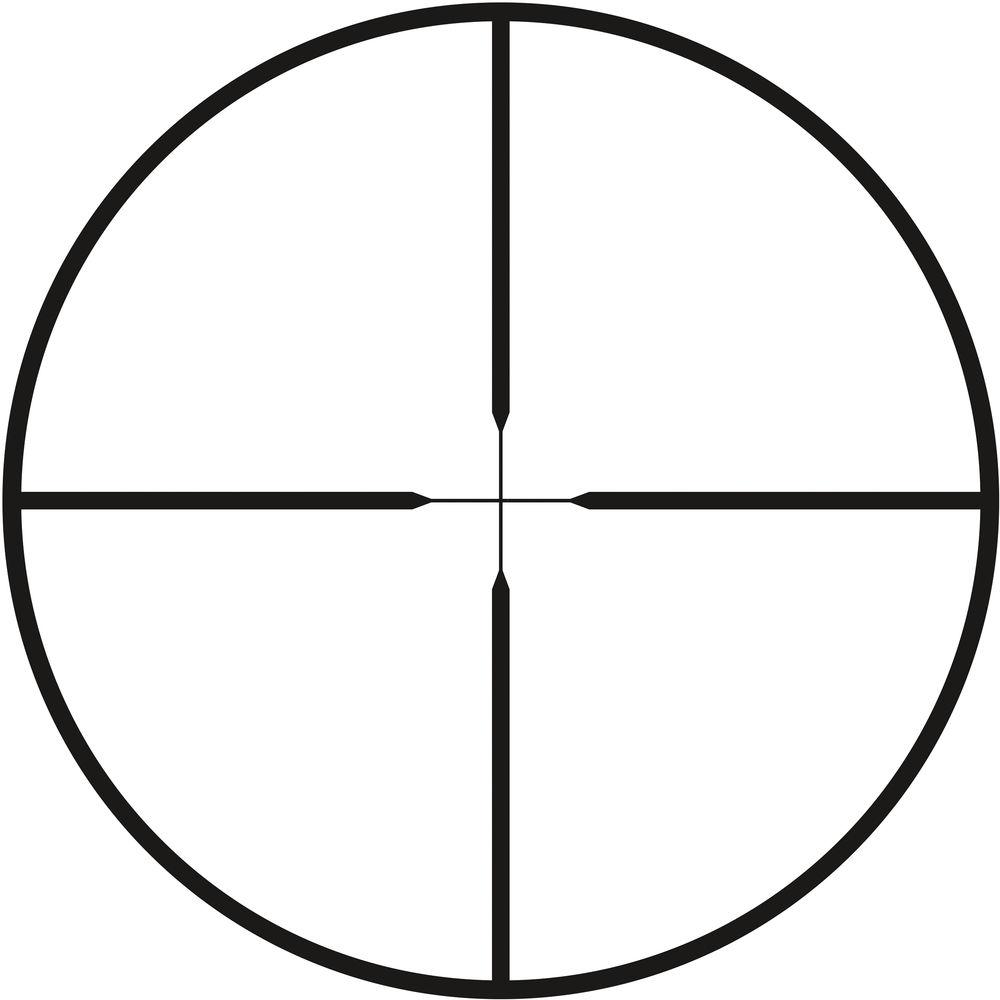

- Z-Plex Reticle 20 Non-Illuminated Reticle
-
- 2nd image plane
- Four tapered posts
- Thin crosshair
- For long-range shooting in daylight
UPC: 740035998889 In the Box ZEISS 4-16x44 Conquest V4 Side Focus Riflescope (Z-Plex Reticle 20, Matte Black) - Limited 5-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 4-16x44 Conquest V4 Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 522931-9920-080 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 44 mm | | Field of View | 4x: 28.5' @ 100 yd / 9.5 m @ 100 m
16x: 7.1' @ 100 yd / 2.4 m @ 100 m | | Exit Pupil Diameter | 4x: 8.5 mm
16x: 2.8 mm | | Eye Relief | 3.5" / 89 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | Z-Plex 20 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 80 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -4 to 131°F / -20 to 55°C | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 14" / 35.6 cm | | Weight | 22.6 oz / 510.8 g | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 16.5 x 5.2 x 4.4" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
