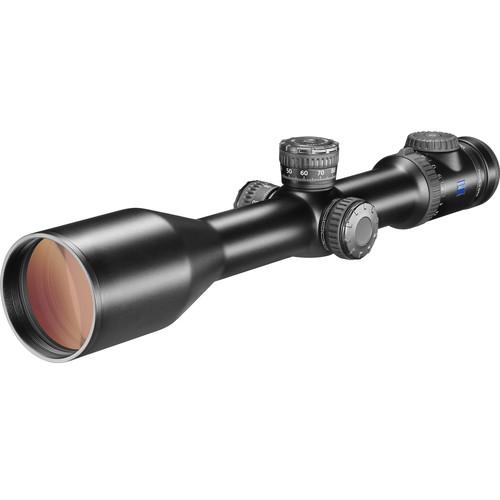

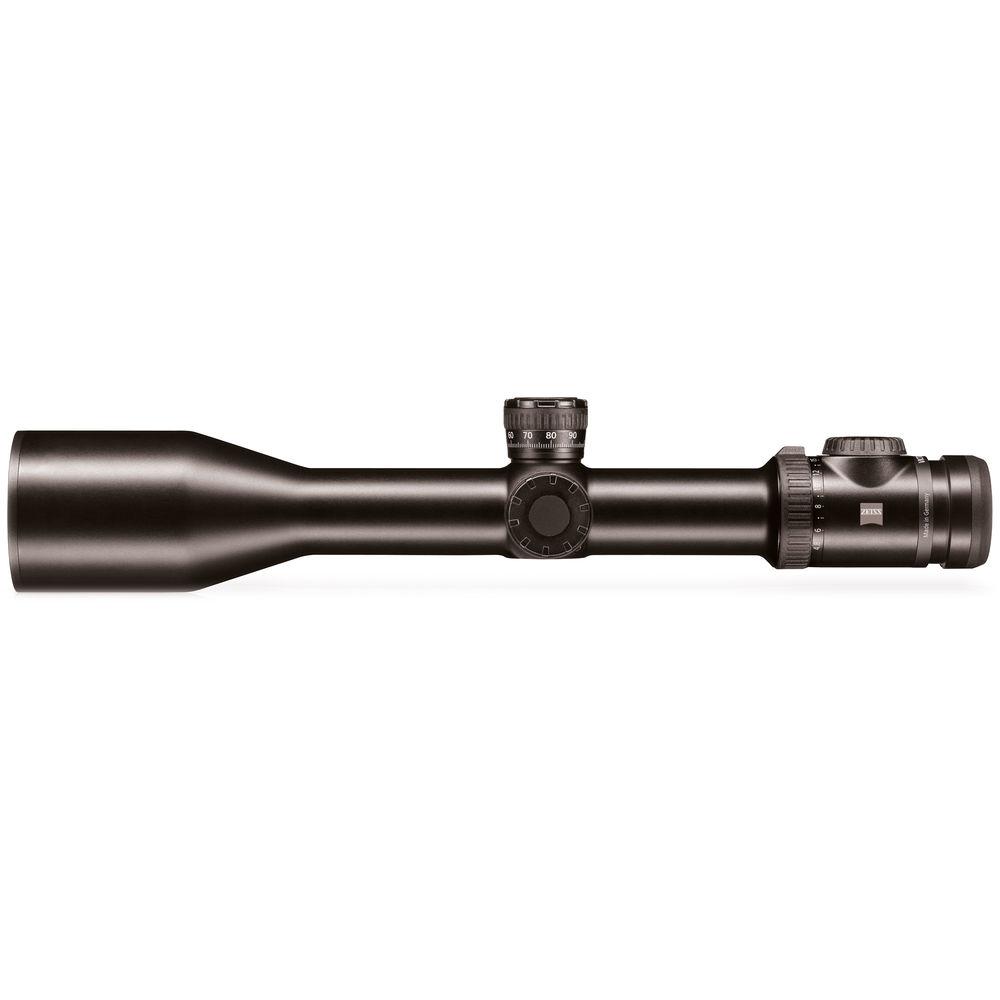

Product description The Victory V8 4.8-35x60 Long-Range Riflescope offers 4.8-35x magnification and features the Reticle 43 fine illuminated reticle. With 35x magnification and BDC competition bullet drop compensator, it is suitable for long-range shooting. The 92% light transmission and 60mm lens provide the necessary brightness for accurate long-range shots, even at high magnification in darkness.
The large exit pupil allows for fast target acquisition as soon as the rifle is raised. The optical system on this riflescope offers maximum detail rendition thanks to the combination of Schott HT and FL concepts. It also comes with parallax compensation.
At 12x magnification the reticle's stadia markings are exactly 10cm at 109 yards apart. You can therefore calculate the distance to the target, as the angle between the points equals 1 milliradian. Since all of the inner crosshairs and the dot are illuminated, you can use this to your advantage to estimate distances even in the deepest twilight. - 36mm center tube diameter provides more room for adjusting the reticle range

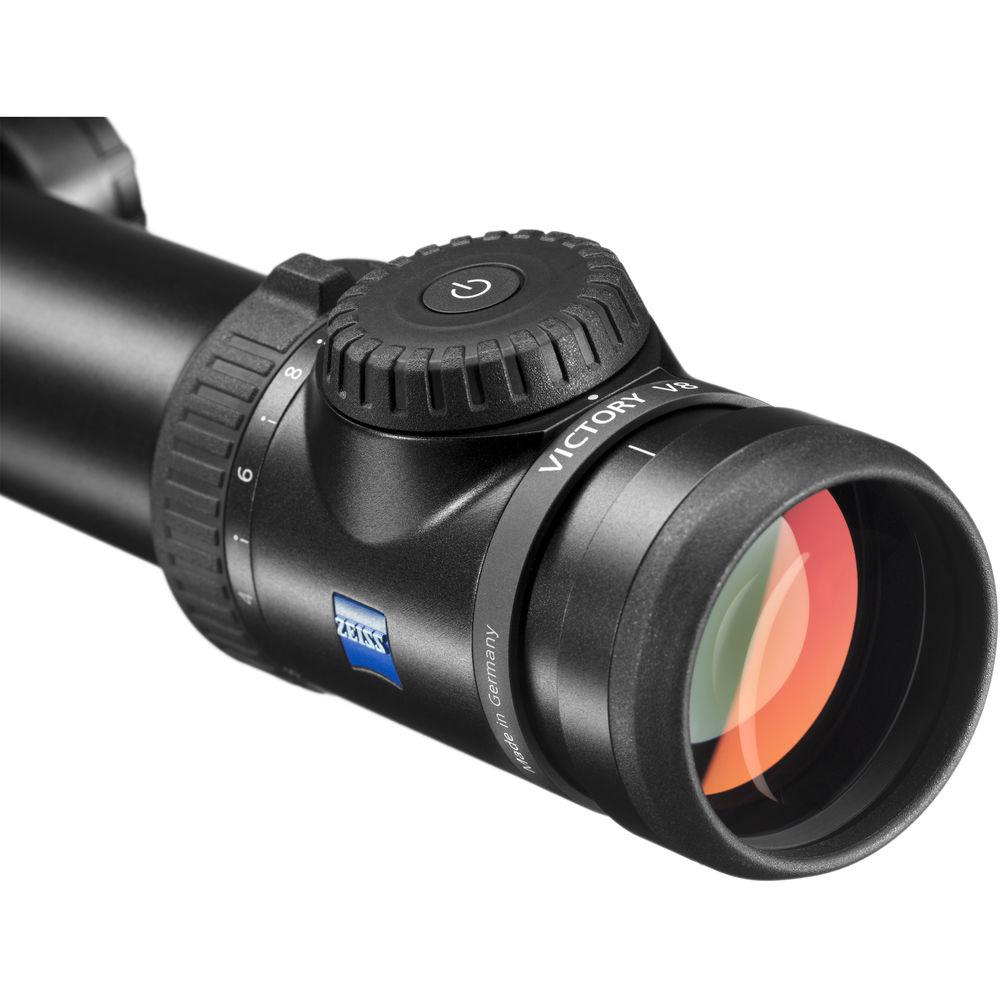

- Multifunction button to control the illuminated dot
- ASV/BDC LongRange and Competition allows for precise, accurate long-range shooting
- Intelligent motion sensor to automatically activate the illuminated dot when the rifle is brought to a shooting position
- Fast target acquisition and round, clear images at all powers, thanks to a large exit pupil and maximum field of view
- Combination of 92% light transmission, FL lenses, and Schott HT glass provides improved image quality
UPC: 740035997530 In the Box ZEISS 4.8-35x60 Victory V8 Long-Range Riflescope (BDC, Illuminated Reticle) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 4.8-35x60 Victory V8 Long-Range Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 522149-9943-040 Specs | | | Magnification | 4.8 to 35x | | Objective Lens Diameter | 60 mm | | Field of View | 4.8x: 24' @ 100 yd / 7.3 m @ 100 m
35x: 3.3' @ 100 yd / 1 m @ 100 m | | Exit Pupil Diameter | 4.8x: 9.9 mm
35x: 1.4 mm | | Eye Relief | 3.8" / 95.2 mm | | Diopter Correction | -3.5 to +2.0 | | | | Reticle Type | 43 Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/6 MOA per Click | | Windage Adjustment | 52 MOA | | Elevation Adjustment | 52 MOA | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -13 to 122°F / -25 to 50°C | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 15.8" / 400 mm | | Weight | 34 oz / 963.8 g | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 18.8 x 4.1 x 3.8" |
