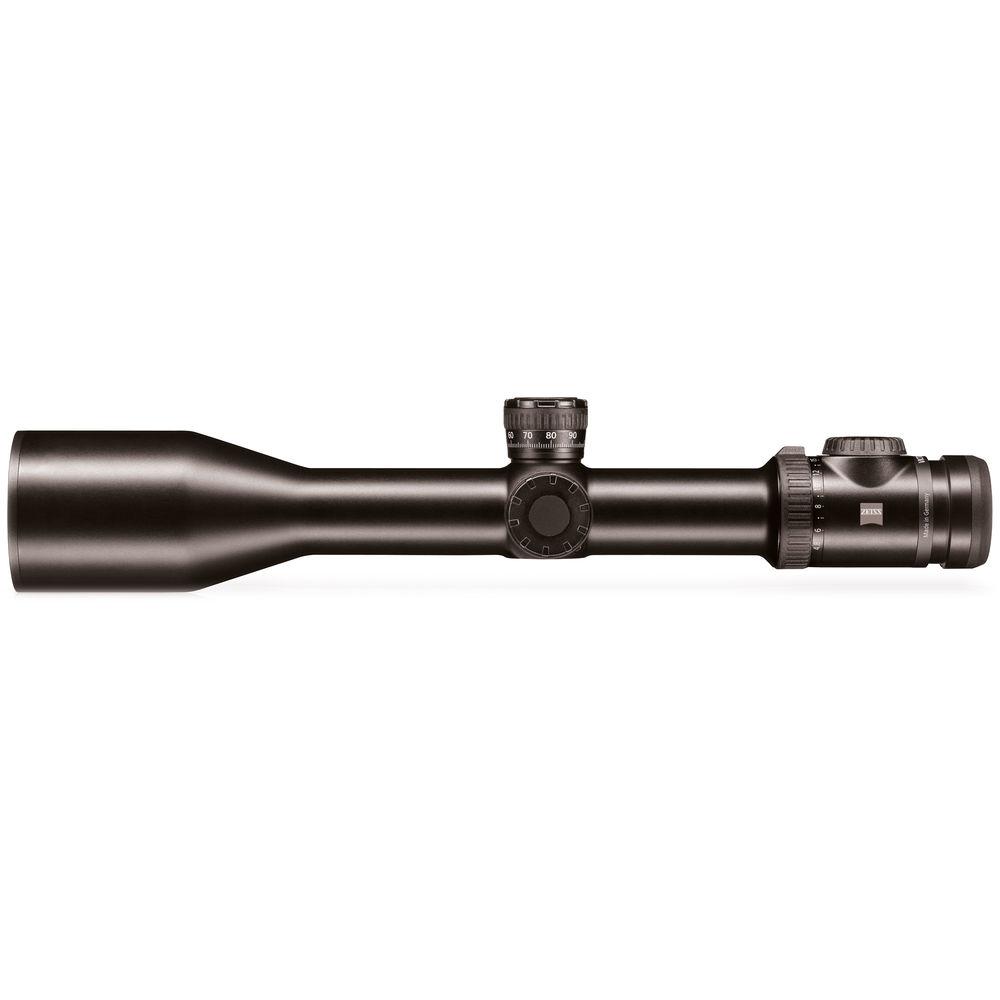

User Manual for ZEISS 4.8-35x60 Victory V8 Long-Range Riflescope Click to enlarge the picture
Contents of the user manual for the ZEISS 4.8-35x60 Victory V8 Long-Range Riflescope
- Product category: Riflescopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Riflescopes
 |
User manual for the ZEISS 4.8-35x60 Victory V8 Long-Range Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|

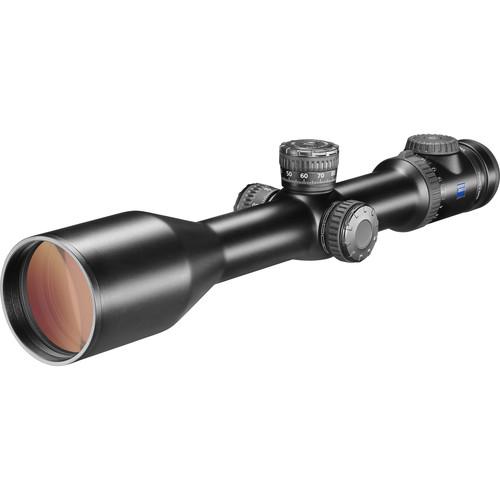

Product description The Victory V8 4.8-35x60 Long-Range Riflescope from ZEISS offers 4.8-35x magnification and features the Reticle 60 illuminated red dot reticle. With 35x magnification and BDC competition bullet drop compensator, it is suitable for long-range shooting. The 92% light transmission, Schott HT glass, and 60mm lens provide the necessary brightness for accurate long-range shots, even at high magnification in darkness.
The large exit pupil allows for fast target acquisition as soon as the rifle is raised. The optical system on this riflescope offers maximum detail rendition thanks to the combination of Schott HT and FL concepts. It also comes with parallax compensation.
The Reticle 60's posts only cover half the area, leaving double the amount of space between them. This makes it suitable for precision shooting with minimum coverage of the target game. At 12x magnification, with target coverage of just .55cm at 109 yards, you can keep a good overview without losing sight of the finer details. The illuminated dot is very bright, and can therefore be used for daytime hunting. The dot can be finely adjusted, which makes it ideal for night-time hunting too. In addition, the reticle is in the 2nd focal plane. - 36mm center tube diameter provides more room for adjusting the reticle range
- Multi-function button to control the illuminated dot
- ASV/BDC LongRange and Competition allows for precise, accurate long-range shooting
- Intelligent motion sensor to automatically activate the illuminated dot when the rifle is brought to a shooting position
- Fast target acquisition and round, clear images at all powers, thanks to a large exit pupil and maximum field of view
- Combination of 92% light transmission, FL lenses, and Schott HT glass provide improved image quality
In the Box ZEISS 4.8-35x60 Victory V8 Long-Range Riflescope (Illuminated Red Dot Reticle, 36mm Tube) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 4.8-35x60 Victory V8 Long-Range Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 522149-9960-040 Specs | | | Magnification | 4.8 to 35x | | Objective Lens Diameter | 60 mm | | Field of View | 4.8x: 24' @ 100 yd / 7.3 m @ 100 m
35x: 3.3' @ 100 yd / 1 m @ 100 m | | Exit Pupil Diameter | 4.8x: 9.9 mm
35x: 1.4 mm | | Eye Relief | 3.8" / 95.2 mm | | Diopter Correction | -3.5 to +2.0 | | | | Reticle Type | Dot Reticle (Second Focal Plane) | | Illumination | Illuminated | | Illuminated Color | Red | | | | Impact Point Correction | 1/6 MOA per Click | | Windage Adjustment | 52 MOA | | Elevation Adjustment | 52 MOA | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -13 to 122°F / -25 to 50°C | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 15.8" / 400 mm | | Weight | 34 oz / 963.8 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
