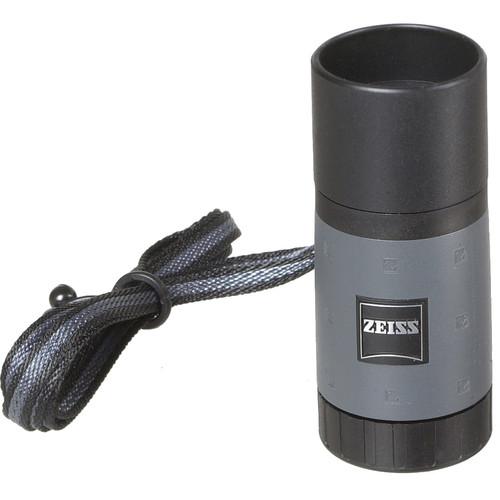

User Manual for ZEISS 4x12 Mono T* Monocular Click to enlarge the picture
Contents of the user manual for the ZEISS 4x12 Mono T* Monocular
- Product category: Monoculars ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Monoculars
|
User manual for the ZEISS 4x12 Mono T* Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description Featuring achromatic lenses with the renowned T* multi-coating for maximum light transmission, the 4x12 Mono T* Monocular delivers a bright, high-contrast image. Its moderate magnifying power produces a very steady image for observing distant objects, and its wide field of view – 540 feet at 1000 yards – lends itself to use at concerts, plays, and sporting events. Meanwhile, the 4x12 Mono's close focus distance of just 18" is useful for examining flowers, insects, brushstrokes on paintings, or fine printed matter.This monocular's compact form factor – only 2.4" long and weighing just 1.6 ounces, with a leather pouch and a carrying strap – make it easy to have on hand. Its housing is made of durable aluminum, it's splash resistant, and its operating temperature range is -4° to 104°. - Optical Performance
-
- ZEISS T* anti-reflective multi-coating maximizes light transmission
- Achromatic lens design minimizes chromatic and spherical aberration
- Schmidt-Pechan roof style prisms
- 4x magnification, 12mm objective lens
- Use and Handling
-
- Rotating eyepiece for focus
- 540' field of view at 1000 yards
- Long 15mm eye relief accommodates eyewear
- Close focus 18"
- Construction Details
-
- Aluminum housing
- Splash-proof
- Leather pouch & strap
UPC: 740035849204 In the Box ZEISS 4x12 Mono T* Monocular Pouch Strap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 4x12 Mono T* Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 522050-0000-000 Specs | Prism Design | Schmidt-Pechan | | Magnification | 4x | | Objective Lens Diameter | 12mm | | Angle of View | 10.3° | | Field of View | 540' at 1000 yd / 180 m @ 1000 m | | Exit Pupil Diameter | 3 mm | | Eye Relief | 15 mm | | Diopter Correction | ±4 | | Minimum Focus Distance | 18" / 45.7 cm | | Weatherproofing | Splash resistant | | Length | 2.4" / 6.1 cm | | Weight | 1.6 oz / 45 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 5.65 x 4.0 x 2.75" |
