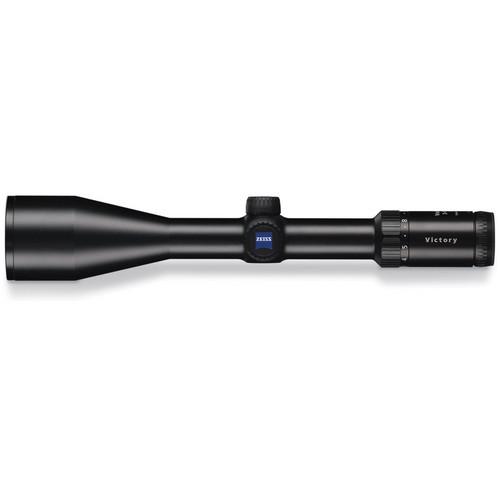

User Manual for ZEISS 522431-9972-000 Victory HT 3-12x56 Riflescope Click to enlarge the picture
Contents of the user manual for the ZEISS 522431-9972-000 Victory HT 3-12x56 Riflescope
- Product category: Riflescopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Riflescopes
|
User manual for the ZEISS 522431-9972-000 Victory HT 3-12x56 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description The ZEISS 522431-9972-000 Victory HT 3-12x56 Riflescope is equipped with the non-illuminated reticle Rapid-Z800. This riflescope makes targets visible in the very last of shooting light. The combination of the advanced SCHOTT HT glass, the ASV turret option, and the 56mm high-performance objective lens makes this riflescope accurate at any distance, in any light.
The Rapid-Z800 reticle is well suited for most of the magnum class of hunting cartridges, .300 Win Mag, 270 WSM, and 338 Win Mag.
This riflescope achieves up to 95% light transmission or more and the optical concept of this riflescope offers low light performance. With its SCHOTT HT high-transmission lens and a reticle for minimum target coverage, this riflescope allows you to hunt for a longer day with success afield.
This Victory HT Riflescope’s compact construction with eyepiece enables the scope to be mounted low on the rifle, merging the 2 into a low-profile, high-performing shooting unit. The lightweight, matte black, aircraft-grade aluminum housing is both elegant and rugged. It offers huge advancements in ergonomics. - SCHOTT HT high-transmission lenses for use in extremely low-light situations
- Sleek, compact, and ergonomic design
- Bullet drop compensation ASV
- Rapid-Z800 non-illuminated reticle
- LotuTec protective coating for easy cleaning and clear visibility in any weather
In the Box ZEISS 522431-9972-000 Victory HT 3-12x56 Riflescope Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 522431-9972-000 Victory HT 3-12x56 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 522431-9972-000 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 56 mm | | Field of View | 3x: 37.5' @ 100 yd / 11.4 m @ 100 m
12x: 10.5' @ 100 yd / 3.2 m @ 100 m | | Exit Pupil Diameter | 3x: 14.9 mm
12x: 4.7 mm | | Eye Relief | 3.5" / 89.9 mm | | Diopter Correction | -4.0 to +2.0 | | | | Reticle Type | Rapid-Z800 Reticle (Second Focal Plane) | | | | Impact Point Correction | 0.3 MOA per Click | | Parallax Correction | Yes, 109.4 yd / 100 m | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Operating Temperature | -13 to 122°F / -25 to 50°C | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 13.7" / 347 mm
Objective Diameter: 2.4" / 62 mm | | Weight | 19.9 oz / 564.2 g |
