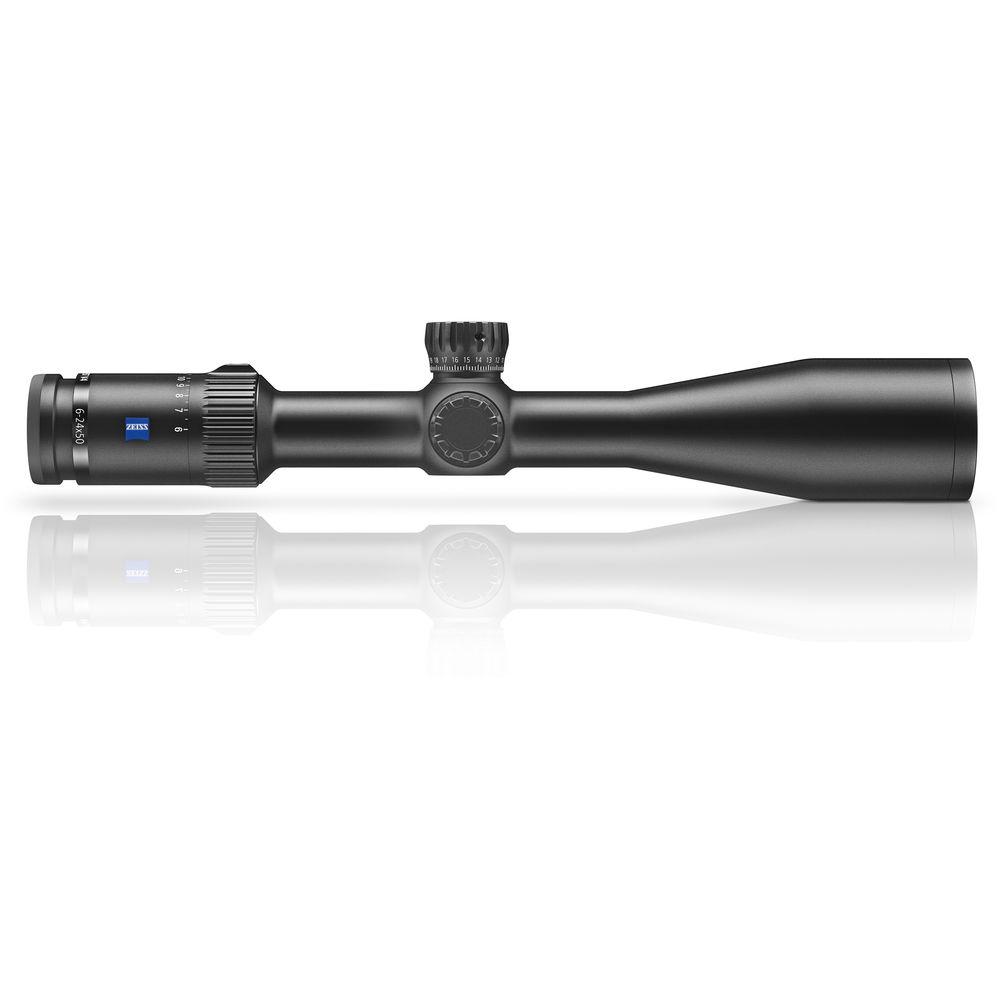

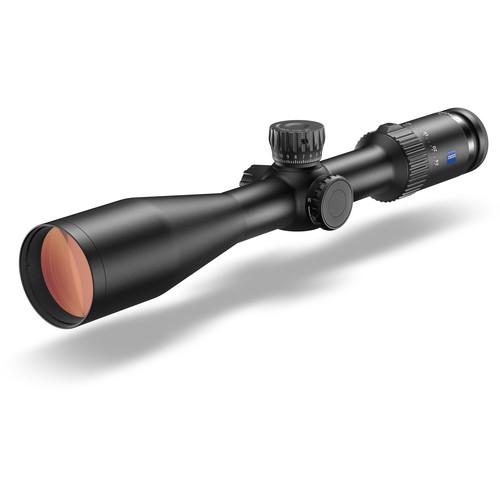

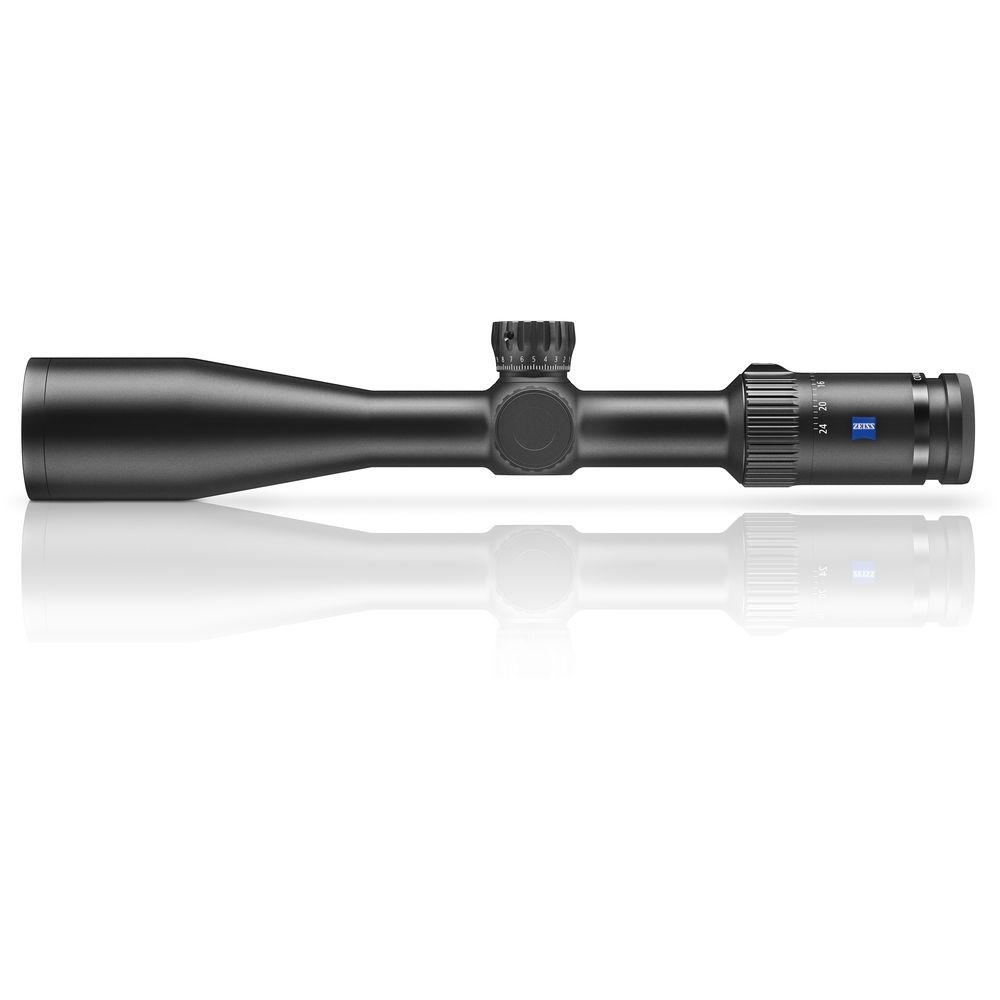

User Manual for ZEISS 6-24x50 Conquest V4 Riflescope Click to enlarge the picture
Contents of the user manual for the ZEISS 6-24x50 Conquest V4 Riflescope
- Product category: Riflescopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Riflescopes
 |
User manual for the ZEISS 6-24x50 Conquest V4 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description This ZEISS 6-24x50 Conquest V4 Riflescope is engineered for precision and long-range shooting. Its generous 6-24x zoom magnification serves the purpose well, and a wide 50mm objective lens collects enough light even in low-light conditions to produce bright and high-contrast images. ZEISS optical design features high-definition glass lenses that were also treated with T* anti-reflection multi-coatings in order to deliver bright and sharp images with low glare. Whether you set out on a bright or a wet day, you can count on the LotuTec hydrophobic coatings to keep your lenses clean. They repel water and enable droplets to run off a lens' surfaces easily. They also allow you to wipe off the lenses without leaving traces. For accuracy and precision when placing shots, the scope also features a ZBR-1 Reticle 91. The reticle resides in the second focal plane and has three posts and a milling crosshair with a stadia tree under the center. To ensure a parallax-free performance for any range, the scope also features a side focus parallax corrector, adjustable from 50 yards to infinity.
The aluminum housing is crafted with strength, durability, and precision in mind. It has a 30mm maintube and offers waterproof, nitrogen-filled fogproof, and submersible performance. Other highlights include a low-profile lever for instant zoom adjustments and an external one-turn locking turret with ZEISS' Ballistic Stop to ensure an absolute and positive return to zero. - Optical Performance
-
- 6 - 24x magnification range
- Wide 50mm objective diameter produces bright images in low-light conditions
- High-definition glass improves resolution and contrast
- T* optical coatings increase brightness and reduce glare
- LotuTec hydrophobic coating makes droplets run off the lenses and allows wiping without traces
- Field of view: 19 - 4.8' at 100 yards
- Use and Handling
-
- 1/4 MOA impact point correction
- 60 MOA windage and 80 MOA elevation range
- Parallax-free from 50 yd to infinity
- 7.5 - 2.1 mm exit pupil
- 3.5" eye relief
- Construction Details
-
- 30mm diameter maintube
- Aluminum construction
- External locking one-turn elevation turret with ballistic stop provides repeatable adjustments
- Nitrogen-filled, fogproof
- Waterproof to 400 mbar

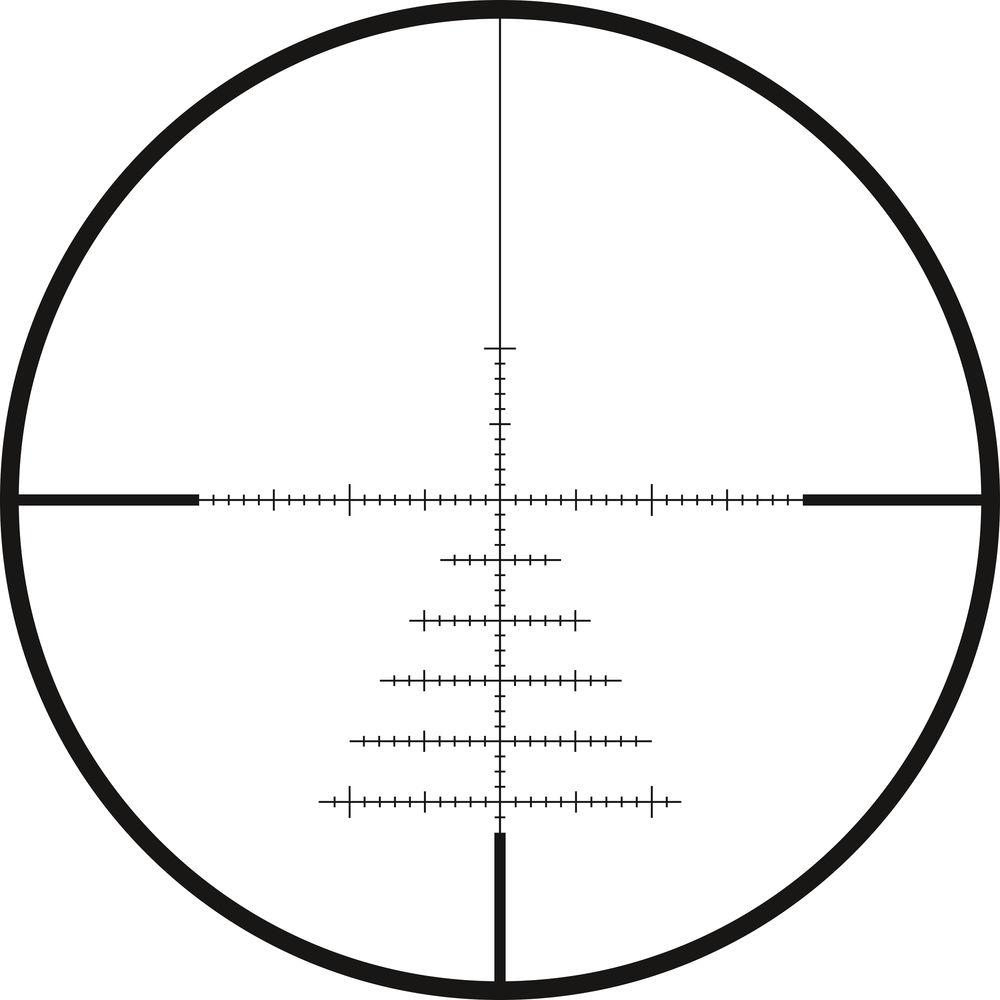

- ZBR-1 Reticle 91
-
- 2nd focal plane
- Three posts
- Milling crosshair with a stadia tree under the center
- MOA-based markings
UPC: 740035998841 In the Box ZEISS 6-24x50 Conquest V4 Riflescope (ZBR-1 Reticle 91, Matte Black) - Limited 5-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 6-24x50 Conquest V4 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 522951-9991-080 Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 50 mm | | Field of View | 6x: 19' @ 100 yd / 6.3 m @ 100 m
24x: 4.8' @ 100 yd / 1.6 m @ 100 m | | Exit Pupil Diameter | 6x: 7.5 mm
24x: 2.1 mm | | Eye Relief | 3.5" / 89 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | ZBR-1 91 Reticle (Second Focal Plane) | | Illumination | Non-Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 80 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -4 to 131°F / -20 to 55°C | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 14.5" / 36.8 cm | | Weight | 24.4 oz / 691.7 g | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 16.6 x 4.8 x 4.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
