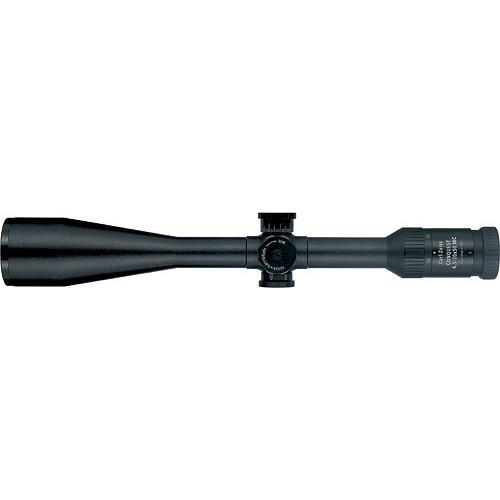

User Manual for ZEISS 6.5-20x50 Conquest AO MC Riflescope Click to enlarge the picture
Contents of the user manual for the ZEISS 6.5-20x50 Conquest AO MC Riflescope
- Product category: Riflescopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Riflescopes
|
User manual for the ZEISS 6.5-20x50 Conquest AO MC Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description Carl ZEISS has a long and illustrious history that begins in Germany in 1846. Since their inception, they have been known to be leaders in the world of optical designs and fine mechanics. Purchasing and using a riflescope from the creators of many of the world's most revered optical and mechanical designs ensures satisfaction, confidence and appreciation for how a truly fine optic can enhance your outdoor experience.When you are up for the challenge of accurate shot placement across distances others only fantasize about conquering, the powerful ZEISS Conquest A0 MC 6.5-20x50 Riflescope is here to show you the way. The extremely light-efficient multi-coated 50mm objective lens will deliver a bright, crisp sight picture that ensures your ability to see your target clearly regardless of the lighting conditions. Positive shot placement is no longer a concern, even at high magnification, thanks to the side focus parallax correction system. Bullet drop compensation is simple to calculate and the adjustment is right at your fingertips. Now you can bag your quarry at 300 yards or more, with the correct cartridge and the ZEISS Conquest 6.5-20x50. To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and the rings attach your scope to the base. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - Side focus knob for parallax correction
- 6.5-20x50 Configuration delivers long-range capability
- 1/4 MOA precision adjustments with 75 MOA of W&E correction
- 1.0" Main tube is nitrogen purged for water and fog proof performance
- Multicoated Lenses
- Carl ZEISS MC multicoating on all glass-to-air surfaces for maximum transmission, color fidelity and brilliance.
- Legendary ZEISS Optics
- Carl ZEISS precision ground optics ensure detailed images with high contrast
- #4 Reticle in the Second Focal Plane
- The #4 reticle is a traditional post and cross hair reticle, with three heavy non-tapered posts at 3, 6, and 9 o'clock. These posts are sure to bring your eye to the center of your sight picture quickly and they'll be readily visible under difficult lighting conditions. The fine crosshairs enable you to fine tune your shot placement.
Second focal plane positioning: The reticle does not magnify when the scope's power is dialed up. UPC: 740035588943 In the Box ZEISS 6.5-20x50 Conquest AO MC Riflescope (Matte Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 6.5-20x50 Conquest AO MC Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 52 14 50 9904 Specs | | | Magnification | 6.5 to 20x | | Objective Lens Diameter | 50 mm | | Field of View | 6.5x: 17.7' @ 100 yd / 5.9 m @ 100 m
20x: 5.7' @ 100 yd / 1.9 m @ 100 m | | Exit Pupil Diameter | 6.5x: 7.7 mm
20x: 2.5 mm | | Eye Relief | 3.5" / 89 mm | | Diopter Correction | -3.0 to +2.0 | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 45 MOA | | Elevation Adjustment | 45 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 15.6" / 39.6 cm | | Weight | 21.8 oz / 619 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 16.3 x 3.9 x 3.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 74 owners. Add your rating and experience with the product.
