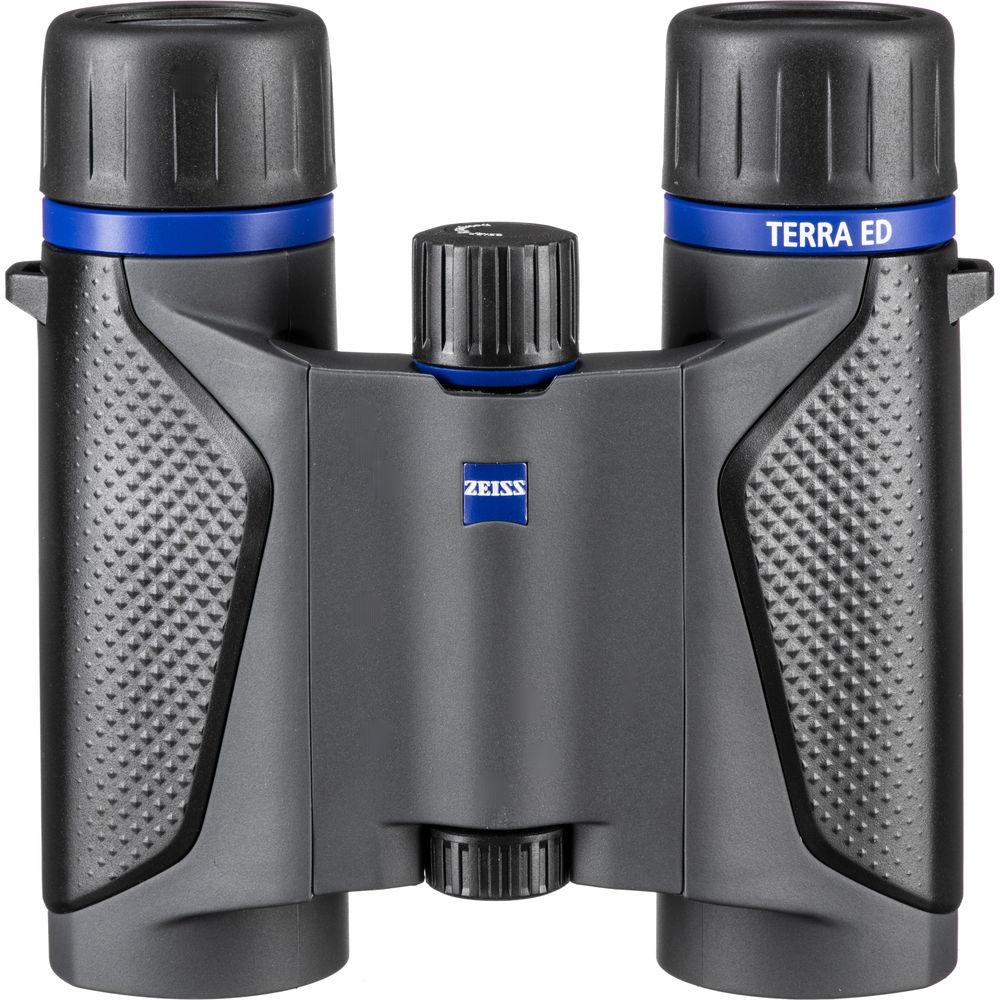

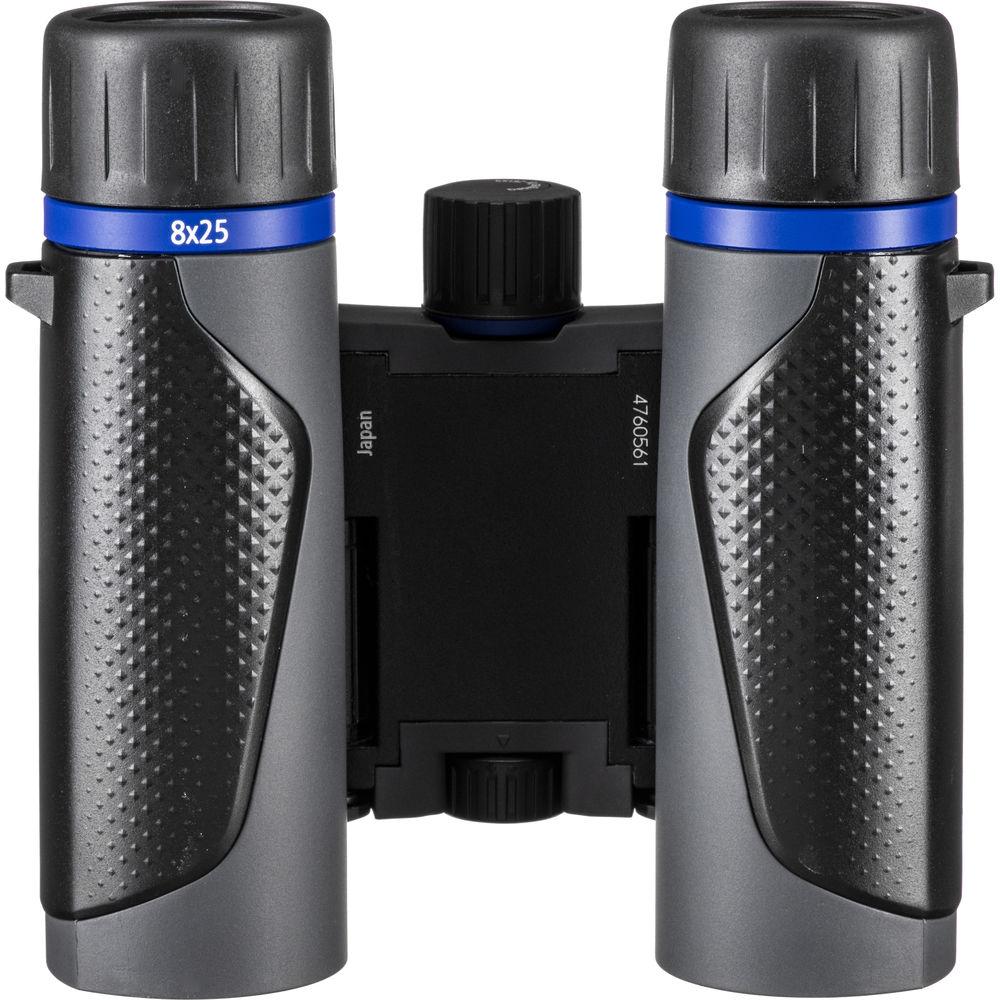

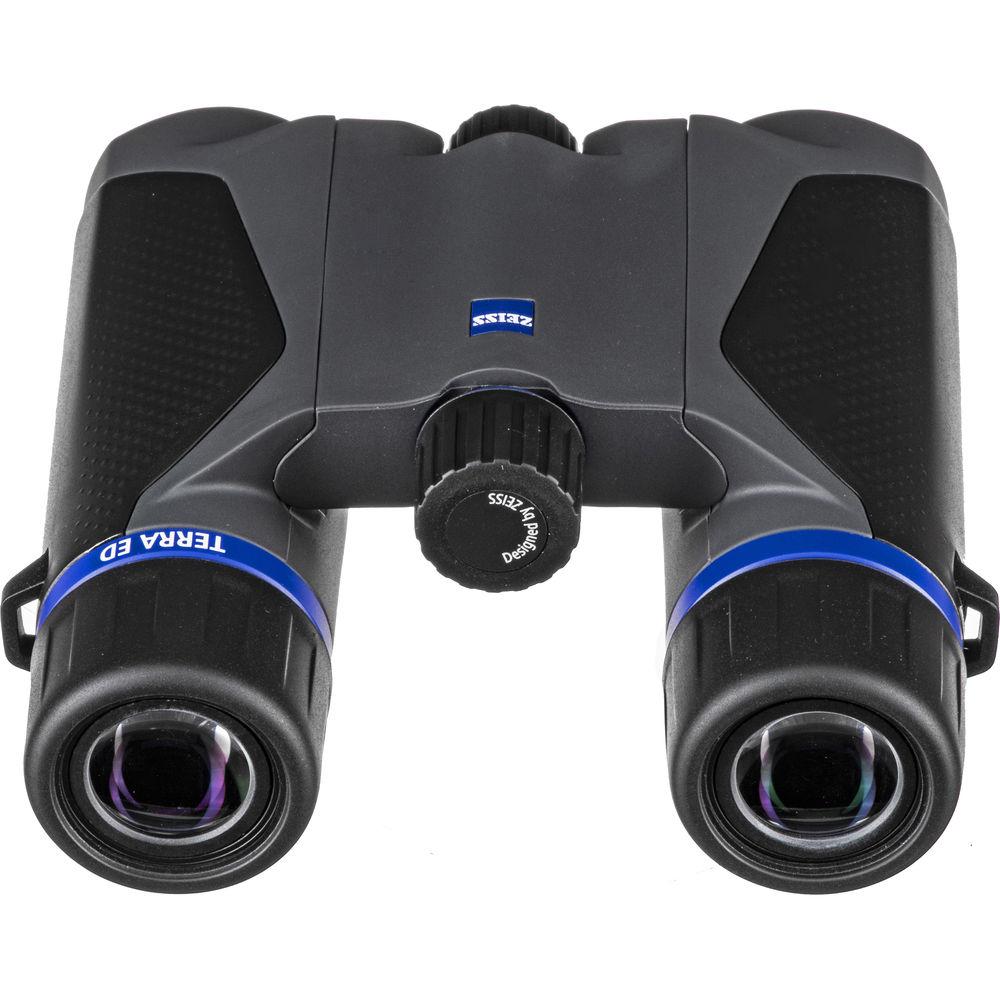

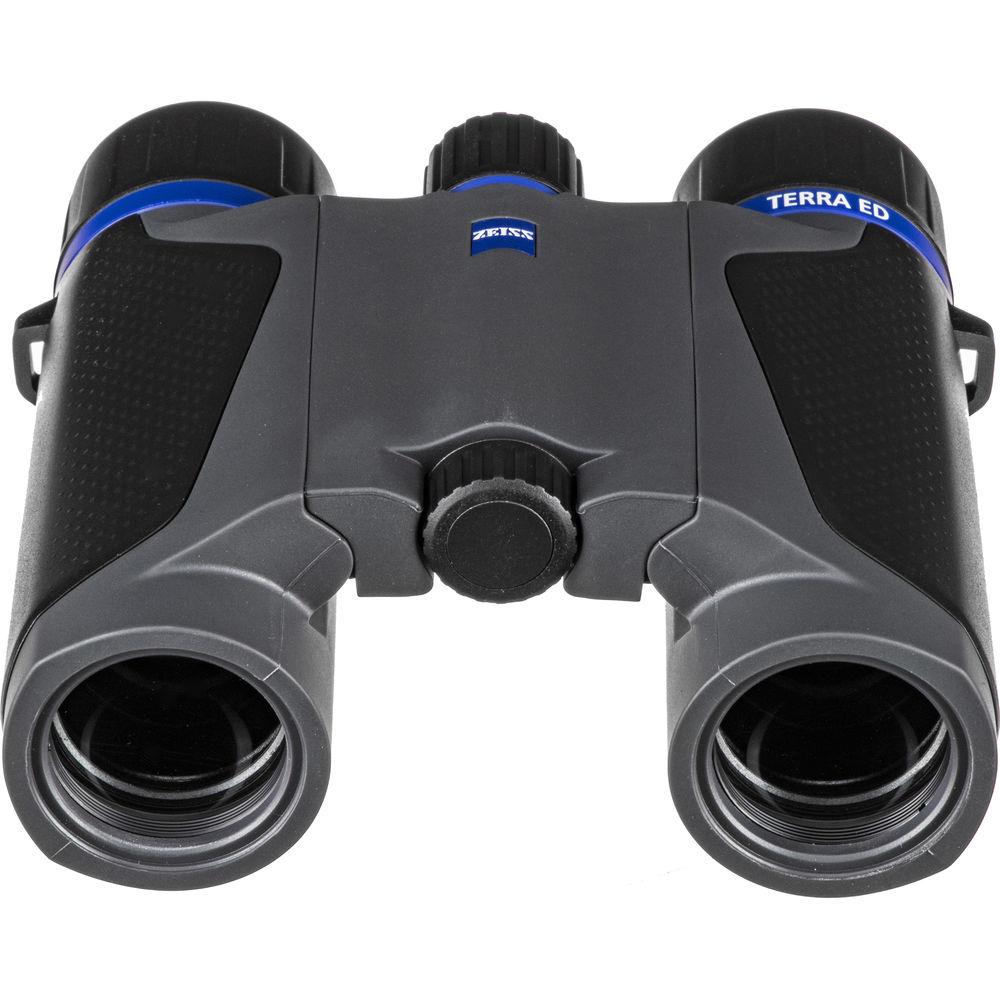

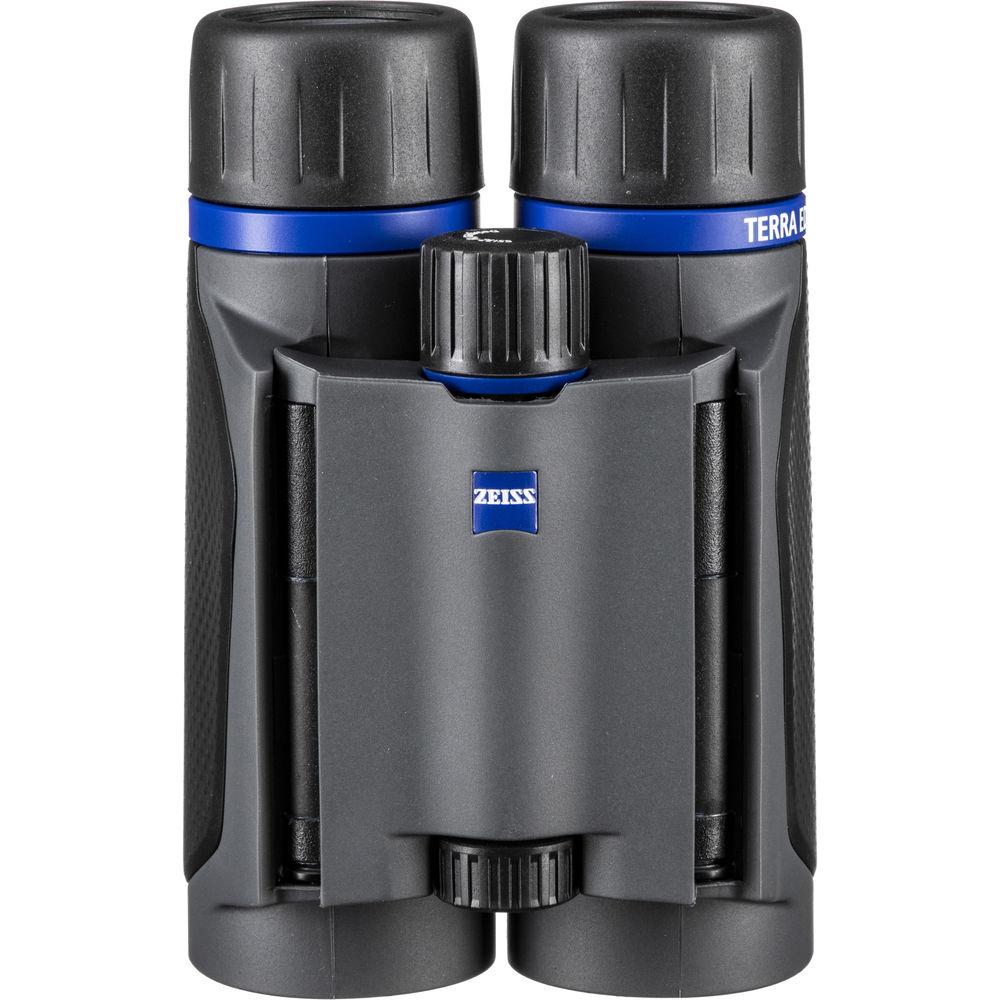

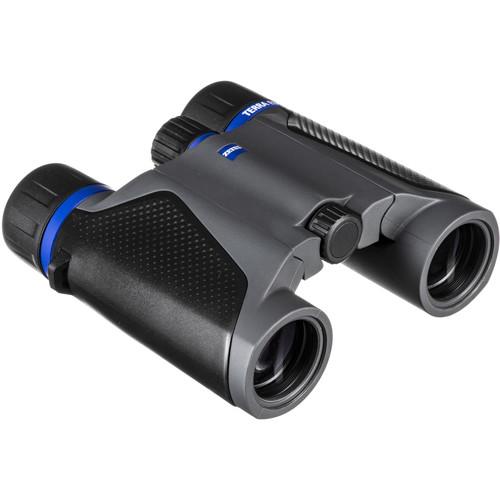

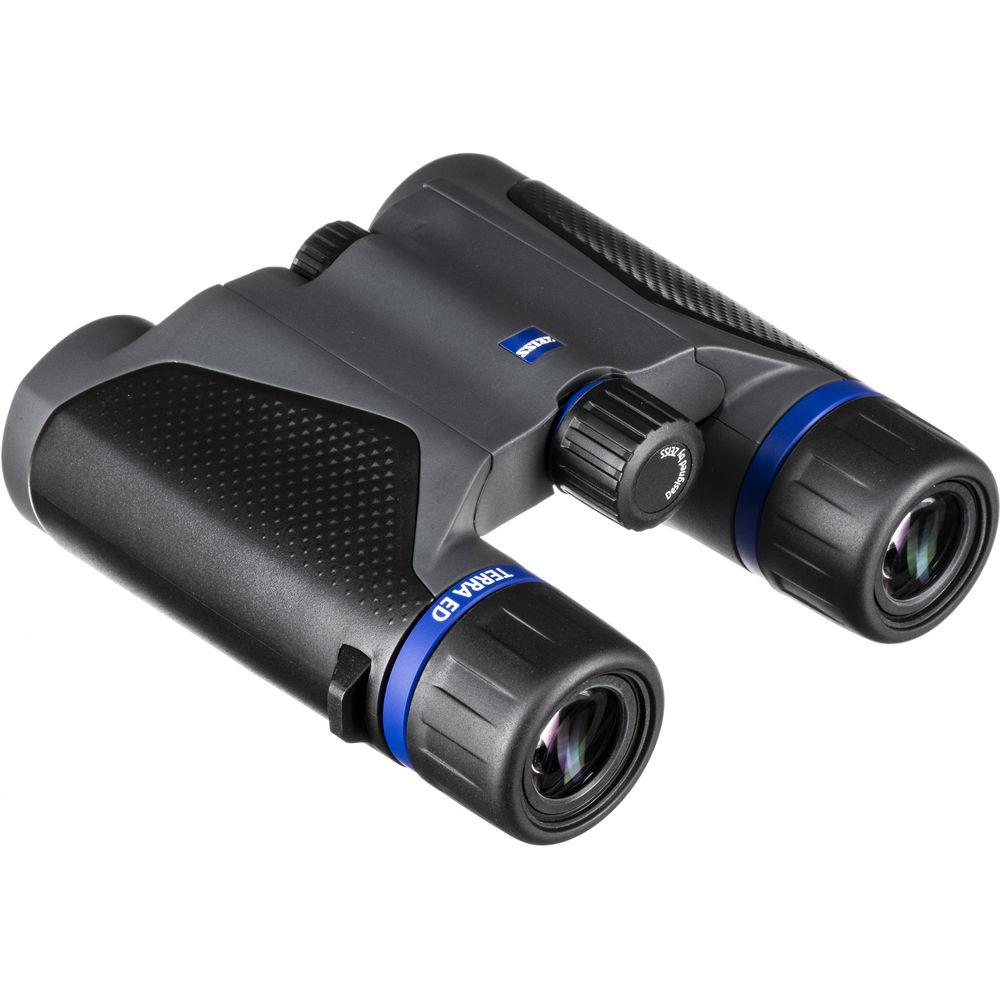

User Manual for ZEISS 8x25 Terra ED Compact Binocular Click to enlarge the picture
Contents of the user manual for the ZEISS 8x25 Terra ED Compact Binocular
- Product category: Binoculars ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Binoculars
 |
User manual for the ZEISS 8x25 Terra ED Compact Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More ZEISS's gray-black 8x25 Terra ED Compact Binocular gives you a competent and compact optic that fits easily in the palm of your hand. A combination of technologies work together to produce bright and clear images with increased contrast and true-color rendition. They include: Schmidt-Pechan roof prisms, SCHOTT extra-low dispersion (ED) glass, and anti-reflection fully multi-coated optics. The Terra ED is offered here in an 8x power, which provides a nice general-purpose magnification with a generous field of view.The lightweight housing is nitrogen filled and O-ring sealed, enabling it to withstand use in wet and snowy weather, and the rubberized armor offers protection from impacts while providing a slip-resistant grip. The Terra's double-hinge closed-bridge design allows it to fold compactly for an easy fit in most pockets or packs, while the knurled center focus wheel enables fast focusing. Twist-up eyecups make it comfortable to use with or without eyewear. - Optical Performance
-
- 8x magnification
- 25mm objective lenses
- Schmidt-Pechan roof prisms
- Extra-low dispersion (ED) glass: Corrects chromatic aberration for true-color rendition and improved contrast
- Proprietary ZEISS hydrophobic and anti-reflection fully multi-coated optics
- Apparent angle of view: 52°
- 357' field of view at 1000 yd
- Use and Handling
-
- Closed-bridge configuration
- Knurled center focus wheel
- Twist-up rubber eyecups
- +3/-3 right eye dioptric correction, center adjustment wheel
- Interpupillary adjustment range: 35-72mm
- 16mm long eye relief
- 3.1mm exit pupil
- Construction Details
-
- Protective rubber-armored grips
- Nitrogen filled for water and fogproof performance
- Test to 100mbar of pressure against ingress of water
- Functional temperature range: 4 to 145°F (-15 to 62°C)
- Weight: 10.9 oz
UPC: 740035997189 In the Box ZEISS 8x25 Terra ED Compact Binocular (Gray-Black) Case Neck Strap Cleaning Cloth Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 tqrazvwwdzszsuzfwyucfswxc A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 8x25 Terra ED Compact Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 522502-9907-000 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 25 mm | | Angle of View | 52° (Apparent) | | Field of View | 357' @ 1000 yd / 118.524 m @ 1000 m | | Minimum Focus Distance | 39.9' / 12.2 m | | Exit Pupil Diameter | 3.1 mm | | Eye Relief | 16 mm | | Interpupillary Adjustment | 35 to 72 mm / 1.4 to 2.8" | | Dioptric Correction | +3 / -3 | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 4.5 x 4.4" / 11.4 x 11.2 cm | | Weight | 10.9 oz / 309.0 g | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 8.6 x 5.9 x 3.4" |
