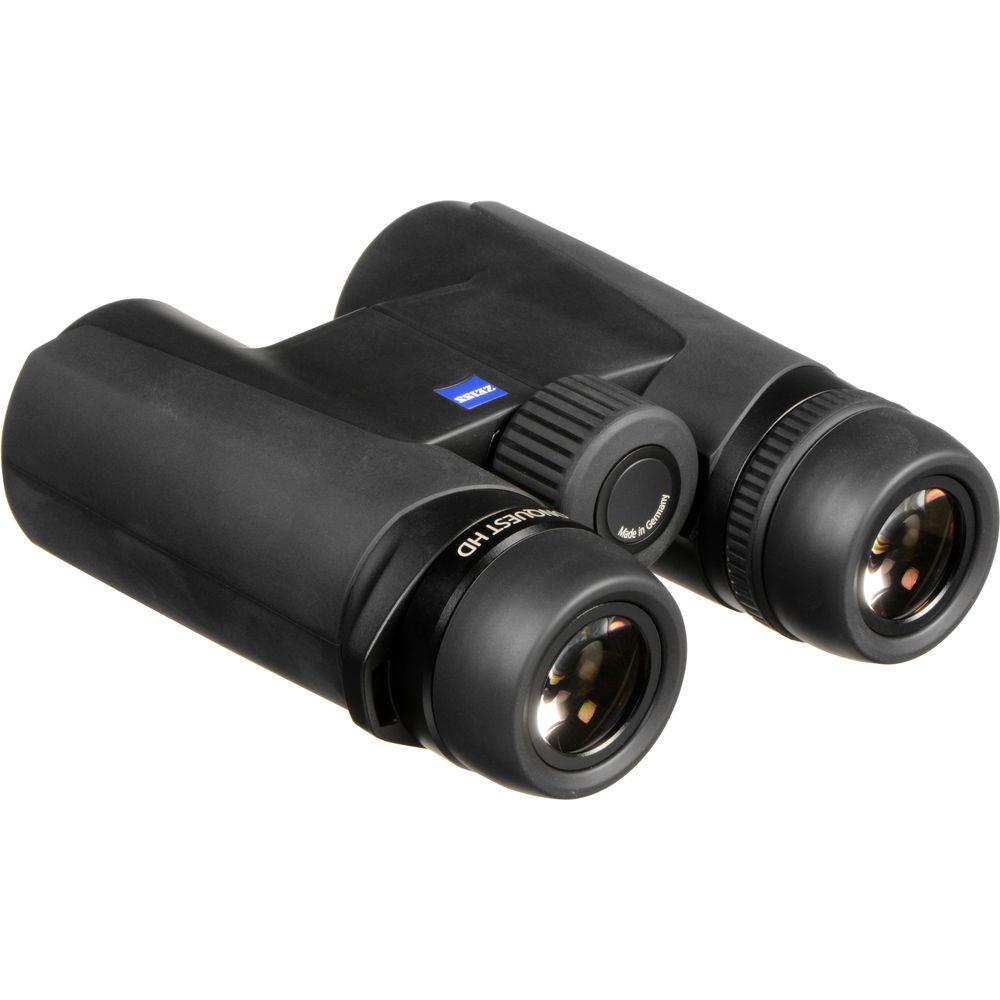

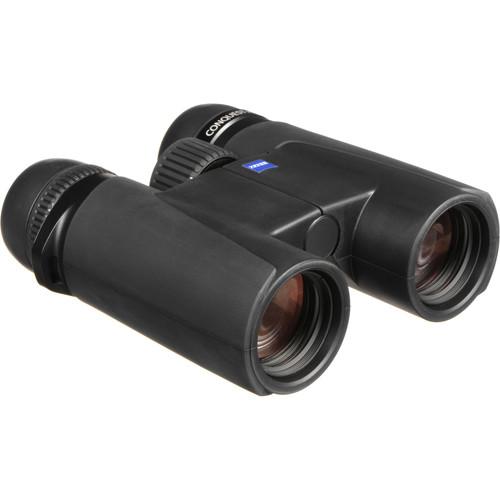

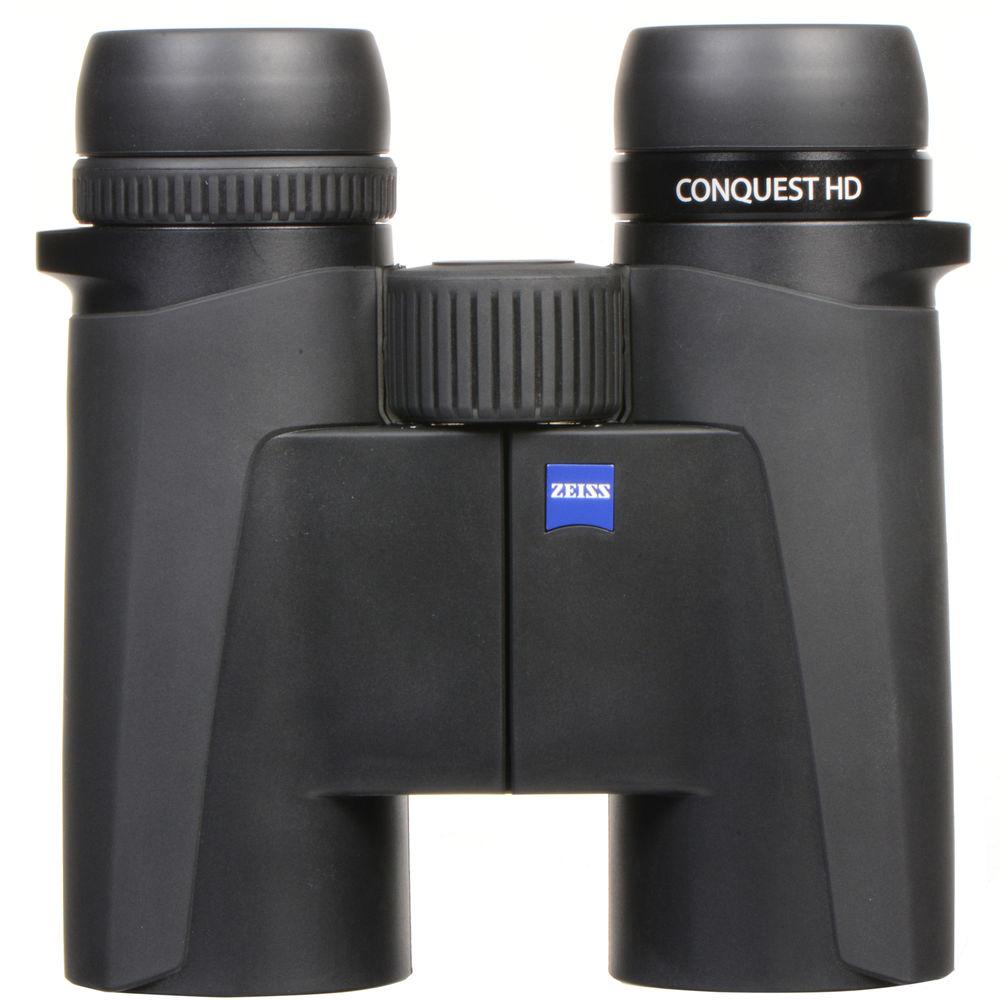

User Manual for ZEISS 8x32 Conquest HD Binocular Click to enlarge the picture
Contents of the user manual for the ZEISS 8x32 Conquest HD Binocular
- Product category: Binoculars ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Binoculars
 |
User manual for the ZEISS 8x32 Conquest HD Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Combining high-definition optics and their proprietary lens coatings, the 8x32 Conquest HD Binocular features the optical technologies and build qualities one would expect from an optic that was made in Germany by ZEISS Sports Optics. Performance begins with high-definition glass elements that transmit crisp and clear images across the entire wide field of view with minimal distortion. ZEISS' T* coatings reduce reflection to improve light transmission, color fidelity, and overall image contrast to further improve image quality and brightness. Complementing the T* are LotuTec coatings, which are applied to exterior lens surfaces. LotuTec is a hydrophobic coating that makes water bead and run off the lens and makes oils and sap easy to clean off, so the lenses keep clean even in inclement weather.Built to withstand a life on the trail, the chassis is made of a lightweight and durable aluminum alloy with a protective slip-resistant rubber armor on the exterior. The optical tubes are nitrogen filled and O-ring sealed to be water and fogproof, capable of withstanding up to 400mbar of pressure. A wide operating temperature range allows it to be used in even the most extreme conditions with ease. Its small form factor and 22-ounce weight make it easy to handle and even easier to stow in a pack, pocket, or bag. - Optical Performance
-
- 8x magnification
- 32mm diameter objective lenses
- Compact Schmidt-Pechan roof prisms
- HD glass lenses offer clear and crisp images with little distortion and true color rendition
- T* anti-reflection fully multi-coated optics improve light transmission, color rendition, and contrast
- LotuTec lens coatings
- Resist water, oil, and sap to keep lenses clear and make cleaning easier
- Hard lens coating that resists scratches and abrasions
- 420' field of view at 1000 yards
- Wide 64° apparent angle of view
- Long 16mm eye relief
- Comfortable 4mm exit pupil
- Short 4.9' close-focus distance
- Use and Handling
-
- Closed-bridge configuration
- ±4 dioptric correction
- 52-74mm interpupillary adjustment range
- Twist-up rubber eyecups for use with or without eyewear
- Construction Details
-
- Lightweight and durable aluminum-alloy chassis
- Nitrogen filled for water and fogproof performance
- O-ring sealed, rated to 400mbar of pressure
- Wide -21 to 140°F (-29 to 60°C) operating temperature
- Weight: 22 ounces
- Made in Germany
UPC: 740035003002 In the Box ZEISS 8x32 Conquest HD Binocular Lens Cloth Carrying Case with Strap Carrying Strap Lens Cap Leash Eyepiece Cap Protective Lens Cap Limited Lifetime Transferrable Warranty 5-Year No-Fault Policy Summer Binocular Buying Guide Christopher Witt 07/14/2016 xcudqwuftcyfbcvcv A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 xcudqwuftcyfbcvcv Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 8x32 Conquest HD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 523211-0000-000 Specs | Prism Type | Roof | | Magnification | 8.0 x | | Objective Lens Diameter | 32 mm | | Angle of View | 8.0° (Actual) | | Field of View | 420.0' @ 1000 yd / 140.0 m @ 1000 m | | Minimum Focus Distance | 4.9' / 1.5 m | | Exit Pupil Diameter | 4 mm | | Eye Relief | 16 mm | | Interpupillary Adjustment | 52 to 74 mm / 2 to 2.9" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 5.1 x 4.5" / 12.9 x 11.4 cm | | Weight | 22.2 oz / 629.4 g | | | | Package Weight | 3.24 lb | | Box Dimensions (LxWxH) | 10.35 x 7.75 x 6.55" |
