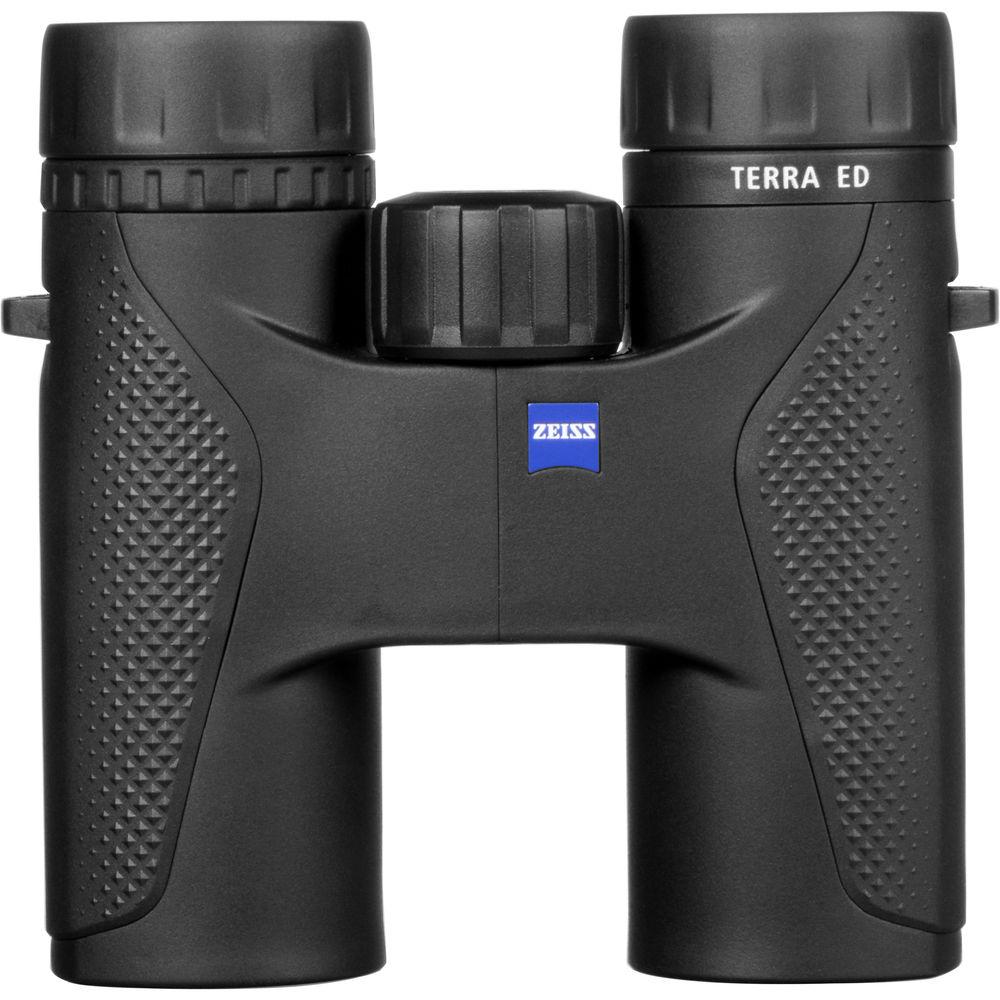

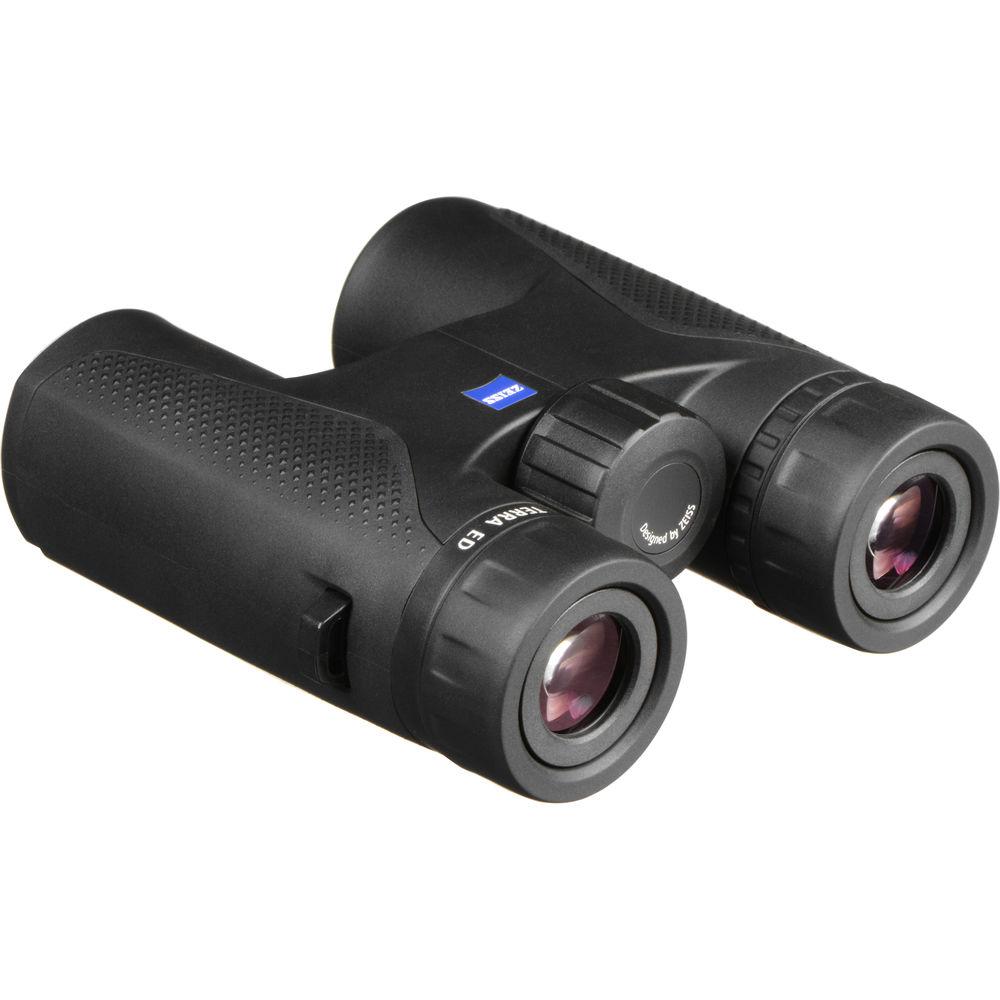

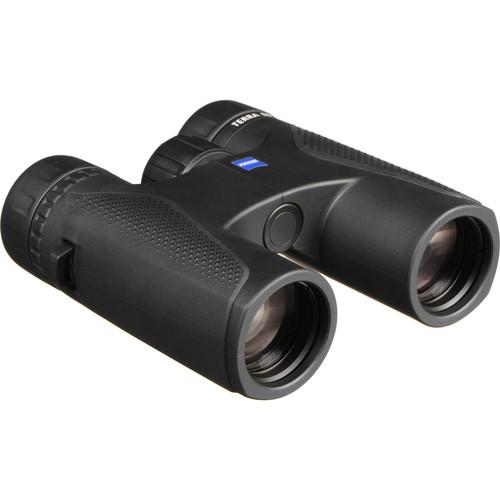

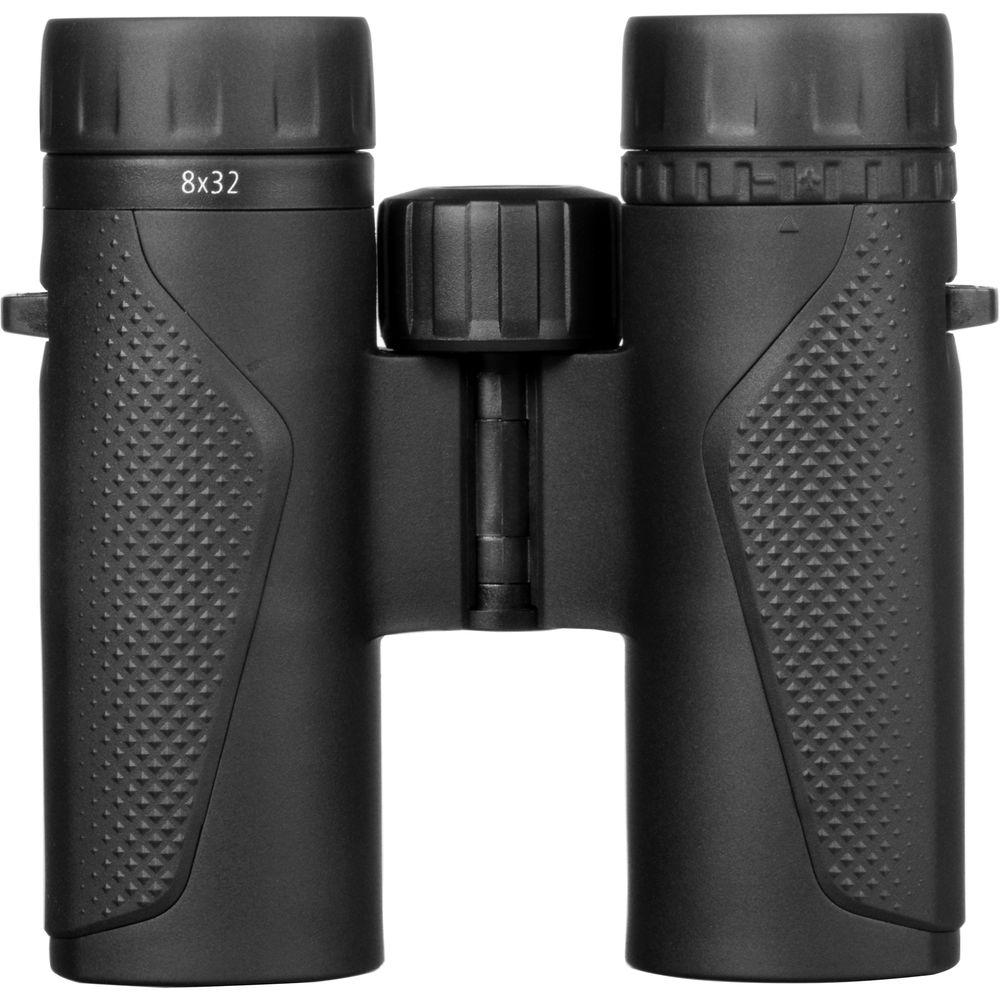

Product description The B&H Binocular Buying Guide Read More The black 2017 edition of ZEISS Optics' 8x32 Terra ED Binocular features a redesigned ergonomic chassis that makes holding it more comfortable, especially during long glassing sessions. Optically, it retains the exceptional elements that are the hallmarks of the Terra ED, including compact Schmidt-Pechan roof prisms, SCHOTT extra-low dispersion (ED) glass, and proprietary multi-coatings. These complementary technologies and elements work together to produce an immersive observational experience that presents clear and bright views, despite the relatively small objectives, with accurate color representation and virtually zero distortion across the entire wide field of view.The comfortable ergonomic chassis is made of a fiberglass-reinforced polycarbonate to help reduce weight, without sacrificing strength while adding impact and temperature resistance. Being resistant to temperature changes not only ensures that the housing will remain a constant temperature, even in cold and wet conditions, but will not experience the expansion and contraction common in metal chassis that can cause the optical elements to move out of alignment over time and hinder the binocular's ability to achieve sharp focus. The chassis is covered in a black rubber armoring that helps to protect it from drops and impacts and provides a slip-resistant grip. - Optical Performance
-
- 8x magnification
- 32mm objective lenses
- Roof prism optical path
- The compact Schmidt-Pechan prism design corrects the view while allowing for thinner optical tubes versus the more common Abbe-Koenig design
- SCHOTT ED glass elements reduce chromatic and spherical aberrations to produce views with true color rendition without halos, diffraction, or distortion across the entire field of view
- ZEISS proprietary hydrophobic multi-coated optics shed dust, dirt, and oils while improving light transmission, color rendition, sharpness, and contrast
- Short 5.25-foot close-focus distance
- Wide 61° apparent angle of view
- 405-foot field of view at 1000 yards
- Use and Handling
-
- Closed-bridge configuration
- Large fast-focus center wheel
- ±3 right-eye dioptric correction
- 56-74mm interpupillary adjustment range
- Twist-up click-stop rubber eyecups for comfortable use with or without eyewear
- Long 16.5mm eye relief
- Comfortable 4mm exit pupil
- Construction Details
-
- Impact-, corrosion-, and temperature-resistant fiberglass-reinforced polycarbonate housing
- Temperature resistance prevents expansion and contraction in extreme temperature changes, which prevents optical components from moving out of alignment
- Protective black rubber armor
- Nitrogen filled for water and fogproof performance
- Submersible to 100 mbar of pressure, or approximately 3' (1m)
- Operating temperature: 5 to 140°F (-15 to 60°C)
- Weight: 18 oz
UPC: 740035998025 In the Box ZEISS 8x32 Terra ED Binocular, 2017 Edition (Black) Neck Strap Hard Cordura Case 2 x Objective Lens Covers One-Piece Ocular Rainguard Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 cuuvbqwrtvxwfadyd A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 8x32 Terra ED Binocular, 2017 Edition in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 523203-9901-000 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 32 mm | | Angle of View | 7.7° (Actual)
61.0° (Apparent) | | Field of View | 404.2' @ 1000 yd / 134.7 m @ 1000 m | | Minimum Focus Distance | 5.2' / 1.6 m | | Exit Pupil Diameter | 4 mm | | Eye Relief | 16.5 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Dioptric Correction | +3 / -3 | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 4.9 x 4.6" / 12.4 x 11.7 cm | | Weight | 18.0 oz / 510.3 g | | | | Package Weight | 2.61 lb | | Box Dimensions (LxWxH) | 9.05 x 8.25 x 3.45" |
