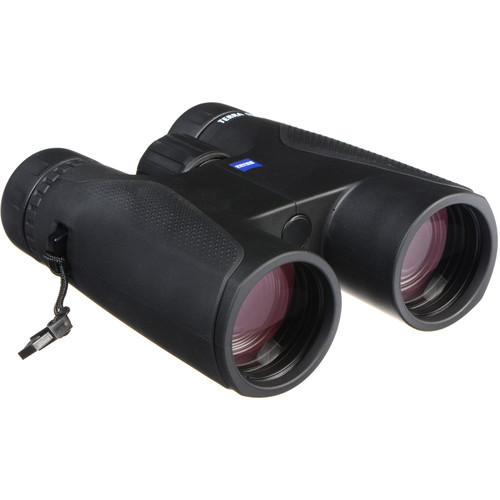

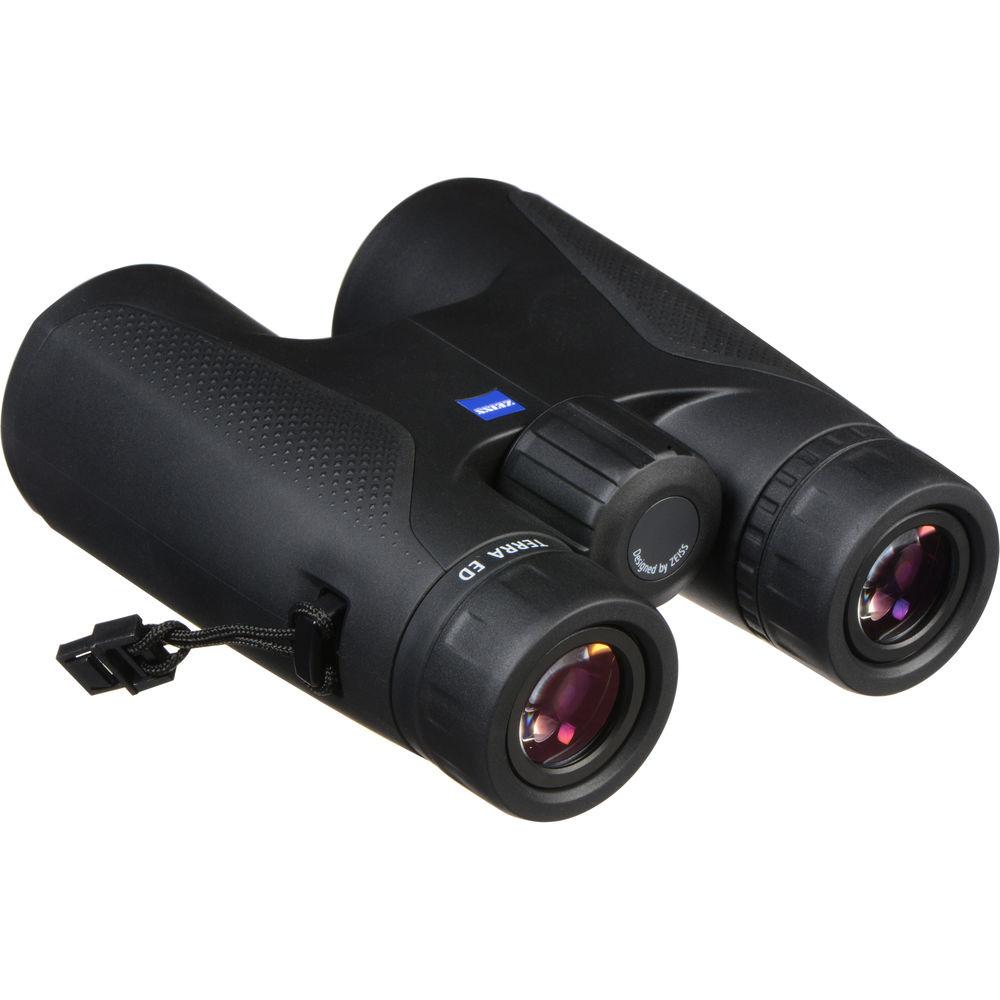

User Manual for ZEISS 8x42 Terra ED Binocular, 2017 Edition Click to enlarge the picture
Contents of the user manual for the ZEISS 8x42 Terra ED Binocular, 2017
- Product category: Binoculars ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Binoculars
 |
User manual for the ZEISS 8x42 Terra ED Binocular, 2017 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More The black 2017 edition of ZEISS Optics' 8x42 Terra ED Binocular features a redesigned ergonomic chassis that makes holding it more comfortable, especially during long glassing sessions. Optically, it retains the exceptional elements that are the hallmarks of the Terra ED, including compact Schmidt-Pechan roof prisms, SCHOTT extra-low dispersion (ED) glass, and proprietary multi-coatings. These complementary technologies and elements work together to produce an immersive observational experience that presents clear and bright views, with accurate color representation and virtually zero distortion across the entire field of view. Adding to the binocular's usability is a short 5.25-foot close-focus distance that gives it the ability to resolve feathers or leaves in fine detail.The comfortable ergonomic chassis is made of a fiberglass-reinforced polycarbonate to help reduce weight, without sacrificing strength while adding impact and temperature resistance. Being resistant to temperature changes not only ensures that the housing will remain a constant temperature, even in cold and wet conditions, but will not experience the expansion and contraction common in metal chassis that can cause the optical elements to move out of alignment over time and hinder the binocular's ability to achieve sharp focus. The chassis is covered in a black rubber armoring that helps to protect it from drops and impacts and provides a slip-resistant grip. - Optical Performance
-
- 8x magnification
- 42mm objective lenses
- Roof prism optical path
- The compact Schmidt-Pechan prism design corrects the view while allowing for thinner optical tubes versus the more common Abbe-Koenig design
- SCHOTT ED glass elements reduce chromatic and spherical aberrations to produce views with true color rendition without halos, diffraction, or distortion across the entire field of view
- ZEISS proprietary hydrophobic multi-coated optics shed dust, dirt, and oils while improving light transmission, color rendition, sharpness, and contrast
- Short 5.25-foot close-focus distance
- 375' field of view at 1000 yards
- Long 18mm eye relief
- Comfortable 5.25mm exit pupil
- Use and Handling
-
- Closed-bridge configuration
- Large fast-focus center wheel
- ±3 right-eye dioptric correction
- 58-75.5mm interpupillary adjustment range
- Twist-up click-stop rubber eyecups for comfortable use with or without eyewear
- Construction Details
-
- Impact-, corrosion-, and temperature-resistant fiberglass-reinforced polycarbonate housing
- Housing is lightweight to minimize neck strain and lighten optic without sacrificing strength
- Protective black rubber armor
- Nitrogen filled for water and fogproof performance
- Submersible to 100 mbar of pressure, or approximately 3' (1m)
- Operating temperature 5 to 140°F (-15 to 60°C)
- Weight: 24.5 oz

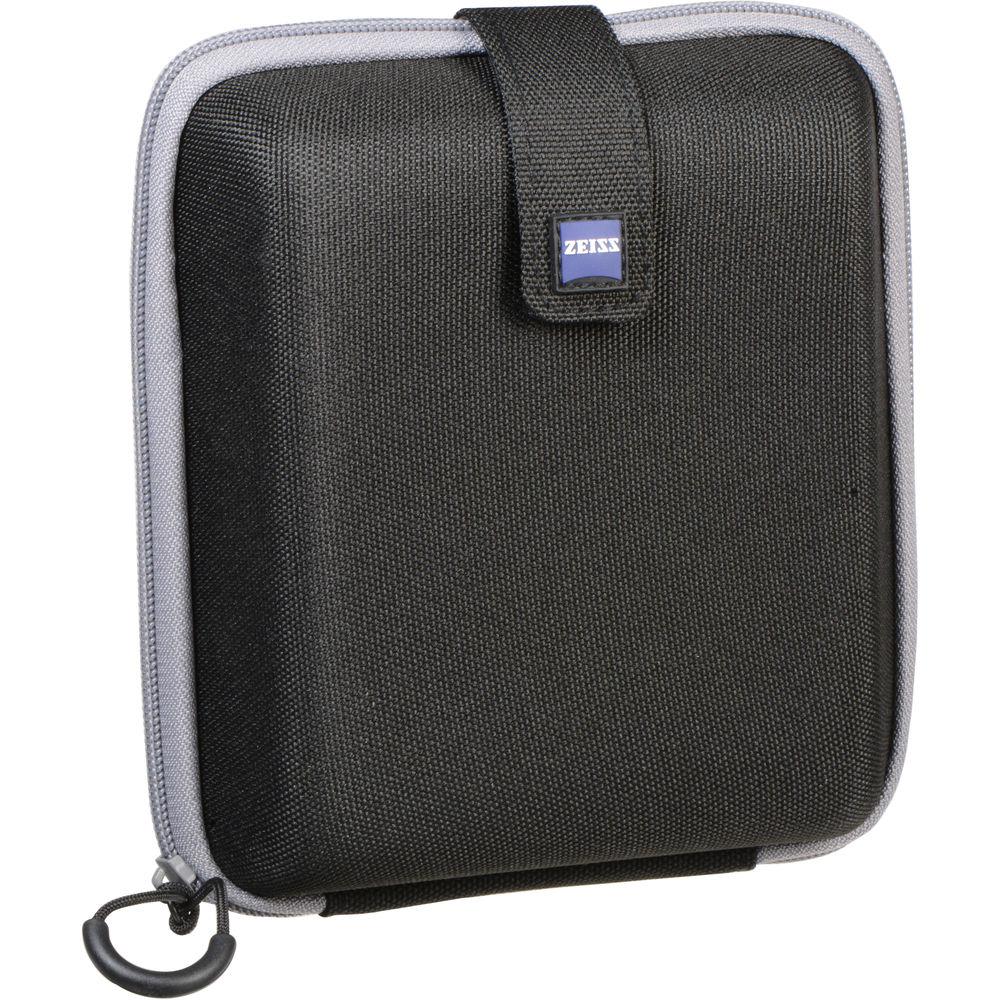

UPC: 740035998063 In the Box ZEISS 8x42 Terra ED Binocular, 2017 Edition (Black) Neck Strap Hard Cordura Case 2 x Objective Lens Covers One-Piece Ocular Rainguard Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 wvqcbfqdvawtxsxtvvv A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 8x42 Terra ED Binocular, 2017 Edition in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 524203-9901-000 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.0° (Actual)
56.0° (Apparent) | | Field of View | 375.0' @ 1000 yd / 124.50 m @ 1000 m | | Minimum Focus Distance | 5.2' / 1.6 m | | Exit Pupil Diameter | 5.25 mm | | Eye Relief | 18.0 mm | | Interpupillary Adjustment | 58 to 75.5 mm / 2.3 to 3" | | Dioptric Correction | ±3 | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 5.5 x 4.7" / 14.0 x 11.9 cm | | Weight | 24.5 oz / 694.6 g | | | | Package Weight | 3.18 lb | | Box Dimensions (LxWxH) | 9.05 x 8.25 x 3.45" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
