User Manual for ZEISS 8x42 Victory SF T* Binocular Click to enlarge the picture
Contents of the user manual for the ZEISS 8x42 Victory SF T* Binocular
- Product category: Binoculars ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Binoculars
 |
User manual for the ZEISS 8x42 Victory SF T* Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|

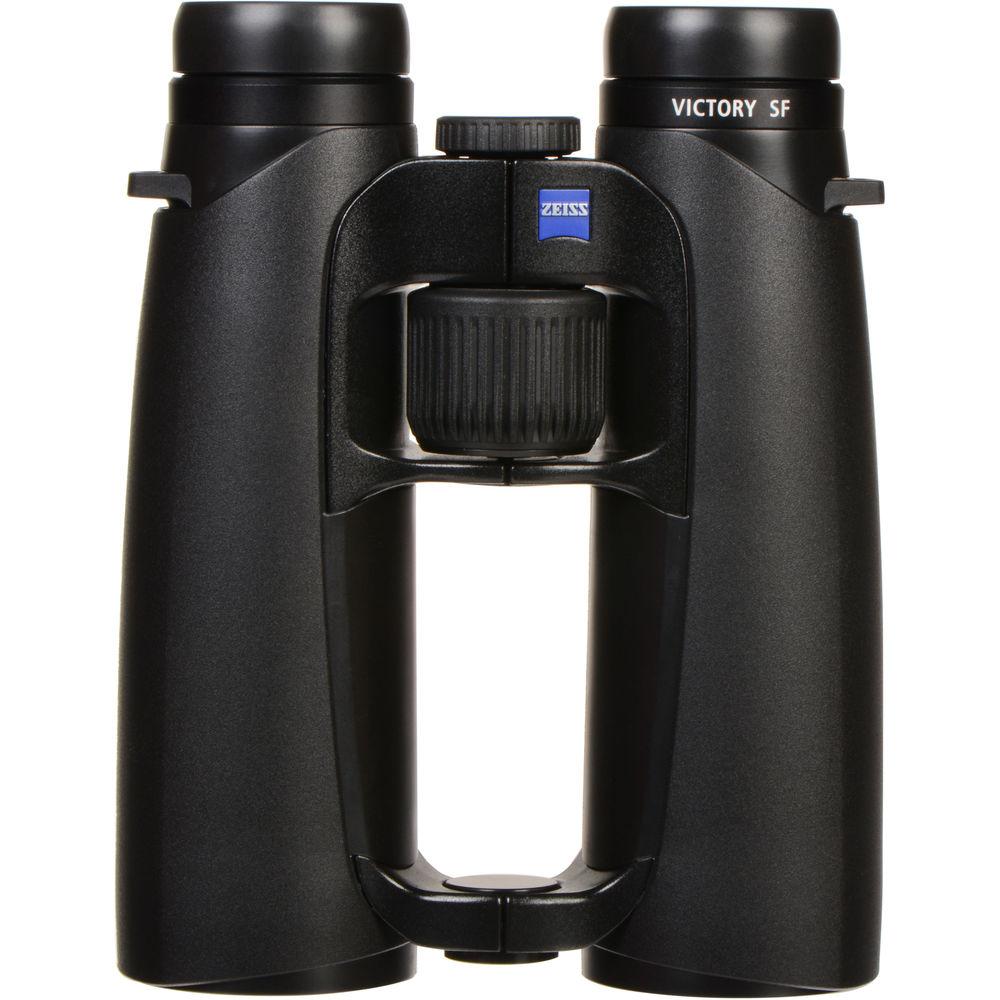

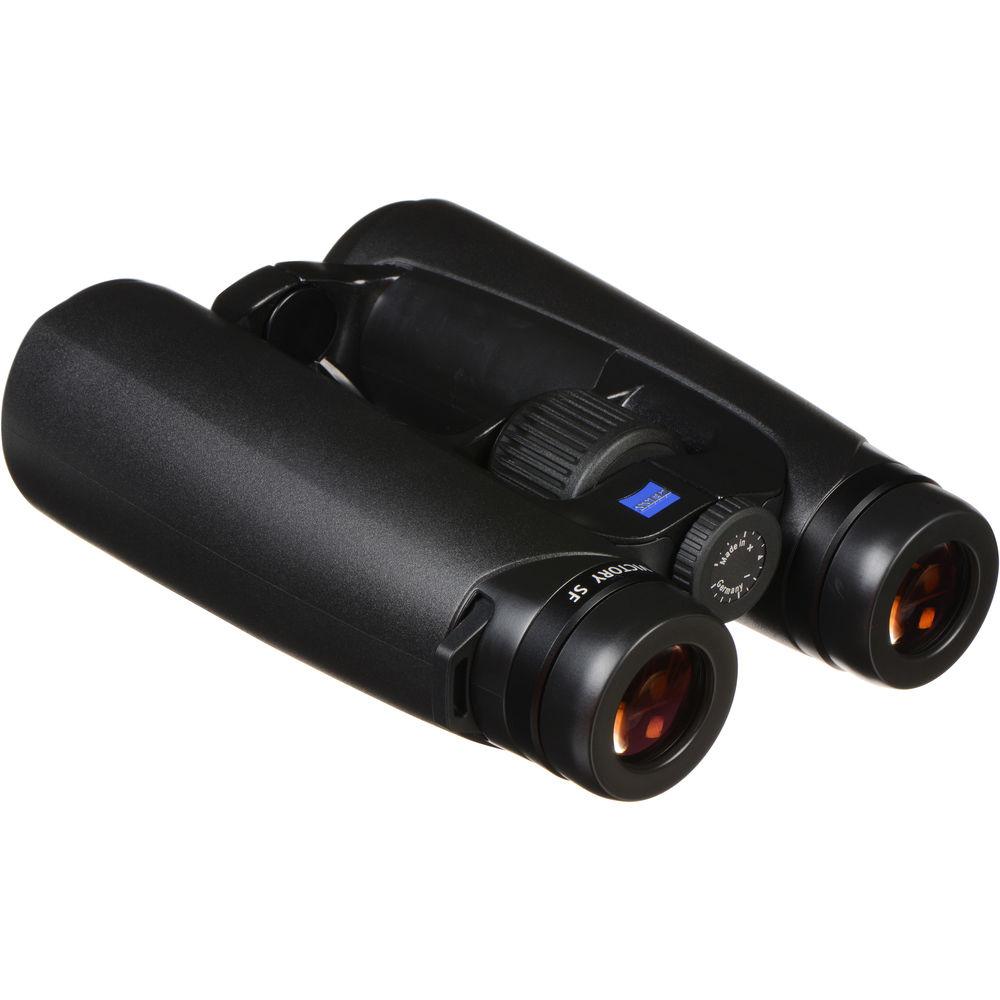

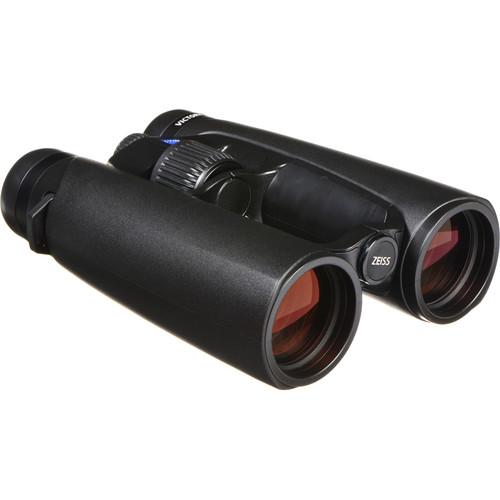

Product description The B&H Binocular Buying Guide Read More Designed for birders and nature enthusiasts, the 8x42 Victory SF T* Binocular from ZEISS provides an immersive observational experience by combining exceptional optics and a wide field of view in a lightweight and durable housing. Extra-low dispersion fluoride lenses, fully multi-coated optics, and phase-corrected prisms work together to create images that are clear and bright without distortion across the entire field of view. Colors are accurately represented with high contrast and resolution. The binocular's wide 64° apparent angle of view provides expansive views, while the exceptionally short 5' close-focus distance ensures you won't miss anything.The optical precision starts with SCHOTT Ultra-FL extra-low dispersion (ED) fluoride (FL) lenses that virtually eliminate distortion and chromatic aberration while increasing contrast and color fidelity. The Schmidt-Pechan roof prisms are coated with ZEISS' P* phase-correcting coatings to limit light loss and increase color fidelity and contrast. All of the optics are fully multi-coated with ZEISS' anti-reflection T* coatings. These greatly reduce light loss and maximize light transmission to create bright and clear images. A seven-lens eyepiece system uses high-transmission glass and field flatteners to correct for spherical aberrations to allow for pinpoint focusing across the entire field of view.This SF version of the Victory binoculars features the Smart Focus system. Unlike conventional focusing wheels that require users to turn the knobs as many as 2.5 times to transition from the minimum to the maximum focus distance, the SF system only requires 1.8 turns. This means faster and easier changes of your subjects without sacrificing focus precision. The binocular is designed with ergonomic balance to reduce the feel of the weight in the hand, which reduces user fatigue for comfortable viewing during long observation sessions.The housing is made from a lightweight, durable, and strong magnesium alloy. A double-hinged, open-bridge design provides a larger surface area for gripping while reducing the overall weight even more. The optical tubes are nitrogen filled and O-ring sealed for water and fogproof performance, giving it a waterproof rating to 400mbar of pressure. - Optical Performance
-
- 8x magnification
- 42mm objective lens
- Schmidt-Pechan roof prism design
- SCHOTT Ultra-FL extra-low dispersion (ED) fluoride (FL) lenses virtually eliminate distortion and chromatic aberration while increasing contrast and color fidelity
- ZEISS' proprietary anti-reflection T* lens coating increases light transmission for brighter images
- 444' field of view at 1000 yd
- 64° apparent viewing angle
- 5' close-focus distance
- Use and Handling
-
- Large center focusing knob
- Open-bridge design reduces weight without sacrificing strength
- ±4 right eye diopter adjustment
- 54-76mm adjustable interpupillary distance range
- Tripod mountable with optional adapter
- Twist-up eyecups with four click-stop positions
- Exceptional 18mm long eye relief
- Wide 5.25mm exit pupil
- Construction Details
-
- Lightweight and durable magnesium-alloy housing
- Nitrogen filled for water and fogproof performance
- Waterproof to 400mbar of pressure
- Slip-resistant rubber-armored exterior
- LotuTec lens coatings protect the objective and ocular lenses from dirt and dust, resist scratches, and bead off water and oils
- Balanced weight distribution reduces fatigue for long observation sessions
- Wide operating temperature range: -22 to 145°F (-30 to 63°C)
- Weight: 27.5 ounces

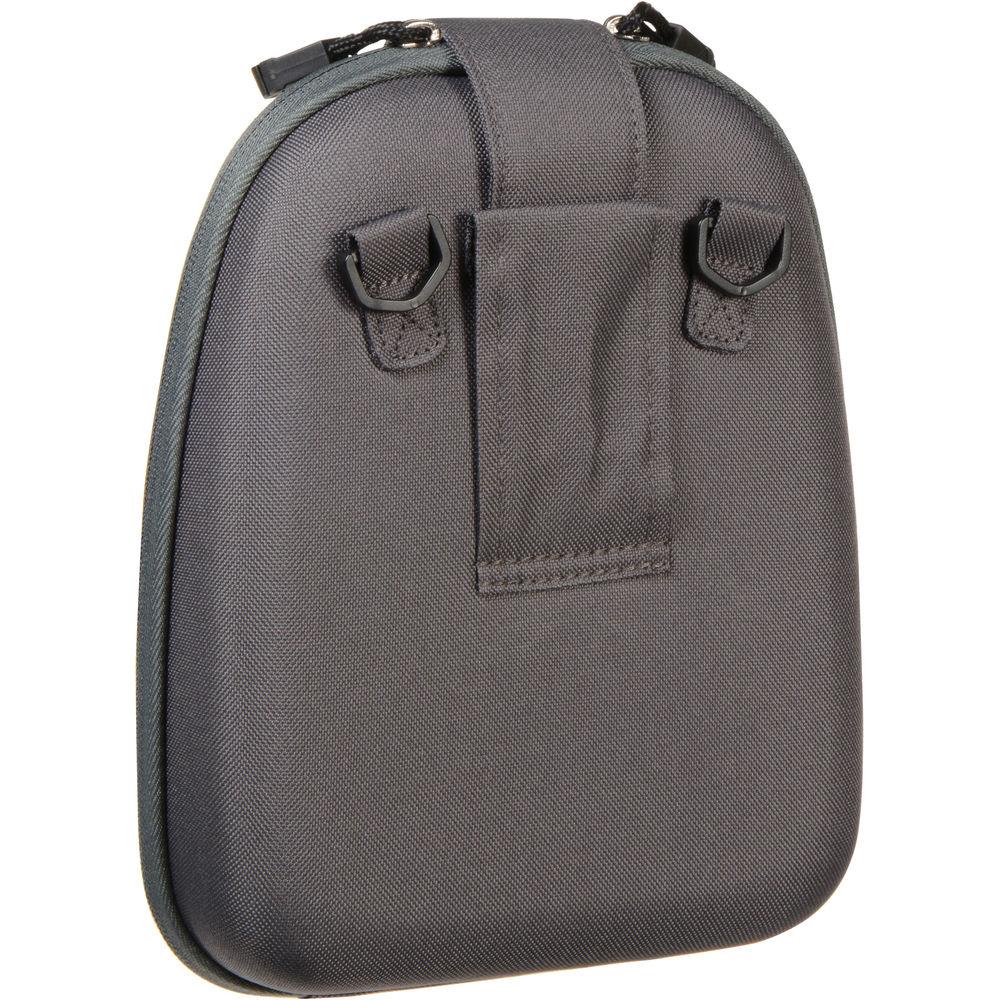

UPC: 740035997745 In the Box ZEISS 8x42 Victory SF T* Binocular One-Piece Ocular Rainguard 2 x Tethered Objective Lens Caps Carrying Strap Carrying Case Lens Cloth Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 esruacuefz A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 8x42 Victory SF T* Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 524223-0000-000 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 8.0° (Actual) | | Field of View | 444' @ 1000 yd / 147.408 m @ 1000 m | | Minimum Focus Distance | 4.9' / 1.5 m | | Exit Pupil Diameter | 5.25 mm | | Eye Relief | 18.0 mm | | Interpupillary Adjustment | 54 to 76 mm / 2.1 to 3" | | Dioptric Correction | ±4 | | Focus Type | Center | | Dimensions | 6.8 x 4.9" / 17.3 x 12.4 cm | | Weight | 27.5 oz / 779.6 g | | | | Package Weight | 6.045 lb | | Box Dimensions (LxWxH) | 16.55 x 10.15 x 4.5" |
