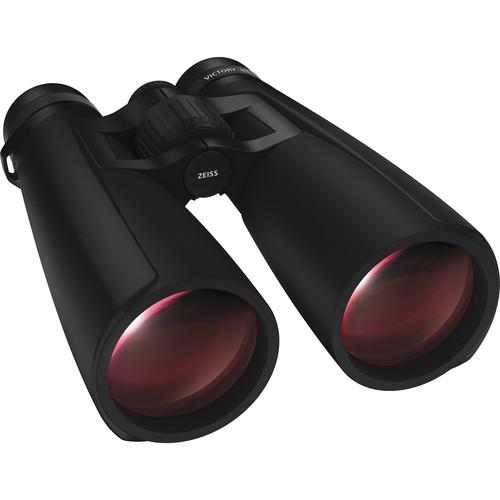

User Manual for ZEISS 8x54 Victory HT Binocular Click to enlarge the picture
Contents of the user manual for the ZEISS 8x54 Victory HT Binocular
- Product category: Binoculars ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Binoculars
|
User manual for the ZEISS 8x54 Victory HT Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Combining their proprietary High Transmission (HT) optical system with large objectives in their 8x54 Victory HT Binocular, ZEISS delivers an optic with outstanding performance, especially in low-light conditions. The HT system enables better than 95% light transmission from the objectives to the user's eyes by employing extra-low dispersion SCHOTT fluoride (FL) glass elements multi-coated with ZEISS' T* coatings to maximize light transmission through the entire optical path. An Abbe-Koenig prism design complements the FL glass and T* coatings, resulting in an image that is exceptionally bright and rich with contrast, clarity, and detail from dawn to dusk. The relatively low magnification and large objectives produce an exceptionally wide 6.75mm exit pupil that ensures full coverage when the pupils are fully dilated in low light.Its magnesium-alloy housing reduces the overall weight without sacrificing strength and durability, and the optical tubes are nitrogen filled and O-ring sealed for water and fogproof performance in all weather conditions. The innovative Dual-Link bridge construction allows the bridge to be very small without sacrificing strength or stability, and the unique elongated prism configuration enables the optical tubes to be thinner than normal. These two features work together to give the binocular a large and comfortable gripping surface and a wide interpupillary adjustment range. Because of the size of the objectives and the length of the optical tubes, hand holding this binocular may cause fatigue, so ZEISS made it tripod mountable with an optional adapter for long-duration glassing sessions. Add in the ergonomic non-slip rubber armoring and focus wheel, and the Victory HT becomes a full-featured optic ready for all seasons. - Optical Performance
-
- 8x magnification
- 54mm diameter objectives
- Compact Abbe-Koenig roof prism design
- Prism configuration results in less "folding" of the light path to decrease spherical and chromatic aberration
- SCHOTT high-transmission (HT) fluoride (FL) extra-low dispersion glass elements
- Provide 95%+ light transmission
- Eliminate chromatic aberrations
- Accurate color fidelity with improved contrast
- Anti-reflection ZEISS T* coatings transmit the entire color spectrum and preserve image sharpness
- LotuTec moisture- and abrasion-resistant lens coating protects lenses by causing moisture to bead and roll off
- 390' field of view at 1000 yards
- Wide 60° apparent viewing angle
- Use and Handling
-
- Double-link bridge reduces weight while providing a large area on the optical tubes for a firm and solid grip
- Large rubber-coated center focus wheel enables precise focus control in wet conditions or while wearing gloves
- Click-stop twist-up eyecups for comfortable use with or without eyewear
- ±3 right-eye dioptric adjustment
- Wide 58-76mm interpupillary adjustment range
- Long 16mm eye relief
- Wide 6.7mm exit pupil
- Construction Details
-
- Lightweight and durable magnesium-alloy housing
- Nitrogen filled and O-ring sealed
- Waterproof to 400 mbar of pressure
- Fogproof when moving between extreme temperature changes
- Tripod mountable with optional adapter
- -22 to 145°F (-30 to 63°C) operating temperature
- Weight: 36.5 ounces
UPC: 740035996663 In the Box ZEISS 8x54 Victory HT Binocular Lens Cloth 2 x Objective Covers Eyepiece Rainguard Carrying Case and Strap Limited Lifetime Transferable Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 xdywqqs A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 8x54 Victory HT Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 525628-0000-000 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 54 mm | | Angle of View | 7.5° (actual)
60.0° (apparent) | | Field of View | 393.7' @ 1000 yd / 131.2 m @ 1000 m | | Minimum Focus Distance | 11.5' / 3.5 m | | Exit Pupil Diameter | 6.75 mm | | Eye Relief | 16.0 mm | | Interpupillary Adjustment | 58 to 76 mm / 2.3 to 3" | | Dioptric Correction | ±3 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 7.6 x 5.6" / 19.3 x 14.2 cm | | Weight | 36.5 oz / 1034.8 g | | | | Package Weight | 4.15 lb | | Box Dimensions (LxWxH) | 10.394 x 7.874 x 6.378" |
