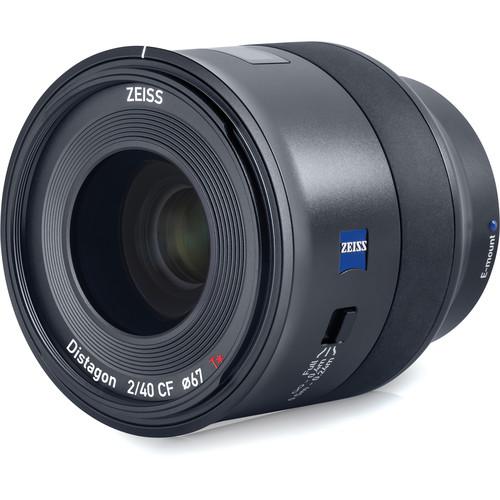

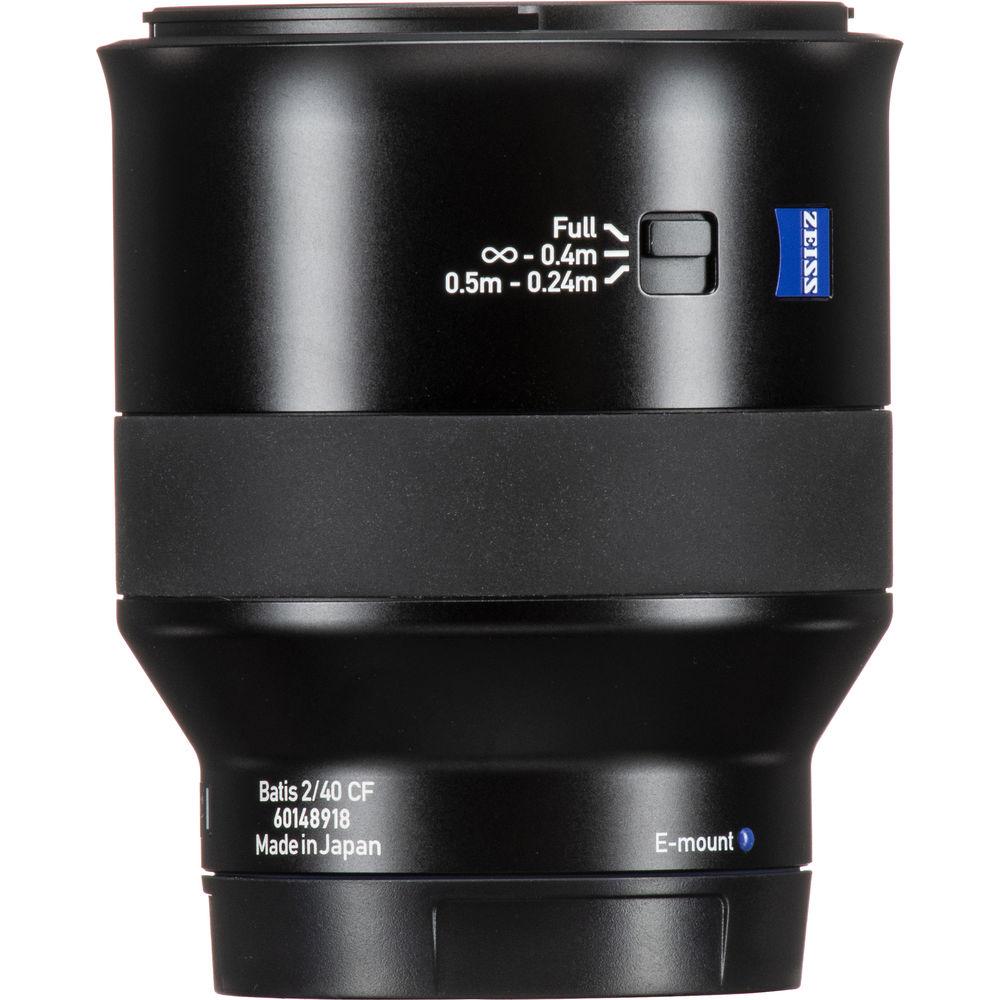

User Manual for ZEISS Batis 40mm f 2 CF Lens for Sony E Click to enlarge the picture
Contents of the user manual for the ZEISS Batis 40mm f 2 CF
- Product category: Mirrorless System Lenses ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Mirrorless System Lenses
 |
User manual for the ZEISS Batis 40mm f 2 CF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|

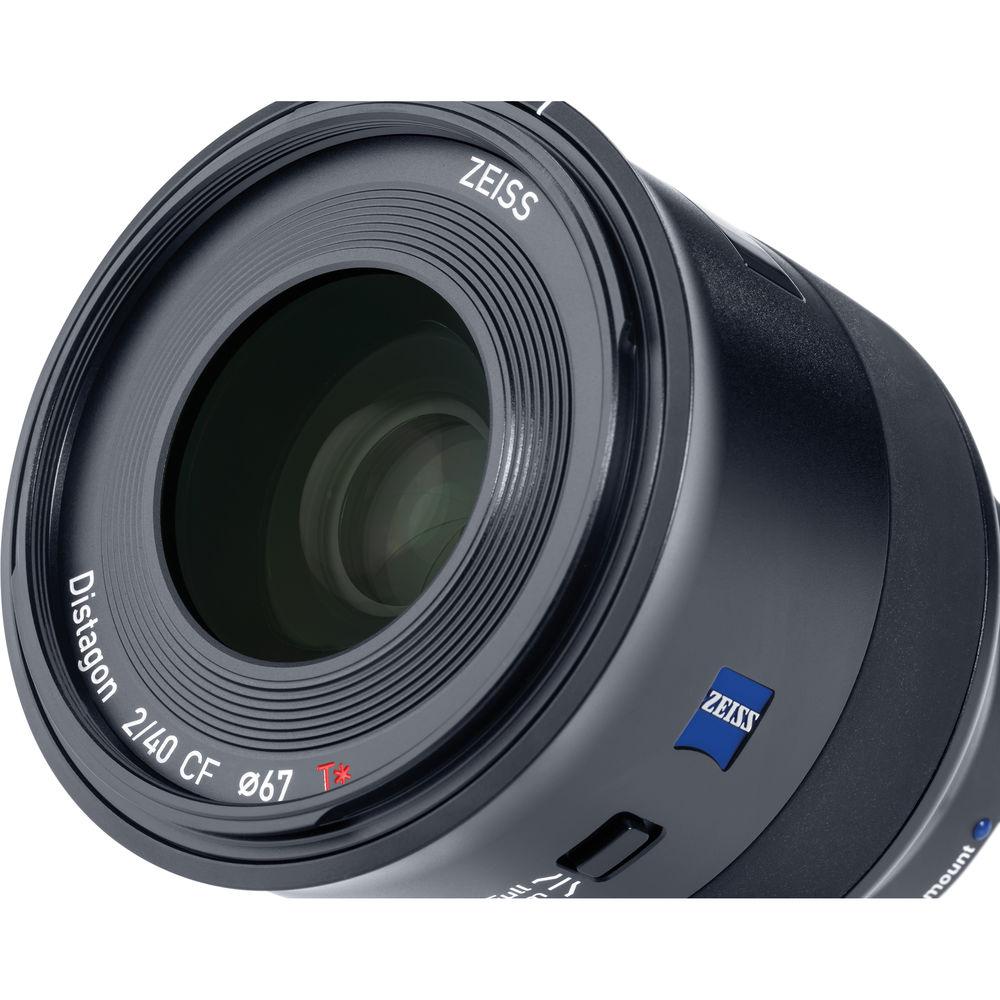

Product description ZEISS Impresses with Batis Mirrorless Lenses Read More Offering a unique short-normal focal length with a close-focusing design, the Batis 40mm f/2 CF from ZEISS is a Sony E-mount prime further characterized by its advanced optical layout. Based on the Distagon design, this lens uses a series of aspherical and anomalous partial dispersion elements to greatly reduce color fringing, distortion, and other aberrations to realize sharp, clear, and color-accurate imagery. A floating elements system, coupled with the Close Focusing designation, is also employed for consistent performance when working with both near and far subjects. Additionally, an enhanced ZEISS T* anti-reflective coating has been applied to reduce flare and ghosting for working in difficult lighting conditions.
Batis-series lenses are distinguished by their innovative use of an OLED display on the lens barrel, which highlights the focus distance and depth of field range for quickly recognizing your focusing parameters. As an autofocus lens, linear motors are used to deliver quick, quiet, and smooth focusing performance to suit both stills and video applications. Additionally, the lens body also sports a dust- and moisture-sealed design to permit its use in trying environments. - Short normal-length prime is designed for full-frame Sony E-mount mirrorless cameras, however can also be used with APS-C models where it will provide a 60mm equivalent focal length
- Bright f/2 maximum aperture suits working in low-light conditions and also offers increased control over depth of field for working with selective focus techniques.

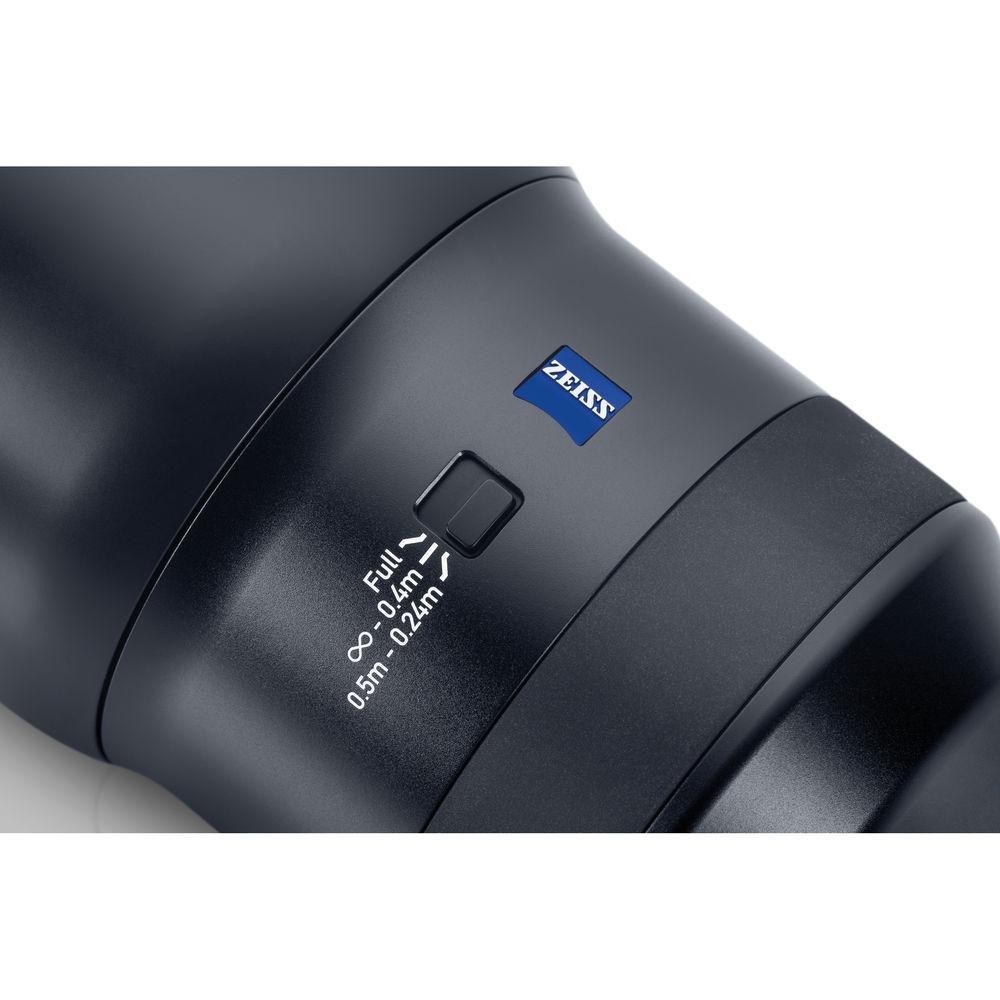

- Suitable for close-up shooting, this CF (Close Focusing) lens has a minimum focusing distance of 9.4", minimum working distance of 5.5", and a maximum magnification of 1:3.3.
- Distagon optical concept affords high sharpness, well-corrected image quality from edge-to-edge, and very low field curvature.
- Two aspherical elements, three elements made from anomalous partial dispersion glass, and one aspherical element also made from low dispersion glass are featured, and all contribute to significantly reducing chromatic and spherical aberrations, color fringing, and distortion for improved clarity, sharpness, and resolution.

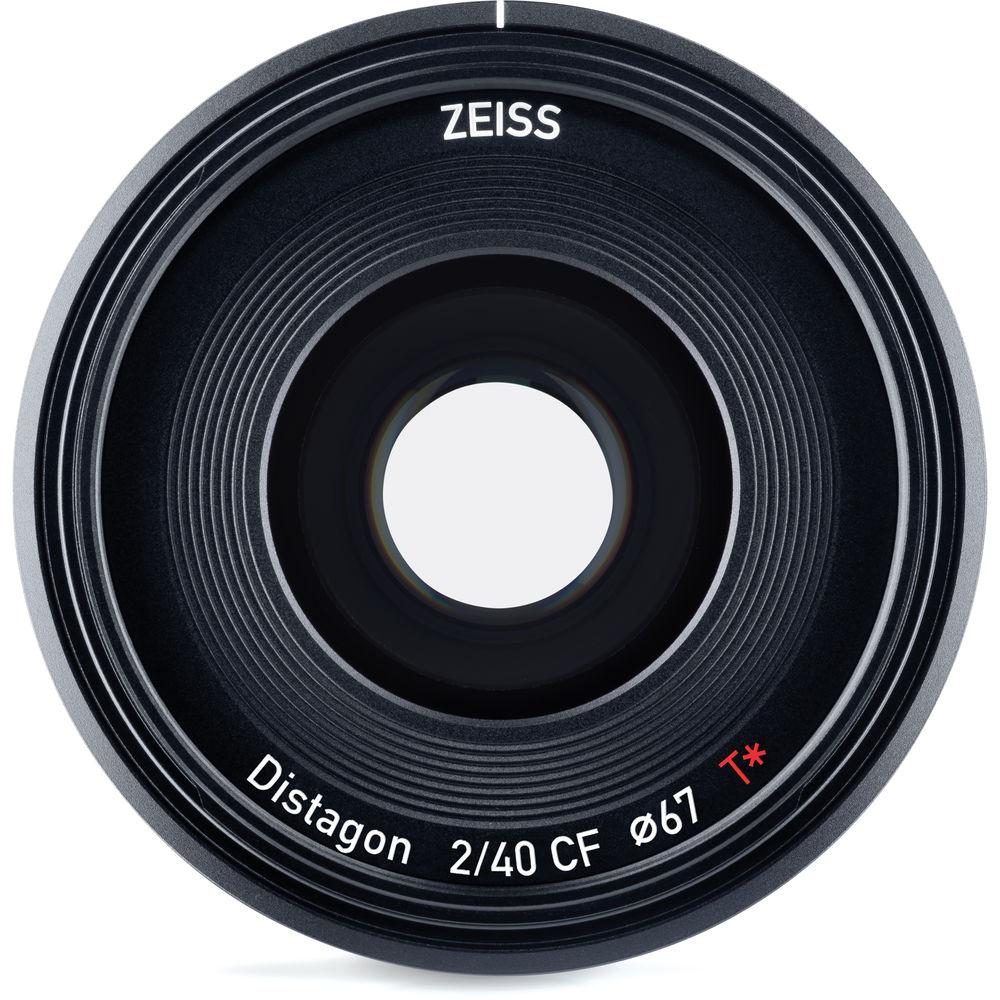

- ZEISS T* anti-reflective coating has been applied to each lens surface to help minimize reflections and provide greater contrast and color fidelity.
- Floating elements system helps to maintain consistent image quality throughout the entire focusing range.

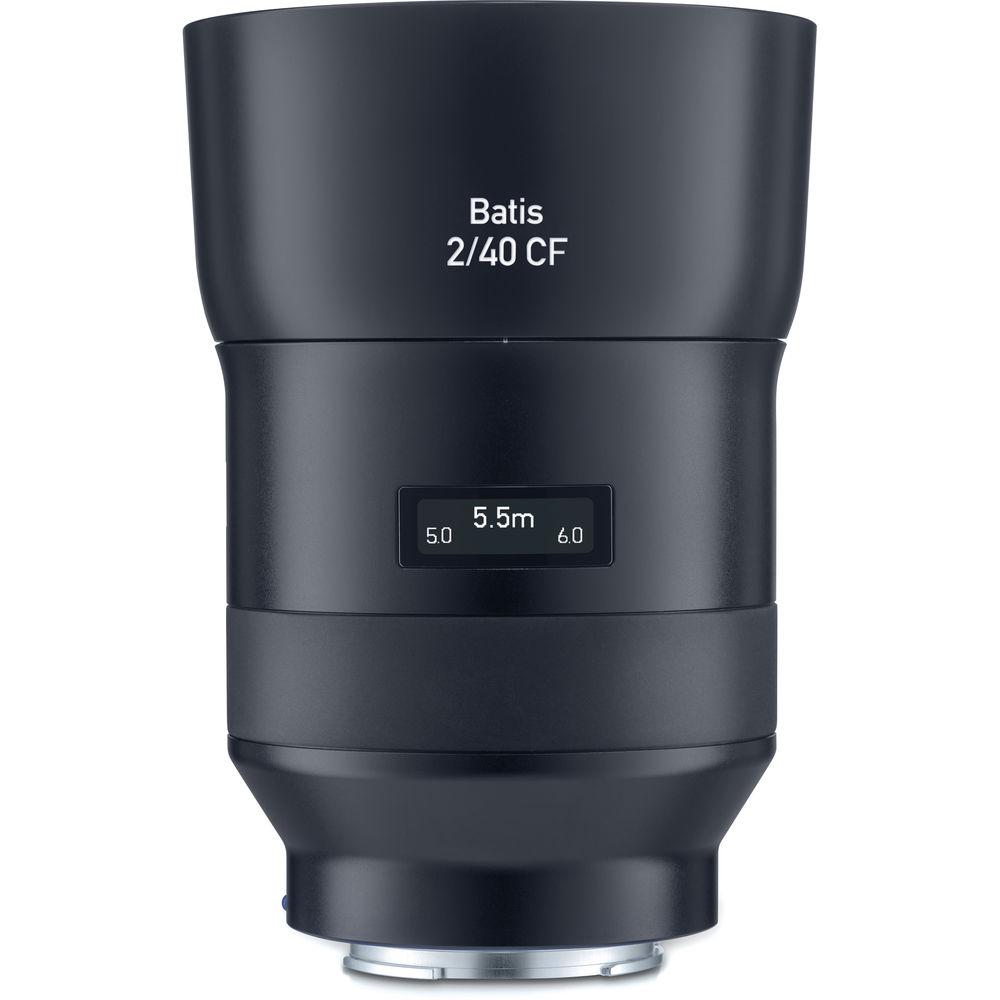

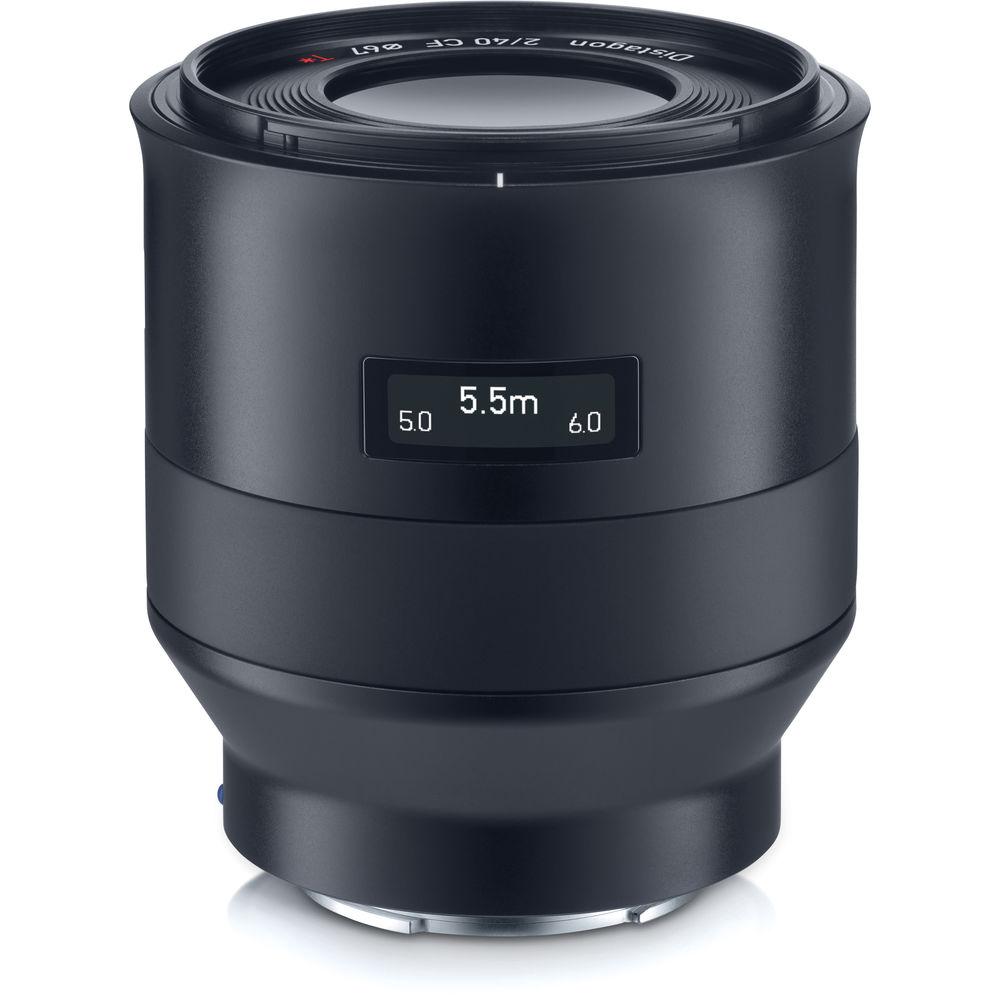

- Integrated OLED display on the top of the lens shows the working focus distance as well as the depth of field range for quickly recognizing the parameters of focus in use, even when working in low-light conditions.
- Linear motors benefit the autofocus performance of the lens and provide smooth, fast, and quiet operation. For manual focusing, a rubberized ring offers greater tactile control for precise placement of focus.

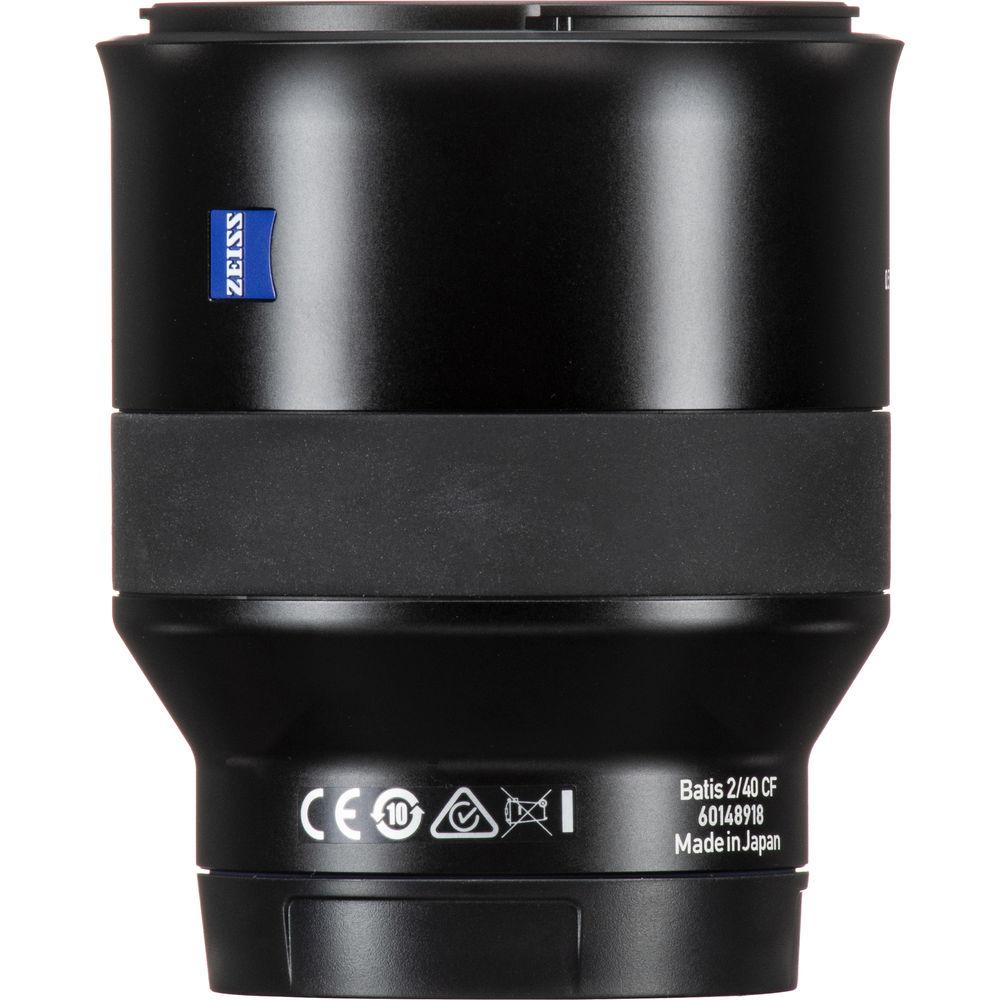

- Dust and weather-sealed construction benefits using the lens in inclement shooting conditions.

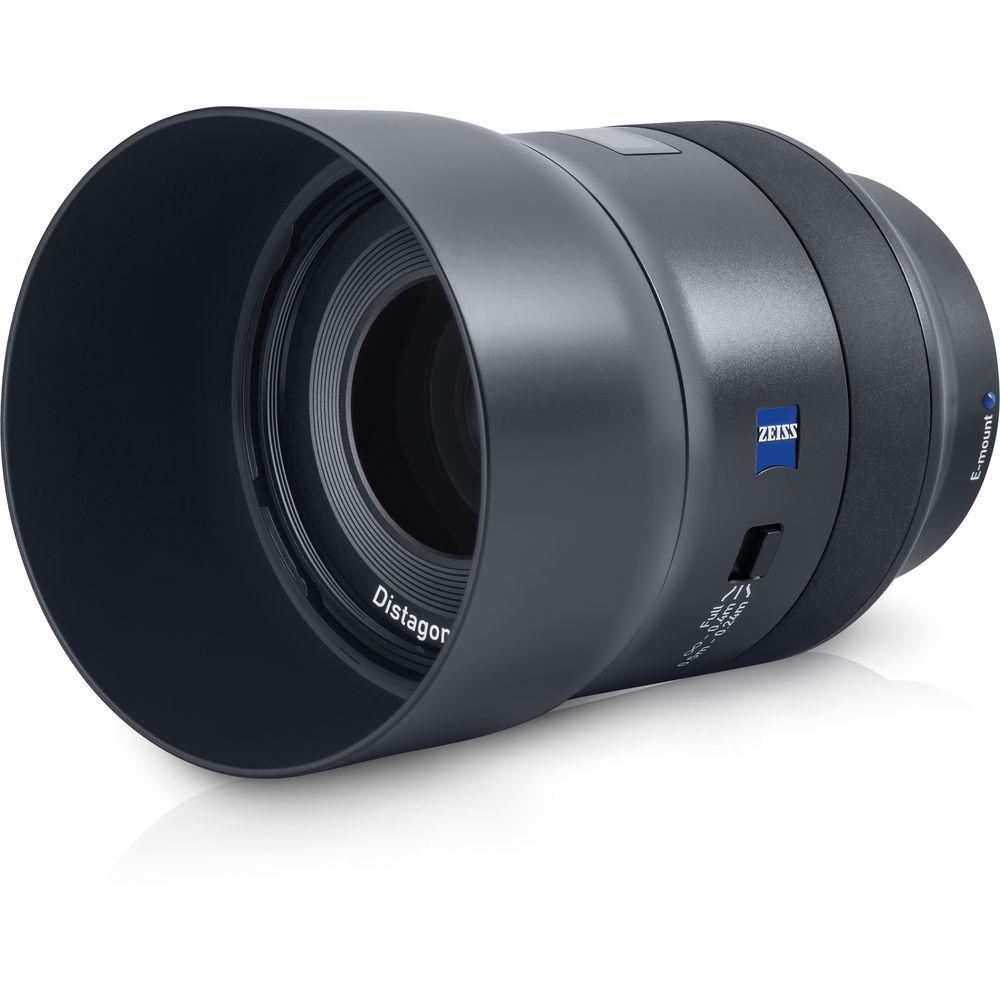

In the Box ZEISS Batis 40mm f/2 CF Lens for Sony E 67mm Front Lens Cap Rear Lens Cap for ZEISS Touit E-Mount Lens Hood for Batis 40mm f/2 CF Lens Limited 2-Year Warranty, Extendable to 3 Years with Online Registration In the Field: Zeiss Batis 40mm f/2 CF Lens for Sony E-Mount Cameras Allan Weitz 10/04/2018 Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS Batis 40mm f 2 CF Lens for Sony E in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

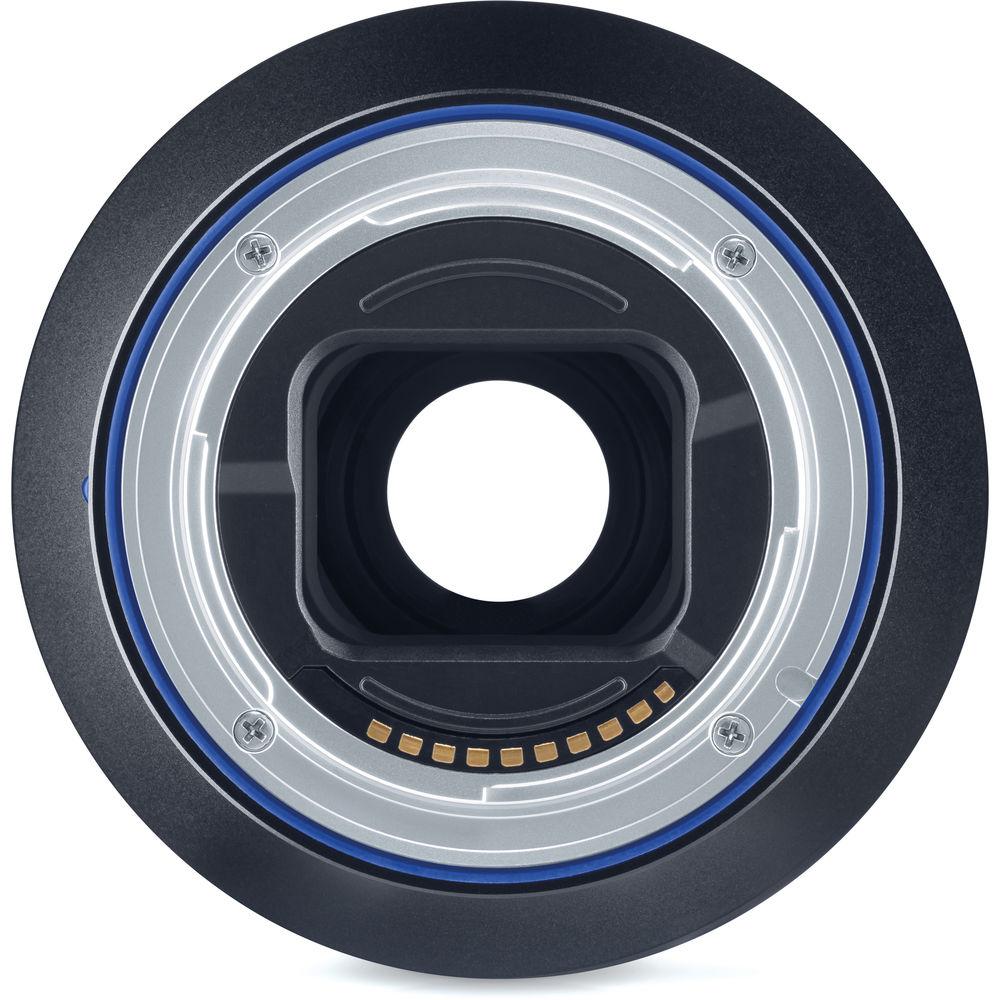

Technical parametersZEISS Batis 40mm f/2 CF Specs | Focal Length | 40mm | | Maximum Aperture | f/2 | | Minimum Aperture | f/22 | | Lens Mount | Sony E | | Format Compatibility | Full-Frame | | Angle of View | 56
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
