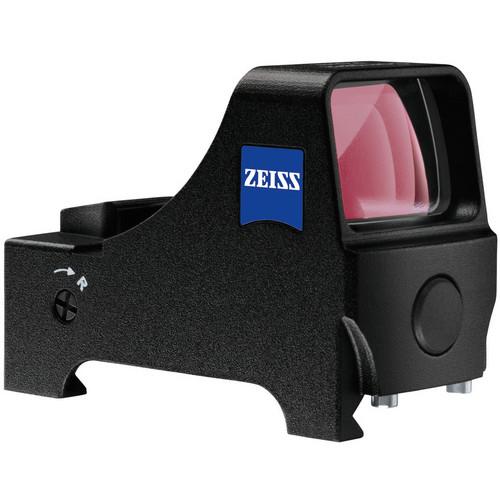

User Manual for ZEISS Compact Point Red Dot Sight Click to enlarge the picture
Contents of the user manual for the ZEISS Compact Point Red Dot Sight
- Product category: Red Dot/Holographic Sights ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Red Dot/Holographic Sights
|
User manual for the ZEISS Compact Point Red Dot Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description With its slim low-profile waterproof housing - the Compact Point from ZEISS brings speed and enhanced accuracy to the hunt. Featuring a 3.6 MOA red dot reticle and a broad viewing window with ZEISS' water-repellent LotuTec coating, the Compact Point encourages you to aim with your eye and not your hand. Roland could have made good use of a Compact Point on his way to the Dark Tower. This Compact Point Sight is configured with a standard mounting base that is compatible with Weaver and Picatinny mounting systems. - Performance Details
-
- Waterproof aluminum housing
- Parallax correction: 43 yd to infinity
- Secure spring-tensioned low-profile Weaver/Picatinny mount
- Illuminated 3.6 MOA red dot reticle with 5 brightness levels
- LotuTec coating: Sheds water, dirt, grease, grime. Lenses wipe clean without smearing
- Standard Picatinny rail mount is also compatible with traditional Weaver mounting systems
In the Box ZEISS Compact Point Red Dot Sight 2 x CR1632 Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS Compact Point Red Dot Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS Compact Point Specs | | | Power Source | 2 x CR1632 | | Runtime | 130 Hours | | Mounting | Picatinny / Weaver | | | | Magnification | 1.05 x | | Exit Pupil Diameter | 16 to 23 mm | | | | Windage Adjustment | 160 MOA | | Elevation Adjustment | 180 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | Dimensions | L: 2.3 x W: 1.1 x H: 1.4" / L: 5.8 x W: 2.8 x H: 3.6 cm | | Weight | 2.6 oz / 73.7 g |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
