User Manual for ZEISS Compact Prime CP.2 50mm T2.1 Makro Cine Lens Click to enlarge the picture
Contents of the user manual for the ZEISS Compact Prime CP.2 50mm T2.1
- Product category: Digital Cine Lenses ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Digital Cine Lenses
|
User manual for the ZEISS Compact Prime CP.2 50mm T2.1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|

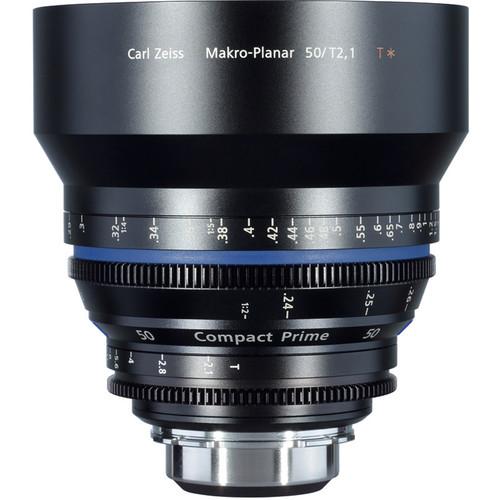

Product description Cinema Lens Care and Maintenance Read More The ZEISS Compact Prime CP.2 50mm/T2.1 Makro Cine Lens (F Mount) is part of the second generation of CP cinema lenses that were the first to offer full-frame 35mm coverage of large sensor DSLRs (such as the Canon 5D Mark II). What distinguishes the CP.2 from its PL-mount-only predecessor is its interchangeable lens mount, which allows the included Nikon F mount to be easily swapped out for an optional Canon EF or cinema-standard PL mount. For the first time, a single, affordable, professional quality lens can be used on both cinema and still cameras, opening up creative possibilities that keep your rig lightweight, versatile, and on budget. Based on the Makro-Planar design, this fast "normal" lens allows for extremely close focusing up to 10" (24cm). - Interchangeable Mount
- The Compact Prime CP.2 lenses are the world's first cine lenses designed for use with DSLR cameras. The interchangeable mount guarantees high flexibility for present and future use in any situation and for a wide range of camera platforms.
- Allows a mix of DSLR systems with traditional cine cameras, for maximum flexibility on set
- No need for adapter solutions anymore
- Three different mounts available (PL, EF and F mount)
- Close Focusing Capability
- With the CP.2 50mm Makro you can go closer to the object you want to capture while still having a sharp image. The closest distance to the object with a CP.2 50mm Makro is 10" (24cm).
- Ready for the Future
- The Compact Prime CP.2 lenses cover a full-frame image format without vignetting. Combined with the interchangeable mount, the Compact Prime CP.2 offers the possibility to upgrade to any number of existing or future cine and still cameras while still utilizing the same set of lenses.
- Full-frame coverage (24 x 36 mm) for focal lengths 21 to 100 mm
- Common aperture of T2.1 for the standard lens set
- Sweet spot effect with APS-C sensors
- Unique 14-Blade Iris
- The iris opening of the Compact Prime CP.2 lenses is created by 14 high precision blades. It stays consistently round and symmetrical over the entire T-stop range. This translates into natural and pleasing out-of-focus highlights and a smooth bokeh. Together they help create and capture special moments on film.
- High Optical Performance
- The modern lens design as well as the cine manufacturing process and tight tolerances ensure low distortion, high resolution and excellent color rendition for sharp, punchy images.
- High resolution and contrast
- Low distortion
- Color matched
- Great flare suppression through T* anti-reflex coating and internal light traps
- Standard focus and iris gear positions
- Stable exposure due to manual operated aperture
- Robust and reliable cine style housing
- Longer focus rotation and a manual focus
- Consistent front diameter from lens to lens
In the Box ZEISS Compact Prime CP.2 50mm/T2.1 Makro Cine Lens (F Mount) Limited 1-Year Warranty, Extends to 2 Years with Registration User Manual PDF 2.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS Compact Prime CP.2 50mm T2.1 Makro Cine Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS CP.2 50mm T2.1 Macro (ft) Specs | Focal Length | 50mm | | Lens Mount | Nikon F | | Format | Full Frame | | Maximum T-Stop | T2.1 | | Minimum Focus Distance from Image Plane | 10" / 24 cm | | Optical Design | 8 Elements in 6 Groups | | Front Diameter | 134 mm | | Length | 5.19" / 13.2 cm | | Weight | 3.0 lb / 1.4 kg | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 14.3 x 12.5 x 12.2" |
