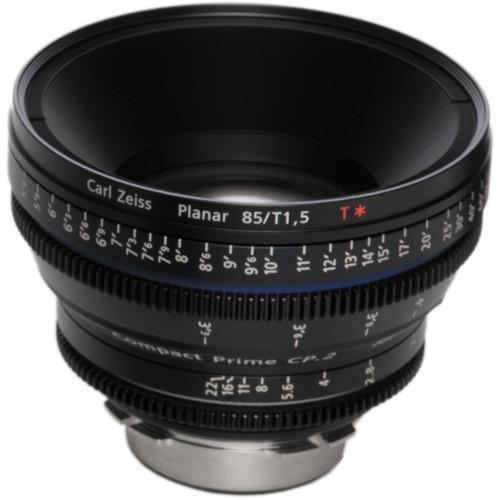

User Manual for ZEISS Compact Prime CP.2 85mm T1.5 Super Speed F Mount with Imperial Markings Click to enlarge the picture
Contents of the user manual for the ZEISS Compact Prime CP.2 85mm T1.5
- Product category: Digital Cine Lenses ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Digital Cine Lenses
|
User manual for the ZEISS Compact Prime CP.2 85mm T1.5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More vqwtyxesfwwyuu The ZEISS Compact Prime CP.2 85mm/T1.5 Super Speed F Mount with Imperial Markings is a fast cine prime lens designed for filmmaking and video production applications. It shoots remarkably well in low-light. Aside from great optics and mechanics, the lens offers broad flexibility in the areas of camera compatibility, follow-focus compatibility, and shooting capacity.
Announced at NAB 2012, this lens is a super-speed addition to ZEISS's Compact Prime CP.2 family of cine primes. Like the rest of the family, the 85mm/T1.5 features an interchangeable-mount system that affords a major forward-looking benefit -- not only can the lens now be used with cameras of different mounts, but rather it is ensured to also be compatible with most all future cameras. The system offers compatibility with PL, EF, F, MFT and E mounts. ZEISS's website provides instructions on how to dismantle an existing mount and assemble a new one. The five mounts allow use with cine cameras and DSLRs.
The fast T1.5 does so well in low-light, night and non-bright outdoor environments, that it allows filmmakers to conveniently pursue more creative shots in low-light, especially with high ISO DSLRs and camcorders. The outstanding handle of low-light also serves to limit the need for artificial light and thus allows more mobile filmmaking and delivers more natural-looking scenes. The fast aperture additionally offers more creative possibilities when aiming at a cinematic shallow depth of field.
The optics and mechanics are superior too. The lens incorporates two aspheric lens elements and two special types of glass with abnormal partial dispersion that exceptionally corrects for chromatic aberration. ZEISS-famous T* anti-reflective coating along with internal light traps provide advanced flare suppression. Fourteen high-precision iris blades open up consistently circular across all T-stops, allowing impressive highlights in out-of-focus areas and producing smooth bokeh.
As for high flexibility, in addition to the interchangeable-mount system, the 85mm/T1.5, like the rest of the CP.2 family, provides full coverage of full frame 24 x 36 sensors. Accordingly, it can, now or at a future time, be used with any 24 x 36 sensor camera, such as the Canon 5D and 1DC and the Nikon D800.
The lens also offers follow-focus flexibility. Across the entire CP.2 family, the front diameter is consistent, focus and iris gears are standard, and the housing is cine-style, offering thus compatibility with all standardized follow-focus systems. In addition, the 85mm/T1.5 also features a focus ring rotation of a manual 300° and as such allows accurate follow-focusing.
Furthermore about flexibility -- for anyone who wants to take advantage of the 4K shooting capacity of many of the cameras being released, the entire CP.2 family, with the 85mm/T1.5 included, is 4K-compatible.
The 85mm/T1.5 is also color-matched with the rest of the CP.2 lineup, and so swapping it with another from within the set can conveniently be done without correcting for changes in post.
Built sturdy and with long-lasting optics, and promising future-proof compatibility, the 85mm/T1.5 can be relied on for many years of use in sharp resolution.
The particular page you've clicked on is for an F mount version with imperial body markings. - High Performance
-
- Planar 85mm/T.15 with a 17° angle of view
- Advanced handle of low-light and night conditions
- More possibilities for cinematic shallow depth-of-field
- Especially effective in low-light with higher ISO cameras
- Limits the need for artificial light and produces natural looks
- Provides complete coverage of full frame 24 x 36 size sensors
- 300° manual focusing ring rotation allows precise follow-focusing
- 4K-compatible
- Superb Optics
-
- Two aspheric lens elements and two special types of glass
- T* coating and internal light traps very exceptionally handle flare
- Fourteen iris blades open up consistently circular across all T-stops
- Achieves smooth bokeh and impressive highlights in out-of-focus areas
- Broad Flexibility
-
- Features an interchangeable mount system
- Offers PL, EF, F, MFT, and E mount compatibility
- Standard focus / iris gears for follow-focus compatibility
- Works with all 24 x 36 sensor cameras, like the 5D and 1DC
- Consistent front diameter and color-matched with the rest of the CP.2 family
In the Box ZEISS Compact Prime CP.2 85mm/T1.5 Super Speed F Mount with Imperial Markings Limited 1-Year Warranty, Extends to 2 Years with Registration User Manual PDF 2.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS Compact Prime CP.2 85mm T1.5 Super Speed F Mount with Imperial Markings in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS CP.2 85mm T1.5 (ft) Specs | Focal Length | 85mm | | Lens Mount | Nikon F | | Format | Full Frame | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Full Frame: 17° | | Minimum Focus Distance from Image Plane | 3.3' / 1 m | | Focus Scales | Imperial | | Weight | 2.0 lb / 0.9 kg |
