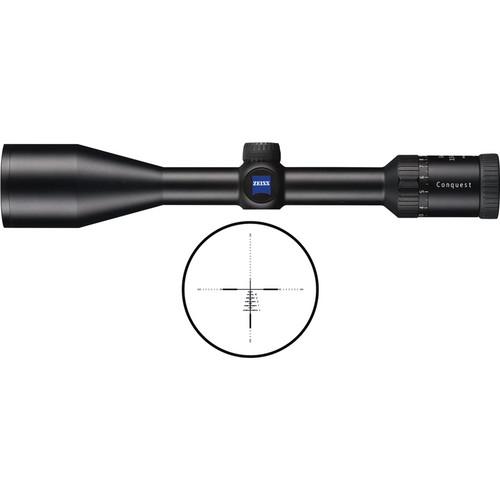

User Manual for ZEISS Conquest 3.5-10x50 MC Riflescope Click to enlarge the picture
Contents of the user manual for the ZEISS Conquest 3.5-10x50 MC Riflescope
- Product category: Riflescopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Riflescopes
|
User manual for the ZEISS Conquest 3.5-10x50 MC Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description Heading out at dawn or dusk puts you on the trail when most game is on the move - this is when light is at a premium and the stakes are high. ZEISS puts the odds in your favor with the Conquest 3.5-10x50 MC. This fine sighting solution combines a favored and flexible 3.5-10x power range with stunning twilight performance from an outstanding 50 mm objective. ZEISS' Conquest scopes are configured with a 1.0" main-tube that's o-ring sealed and nitrogen filled to ensure all-weather performance. The optics are first rate, and every air-to-glass surface features ZEISS' MC multicoating for optimum light transmission, contrast, and resolution. This particular Conquest scope features low profile hunting turrets that offer 1/4 MOA adjustments with a square adjustment range of 65.9 MOA. The Rapid-Z 800 reticle has been placed in the second (non-magnifying) focal plane, and the scope's exterior features a non-reflective matte black finish. - Optical Performance
-
- Precision ground optics deliver detailed images with high contrast
- MC multicoating on all glass-to-air surfaces for maximum transmission, color fidelity, resolution
- Operational Details
-
- 1/4 MOA precision adjustments
- Parallax free from 100 yd to infinity
- The Rapid-Z 800 reticle: 3 floating posts at 6, 9 and 3 o'clock, with cross hairs. Graduated tick-marks and hash-marks across each post and stadia allow accurate hold-off and hold-over calculations. This Rapid-Z is calibrated for distances up to 800 yd. It is recommended for use with the following calibers; 300 Ultra Mag, .338 Ultra Mag, .30-378 Weatherby Mag, etc.
- Second focal plane positioning maintains the reticle's dimensions throughout the magnification range.
- Construction and Design
-
- Low profile hunting style turrets
- 1.0" one-piece main-tube is durable and lightweight
- Nitrogen purged for water and fog proof performance
In the Box ZEISS Conquest 3.5-10x50 MC Riflescope (Matte Black) Conquest Riflescope Protective Lens Caps zztqrywwaucsubxvyctdyw Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS Conquest 3.5-10x50 MC Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 55 14 85 9972 Specs | | | Magnification | 3.5 to 10x | | Objective Lens Diameter | 50 mm | | Field of View | 3.5x: 35.1' @ 100 yd / 11.6 m @ 100 m
10x: 11.7' @ 100 yd / 3.9 m @ 100 m | | Exit Pupil Diameter | 3.5x: 11.4 mm
10x: 4.8 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | Rapid-Z 800 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 65.9 MOA | | Elevation Adjustment | 65.9 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 13.2" / 33.5 cm | | Weight | 17.1 oz / 485 g |
