User Manual for ZEISS Conquest Gavia 85 30-60x85 Spotting Scope Click to enlarge the picture
Contents of the user manual for the ZEISS Conquest Gavia 85 30-60x85 Spotting
- Product category: Spotting Scopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Spotting Scopes
 |
User manual for the ZEISS Conquest Gavia 85 30-60x85 Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|

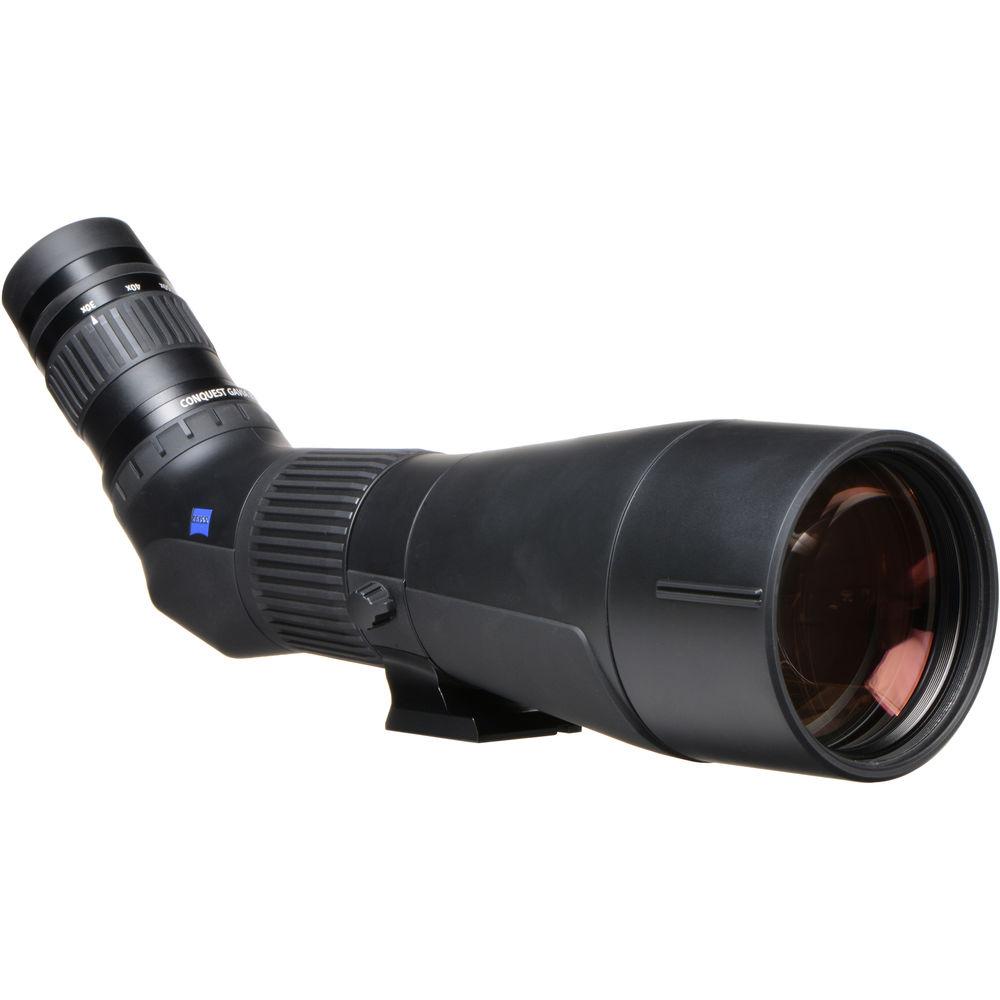

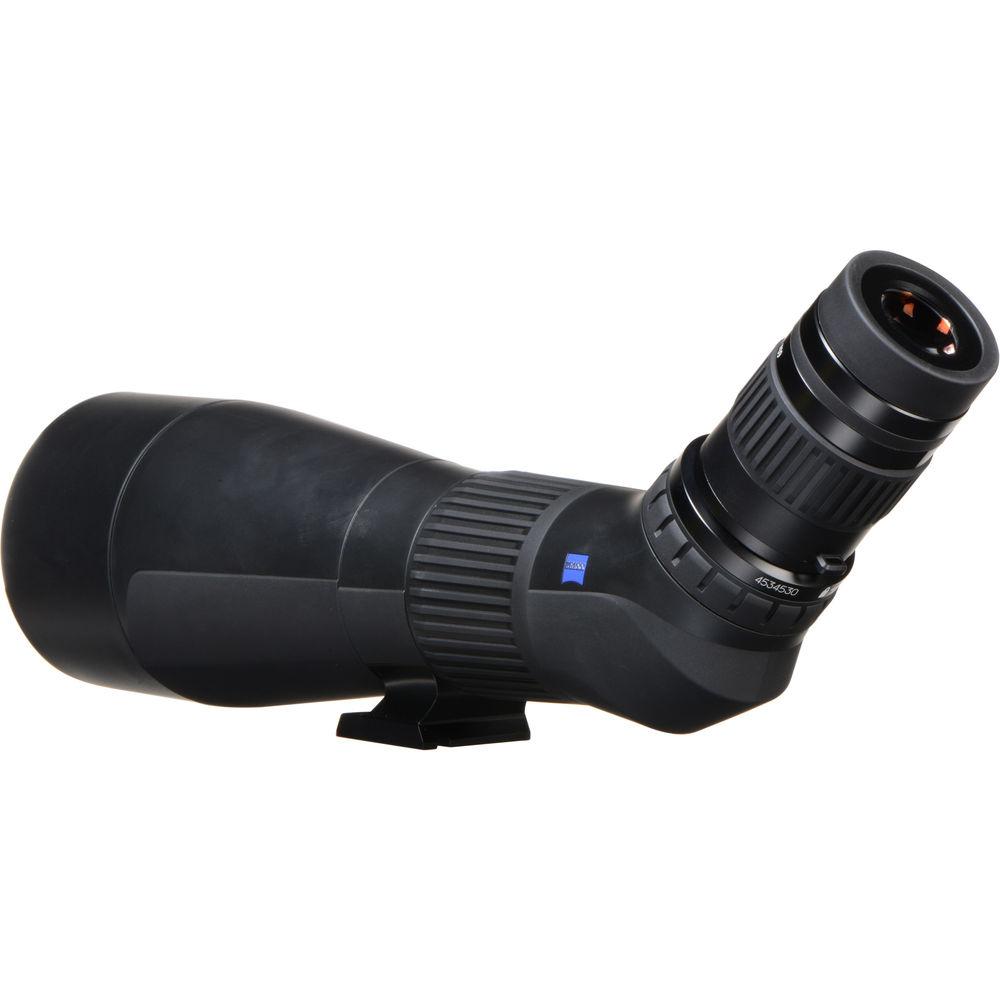

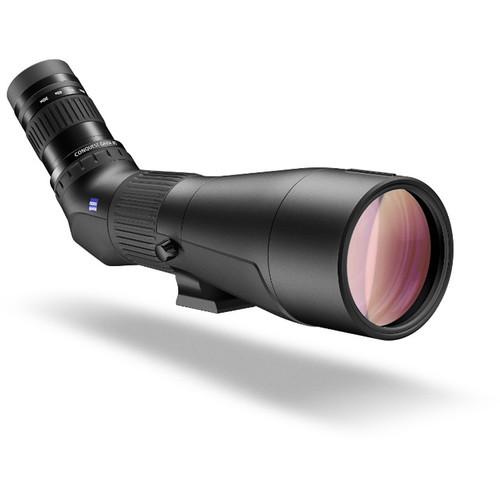

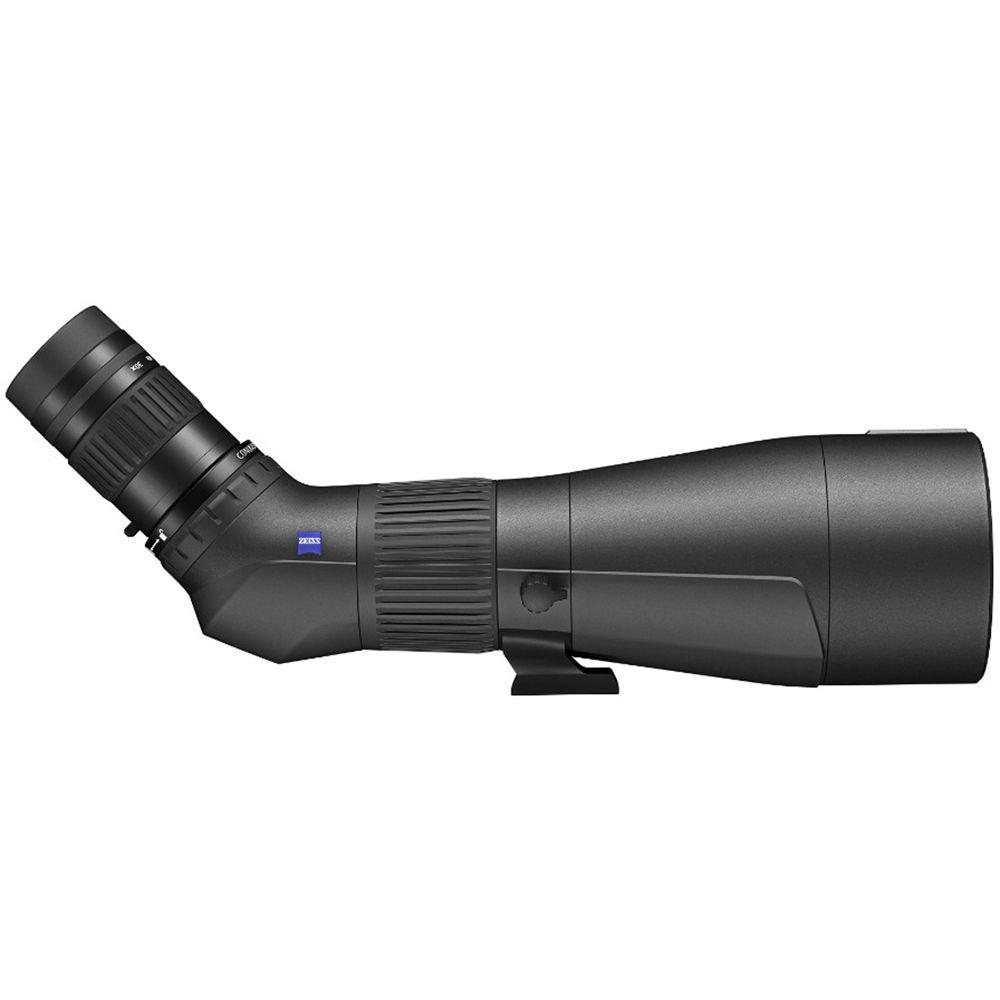

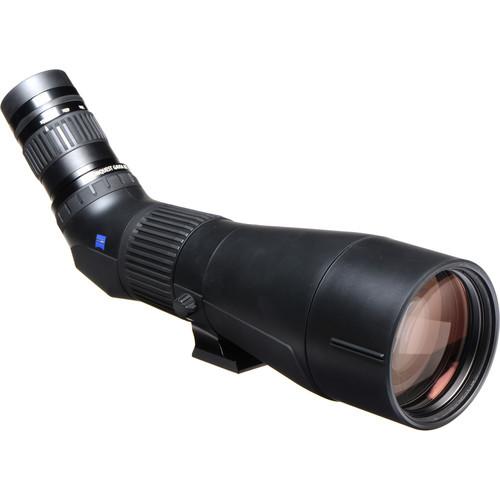

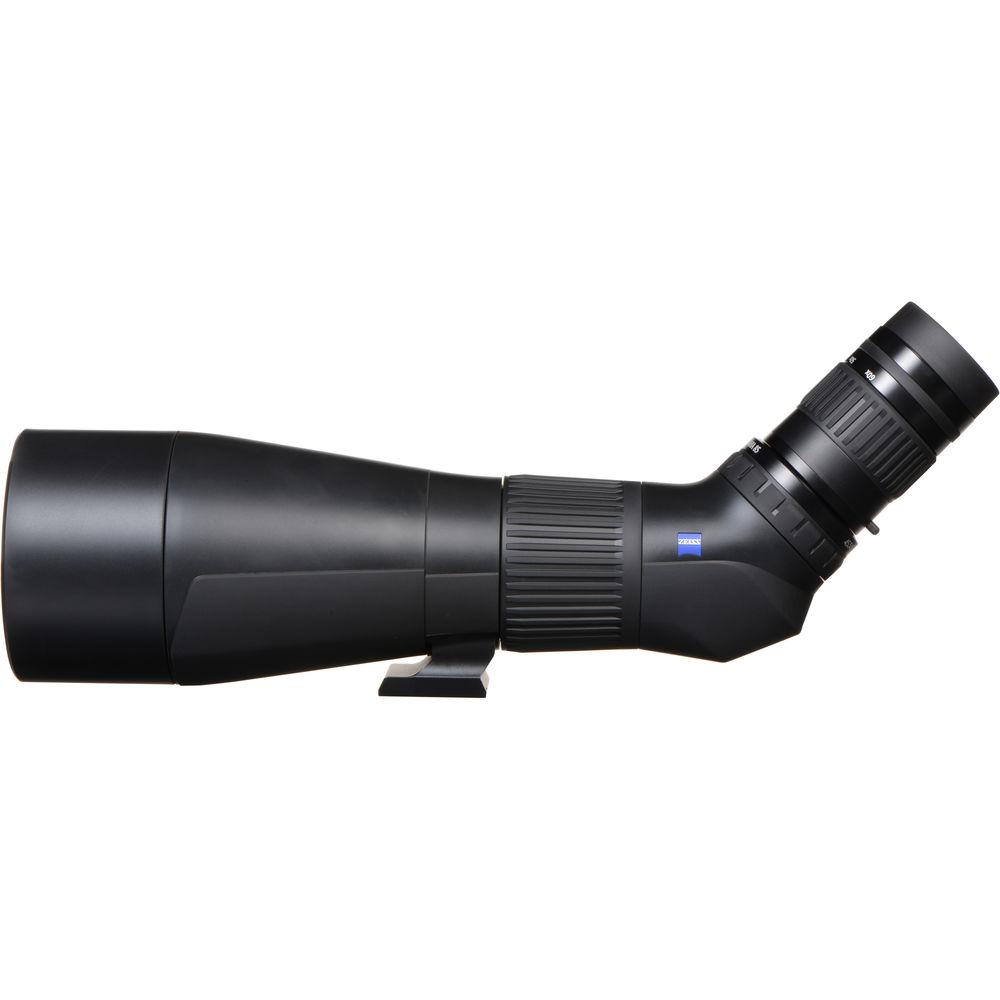

Product description A Guide to Birding with Spotting Scopes Read More Designed and engineered to observe the natural world without causing a disruption or disturbing wildlife, the ZEISS Conquest Gavia 85 30-60x85 Spotting Scope offers the benefits of a powerful zoom to bring distant subjects in close plus a large objective to keep images bright and vibrant, even in low light. Its magnification and objectives are complemented by the use of ZEISS' iconic T* anti-reflection multi-coatings and LotuTec hydrophobic exterior lens coatings. For comfortable viewing in all positions, the eyepiece is set at a 45° angle to the optical tube and the tripod collar can be rotated for precise eyepiece placement whether standing, sitting, or lying prone.Built for the road less traveled, the compact housing is made of a lightweight but durable magnesium alloy to help reduce weight without sacrificing strength. A large focus collar is easy to manipulate, even with gloves on, as is the smaller zoom wheel on the eyepiece. To help defend against the elements, the housing is nitrogen filled for fog-proof performance, especially when moving between extreme temperature changes, and O-rings seal the optical system, making it waterproof against up to 400mbar of pressure. A universal tripod mount has 1/4"-20 and 3/8"-16 sockets to allow its use on most photo, video, and field tripods. - Performance
-
- 30-60x zoom eyepiece
- 85mm objective lens
- Compact roof prism optical path
- Fully multi-coated high-density (HD) lens system: T* and LotuTec coatings
- T*: Multi-layered anti-reflection coating improves light transmission and increases color rendition and contrast
- LotuTec: Hydrophobic coating makes cleaning water, oils, and dirt easier
- 99-69' field of view at 1000 yards
- 2.8-1.4mm exit pupil
- Use and Handling
-

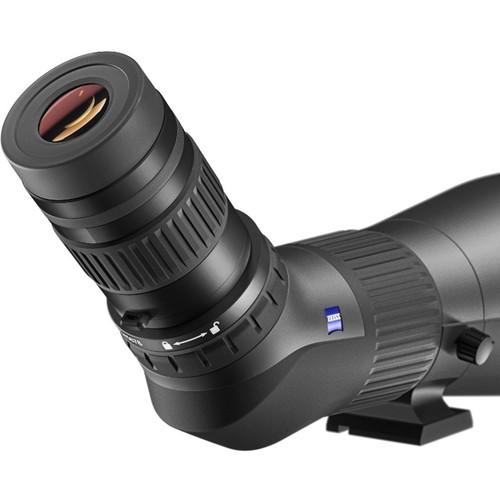

- Eyepiece set at 45° angle to optical tube for comfortable viewing whether sitting, standing, or lying prone
- Large focusing collar
- Rotating and locking tripod clamp allows for precise positioning of the eyepiece
- 1/4"-20 and 3/8"-16 mounting sockets
- Removable eyepiece allows use of compatible, optional eyepieces for different magnifications
- Sighting line on objective bell makes finding objects faster and easier
- Construction
-
- Lightweight and durable magnesium-alloy housing
- Nitrogen filled for fogproof performance even when moving between extreme temperature changes
- O-ring sealed to be waterproof to 400mbar of pressure
- Extendable sunshade keeps the Sun, rain, and snow off the objective
- M86x1 filter threads
- Weight: 3.75 pounds with eyepiece
UPC: 740035997714 In the Box ZEISS Conquest Gavia 85 30-60x85 Spotting Scope (Angled Viewing) 30-60x Eyepiece Eyepiece Cap Objective Lens Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS Conquest Gavia 85 30-60x85 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 528048-0000-000 Specs | | | Magnification | 30 to 60x | | Objective Lens Diameter | 85 mm | | Field of View | 30x: 99.0' @ 1000 yd / 33.0 m @ 1000 m
60x: 69.0' @ 1000 yd / 23.0 m @ 1000 m | | Minimum Focus Distance | 10.8' / 3.3 m | | Exit Pupil Diameter | 30x: 2.8 mm
60x: 1.4 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Filter Thread | M86 x 1.0 | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 15.6" / L: 39.6 cm | | Weight | 3.8 lb / 1.7 kg (with Eyepiece) | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 17.4 x 8.6 x 5.5" |
