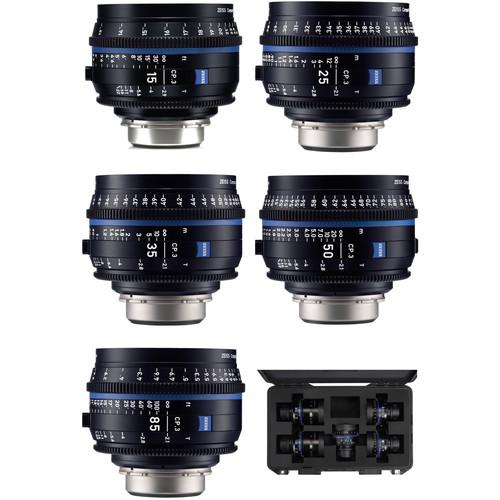

User Manual for ZEISS CP.3 15, 25, 35, 50, 85mm Five Lens Kit Click to enlarge the picture
Contents of the user manual for the ZEISS CP.3 15, 25, 35, 50,
- Product category: Digital Cine Lenses ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Digital Cine Lenses
|
User manual for the ZEISS CP.3 15, 25, 35, 50, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More This Kit of five ZEISS CP.3 Compact Prime Lenses is comprised of the 15, 25, 35, 50, and 85mm cinema-style lenses with focus scales marked in feet. This kit provides you with color-matched lenses with the classic ZEISS look that cover full frame and are fitted with Canon EF mounts. The lenses feature an internal focus design, which means that the front of the lens doesn't rotate as you change focus, and the lens maintains a constant volume. Dual-sided focus marks make it easier on your camera assistant working on either side of the camera.
All CP.3 lenses also share the same 95mm front diameter. Similar physical attributes across the lens line makes fitting lens accessories such as matte boxes, follow focuses, lens supports, and lens control motors easier and less time consuming. The CP.3 lenses feature a 14-blade iris for natural-looking, out-of-focus highlights and interchangeable mounts. - ZEISS CP.3 15mm T2.9 Compact Prime Lens (Canon EF Mount, Feet) Building on the success of the well-regarded CP.2 lenses, ZEISS's CP.3 Compact Prime Lenses offer the same full-frame sensor coverage and classic ZEISS look in an updated form factor and with improved mechanics and lens coatings. This 15mm Compact Prime lens is derived from the same classic optical formula as the preceding CP.2 variant and shares the same physical length as the 18, 21, 25, 28, 35, 50, and 85mm CP.3 lenses while maintaining identical focus and iris gear positioning with the entire set of CP.3 lenses, relative to the mount. All CP.3 lenses also share the same 95mm front diameter. Similar physical attributes across the lens line makes fitting lens accessories such as matte boxes, follow focuses, lens supports, and lens control motors easier and less time consuming.Another feature handed down from the preceding CP.2 lenses is the interchangeable mounts. This lens comes with a Canon EF mount installed. Though, if you wish to fit your CP.3 lens to a different camera, the lens mount can be swapped by the user for a separately available mount of a different kind. If you like the bokeh in your images to be round, even after stopping down, you will be pleased to know that the 14-bladed iris, made famous by the CP.2 lenses, has been retained.Note: While the CP.3 lenses are designed for a degree of user-serviceability regarding the mount, for ideal performance and calibration, B&H recommends that mount swaps and other lens adjustments be done by a trained lens technician at a service center.
- Signature ZEISS Look
- ZEISS lenses are known for their clean and crisp image rendering. The CP.3 series of lenses is no different. This CP.3 lens will accurately color-match to other ZEISS cinema lenses inside and out of the CP.3 range. The CP.3 lenses feature improved lens coatings and anti-reflection masking over the CP.2 range for increased contrast and reduced flare, important for capturing content with the intent of an HDR-format release.
- New Ergonomic Design
- For enhanced ergonomics over the previous-generation CP.2 lenses, the CP.3 lens barrel has been reshaped to be more similar to the renowned ZEISS Ultra Prime lenses. This new shape is easier to handle, and takes up less physical space than the original Compact Prime design. An even weight distribution ensures that these lenses will be at home handheld, locked down on a tripod, or flown on a Steadicam or motorized gimbal.
- ZEISS CP.3 25mm T2.1 Compact Prime Lens (Canon EF Mount, Feet) Building on the success of the well-regarded CP.2 lenses, ZEISS's CP.3 Compact Prime Lenses offer the same full-frame sensor coverage and classic ZEISS look in an updated form factor and with improved mechanics and lens coatings. This 25mm Compact Prime lens is derived from the same classic optical formula as the preceding CP.2 variant and shares the same physical length as the 15, 18, 21, 28, 35, 50, and 85mm CP.3 lenses while maintaining identical focus and iris gear positioning with the entire set of CP.3 lenses, relative to the mount. All CP.3 lenses also share the same 95mm front diameter. Similar physical attributes across the lens line makes fitting lens accessories such as matte boxes, follow focuses, lens supports, and lens control motors easier and less time consuming.Another feature handed down from the preceding CP.2 lenses is the interchangeable mounts. This lens comes with a Canon EF mount installed. Though, if you wish to fit your CP.3 lens to a different camera, the lens mount can be swapped by the user for a separately available mount of a different kind. If you like the bokeh in your images to be round, even after stopping down, you will be pleased to know that the 14-bladed iris, made famous by the CP.2 lenses, has been retained.Note: While the CP.3 lenses are designed for a degree of user-serviceability regarding the mount, for ideal performance and calibration, B&H recommends that mount swaps and other lens adjustments be done by a trained lens technician at a service center.
- Signature ZEISS Look
- ZEISS lenses are known for their clean and crisp image rendering. The CP.3 series of lenses is no different. This CP.3 lens will accurately color-match to other ZEISS cinema lenses inside and out of the CP.3 range. The CP.3 lenses feature improved lens coatings and anti-reflection masking over the CP.2 range for increased contrast and reduced flare, important for capturing content with the intent of an HDR-format release.
- New Ergonomic Design
- For enhanced ergonomics over the previous-generation CP.2 lenses, the CP.3 lens barrel has been reshaped to be more similar to the renowned ZEISS Ultra Prime lenses. This new shape is easier to handle, and takes up less physical space than the original Compact Prime design. An even weight distribution ensures that these lenses will be at home handheld, locked down on a tripod, or flown on a Steadicam or motorized gimbal.
- ZEISS CP.3 35mm T2.1 Compact Prime Lens (Canon EF Mount, Feet) Building on the success of the well-regarded CP.2 lenses, ZEISS's CP.3 Compact Prime Lenses offer the same full-frame sensor coverage and classic ZEISS look in an updated form factor and with improved mechanics and lens coatings. This 35mm Compact Prime lens is derived from the same classic optical formula as the preceding CP.2 variant and shares the same physical length as the 15, 18, 21, 25, 28, 50, and 85mm CP.3 lenses while maintaining identical focus and iris gear positioning with the entire set of CP.3 lenses, relative to the mount. All CP.3 lenses also share the same 95mm front diameter. Similar physical attributes across the lens line makes fitting lens accessories such as matte boxes, follow focuses, lens supports, and lens control motors easier and less time consuming.Another feature handed down from the preceding CP.2 lenses is the interchangeable mounts. This lens comes with a Canon EF mount installed. Though, if you wish to fit your CP.3 lens to a different camera, the lens mount can be swapped by the user for a separately available mount of a different kind. If you like the bokeh in your images to be round, even after stopping down, you will be pleased to know that the 14-bladed iris, made famous by the CP.2 lenses, has been retained.Note: While the CP.3 lenses are designed for a degree of user-serviceability regarding the mount, for ideal performance and calibration, B&H recommends that mount swaps and other lens adjustments be done by a trained lens technician at a service center.
- Signature ZEISS Look
- ZEISS lenses are known for their clean and crisp image rendering. The CP.3 series of lenses is no different. This CP.3 lens will accurately color-match to other ZEISS cinema lenses inside and out of the CP.3 range. The CP.3 lenses feature improved lens coatings and anti-reflection masking over the CP.2 range for increased contrast and reduced flare, important for capturing content with the intent of an HDR-format release.
- New Ergonomic Design
- For enhanced ergonomics over the previous-generation CP.2 lenses, the CP.3 lens barrel has been reshaped to be more similar to the renowned ZEISS Ultra Prime lenses. This new shape is easier to handle, and takes up less physical space than the original Compact Prime design. An even weight distribution ensures that these lenses will be at home handheld, locked down on a tripod, or flown on a Steadicam or motorized gimbal.
- ZEISS CP.3 50mm T2.1 Compact Prime Lens (Canon EF Mount, Feet) Building on the success of the well-regarded CP.2 lenses, ZEISS's CP.3 Compact Prime Lenses offer the same full-frame sensor coverage and classic ZEISS look in an updated form factor and with improved mechanics and lens coatings. This 50mm Compact Prime lens is derived from the same classic optical formula as the preceding CP.2 variant and shares the same physical length as the 15, 18, 21, 25, 28, 35, and 85mm CP.3 lenses while maintaining identical focus and iris gear positioning with the entire set of CP.3 lenses, relative to the mount. All CP.3 lenses also share the same 95mm front diameter. Similar physical attributes across the lens line makes fitting lens accessories such as matte boxes, follow focuses, lens supports, and lens control motors easier and less time consuming.Another feature handed down from the preceding CP.2 lenses is the interchangeable mounts. This lens comes with a Canon EF mount installed. Though, if you wish to fit your CP.3 lens to a different camera, the lens mount can be swapped by the user for a separately available mount of a different kind. If you like the bokeh in your images to be round, even after stopping down, you will be pleased to know that the 14-bladed iris, made famous by the CP.2 lenses, has been retained.Note: While the CP.3 lenses are designed for a degree of user-serviceability regarding the mount, for ideal performance and calibration, B&H recommends that mount swaps and other lens adjustments be done by a trained lens technician at a service center.
- Signature ZEISS Look
- ZEISS lenses are known for their clean and crisp image rendering. The CP.3 series of lenses is no different. This CP.3 lens will accurately color-match to other ZEISS cinema lenses inside and out of the CP.3 range. The CP.3 lenses feature improved lens coatings and anti-reflection masking over the CP.2 range for increased contrast and reduced flare, important for capturing content with the intent of an HDR-format release.
- New Ergonomic Design
- For enhanced ergonomics over the previous-generation CP.2 lenses, the CP.3 lens barrel has been reshaped to be more similar to the renowned ZEISS Ultra Prime lenses. This new shape is easier to handle, and takes up less physical space than the original Compact Prime design. An even weight distribution ensures that these lenses will be at home handheld, locked down on a tripod, or flown on a Steadicam or motorized gimbal.
- ZEISS CP.3 85mm T2.1 Compact Prime Lens (Canon EF Mount, Feet) Building on the success of the well-regarded CP.2 lenses, ZEISS's CP.3 Compact Prime Lenses offer the same full-frame sensor coverage and classic ZEISS look in an updated form factor and with improved mechanics and lens coatings. This 85mm Compact Prime lens is derived from the same classic optical formula as the preceding CP.2 variant and shares the same physical length as the 15, 18, 21, 25, 28, 35, and 50mm CP.3 lenses while maintaining identical focus and iris gear positioning with the entire set of CP.3 lenses, relative to the mount. All CP.3 lenses also share the same 95mm front diameter. Similar physical attributes across the lens line makes fitting lens accessories such as matte boxes, follow focuses, lens supports, and lens control motors easier and less time consuming.Another feature handed down from the preceding CP.2 lenses is the interchangeable mounts. This lens comes with a Canon EF mount installed. Though, if you wish to fit your CP.3 lens to a different camera, the lens mount can be swapped by the user for a separately available mount of a different kind. If you like the bokeh in your images to be round, even after stopping down, you will be pleased to know that the 14-bladed iris, made famous by the CP.2 lenses, has been retained.Note: While the CP.3 lenses are designed for a degree of user-serviceability regarding the mount, for ideal performance and calibration, B&H recommends that mount swaps and other lens adjustments be done by a trained lens technician at a service center.
- Signature ZEISS Look
- ZEISS lenses are known for their clean and crisp image rendering. The CP.3 series of lenses is no different. This CP.3 lens will accurately color-match to other ZEISS cinema lenses inside and out of the CP.3 range. The CP.3 lenses feature improved lens coatings and anti-reflection masking over the CP.2 range for increased contrast and reduced flare, important for capturing content with the intent of an HDR-format release.
- New Ergonomic Design
- For enhanced ergonomics over the previous-generation CP.2 lenses, the CP.3 lens barrel has been reshaped to be more similar to the renowned ZEISS Ultra Prime lenses. This new shape is easier to handle, and takes up less physical space than the original Compact Prime design. An even weight distribution ensures that these lenses will be at home handheld, locked down on a tripod, or flown on a Steadicam or motorized gimbal.
- ZEISS Premium PELI Air Case for CP.3 5-Lens Set Premium PELI Air Case from ZEISS provides protective storage for your set of five CP.3 lenses, both during shoots and while travelling between locations. Molded from Pelican's HPX2 resin, this case is both lightweight and shockproof. The weather-sealed design keeps dust and water away from the CP.3 lenses in rough shooting environments.
The transport case fits up to five lenses, with a formfitting cutout for each focal length. The foam material is designed to prevent scratches and undesired movement during transit. Recesses between the cutouts leave enough space to easily grip and remove the lenses. The lenses are stored horizontally, making it easy to view the focal length and iris settings at a quick glance. Additional cutouts provide space for small accessories. - Case's interior allows for easy access to stored lenses
- Meets international airline standards for carry-on luggage
- Retractable handle extension and rubber-padded handle
- Soft-sided wheels with stainless steel bearings
- Robust, double-throw latches and stainless steel hasp protectors
- Removable card holder for front or side placement
UPC: 019428136802 In the Box - CP.3 15mm T2.9 Compact Prime Lens (Canon EF Mount, Feet) sasreeuvzyxxwydvtbzbtzudztwuvaxtadyyur
- Limited 1-Year Warranty
- CP.3 25mm T2.1 Compact Prime Lens (Canon EF Mount, Feet)
- CP.3 35mm T2.1 Compact Prime Lens (Canon EF Mount, Feet)
- CP.3 50mm T2.1 Compact Prime Lens (Canon EF Mount, Feet)
- CP.3 85mm T2.1 Compact Prime Lens (Canon EF Mount, Feet)
Includes Free - Premium PELI Air Case for CP.3 5-Lens Set sasreeuvzyxxwydvtbzbtzudztwuvaxtadyyur
Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS CP.3 15, 25, 35, 50, 85mm Five Lens Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ZEISS CP.3 15mm T2.9 Compact Prime Lens (Canon EF Mount, Feet)
| Mount | Canon EF | | Focal Length | 15mm | | Aperture | T2.9 to T22 | | Close Focus Distance | 12" / 30 cm | | Image Circle | 43.2 mm | | Focus Rotation | 300° | | Iris Blades | 15 | | Front Lens Diameter | 95 mm | | Focus Scales | Feet | | Length | 3.3" / 83.7 mm | | Weight | 1.9 lb / 0.87 kg | | | | Box Dimensions (LxWxH) | 10.2 x 9.3 x 8.9" | - ZEISS CP.3 25mm T2.1 Compact Prime Lens (Canon EF Mount, Feet)
| Mount | Canon EF | | Focal Length | 25mm | | Aperture | T2.1 to T22 | | Close Focus Distance | 10" / 26 cm | | Image Circle | 43.2 mm | | Focus Rotation | 300° | | Iris Blades | 15 | | Front Lens Diameter | 95 mm | | Focus Scales | Feet | | Length | 3.3" / 83.7 mm | | Weight | 1.8 lb / 0.82 kg | | | | Box Dimensions (LxWxH) | 10.2 x 9.35 x 9.0" | - ZEISS CP.3 35mm T2.1 Compact Prime Lens (Canon EF Mount, Feet)
| Mount | Canon EF | | Focal Length | 35mm | | Aperture | T2.1 to T22 | | Close Focus Distance | 1' / 30 cm | | Image Circle | 43.2 mm | | Focus Rotation | 300° | | Iris Blades | 15 | | Front Lens Diameter | 95 mm | | Focus Scales | Feet | | Length | 3.3" / 83.7 mm | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 10.0 x 9.3 x 9.1" | - ZEISS CP.3 50mm T2.1 Compact Prime Lens (Canon EF Mount, Feet)
| Mount | Canon EF | | Focal Length | 50mm | | Aperture | T2.1 to T22 | | Close Focus Distance | 1.5' / 45 cm | | Image Circle | 43.2 mm | | Focus Rotation | 300° | | Iris Blades | 15 | | Front Lens Diameter | 95 mm | | Focus Scales | Feet | | Length | 3.3" / 83.7 mm | | Weight | 1.7 lb / 0.77 kg | | | | Box Dimensions (LxWxH) | 10.15 x 9.2 x 9.05" | - ZEISS CP.3 85mm T2.1 Compact Prime Lens (Canon EF Mount, Feet)
| Mount | Canon EF | | Focal Length | 85mm | | Aperture | T2.1 to T22 | | Close Focus Distance | 3.3' / 1 m | | Image Circle | 43.2 mm | | Focus Rotation | 300° | | Iris Blades | 15 | | Front Lens Diameter | 95 mm | | Focus Scales | Feet | | Length | 3.3" / 83.7 mm | | Weight | 1.9 lb / 0.88 kg | | | | Box Dimensions (LxWxH) | 10.0 x 9.3 x 8.9" | - ZEISS Premium PELI Air Case for CP.3 5-Lens Set
| Holds | Set of Five CP.3 Lenses | | Carry/Transport Options | Retractable Handle Extension and Rubber-Padded Handle
Soft-Sided Wheels with Stainless Steel Bearings | | Closure Method | Double-Throw Latches and Stainless Steel Hasp Protectors | | Waterproof | Yes | | Dimensions | 20.4 x 11.2 x 7.2" / 51.8 x 28.4 x 18.3 cm | | Weight | 13.6 lb / 6.2 kg (with foam) | | | | Box Dimensions (LxWxH) | 22.2 x 14.8 x 9.5" |
