ZEISS CZ.2 Set #1 Two PL

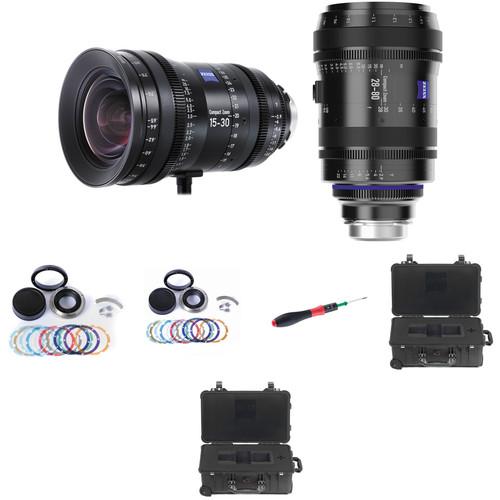

User Manual for ZEISS CZ.2 Set #1 Two PL Mount Zoom Lens Bundle of 15-30 and 28-80 with Swappable Canon Mounts, Cases

• Product category: Digital Cine Lenses ZEISS
• Brand: ZEISS
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ZEISS Digital Cine Lenses

Product description

• ZEISS 15 - 30mm CZ.2 Compact Zoom Lens (PL Mount, Feet) The ZEISS 15 - 30mm CZ.2 Compact Zoom Lens in PL mount with focus markings in feet is a short wide-angle zoom lens for production shooting on formats from Micro Four Thirds to Full-Frame sensors. Optimized for digital cinematography, the zoom lens supports 4K resolution and is colormatched to available ZEISS primes for seamless intercutting between zoom and primes.

  The lens features internal mechanical adjustments built into a cine-style housing that minimize focus shift across the zoom range. Built-in lens gears on the zoom, focus, and iris rings, allow you to use available follow focus and zoom motors (not included). The lens features a circular iris for natural looking out of focus highlights, with easy to read focus scales calibrated in feet.
  Full Frame Coverage
  • The lens covers the full frame aperture, allowing you to use this lens on a variety of formats from Four Thirds through Full Frame.
  Focus Rotation
  • The lens features nearly 300° of focus rotation that provides for extremely accurate focus pulls.
  Interchangeable Lens Mounts
  • The interchangeable lens mount allows you to change the original mount your lens came in. Optionally available mounts are Sony E, Canon EF, Nikon F, and MFT.
  Lens Coatings
  • T* anti-reflex coating and internal light traps suppress flare for a sharp image with good contrast.
  Intercutability
  • Colormatched to seamlessly intercut with ZEISS Master Prime, Ultra Prime, Compact Prime Lenses, and other CZ.2 zoom lenses.
• ZEISS 28-80mm T2.9 Compact Zoom CZ.2 Lens (PL Mount) The ZEISS 28-80mm T2.9 Compact Zoom CZ.2 Lens with PL Mount is a standard zoom lens that is optimized for motion picture production. The lens offers full-frame (36 x 24 mm) coverage and exhibits no focus shift over the zoom range. The cine-style housing features calibrated focus scales and industry standard gearing for focus, iris and zoom. At 7.72" long and with a weight of 5.5 lb, the 28-80mm is relatively compact and lightweight, which makes it ideal for handheld and Steadicam applications. The lens features a built-in lens support post, with 3/8" threading for use with available lens supports.

  ZEISS Compact Zooms utilize T* anti-reflex coating and internal light traps to suppress flare, and a circular iris renders attractive bokeh. Interchangeable lens mounts are available in PL, Canon EF, Nikon F, Micro 4/3, and Sony E, which means that users are not locked into a single camera system. A range of mounting options and 4K ready optics make the 28-80mm Compact Zoom a versatile and virtually "future proof" lens.
  • Full-frame coverage (36 x 24 mm)
  • No focus shift over the zoom range
  • Robust cine-style housing and calibrated focus scales
  • T* anti-reflex coating and internal light traps suppress flare
  • Circular shape of iris
  • Interchangeable lens mounts
  • Imperial measurements
• ZEISS 2075-923 Interchangeable Mount for ZEISS 15-30mm Compact Zoom ( Canon EF Mount) The ZEISS 2075-923 Interchangeable Mount Set for ZEISS 15 to 30mm Compact Zoom is designed to convert the original mount of the Compact Zoom CZ.2 15-30/T2.9 zoom lens to a Canon EF Mount. The Interchangeable Mount consists of a mount, lens caps, adaption ring with support bracket, screws, and a set of shims.
  • For ZEISS CZ.2 15 to 30mm T2.9 Compact Zoom
  • Includes a mount, lens caps, adaption ring with support bracket, screws, and a set of shims.
• ZEISS Interchangeable Mount Set EF (CZ.2 28-80mm T2.9) The ZEISS Interchangeable Mount Set EF allows users to convert their CZ.2 28-80mm T2.9 lens to EF mount. The set includes a EF mount ring, an adaption ring with support bracket, Torx screws, eleven color coded shims and a rear lens cap. As the flange focal distance varies from camera type to camera type, it is sometimes necessary to make adjustments when changing the lens mount or camera model. In order to perform this adjustment, shims in eleven different thicknesses are provided.

  Note: The use of a T6 torque wrench with a torque of 0.4 Nm is strongly recommended.

• 15 - 30mm CZ.2 Compact Zoom Lens (PL Mount, Feet) xuyefrfxayfcdfvesxsattze
• Front Lens Cap
• Rear Lens Cap
• Zoom Stick
• Lens Support Bolt
• Limited 1-Year Warranty

• 28-80mm T2.9 Compact Zoom CZ.2 Lens (PL Mount)

• 2075-923 Interchangeable Mount for ZEISS 15-30mm Compact Zoom ( Canon EF Mount)

• Interchangeable Mount Set EF (CZ.2 28-80mm T2.9)

• Torx Torque Wrench

• Transport Case CZ.2, 15-30

• Transport Case CZ.2, 28-80

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ZEISS 15 - 30mm CZ.2 Compact Zoom Lens (PL Mount, Feet)

  Focal Length	15 to 30mm
  Lens Mount	ARRI PL
  Format	Full Frame
  Maximum T-Stop	T2.9
  Minimum T-Stop	T22
  Horizontal Angle of View	MFT: 59 to 33° Full Frame: 100 to 62° Super35: 79 to 46°
  Minimum Focus Distance from Image Plane	22" / 0.55 m
  Zoom Ratio	2x
  Dimensions (W x H)	4.5 x 4.5" / 114.3 x 114.3 mm
  Length	9.92" / 198 mm
  Weight	5.7 lb / 2.6 kg

  Box Dimensions (LxWxH)	15.3 x 12.7 x 12.0"

• ZEISS 28-80mm T2.9 Compact Zoom CZ.2 Lens (PL Mount)

  Focal Length	28 to 80mm
  Lens Mount	ARRI PL
  Format	Full Frame
  Maximum T-Stop	T2.9
  Minimum T-Stop	T22
  Horizontal Angle of View	MFT: 12 to 34° Full Frame: 25 to 66° Super35: 18 to 48°
  Minimum Focus Distance from Image Plane	2.67' / 0.83 m
  Front Diameter	95 mm
  Focus Scales	Imperial
  Zoom Ratio	2.8x
  Length	7.72" / 196 mm
  Weight	5.5 lb / 2.5 kg

  Box Dimensions (LxWxH)	14.488 x 12.677 x 12.205"

• ZEISS 2075-923 Interchangeable Mount for ZEISS 15-30mm Compact Zoom ( Canon EF Mount)

  Box Dimensions (LxWxH)	4.6 x 4.6 x 4.6"

• ZEISS Interchangeable Mount Set EF (CZ.2 28-80mm T2.9)

  Mount Type	Canon EF
  Compatibility	ZEISS Compact Zoom CZ.2 28-80mm T2.9 lenses
  Shim Thickness	Silver: 0.013 mm Gold: 0.019 mm Purple: 0.025 mm Light blue: 0.032 mm Red: 0.038 mm Blue: 0.051 mm White: 0.064 mm Green: 0.076 mm Orange: 0.102 mm Light purple: 0.127 mm Clear: 0.152 mm

  Box Dimensions (LxWxH)	4.6 x 4.5 x 4.5"
