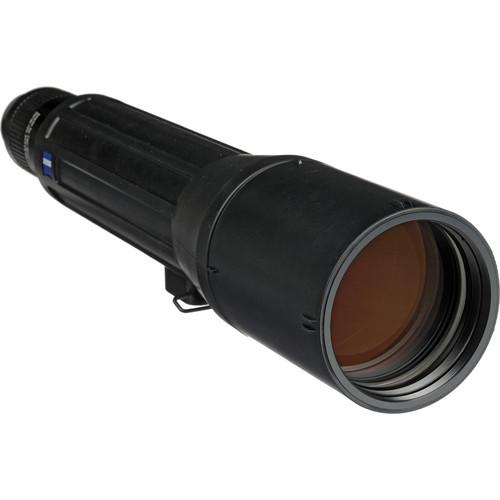

User Manual for ZEISS Dialyt 18-45x65 Field Spotter Spotting Scope Click to enlarge the picture
Contents of the user manual for the ZEISS Dialyt 18-45x65 Field Spotter Spotting
- Product category: Spotting Scopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Spotting Scopes
|
User manual for the ZEISS Dialyt 18-45x65 Field Spotter Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More trrrzvvuuszbzrueruawdstexbuebfdvrw Originally designed for European Alpine hunters, the Dialyt 18-45x65 Field Spotter Spotting Scope from ZEISS is lightweight, compact, and built for rough use in the field. It is an attractive option for Western hunters here in the U.S., hunters in mountainous areas anywhere, hikers, and nature enthusiasts. This is a straight-viewing, rubber-armored scope with a built-in variable eyepiece. It is water, fog, and dustproof and, unlike draw-tube scopes, is instantly ready for use. Focusing and alignment sights on the objective lens provide fast target acquisition; simply position, focus, and view.The Dialyt's 18-45x variable eyepiece provides a wide field of view at low magnification and sharp detail at long distances with the higher magnification. This spotter also features multilayer coatings and a large lens diameter of 65mm, providing high light transmission that allows for easy observation at lower magnifications in low-light conditions.The large magnification range makes it the perfect scope for mountain hunting or for observation in vast, open areas. It is simple to use: change the magnification by turning the eyepiece and focus by turning the objective. The Dialyt Field Spotter Spotting Scope fits easily into a backpack and, if necessary, can be rested on a pack or rock or leaned against a tree for further stabilization at higher magnification. This spotter also has a threaded tripod mount for lengthier periods of observation. The non-slip rubber armoring, besides offering a comfortable grip, provides added protection to the scope from bumps and bruises. It comes with a carrying strap that attaches to the caps of the objective lens and eyepiece for easy transport and optimal protection. - 18-45x Zoom magnification
- Achromatic lens type for a minimum of false color and less image distortion
- Rubber armoring provides a secure and comfortable grip in addition to shock resistance
- Fast target acquisition with objective lens focusing and alignment sights
UPC: 740035001749 In the Box ZEISS Dialyt 18-45x65 Field Spotter Spotting Scope (Straight Viewing) Objective Cap Ocular Lens Cap Carrying Strap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS Dialyt 18-45x65 Field Spotter Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 528007-0000-000 Specs | | | Magnification | 18 to 45x | | Objective Lens Diameter | 65 mm | | Field of View | 18x: 120.0' @ 1000 yd / 40.0 m @ 1000 m
45x: 69.0' @ 1000 yd / 23.0 m @ 1000 m | | Minimum Focus Distance | 32.8' / 10.0 m | | Exit Pupil Diameter | 18x: 3.6 mm
45x: 1.4 mm | | Eye Relief | 19.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 15.6 x H: 3.1 x W: 3.0" / L: 40.0 x H: 8.0 x W: 7.6 cm | | Weight | 2.6 lb / 1195.0 g | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 18.4 x 5.7 x 5.2" |
