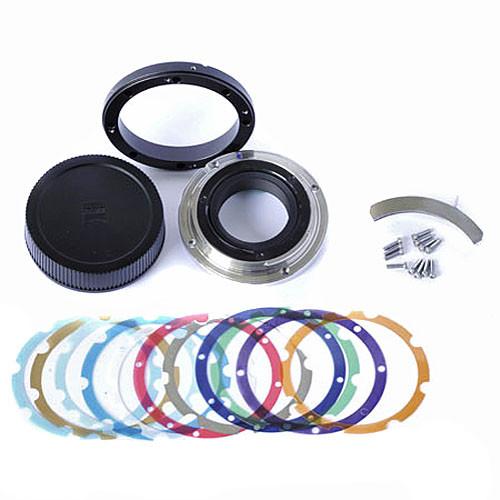

Product description The ZEISS Interchangeable Mount Set F allows users to convert their CZ.2 28-80mm T2.9 lens to F mount. The set includes a F mount ring, an adaption ring with support bracket, Torx screws, eleven color coded shims and a rear lens cap. As the flange focal distance varies from camera type to camera type, it is sometimes necessary to make adjustments when changing the lens mount or camera model. In order to perform this adjustment, shims in eleven different thicknesses are provided.
Note: The use of a T6 torque wrench with a torque of 0.4 Nm is strongly recommended. In the Box ZEISS Interchangeable Mount Set F (CZ.2 28-80mm T2.9) F Mount Ring Adaption Ring with Support Bracket Rear Lens Cap (F) Torx Screws Shims 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS Interchangeable Mount Set F in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 2016-448 Specs | Mount Type | Nikon F | | Compatibility | ZEISS Compact Zoom CZ.2 28-80mm T2.9 lenses | | Shim Thickness | Silver: 0.013 mm
Gold: 0.019 mm
Purple: 0.025 mm
Light blue: 0.032 mm
Red: 0.038 mm
Blue: 0.051 mm
White: 0.064 mm
Green: 0.076 mm
Orange: 0.102 mm
Light purple: 0.127 mm
Clear: 0.152 mm |
