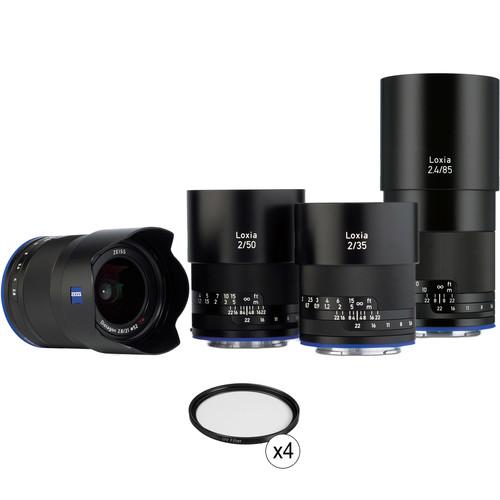

User Manual for ZEISS Loxia 4-Lens Kit with UV Filters for Sony E

• Product category: Mirrorless System Lenses ZEISS
• Brand: ZEISS
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ZEISS Mirrorless System Lenses

Product description

• ZEISS Loxia 21mm f/2.8 Lens for Sony E Combining an expansive field of view with a compact form factor, the Loxia 21mm f/2.8 from ZEISS is a sleek wide-angle prime, designed for full-frame Sony E-mount mirrorless cameras. Based on the Distagon optical concept, this lens uses four anomalous partial dispersion elements and one aspherical element to provide a marked reduction in chromatic and spherical aberrations for improved color rendering, sharpness, and clarity. For minimizing flare and ghosting, an enhanced ZEISS T* anti-reflective coating has also been applied to benefit working in difficult lighting conditions.

  Loxia-series lenses are distinguished by their manual focus operation along with a manual aperture ring that can be de-clicked for silent operation; making them especially suitable for filmmaking applications. Loxia lenses are also characterized by their compact form factor and all-metal lens barrel, which incorporates engraved focusing and depth of field scales, for fine-tuned control. Additionally, the lens body sports a dust- and moisture-sealed design to permit its use in trying environments.
  • Wide-angle prime is designed for full-frame Sony E-mount mirrorless cameras, however can also be used with APS-C models where it provides a 31.5mm equivalent focal length
  • Bright f/2.8 maximum aperture suits working in available-light conditions and is also well-suited for astrophotography use.
  • Distagon optical concept affords high sharpness, well-corrected image quality from edge-to-edge, and very low field curvature.
  • Four anomalous partial dispersion elements are used to significantly reduce color fringing and chromatic aberrations for increased clarity and color fidelity.
  • One aspherical element controls distortion and spherical aberrations in order to produce greater sharpness and more accurate rendering.
  • ZEISS T* anti-reflective coating has been applied to each lens surface to help minimize reflections and provide greater contrast and color fidelity.
  • Manual focus design is benefitted by focusing and depth of field scales along with a 90° focus ring rotational angle and hard stops at both infinity and minimum focusing positions.
  • Manual aperture ring has clicked indicators throughout aperture range. Using the included De-Click Tool, this ring can be mechanically 'de-clicked' for smooth, silent rotation throughout the aperture range; making it ideal for video applications.
  • Weather-resistant construction includes internal seals to guard against dust and moisture as well as a blue sealing ring at the lens mount to protect the lens-camera interface.
  • The lens mount is fitted with an electronic interface that conveys all lens Exif data to the camera and can also be configured to automatically activate the camera's focusing magnification function when turning the focus ring.
• ZEISS Loxia 35mm f/2 Lens for Sony E Marrying traditional handling with a digitally-optimized design, the ZEISS Loxia 35mm f/2 is a compact wide-angle prime for Sony E-mount mirrorless cameras. Utilizing a nearly symmetrical optical layout based on the Biogon concept, this lens incorporates one element made from anomalous partial dispersion glass in order to suppress chromatic aberrations and distortion for improved clarity and sharpness. An enhanced ZEISS T* anti-reflective coating has also been applied to significantly reduce ghosting and lens flare for improved contrast and color fidelity.

  Loxia-series lenses are distinguished by their manual focus operation along with a manual aperture ring that can be de-clicked for silent operation; making them especially suitable for filmmaking applications. Loxia lenses are also characterized by their compact form factor and all-metal lens barrel, which incorporates engraved focusing and depth of field scales, for fine-tuned control. Additionally, the lens body sports a dust- and moisture-sealed design to permit its use in trying environments.
  • Wide-angle prime is designed for full-frame Sony E-mount mirrorless cameras, however can also be used with APS-C models where it provides a 52.5mm equivalent focal length
  • Bright f/2 aperture helps to achieve a more compact, portable form factor while also remaining versatile for use in a variety of lighting conditions.
  • Biogon optical concept benefits the wide-angle focal length by helping to virtually eliminate distortion for clean, realistic rendering.
  • One anomalous partial dispersion element is used to significantly reduce color fringing and chromatic aberrations for increased clarity and color fidelity.
  • ZEISS T* anti-reflective coating has been applied to each lens surface to help minimize reflections and provide greater contrast and color fidelity.
  • Manual focus design is benefitted by focusing and depth of field scales along with a 180° focus ring rotational angle and hard stops at both infinity and minimum focusing positions.
  • Manual aperture ring has clicked indicators throughout aperture range. Using the included De-Click Tool, this ring can be mechanically 'de-clicked' for smooth, silent rotation throughout the aperture range; making it ideal for video applications.
  • Weather-resistant construction includes internal seals to guard against dust and moisture as well as a blue sealing ring at the lens mount to protect the lens-camera interface.
  • The lens mount is fitted with an electronic interface that conveys all lens Exif data to the camera and can also be configured to automatically activate the camera's focusing magnification function when turning the focus ring.
• ZEISS Loxia 50mm f/2 Lens for Sony E Offering a normal field of view with an impressively compact design, the ZEISS Loxia 50mm f/2 is a flexible prime for Sony E-mount mirrorless cameras, well-suited for a range of subjects from portraits to landscapes. Utilizing a classic symmetrical Planar optical design, this lens is capable of achieving well-corrected, sharp imagery with controlled aberrations and distortions. An enhanced ZEISS T* anti-reflective coating has also been applied to significantly reduce ghosting and flaring for improved contrast and color fidelity when working in difficult lighting conditions.

  Loxia-series lenses are distinguished by their manual focus operation along with a manual aperture ring that can be de-clicked for silent operation; making them especially suitable for filmmaking applications. Loxia lenses are also characterized by their compact form factor and all-metal lens barrel, which incorporates engraved focusing and depth of field scales, for fine-tuned control. Additionally, the lens body sports a dust- and moisture-sealed design to permit its use in trying environments.
  • Normal-length prime is designed for full-frame Sony E-mount mirrorless cameras, however can also be used with APS-C models where it provides a 75mm equivalent focal length
  • Bright f/2 aperture helps to achieve a more compact, portable form factor while also remaining versatile for use in a variety of lighting conditions.
  • Planar optical design affords high sharpness and consistent performance throughout the focusing range to suit photographing at a wide range of imaging scales.
  • ZEISS T* anti-reflective coating has been applied to each lens surface to help minimize reflections and provide greater contrast and color fidelity.
  • Manual focus design is benefitted by focusing and depth of field scales along with a 180° focus ring rotational angle and hard stops at both infinity and minimum focusing positions.
  • Manual aperture ring has clicked indicators throughout aperture range. Using the included De-Click Tool, this ring can be mechanically 'de-clicked' for smooth, silent rotation throughout the aperture range; making it ideal for video applications.
  • Weather-resistant construction includes internal seals to guard against dust and moisture as well as a blue sealing ring at the lens mount to protect the lens-camera interface.
  • The lens mount is fitted with an electronic interface that conveys all lens Exif data to the camera and can also be configured to automatically activate the camera's focusing magnification function when turning the focus ring.
• ZEISS Loxia 85mm f/2.4 Lens for Sony E A compact short telephoto prime for full-frame Sony E-mount mirrorless cameras, the Loxia 85mm f/2.4 from ZEISS is an ideal portrait-length lens characterized by its sleek form factor and impressive optical qualities. Utilizing an optimized Sonnar concept, the simple seven elements, seven groups design incorporates three anomalous partial dispersion elements to greatly reduce chromatic aberrations and color fringing for notable clarity and color accuracy. Additionally, a ZEISS T* anti-reflective coating has also been applied to the individual lens elements to control lens flare and ghosting for improved contrast when working in strong lighting conditions.

  Loxia-series lenses are distinguished by their manual focus operation along with a manual aperture ring that can be de-clicked for silent operation; making them especially suitable for filmmaking applications. Loxia lenses are also characterized by their compact form factor and all-metal lens barrel, which incorporates engraved focusing and depth of field scales, for fine-tuned control. Additionally, the lens body sports a dust- and moisture-sealed design to permit its use in trying environments.
  • Short telephoto prime is designed for full-frame Sony E-mount mirrorless cameras, however can also be used with APS-C models where it provides a 127.5mm equivalent focal length
  • An f/2.4 maximum aperture permits working in low-light conditions, offers control over depth of field, and also helps to maintain the compact overall form factor of the lens.
  • Sonnar optical concept suits the combination of a large maximum aperture and long focal length, and also contributes to notable sharpness, well-controlled flare, and high contrast.
  • Three anomalous partial dispersion elements are used to significantly reduce color fringing and chromatic aberrations for increased clarity and color fidelity.
  • ZEISS T* anti-reflective coating has been applied to each lens surface to help minimize reflections and provide greater contrast and color fidelity.
  • Manual focus design is benefitted by focusing and depth of field scales along with a 220° focus ring rotational angle and hard stops at both infinity and minimum focusing positions.
  • Manual aperture ring has clicked indicators throughout aperture range. Using the included De-Click Tool, this ring can be mechanically 'de-clicked' for smooth, silent rotation throughout the aperture range; making it ideal for video applications.
  • Weather-resistant construction includes internal seals to guard against dust and moisture as well as a blue sealing ring at the lens mount to protect the lens-camera interface.
  • The lens mount is fitted with an electronic interface that conveys all lens Exif data to the camera and can also be configured to automatically activate the camera's focusing magnification function when turning the focus ring.
• 4 x ZEISS 52mm Carl ZEISS T* UV Filter The 52mm Carl ZEISS T* UV Filter from ZEISS is a general use, clear filter that helps to absorb ultraviolet light and reduce the bluish cast of daylight. No additional coloration or contrast effects are provided, rendering a clean and natural appearance.

  A UV filter is also useful as a general protective filter to leave on lenses at all times. Filters help to reduce dust and moisture from reaching your lens element and provide additional protection in case of drops or situations where scratching could occur.

  The T* anti-reflective coating helps to reduce reflections on the filter's surface and promote a better light transmission for high quality imagery. The filter ring is designed with a slim profile to allow its use on wide angle lenses, but front filter threads are still available for the use of additional filters.
  • Absorbs UV light and reduces bluish cast of daylight.
  • Clear filter provides no additional coloration or contrast, allowing you to pair this filter with others.
  • General protection filter reduces dust, moisture, and scratches from reaching lens elements.
  • T* anti-reflective helps to reduce surface reflections in order to produce greater light transmission for a higher quality image.

• Loxia 21mm f/2.8 Lens for Sony E dyrauytx
• 52mm Front Lens Cap for Touit and Loxia Lenses
• Rear Lens Cap for Loxia E-Mount Lenses
• Lens Shade for Loxia 21mm f/2.8 Lens
• De-Click Key
• Limited 2-Year Warranty, Extendable to 3 Years with Online Registration

• Loxia 35mm f/2 Lens for Sony E

• Loxia 50mm f/2 Lens for Sony E

• Loxia 85mm f/2.4 Lens for Sony E

• 4 x 52mm Carl ZEISS T* UV Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ZEISS Loxia 21mm f/2.8 Lens for Sony E

  Focal Length	21mm
  Maximum Aperture	f/2.8
  Minimum Aperture	f/22
  Lens Mount	Sony E
  Format Compatibility	Full-Frame
  Angle of View	91 Rating 70% users recommend this product to others. And what about you? This product has already been rated by 21 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
