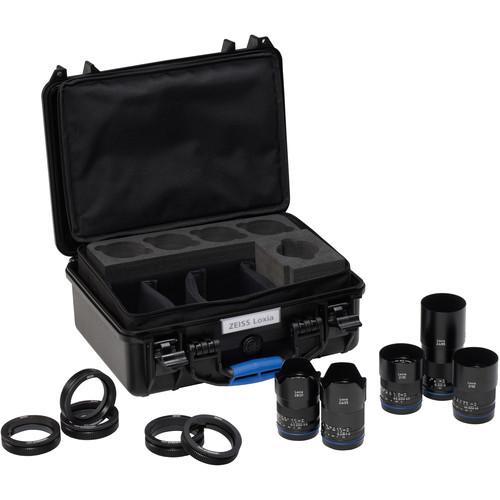

Product description

• Loxia 21mm f/2.8 Lens for Sony E Combining an expansive field of view with a compact form factor, the Loxia 21mm f/2.8 from ZEISS is a sleek wide-angle prime, designed for full-frame Sony E-mount mirrorless cameras. Based on the Distagon optical concept, this lens uses four anomalous partial dispersion elements and one aspherical element to provide a marked reduction in chromatic and spherical aberrations for improved color rendering, sharpness, and clarity. For minimizing flare and ghosting, an enhanced ZEISS T* anti-reflective coating has also been applied to benefit working in difficult lighting conditions.

  Loxia-series lenses are distinguished by their manual focus operation along with a manual aperture ring that can be de-clicked for silent operation; making them especially suitable for filmmaking applications. Loxia lenses are also characterized by their compact form factor and all-metal lens barrel, which incorporates engraved focusing and depth of field scales, for fine-tuned control. Additionally, the lens body sports a dust- and moisture-sealed design to permit its use in trying environments.
  • Wide-angle prime is designed for full-frame Sony E-mount mirrorless cameras, however can also be used with APS-C models where it provides a 31.5mm equivalent focal length
  • Bright f/2.8 maximum aperture suits working in available-light conditions and is also well-suited for astrophotography use.
  • Distagon optical concept affords high sharpness, well-corrected image quality from edge-to-edge, and very low field curvature.
  • Four anomalous partial dispersion elements are used to significantly reduce color fringing and chromatic aberrations for increased clarity and color fidelity.
  • One aspherical element controls distortion and spherical aberrations in order to produce greater sharpness and more accurate rendering.
  • ZEISS T* anti-reflective coating has been applied to each lens surface to help minimize reflections and provide greater contrast and color fidelity.
  • Manual focus design is benefitted by focusing and depth of field scales along with a 90° focus ring rotational angle and hard stops at both infinity and minimum focusing positions.
  • Manual aperture ring has clicked indicators throughout aperture range. Using the included De-Click Tool, this ring can be mechanically 'de-clicked' for smooth, silent rotation throughout the aperture range; making it ideal for video applications.
  • Weather-resistant construction includes internal seals to guard against dust and moisture as well as a blue sealing ring at the lens mount to protect the lens-camera interface.
  • The lens mount is fitted with an electronic interface that conveys all lens Exif data to the camera and can also be configured to automatically activate the camera's focusing magnification function when turning the focus ring.
• Loxia 25mm f/2.4 Lens for Sony E An impressive wide-angle characterized by its sleek form factor, the Sony E-mount Loxia 25mm f/2.4 from ZEISS is a versatile prime well-suited to variety of shooting applications, including landscape, nature, architecture, interior, and astrophotography. Utilizing a Distagon-type optical design, this lens uses one aspherical element and two anomalous partial dispersion elements to control both spherical and chromatic aberrations for improved sharpness and clarity. An enhanced ZEISS T* anti-reflective coating has also been applied to significantly reduce ghosting and lens flare for improved contrast and color fidelity.

  Loxia-series lenses are distinguished by their manual focus operation along with a manual aperture ring that can be de-clicked for silent operation; making them especially suitable for filmmaking applications. Loxia lenses are also characterized by their compact form factor and all-metal lens barrel, which incorporates engraved focusing and depth of field scales, for fine-tuned control. Additionally, the lens body sports a dust- and moisture-sealed design to permit its use in trying environments.
  • Wide-angle prime is designed for full-frame Sony E-mount mirrorless cameras, however can also be used with APS-C models where it provides a 37.5mm equivalent focal length
  • Bright f/2.4 aperture helps to achieve a more compact, portable form factor while also remaining versatile for use in a variety of lighting conditions.
  • Distagon optical concept affords high sharpness, well-corrected image quality from edge-to-edge, and very low field curvature.
  • Two anomalous partial dispersion elements are used to significantly reduce color fringing and chromatic aberrations for increased clarity and color fidelity.
  • One aspherical element controls distortion and spherical aberrations in order to produce greater sharpness and more accurate rendering.
  • ZEISS T* anti-reflective coating has been applied to each lens surface to help minimize reflections and provide greater contrast and color fidelity.
  • Manual focus design is benefitted by focusing and depth of field scales along with a 90° focus ring rotational angle and hard stops at both infinity and minimum focusing positions.
  • Manual aperture ring has clicked indicators throughout aperture range. Using the included De-Click Tool, this ring can be mechanically 'de-clicked' for smooth, silent rotation throughout the aperture range; making it ideal for video applications.
  • Weather-resistant construction includes internal seals to guard against dust and moisture as well as a blue sealing ring at the lens mount to protect the lens-camera interface.
  • The lens mount is fitted with an electronic interface that conveys all lens Exif data to the camera and can also be configured to automatically activate the camera's focusing magnification function when turning the focus ring.
• Loxia 35mm f/2 Lens for Sony E Marrying traditional handling with a digitally-optimized design, the ZEISS Loxia 35mm f/2 is a compact wide-angle prime for Sony E-mount mirrorless cameras. Utilizing a nearly symmetrical optical layout based on the Biogon concept, this lens incorporates one element made from anomalous partial dispersion glass in order to suppress chromatic aberrations and distortion for improved clarity and sharpness. An enhanced ZEISS T* anti-reflective coating has also been applied to significantly reduce ghosting and lens flare for improved contrast and color fidelity.

  Loxia-series lenses are distinguished by their manual focus operation along with a manual aperture ring that can be de-clicked for silent operation; making them especially suitable for filmmaking applications. Loxia lenses are also characterized by their compact form factor and all-metal lens barrel, which incorporates engraved focusing and depth of field scales, for fine-tuned control. Additionally, the lens body sports a dust- and moisture-sealed design to permit its use in trying environments.
  • Wide-angle prime is designed for full-frame Sony E-mount mirrorless cameras, however can also be used with APS-C models where it provides a 52.5mm equivalent focal length
  • Bright f/2 aperture helps to achieve a more compact, portable form factor while also remaining versatile for use in a variety of lighting conditions.
  • Biogon optical concept benefits the wide-angle focal length by helping to virtually eliminate distortion for clean, realistic rendering.
  • One anomalous partial dispersion element is used to significantly reduce color fringing and chromatic aberrations for increased clarity and color fidelity.
  • ZEISS T* anti-reflective coating has been applied to each lens surface to help minimize reflections and provide greater contrast and color fidelity.
  • Manual focus design is benefitted by focusing and depth of field scales along with a 180° focus ring rotational angle and hard stops at both infinity and minimum focusing positions.
  • Manual aperture ring has clicked indicators throughout aperture range. Using the included De-Click Tool, this ring can be mechanically 'de-clicked' for smooth, silent rotation throughout the aperture range; making it ideal for video applications.
  • Weather-resistant construction includes internal seals to guard against dust and moisture as well as a blue sealing ring at the lens mount to protect the lens-camera interface.
  • The lens mount is fitted with an electronic interface that conveys all lens Exif data to the camera and can also be configured to automatically activate the camera's focusing magnification function when turning the focus ring.
• Loxia 50mm f/2 Lens for Sony E Offering a normal field of view with an impressively compact design, the ZEISS Loxia 50mm f/2 is a flexible prime for Sony E-mount mirrorless cameras, well-suited for a range of subjects from portraits to landscapes. Utilizing a classic symmetrical Planar optical design, this lens is capable of achieving well-corrected, sharp imagery with controlled aberrations and distortions. An enhanced ZEISS T* anti-reflective coating has also been applied to significantly reduce ghosting and flaring for improved contrast and color fidelity when working in difficult lighting conditions.

  Loxia-series lenses are distinguished by their manual focus operation along with a manual aperture ring that can be de-clicked for silent operation; making them especially suitable for filmmaking applications. Loxia lenses are also characterized by their compact form factor and all-metal lens barrel, which incorporates engraved focusing and depth of field scales, for fine-tuned control. Additionally, the lens body sports a dust- and moisture-sealed design to permit its use in trying environments.
  • Normal-length prime is designed for full-frame Sony E-mount mirrorless cameras, however can also be used with APS-C models where it provides a 75mm equivalent focal length
  • Bright f/2 aperture helps to achieve a more compact, portable form factor while also remaining versatile for use in a variety of lighting conditions.
  • Planar optical design affords high sharpness and consistent performance throughout the focusing range to suit photographing at a wide range of imaging scales.
  • ZEISS T* anti-reflective coating has been applied to each lens surface to help minimize reflections and provide greater contrast and color fidelity.
  • Manual focus design is benefitted by focusing and depth of field scales along with a 180° focus ring rotational angle and hard stops at both infinity and minimum focusing positions.
  • Manual aperture ring has clicked indicators throughout aperture range. Using the included De-Click Tool, this ring can be mechanically 'de-clicked' for smooth, silent rotation throughout the aperture range; making it ideal for video applications.
  • Weather-resistant construction includes internal seals to guard against dust and moisture as well as a blue sealing ring at the lens mount to protect the lens-camera interface.
  • The lens mount is fitted with an electronic interface that conveys all lens Exif data to the camera and can also be configured to automatically activate the camera's focusing magnification function when turning the focus ring.
• Loxia 85mm f/2.4 Lens for Sony E A compact short telephoto prime for full-frame Sony E-mount mirrorless cameras, the Loxia 85mm f/2.4 from ZEISS is an ideal portrait-length lens characterized by its sleek form factor and impressive optical qualities. Utilizing an optimized Sonnar concept, the simple seven elements, seven groups design incorporates three anomalous partial dispersion elements to greatly reduce chromatic aberrations and color fringing for notable clarity and color accuracy. Additionally, a ZEISS T* anti-reflective coating has also been applied to the individual lens elements to control lens flare and ghosting for improved contrast when working in strong lighting conditions.

  Loxia-series lenses are distinguished by their manual focus operation along with a manual aperture ring that can be de-clicked for silent operation; making them especially suitable for filmmaking applications. Loxia lenses are also characterized by their compact form factor and all-metal lens barrel, which incorporates engraved focusing and depth of field scales, for fine-tuned control. Additionally, the lens body sports a dust- and moisture-sealed design to permit its use in trying environments.
  • Short telephoto prime is designed for full-frame Sony E-mount mirrorless cameras, however can also be used with APS-C models where it provides a 127.5mm equivalent focal length
  • An f/2.4 maximum aperture permits working in low-light conditions, offers control over depth of field, and also helps to maintain the compact overall form factor of the lens.
  • Sonnar optical concept suits the combination of a large maximum aperture and long focal length, and also contributes to notable sharpness, well-controlled flare, and high contrast.
  • Three anomalous partial dispersion elements are used to significantly reduce color fringing and chromatic aberrations for increased clarity and color fidelity.
  • ZEISS T* anti-reflective coating has been applied to each lens surface to help minimize reflections and provide greater contrast and color fidelity.
  • Manual focus design is benefitted by focusing and depth of field scales along with a 220° focus ring rotational angle and hard stops at both infinity and minimum focusing positions.
  • Manual aperture ring has clicked indicators throughout aperture range. Using the included De-Click Tool, this ring can be mechanically 'de-clicked' for smooth, silent rotation throughout the aperture range; making it ideal for video applications.
  • Weather-resistant construction includes internal seals to guard against dust and moisture as well as a blue sealing ring at the lens mount to protect the lens-camera interface.
  • The lens mount is fitted with an electronic interface that conveys all lens Exif data to the camera and can also be configured to automatically activate the camera's focusing magnification function when turning the focus ring.

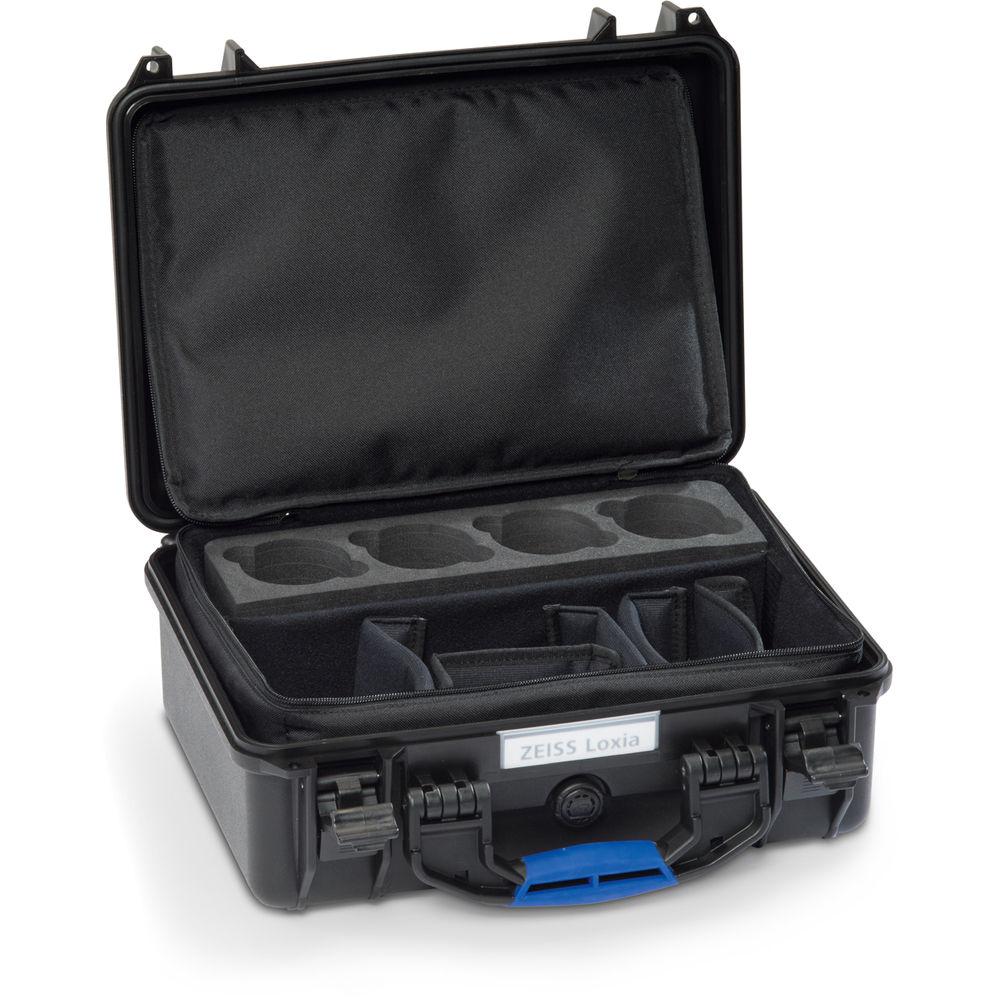

• Loxia Transport Case/Bag Keep your set of Loxia lenses safe during transit or storage with this Loxia Transport Case/Bag from ZEISS, which also features room for a couple cameras and accessories. The polypropylene hard case is water and dustproof as well as impact and corrosion resistant, providing phenomenal support of your equipment in a range of environments and situations. It also has a top handle for easy carrying. The significant advantage of this case, however, is the removable 100% polyester bag on the inside, which safely holds your equipment and offers another method of carrying your gear when the hard shell is not needed.

  This interior bag comes equipped with a foam inlay for up to four Loxia lenses. This custom-designed setup cushions and protects the lenses from vibration and shock. The remaining space features padding along with removable dividers to keep everything organized and safe. Additionally, the bag accepts a removable shoulder strap and has its own top handle for carrying.
• Lens Gear (Mini) Transform any of your lenses into cinema-ready optics with this mini Lens Gear from ZEISS. Designed to slide onto lenses measuring 62-69mm in diameter, this ring allows you to easily equip a lens with an industry-standard 0.8 MOD gear that will enable to use of a follow focus system for smooth, deliberate focus pulls.

  It attaches quickly and without the use of any tools thanks to a twist-tightening mechanism. A rubber-covered GumGum is included as well, which can allow users to fit the gear on smaller diameter lenses measuring 60-67mm in addition to protecting the lens' focusing ring from scratches and other damage. Additionally, this piece of equipment is very durable, featuring a lightweight aluminum construction with a hardened surface coating.
• De-Click Key for Loxia Lenses (5-Piece Set) This 5-piece set of De-Click Keys for Loxia Lenses from ZEISS is used to change between clicked and de-clicked aperture ring configurations on Loxia series lenses. Adjustable via a screw on the bayonet surface of each lens, these tools enable switching between traditional click-stops that are intended for still photo applications and a click-less design that is more beneficial for video applications.

• 52mm Front Lens Cap for Touit and Loxia Lenses

• Rear Lens Cap for Loxia E-Mount Lenses

• Lens Shade for Loxia 21mm f/2.8 Lens

• De-Click Key

• Limited 2-Year Warranty, Extendable to 3 Years with Online Registration

• 52mm Front Lens Cap for Touit and Loxia Lenses

• Rear Lens Cap for Loxia E-Mount Lenses

• Lens Hood for Loxia 25mm f/2.4 Lens

• De-Click Key

• Limited 2-Year Warranty, Extendable to 3 Years with Online Registration

• 52mm Front Lens Cap for Touit and Loxia Lenses

• Rear Lens Cap for Loxia E-Mount Lenses

• Lens Hood for Loxia 35mm f/2 Biogon T* Lens

• De-Click Key

• Limited 2-Year Warranty, Extendable to 3 Years with Online Registration

• 52mm Front Lens Cap for Touit and Loxia Lenses

• Rear Lens Cap for Loxia E-Mount Lenses

• Lens Hood for Loxia 50mm f/2 Planar T* Lens

• De-Click Key

• Limited 2-Year Warranty, Extendable to 3 Years with Online Registration

• 52mm Front Lens Cap for Touit and Loxia Lenses

• Rear Lens Cap for Loxia E-Mount Lenses

• Lens Hood for Loxia 85mm f/2.4 Lens

• De-Click Key

• Limited 2-Year Warranty, Extendable to 3 Years with Online Registration

• Interior Bag

• Lens Inlay

• Padded Dividers

• Shoulder Strap

• Limited 1-Year Warranty

• GumGum

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Loxia 21mm f/2.8 Lens for Sony E

  Focal Length	21mm
  Maximum Aperture	f/2.8
  Minimum Aperture	f/22
  Lens Mount	Sony E
  Format Compatibility	Full-Frame
  Angle of View	91 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 50 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
