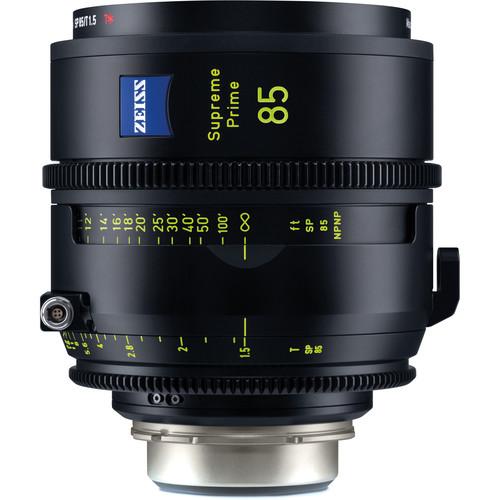

User Manual for ZEISS Supreme Prime 85mm T1.5 Click to enlarge the picture
Contents of the user manual for the ZEISS Supreme Prime 85mm T1.5
- Product category: Digital Cine Lenses ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Digital Cine Lenses
 |
User manual for the ZEISS Supreme Prime 85mm T1.5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|

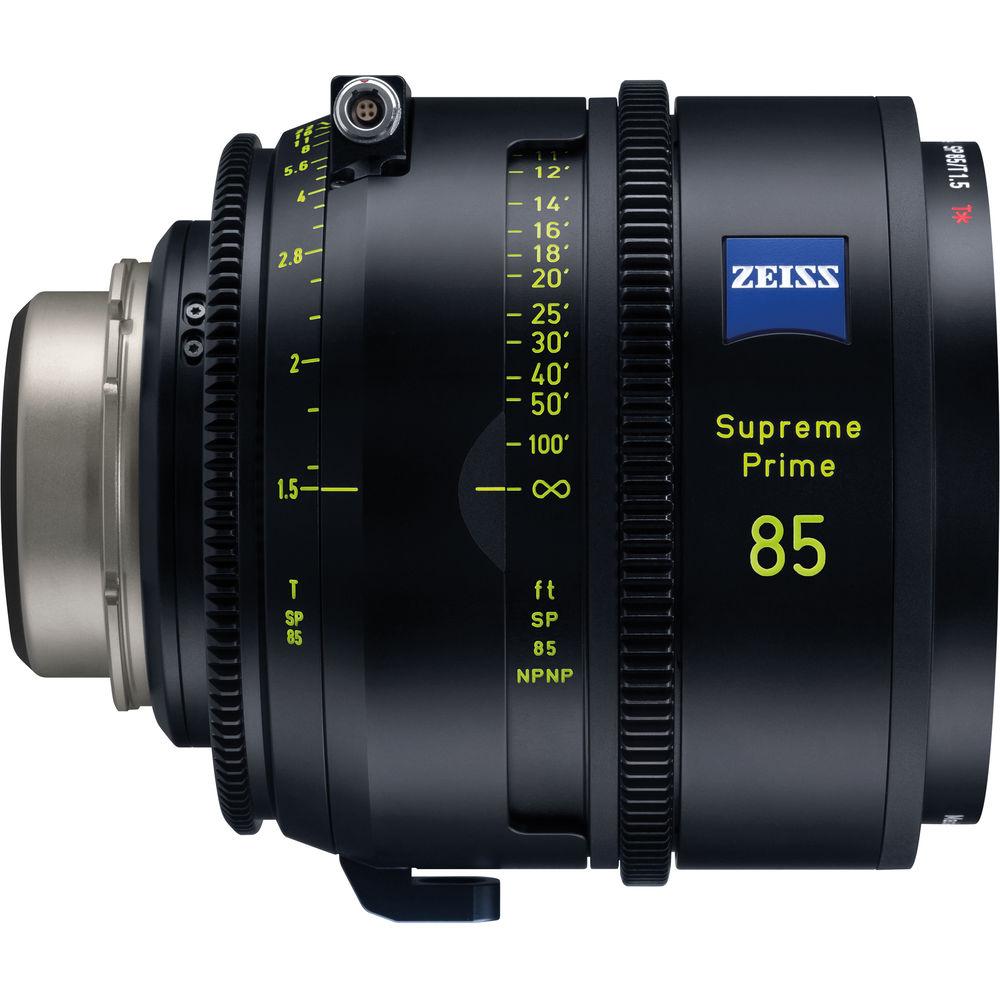

Product description New High-End, Full-Frame Cine Primes from Zeiss Read More The ZEISS Supreme Prime 85mm T1.5 lens features an interchangeable PL mount and is marked in feet. The lens produces a 46.3mm image circle, covering full-frame sensors. The internal focus design provides minimal focus breathing and a non-rotating front. The focus ring rotates 300° from a close focus of 33" to infinity, providing plenty of room for precise focus pulls. The iris is made up of 16 blades arranged to create circular, out-of-focus highlights. Both the focus and iris rings incorporate industry standard 0.8 MOD, 32-pitch drive gears, and the lenses within the Supreme lineup share the same gear positions, making for rapid lens changes.
The lens is fast at T1.5, yet has only a 95mm front diameter. This allows you to use a wide variety of matte boxes from handheld to studio size. The lens also weighs only 3.13 pounds, features a removable lens support with 3/8"-16 threading, and uses an interchangeable mount system. The PL mount passes metadata and is compatible with both the Cooke /i and the ZEISS Xtended Data systems. - Covers 46.3mm image circle, which allows you to use the lens with full-frame and Super 35mm sensors
- The lens has been designed to be small, as far as lenses that cover full-frame sensors go, to better match the diminishing size of cameras
- Though the lens is designed to be exceedingly sharp, it features a smooth focus roll-off
- The lens features a precision square helical thread that is smooth and durable
- The focus barrel features 300° of rotation for precise focus pulls
- The lens mounts are interchangeable in the field and communicate with Cooke /i and ZEISS Xtended Data protocols
- The removable lens support foot features an integrated 3/8"-16 female threaded mounting hole
- The lens features a 16-blade iris that forms a circular aperture for round, out-of-focus highlights
- The iris markings on the lens are not linear, providing you more room for precise incremental adjustments when the iris is open on the wide end, as well as making the overall size of the lens smaller
In the Box ZEISS Supreme Prime 85mm T1.5 (Feet, PL Mount) Front Cap Rear Cap Limited 1-Year Warranty Cinema Lens Care and Maintenance Mary Latvis 03/29/2017 Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS Supreme Prime 85mm T1.5 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS Supreme Prime 85mm T1.5 (ft) Specs | Focal Length | 85mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Image Circle | 46.3 mm | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 33" / 0.84 m | | Iris Blades | 16 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Tilt: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Focus Scales | Imperial | | Focus Rotation | 300° | | Electronic Communication | Yes | | Lens Support | Lens Support Foot with 3/8"-16 Mounting Thread | | Length | 4.7" / 11.94 cm | | Weight | 3.1 lb / 1.4 kg | | | | Package Weight | 5.1 lb | | Box Dimensions (LxWxH) | 10.9 x 9.2 x 9.0" |
