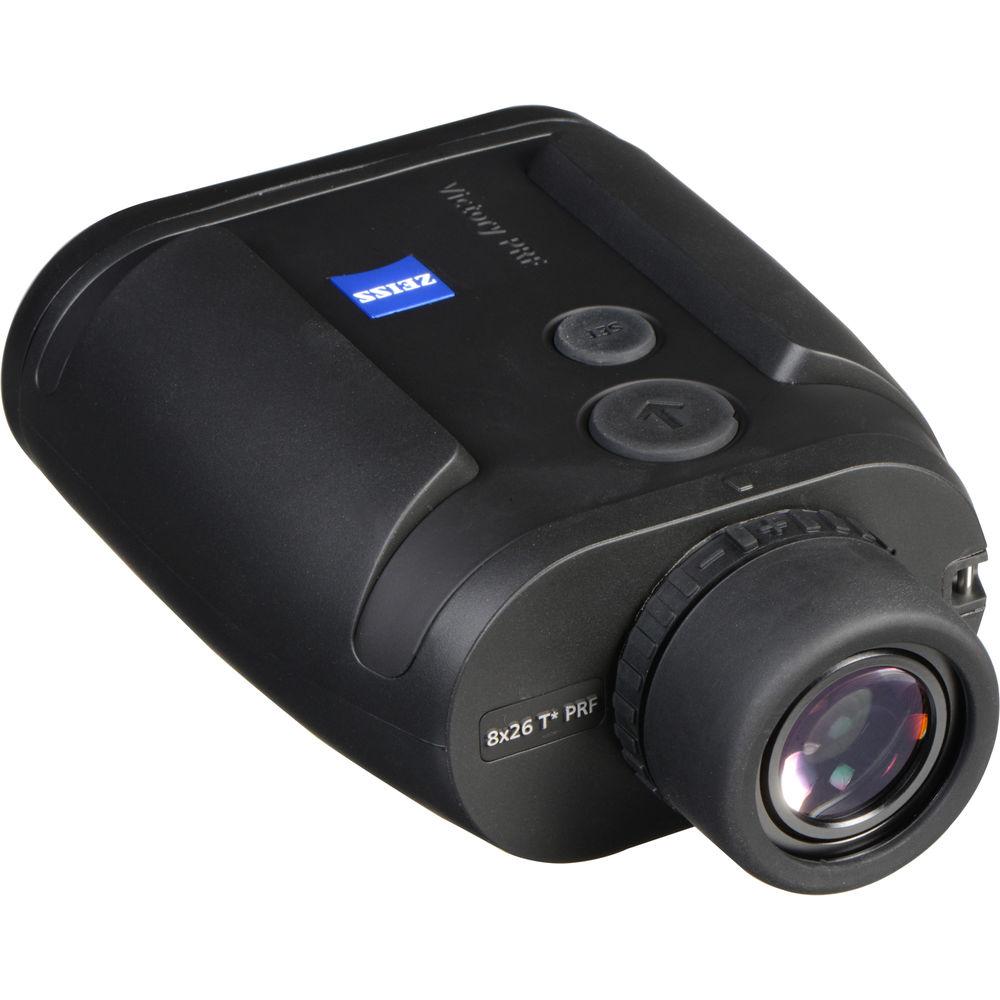

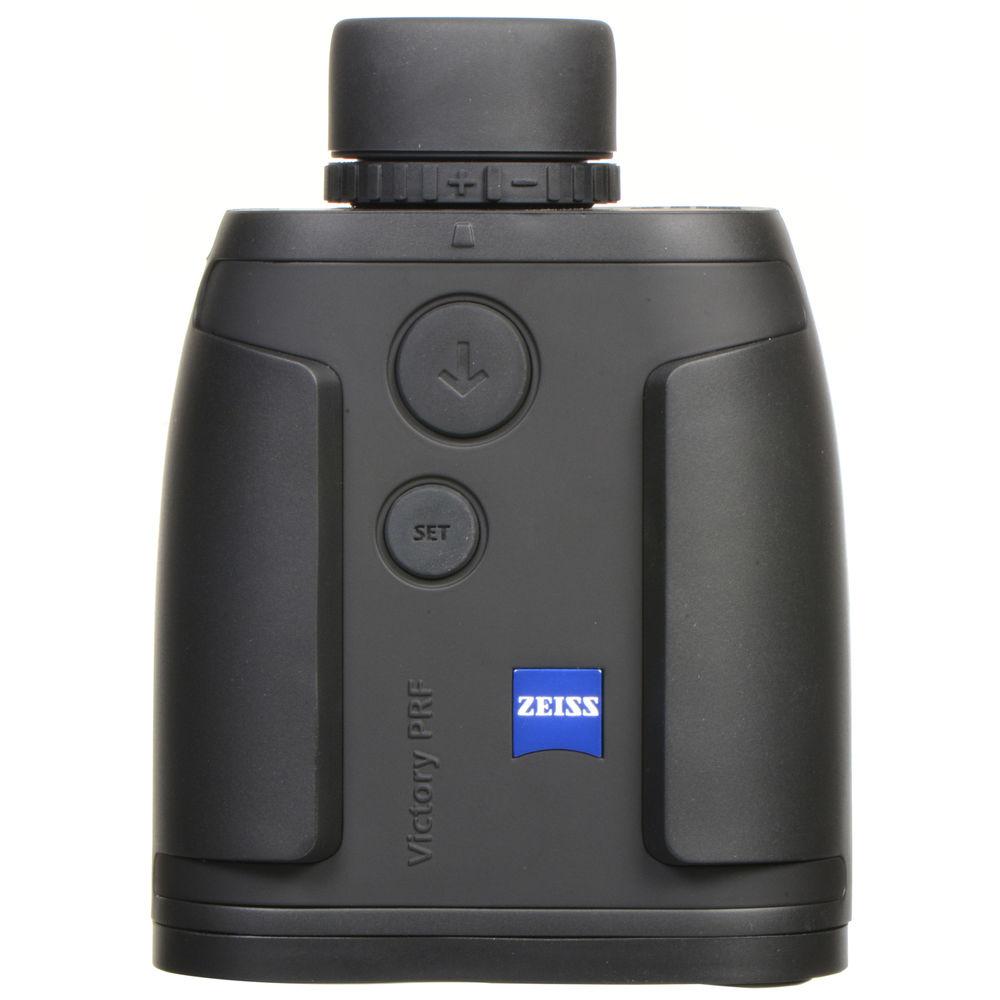

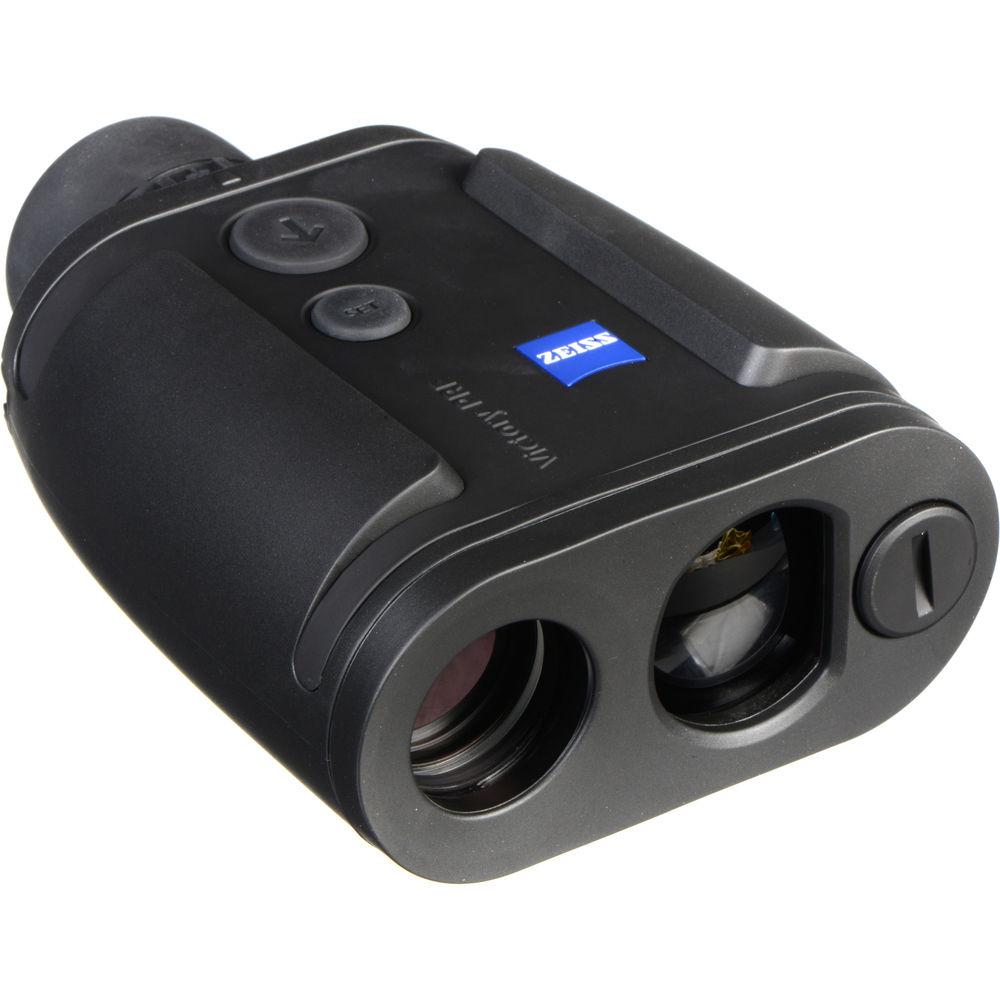

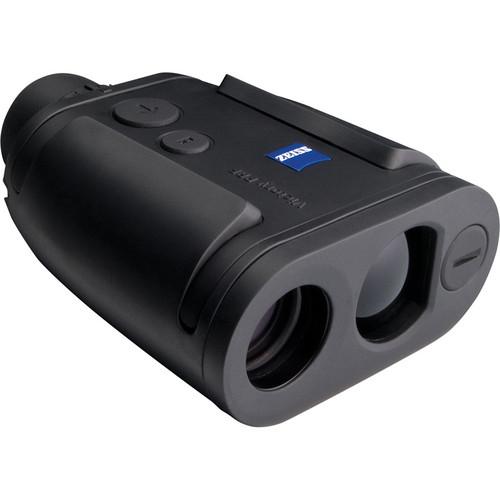

User Manual for ZEISS Victory 8x26 T* PRF Rangefinder Monocular Click to enlarge the picture
Contents of the user manual for the ZEISS Victory 8x26 T* PRF Rangefinder
- Product category: Laser Rangefinders ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Laser Rangefinders
 |
User manual for the ZEISS Victory 8x26 T* PRF Rangefinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description The compact, lightweight and easy-to-use Zeiss Victory 8x26 T* PRF Rangefinder Monocular provides critical hunting information in as little as two seconds — showing the distance to your target, accurate to within one yard, and impact point correction that accounts for bullet drop, so you'll know just how high or low to aim. The Ballistic Information System (BIS) offers six pre-set ballistic curves and four sight-in distances. As a viewing monocular, the PRF offers premium optical features, including Zeiss's T* multi-coating for optimal light transmission and protective LotuTec coating for optimum viewing in any conditions. Its housing is dustproof and submersible to 3.3'. The styling is designed for two-handed use, much like a binocular, which results in a stable and comfortable viewing experience. Covering distances up to 1300 yards, the Victory PRF's laser rangefinding system is accurate to ±1 yard up to 600 yards; at longer distances it is accurate within 0.5%. Measurements can be taken in yards or meters, and the scanning mode is ideal for moving subjects. The PRF's one-touch measuring button activates the invisible, eye-safe IR laser and displays the range as fast as 0.5 second. The BIS data, showing the proper hold-over for specific cartridges, displays 1.5 seconds later. - Optical Performance
-
- Magnification: 8x
- Objective lens diameter: 26mm
- Zeiss T* multi-coated lenses
- Field of view: 330' at 1000 yards
- Angle of view: 6.3°
- Eye relief: 17.5mm
- Exit pupil diameter: 3.25mm
- Rangefinder
-
- Range to reflective target: 10-1300 yards
- Accuracy: ± 1 yard to 600 yards, ± 0.5% beyond
- Ballistic Information System gives holdover values in centimeters/meters or inches/yards
- Scan mode for moving targets or panning the landscape
- Holdover info shows after range when BIS is activated
- Ballistic Information System
-
- Six pre-set ballistic curves cover most calibers
- Select curves to show inches/yards or centimeters/meters
- Choose 100 yd, 200 yd, 100m or SID/GEE sight-in
- BIS information displays 1.5 seconds after range to target
- One-button control
- Construction Details
-
- Rubber-armored for secure, comfortable grip
- Dustproof & waterproof
- LotuTec protective coating on lenses repels water, makes grime & fingerprint removal easy
- Four-position twist-up eyecups
- 3V CR2 battery lasts 2000 measurements
UPC: 740035001107 In the Box ZEISS Victory 8x26 T* PRF Rangefinder Monocular Carrying Pouch Carrying Cord Eyepiece Cap Cleaning Cloth CR2 Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS Victory 8x26 T* PRF Rangefinder Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 524561-0000-000 Specs | | | Metering Range | 10 to 1300 yd / 10 to 1200 m | | Accuracy | < 656.2 yd / 600 m: 1.1 yd / 1 m | | | | Prism Type | Roof | | Magnification | 8x | | Objective Lens Diameter | 26 mm | | Angle of View | 6.3° | | Field of View | 330' @ 1000 yd / 110 m @ 1000 m | | Minimum Focus Distance | 29.9' / 9.1 m | | Exit Pupil Diameter | 3.25 mm | | Eye Relief | 17.5 mm | | | | Form Factor | Monocular | | Power Source | 1 x CR2 | | | | Tripod Mount | No | | Water Resistance | Waterproof | | Dimensions | 5.1 x 3.9 x 1.9" / 13 x 9.8 x 4.8 cm | | Weight | 10.9 oz / 309.9 g | | | | Package Weight | 1.485 lb | | Box Dimensions (LxWxH) | 6.8 x 5.05 x 3.95" |
