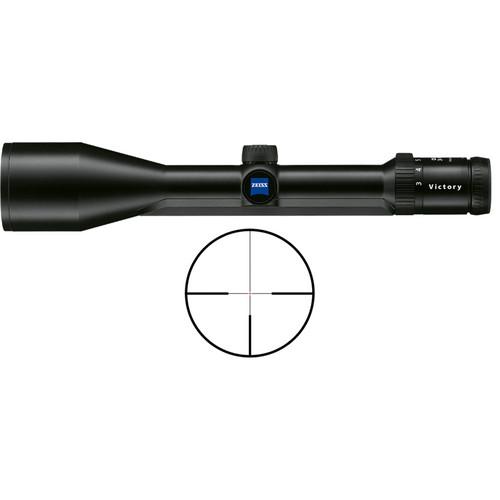

User Manual for ZEISS Victory Diavari 3-12x56 T* Riflescope Click to enlarge the picture
Contents of the user manual for the ZEISS Victory Diavari 3-12x56 T* Riflescope
- Product category: Riflescopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Riflescopes
|
User manual for the ZEISS Victory Diavari 3-12x56 T* Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description The Victory Diavari 3-12x56 T* from ZEISS puts enhanced clarity, an extended power range, and startling low-light capability to the top of your receiver. The wide FOV at 3x brings in the entire scene, and 12x puts you on top of your quarry. The massive 56mm objective offers the clearest and brightest view possible - all day and right into twilight. Victory Diavari scopes offer a distinctly superior field of view. Fluoride lenses deliver outstanding color rendition while minimizing distractions from flare and glare. Every air-to-glass surface has been treated with ZEISS' T* multicoating to ensure maximum light transmission. Finally, the external lens surfaces have been treated with an ultra-hard scratch and water resistant LotuTec coating. The construction and functionality of this fine sighting system is quite remarkable. The robust and waterproof 30mm main-tube is o-ring sealed and filled with dry nitrogen to ensure all-weather performance. The low-key finish is refined yet unassuming. The capped low-profile hunting turrets feature 1/3 MOA adjustments with a squared adjustment range of 36 MOA. The illuminated #60 reticle has been placed in the second (non-magnifying) focal plane - the reticle's dimensions remain unchanged across the magnification range. Additionally, this Victory scope is configured with an integral ZEISS Rail Mounting system. This eliminates the need for traditional mounting rings that can scar the finish of the scope's tube. Instead, the rail system employs a pair of claw-type Railmounts to attach the scope to a Weaver or Picatinny mount. - Optical Performance
-
- T* multicoating: reduces flare, improves contrast, increases light transmission
- LotuTec coating: sheds water, dirt, grease, grime. Lenses wipe clean without smearing
- FL Concept: fluoride glass lens elements deliver brighter and sharper images with accurate color and higher levels of contrast. They minimize chromatic aberrations while virtually eliminating stray light interference, image fuzziness, low contrast.
- Operational Details
-
- Parallax correction: factory preset at 110 yards/100 m
- Metric adjustments: 1 cm @ 100 m / 1/3 MOA W&E correction
- Illuminated #60 reticle: Three thin posts at 3, 6, and 9 o'clock, a single stadia at 12 o'clock, and fine crosshairs to indicate the exact point of aim. At the intersection of the crosshairs there is a single dot that can be illuminated for enhanced visibility.
- Second focal plane positioning maintains the reticle's dimensions throughout the magnification range.
- The illumination system is activated by turning a dial located on the scope's saddle. The reticle's intensity can be balanced against ambient lighting conditions for daytime, twilight, and low-light use.
- Construction and Design
-
- Low-profile hunting turrets
- 30 mm main-tube: machined from a single piece of aluminum. Nitrogen filled/o-ring sealed for waterproof and fogproof performance
- ZEISS Rail Mount: this mounting system does not employ traditional ring mounts to fit the scope to the firearm. Instead, a set of claw-type ZEISS Railmounts are attached to the firearm's Weaver or Picatinny rail. These Railmounts interface with the toothed rail on the underside of the scope to ensure a solid repeatable mount.
In the Box ZEISS Victory Diavari 3-12x56 T* Riflescope (Matte Black) Bikini Style Lens Covers CR2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS Victory Diavari 3-12x56 T* Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 52 17 42 9960 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 56 mm | | Field of View | 3x: 37.5' @ 100 yd / 12.5 m @ 100 m
12x: 10.5' @ 100 yd / 3.5 m @ 100 m | | Exit Pupil Diameter | 3x: 14.7 mm
12x: 4.7 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | #60 Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/3 MOA per Click | | Windage Adjustment | 36.7 MOA | | Elevation Adjustment | 36.7 MOA | | Parallax Correction | Yes, 110 yd / 100 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.5" / 34.4 cm | | Weight | 20.6 oz / 585 g |
