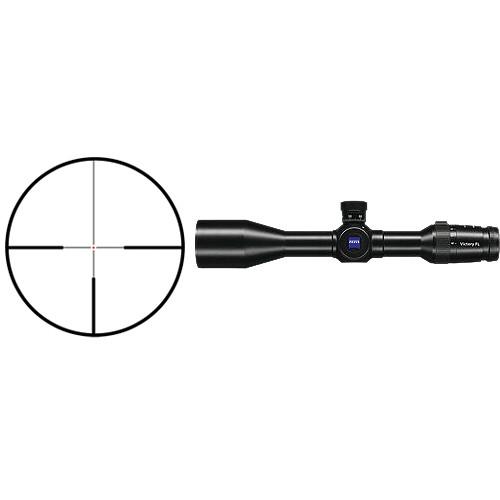

Product description The Victory FL Diavari 4-16x50 T* from ZEISS offers an excellent balance of power, size, and overall performance. This do-it-all sighting solution makes those longer shots possible - and the 50mm objective will keep the hunt alive until the final minutes of twilight. Victory Diavari scopes offer a distinctly superior field of view. Fluoride lenses deliver outstanding color rendition while minimizing distractions from flare and glare. Every air-to-glass surface has been treated with ZEISS' T* multicoating to ensure maximum light transmission. Finally, the external lens surfaces have been treated with an ultra-hard scratch and water resistant LotuTec coating. The construction and functionality of this fine sighting system is quite remarkable. The robust and waterproof 30mm main-tube is o-ring sealed and filled with dry nitrogen to ensure all-weather performance. The low-key finish is refined yet unassuming. Parallax correction side-focus knob corrects parallax error from 50 yd/55 m to infinity. The mid-height hunting style turrets are lockable, and they offer 1/3 MOA adjustments with a rectangular adjustment range of 43.2 x 59.4 MOA. The Illuminated #60 reticle is placed in the second (non-magnifying) focal plane. - Optical Performance
-
- T* multicoating: reduces flare, improves contrast, increases light transmission
- LotuTec coating: sheds water, dirt, grease, grime. Lenses wipe clean without smearing
- FL Concept: fluoride glass lens elements deliver brighter and sharper images with accurate color and higher levels of contrast. They minimize chromatic aberrations while virtually eliminating stray light interference, image fuzziness, low contrast.
- Operational Details
-
- Precision adjustments: 1/3 MOA W&E correction
- Parallax correction: side-focus knob - 55 yd/50 m to infinity
- Illuminated #60 reticle: Three thin posts at 3, 6, and 9 o'clock, a single stadia at 12 o'clock, and fine crosshairs to indicate the exact point of aim. At the intersection of the crosshairs there is a single dot that can be illuminated for enhanced visibility.
- The illumination feature provides the entire reticle with a brilliant red glow.
- Second focal plane positioning maintains the reticle's dimensions throughout the magnification range.
- The illumination system is activated by pulling on the parallax correction knob and turning it. Once the reticle's intensity has been adjusted the dial can be pushed back into place to function as the side-focus/parallax knob.
- Construction and Design
-
- Mid-height locking hunting turrets
- 30 mm main-tube: machined from a single piece of aluminum. Nitrogen filled/o-ring sealed for waterproof and fogproof performance
- The Hunting ASV elevation turret can be customized to match specific bullet-drop data with one or more of the included blank-stickers. Once the scope's zero is set, a blank sticker can be fitted onto the side of the knob and various distances/zeros can be marked off. Additionally - for an additional cost, the elevation knob can be sent to Carl ZEISS to be custom engraved to match any load or ballistics.
In the Box ZEISS Victory Fl Diavari 4-16x50 T* Riflescope (Matte Black) Bikini Style Lens Covers CR2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS Victory Fl Diavari 4-16x50 T* Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 52 17 79 99 60 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 26.7' @ 100 yd / 8.9 m @ 100 m
16x: 7.5' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 4x: 12.5 mm
16x: 3.1 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | #60 Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/3 MOA per Click | | Windage Adjustment | 43.2 MOA | | Elevation Adjustment | 59.4 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.2" / 33.6 cm | | Weight | 26.1 oz / 741 g | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 16.2 x 4.6 x 4.1" |
