User Manual for ZEISS Victory Harpia 85 Spotting Scope Click to enlarge the picture
Contents of the user manual for the ZEISS Victory Harpia 85 Spotting Scope
- Product category: Spotting Scopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Spotting Scopes
 |
User manual for the ZEISS Victory Harpia 85 Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|

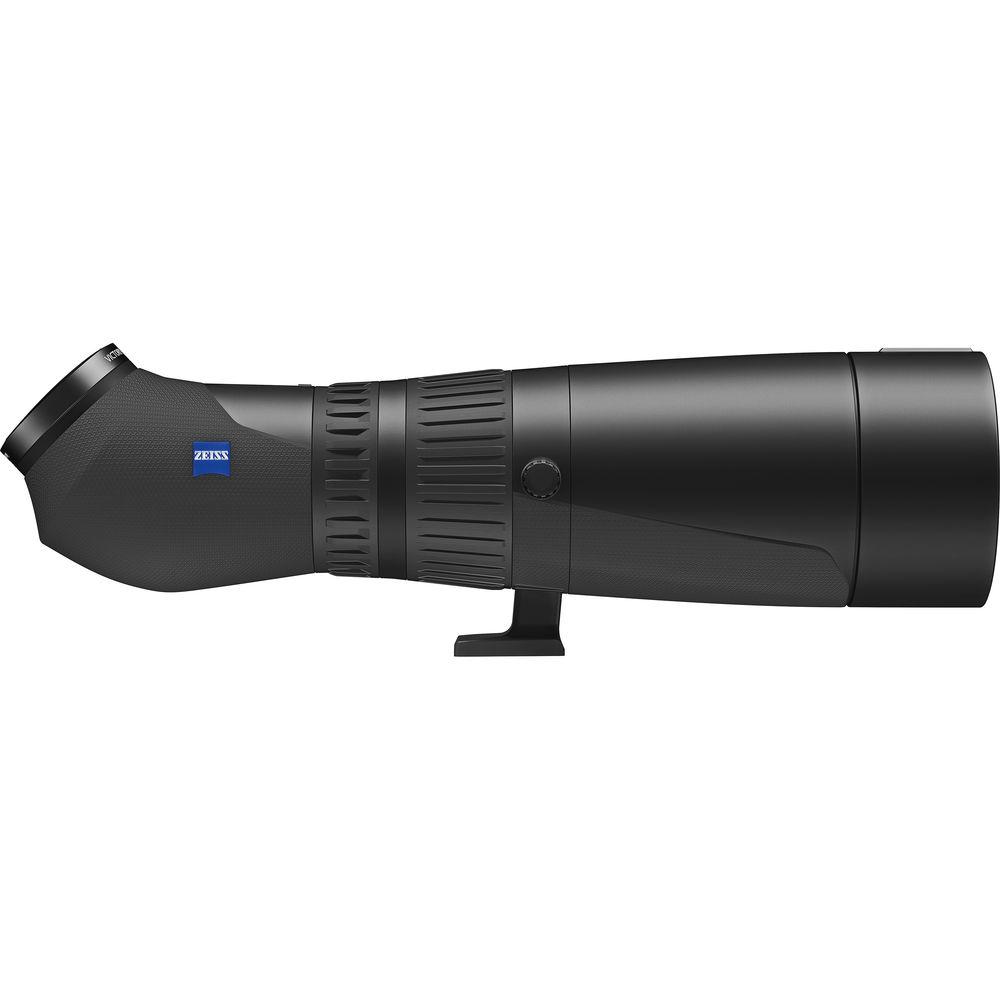

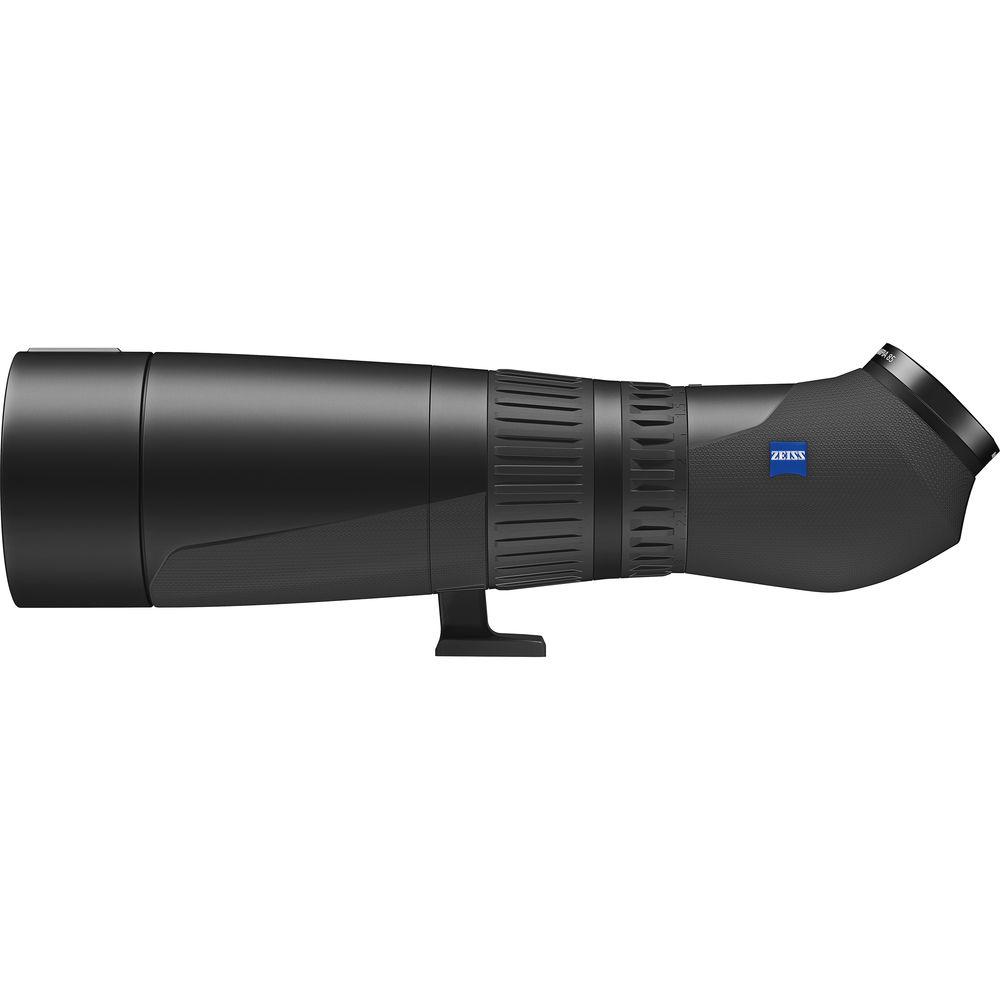

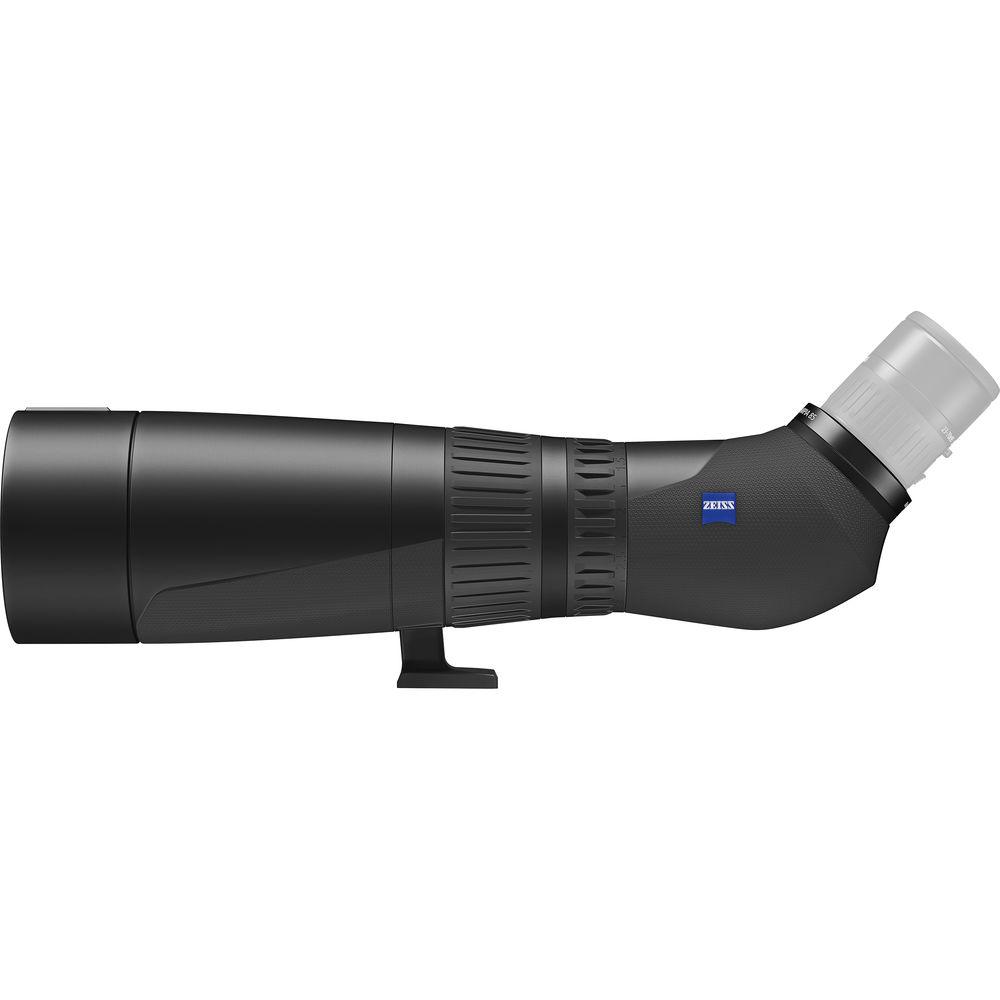

Product description A Guide to Birding with Spotting Scopes Read More Designed to produce crisp and clear wide-angle views, the ZEISS Victory Harpia 85 Spotting Scope is engineered for the superb performance hunters, birders, and outdoor enthusiasts have come to expect from the brand.Its performance begins with the use of extra-low dispersion fluoride glass, which virtually eliminates color fringing and halos caused by chromatic aberration, ensuring views are crisp and sharp with accurate color fidelity. Additionally, ZEISS' proprietary T* full multi-coat system maximizes light transmission to improve color rendition, contrast, and clarity, while exterior lens surface LotuTec coating ensures oils, sap, dust, and dirt are easy to clean off without residue. The large 85mm objective lens draws in copious amounts of light to ensure images remain bright and clear, even in low or challenging light, and helps to produce the wide field of view. This version of the Harpia 85 is offered here with the spotting scope body only; an optional eyepiece is required for proper use.To make viewing more comfortable, the eyepiece holder is set at a 45° angle, which places the user's head in a natural position whether they're sitting, standing, or lying prone. A rotating tripod collar enables the user to further position the eyepiece precisely where they want it to limit head movement when using the spotter with other optics, like a rangefinder or a firearm. A dual-speed focusing mechanism ensures tack-sharp images, and front threads allow the use of filters, like polarizing or ND, to enhance and sharpen views even more. The optical tube is nitrogen filled and O-ring sealed to be water and fogproof in even the harshest conditions, with a standard 1/4"-20 that makes it easy to mount onto most photo/video/field tripods and other support systems.From the woods, to the mountains, to the steppes, the Victory Harpia 85 delivers expansive and panoramic views with enhanced clarity and true color representation. - Optical Performance
-
- Eyepiece required for proper use
- Large 85mm objective lens ensures bright and clear images, even in low light
- Extra-low dispersion fluoride glass produces clear and sharp views while virtually eliminating chromatic aberrations to reveal images free of fringing with accurate color fidelity
- T* fully multi-coated optics improve light transmission, color rendition, clarity, and contrast, while reducing lens flare and glare
- Use and Handling
-
- Eyepiece holder is set at a 45° angle to optical tube to provide a comfortable viewing position when sitting, standing, or lying prone
- Large focusing collars enable precise adjustment, even in cold and wet weather or while wearing gloves
- Dual-speed focusing mechanism allows for fast coarse and precise fine focusing for the sharpest possible views
- Rotating tripod collar allows the orientation of the eyepiece relative to the tripod to be rotated and adjusted for the most convenient and comfortable viewing position
- Integrated sight on front aids in finding subjects, allowing users to spend more time observing than finding their subject
- M86x1.00 front thread enables the use of filters, such as polarizing and ND, to enhance views and viewing comfort
- Simple eyepiece bayonet mount enables fast installation and removal
- Construction Details
-
- Nitrogen filled and O-ring sealed to be waterproof to 400 mbar of pressure and resistant to internal fogging when moving through extreme changes in temperature or environmental conditions
- Standard 1/4"-20 mount for direct connection to most photo/video/field tripods and other support systems
- LotuTec lens coatings protect the objective and ocular lenses from dirt and dust, resist scratches, and bead off water and oils
- Rubberized armoring protects chassis from impacts, with textured details for a comfortable and slip-resistant gripping surface
UPC: 740035998605 In the Box ZEISS Victory Harpia 85 Spotting Scope (Angled Viewing, Requires Eyepiece) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS Victory Harpia 85 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS Victory Harpia 85 Specs | | | Objective Lens Diameter | 85 mm | | Minimum Focus Distance | 11.4' / 3.5 m | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Filter Thread | M86 x 1.0 | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 15.1 x H: 4.8 x W: 4.1" / L: 38.4 x H: 12.2 x W: 10.4 cm | | Weight | 68.2 oz / 1933.4 g | | | | Package Weight | 7.7 lb | | Box Dimensions (LxWxH) | 18.9 x 8.7 x 5.8" |
