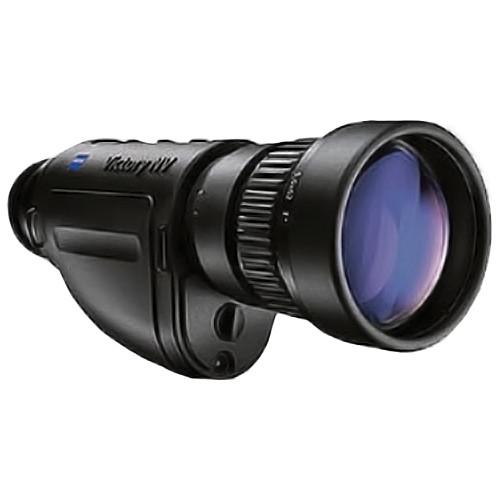

User Manual for ZEISS Victory NV 5.6x62 T* Night Vision Scope Click to enlarge the picture
Contents of the user manual for the ZEISS Victory NV 5.6x62 T* Night
- Product category: Night Vision Riflescopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Night Vision Riflescopes
|
User manual for the ZEISS Victory NV 5.6x62 T* Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description The Victory NV 5.6x62 T* Night Vision Scope is a high-performance night vision monocular that features a 2nd generation intensifier 20,000x light amplification capability. This easy-to-use night vision scope offers exceptionally high image quality, and it is also fitted with a very useful rangefinding reticle. The Victory NV is powered by a pair of AA batteries, and it is configured with an integral IR illuminator that allows viewing in total darkness conditions. The optical system delivers a premium view - all air-to-glass surfaces have been fully T* multicoated, and they also benefit from ZEISS' proprietary LotuTec protective hydrophobic coating. The range-estimation reticle is designed for metric units of measurement. When the size of a specific target is known, the operator can bracket it between the reticle's subtension lines to determine how far away it is. A chart showing the reticle's subtensions in values of meters @ 100 meters is provided. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Night Vision Performance
-
- Light amplification: 20,000x
- Automatic electronic cutout and bright-source protection
- Manual brightness control for optimized signal/noise ratio
- Second generation intensifier: less reliant upon ambient light, produces clearer images with less distortion, lasts longer than earlier versions of night vision technology.
- Optical Performance
-
- Exit pupil: 11.07 mm
- Objective lens: 62 mm diameter
- T* multicoating on all air-to-glass lens surfaces for maximum light transmission
- LotuTec coating: Sheds water, dirt, grease, grime. Lenses wipe clean without smearing
- Use and Handling
-
- Integrated rangefinding reticle
- Mounting thread for tripod or auxiliary illuminator
- Comfortable ergonomic design with leather strap for secure grip
- Integral IR illuminator for enhanced viewing and total darkness viewing
- Waterproof - fogproof: nitrogen filled/o-ring sealed housing for all-weather performance
- High-eyepoint eyepiece with retractable eyecup: comfortable viewing with/without glasses.
In the Box ZEISS Victory NV 5.6x62 T* Night Vision Scope Cordura Bag Wrist Strap Eyepiece Cap Objective Lens Cap 2 x AA Batteries Limited 5-Year Warranty (Transferable) Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS Victory NV 5.6x62 T* Night Vision Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 523007-9901-000 Specs | Intensifier Tube | 2nd Generation | | Magnification | 5.6x | | Field of View | 8.9° - 465' @ 1000 yd / 154 m @ 1000 m | | Minimum Focus Distance | 16.4' / 4.99 m | | Eye Relief | Not specified by manufacturer | | Dioptric Correction | Not specified by manufacturer | | Interpupillary Adjustment | Not applicable | | Lens System | Objective diameter: 62 mm | | Infrared Illuminator | Yes - integral IR led | | Battery / Runtime | 2 AA: up to 80 hr w/o IR | | Weatherproofing | Waterproof, fogproof | | Temperature Ranges | Not specified by manufacturer | | Dimensions | Length: 9.17" / 23 cm | | Weight | 35.2 oz / 998 g | | | | Package Weight | 4.35 lb | | Box Dimensions (LxWxH) | 11.8 x 8.0 x 5.2" |
