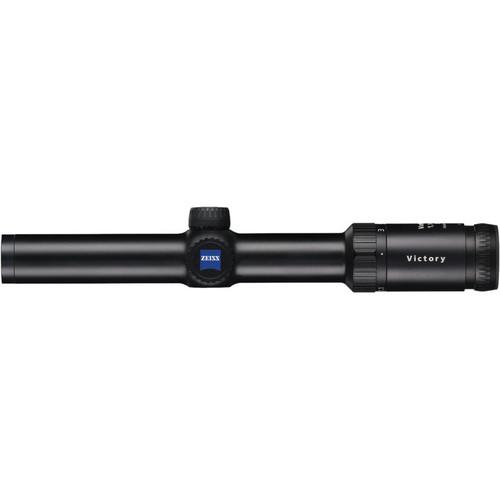

User Manual for ZEISS Victory Varipoint 1.1-4x24 T* Riflescope Click to enlarge the picture
Contents of the user manual for the ZEISS Victory Varipoint 1.1-4x24 T* Riflescope
- Product category: Riflescopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Riflescopes
|
User manual for the ZEISS Victory Varipoint 1.1-4x24 T* Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description An excellent choice for your favorite brush rifle - the Victory Varipoint 1.1-4x24 T* from ZEISS sits low while it delivers a wide field-of-view. At 1.1x the ability to employ a 'both-eyes-open' method of sighting presents itself - this greatly improves situational awareness and the ability to execute that important follow-up shot. Dialing up to 4x magnifies distant targets enough for mid-to long-range shots on medium to large sized targets. This particular Victory Varipoint riflescope is configured with a 30mm tube, hunting turrets, an illuminated #60 reticle, ZEISS' proprietary Rail Mount, and a matte black finish. - Optical Performance
-
- FL Concept: fluoride ion glass to deliver brighter, sharper, and more saturated images
- LotuTec coating: Sheds water, dirt, grease, grime. Lenses wipe clean without smearing
- T* multicoating: reduces flare, improves contrast, increases light transmission
- Advanced Optics System: Environmentally friendly lead and arsenic free glass yields exceptional resolution, contrast, color reproduction
- Operational Details
-
- Parallax correction: factory preset at 109 yards/100 m
- Metric adjustments: 1 cm @ 100 m / 1/3 MOA W&E correction
- Varipoint reticle system: the reticle is in the first focal plane, while the illuminated dot is in the second focal plane. This sophisticated configuration keeps the size of the dot constant while the reticle magnifies when increasing the magnification. The reticle's brightness is controlled by a rotary knob located on the left side of the center tube.
- Illuminated #60 Reticle: The illuminated #60 reticle features three thin posts with crosshairs with a single dot at the intersection of the cross hairs. This dot can be illuminated for precise shot placement in difficult lighting conditions. This configuration provides a clear line of sight while maintaining your ability to find your target quickly, under any lighting conditions.
- Construction and Design
-
- Low-profile hunting turrets
- 30 mm main-tube: machined from a single piece of aluminum. Nitrogen filled/o-ring sealed for waterproof and fogproof performance
- ZEISS Rail Mount: this mounting system does not employ traditional ring mounts to fit the scope to the firearm. Instead, a set of claw-type ZEISS Railmounts are attached to the firearm's Weaver or Picatinny rail. These Railmounts interface with the toothed rail on the underside of the scope to ensure a solid repeatable mount.
In the Box ZEISS Victory Varipoint 1.1-4x24 T* Riflescope (Matte Black) CR2032 Battery Lens Covers Limited Lifetime Warranty Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS Victory Varipoint 1.1-4x24 T* Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 52 17 06 9960 Specs | | | Magnification | 1.1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1.1x: 108' @ 100 yd / 36 m @ 100 m
4x: 31' @ 100 yd / 10.3 m @ 100 m | | Exit Pupil Diameter | 1.1x: 14.8 mm
4x: 6 mm | | Eye Relief | 3.5" / 8.9 mm | | | | Reticle Type | #60 Reticle | | Illumination | Illuminated | | | | Impact Point Correction | 1/3 MOA per Click | | Windage Adjustment | 117.4 MOA | | Elevation Adjustment | 117.4 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11.8" / 298 mm | | Weight | 16.8 oz / 477 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
