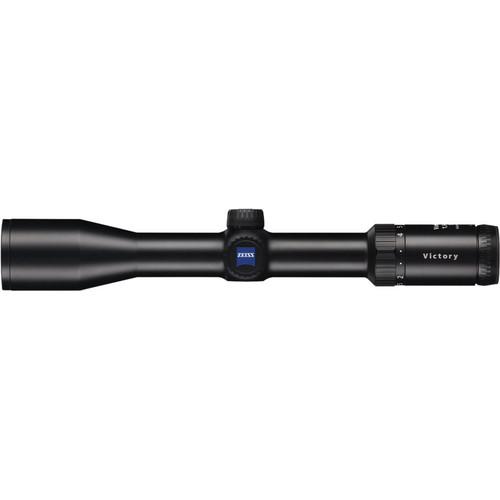

User Manual for ZEISS Victory Varipoint 1.5-6x42 iC T* Riflescope Click to enlarge the picture
Contents of the user manual for the ZEISS Victory Varipoint 1.5-6x42 iC T*
- Product category: Riflescopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Riflescopes
|
User manual for the ZEISS Victory Varipoint 1.5-6x42 iC T* contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description Hunters seeking a sighting solution with an extremely bright sight picture and a substantial FOV should consider the ZEISS Victory Varipoint 1.5-6x42 T* iC Riflescope. This fine scope features an amazing balance of power, size, and overall performance. The combination of its flexible 1.5-6x magnification range and a 42mm objective offers spectacular twilight performance and the ability to adapt to just about any hunting scenario. Victory Varipoint scopes have their reticle placed in the first focal plane, while the illuminated portion is placed in the second image plane. Increasing the scope's power magnifies the apparent field of view, while the size of the illuminated aiming point does not change.This waterproof and fogproof Victory Varipoint scope is configured with a one-piece aluminum 30mm tube, hunting turrets, an integral ZEISS mounting rail, the illuminated #60 reticle, and a matte black finish. It is designed to be mounted to a Blaser R93 iC rifle - it is not compatible with other rifles. - Optical Performance
-
- FL Concept: fluoride ion glass to deliver brighter, sharper, and more saturated images
- LotuTec coating: Sheds water, dirt, grease, grime. Lenses wipe clean without smearing
- T* multicoating: reduces flare, improves contrast, increases light transmission
- Advanced Optics System: Environmentally friendly lead and arsenic free glass yields exceptional resolution, contrast, color reproduction
- Operational Details
-
- Parallax correction: factory preset at 109 yards/100 m
- Metric adjustments: 1 cm @ 100 m / 1/3 MOA W&E correction
- Varipoint reticle system: the reticle is in the first focal plane, while the illuminated dot is in the second focal plane. This sophisticated configuration keeps the size of the dot constant while the reticle magnifies when increasing the magnification. The reticle's brightness is controlled by a rotary knob located on the left side of the center tube.
- Illuminated #60 reticle: Three thin posts at 3, 6, and 9 o'clock, a single stadia at 12 o'clock, and fine crosshairs to indicate the exact point of aim. At the intersection of the crosshairs there is a single dot that can be illuminated for enhanced visibility.
- Construction and Design
-
- Low-profile hunting turrets
- 30 mm main-tube: machined from a single piece of aluminum. Nitrogen filled/o-ring sealed for waterproof and fogproof performance
- This scope is designed for use with the Blaser R93 iC rifle. It is configured with a special illumination-control system that is not compatible with other rifles.
- ZEISS Rail Mount: this mounting system does not employ traditional ring mounts to fit the scope to the firearm. Instead, a set of claw-type ZEISS Railmounts are attached to the firearm's Weaver or Picatinny rail. These Railmounts interface with the toothed rail on the underside of the scope to ensure a solid repeatable mount.
In the Box ZEISS Victory Varipoint 1.5-6x42 iC T* Riflescope (Matte Black) CR2032 Battery Bikini Lens Covers Limited Lifetime Warranty Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS Victory Varipoint 1.5-6x42 iC T* Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 52 17 53 9960 Specs | | | Magnification | 1.5 to 6x | | Objective Lens Diameter | 42 mm | | Field of View | 1.5x: 72' @ 100 yd / 23.9 m @ 100 m
6x: 20.7' @ 100 yd / 6.8 m @ 100 m | | Exit Pupil Diameter | 1.5x: 15 mm
6x: 7 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | #60 Reticle | | Illumination | Illuminated | | | | Impact Point Correction | 1/3 MOA per Click | | Windage Adjustment | 73.4 MOA | | Elevation Adjustment | 73.4 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13" / 32.9 cm | | Weight | 19.4 oz / 550 g |
