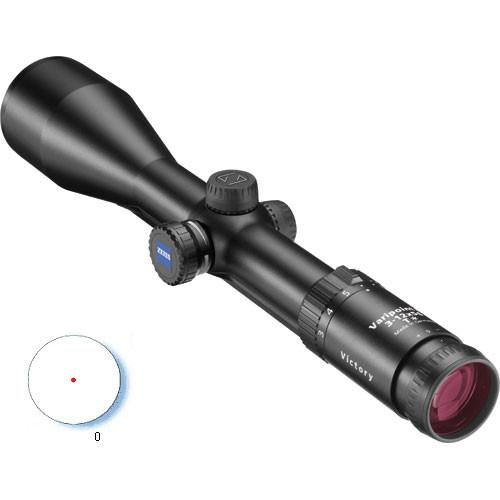

User Manual for ZEISS Victory Varipoint 3-12x56 T* VM V Riflescope Click to enlarge the picture
Contents of the user manual for the ZEISS Victory Varipoint 3-12x56 T* VM
- Product category: Riflescopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Riflescopes
|
User manual for the ZEISS Victory Varipoint 3-12x56 T* VM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description Carl ZEISS has a long and illustrious history that begins in Germany in 1846. Since their inception, they have been known to be leaders in the world of optical designs and fine mechanics. Purchasing and using a riflescope from the creators of many of the world's most revered optical and mechanical designs ensures satisfaction, confidence and appreciation for how a truly fine optic can enhance your outdoor experience. Using the right tool for the job helps get the job done right - and the Victory Varipoint 3-12x56 T* delivers - right up until the last bit of daylight. Its distinguishing 56mm objective adds a substantial boost in twilight performance, and ZEISS' legendary optical-genius affords a brilliant sight picture that's second to none. Most hunting scenarios can be handled easily with the 3-12x range of magnification - whether its thick woods, dense shrubs, or open plains - you'll get on target quickly. This amazing Varipoint scope is configured with a 30mm tube, hunting turrets, an illuminated #0 reticle in the first focal plane , and a matte black finish. The Varipoint is nearly identical to the Diavari - the difference is found in their respective reticle systems. The Varipoint system places the reticle in the first focal plane, while the illuminated portion is placed in the second image plane. Increasing the scope's power magnifies the field of view and the reticle - the size of the illuminated aiming point does not change. A mounting base and rings are used to attach a riflescope to a firearm. A comfortable sight picture is contingent upon the height of the rings. A comfortable cheek-weld is the result of properly positioning the scope over the receiver. Mounting the scope close to the receiver is preferable, yet scopes with larger objectives need higher rings so the front bell can clear the barrel. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - 30mm Main-Tube
- Machined from a single piece of aluminum
- Water and Fogproof
- Nitrogen filled and o-ring sealed for water and fogproof performance
- Parallax Correction
- Factory preset at 109 yards / 100 m
- LotuTec Coating
- Sheds water, dirt, grease, grime. Lens can be easily wiped clean without smearing
- T* Multicoating
- T* lens coatings reduce flare, improves contrast, increases light transmission
- Metric Adjustments
- 1 cm @ 100 m / 1/3 MOA W&E correction
- Advanced Optics System
- Environmentally friendly lead and arsenic free glass yields exceptional resolution, contrast, intense color reproduction
- Victory Varipoint Riflescope
- Featuring a premium luster finish, Victory Varipoint scopes are usually lighter and shorter with more eye relief than similar ZEISS riflescopes. The Varipoint reticle system has the reticle in the first focal plane, while the illuminated dot is in the second focal plane. This sophisticated configuration keeps the size of the dot constant while the reticle magnifies when increasing the magnification.
- Illuminated #0 Reticle - First Focal Plane
- The #0 reticle offers the cleanest sight picture available. Fast moving game doesn't stand a chance when this reticle is fitted into your scope. A single dot that can be illuminated sits at dead center in your sight picture. The absence of posts and cross hairs means you can see everything in your line of sight, while the dot puts you on target every time. First focal plane positioning of the reticle magnifies the reticle along with the scene. This allows the reticle to be more visible at higher magnifications.
In the Box ZEISS Victory Varipoint 3-12x56 T* VM/V Riflescope (Matte Black) 3V Lithium CR2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS Victory Varipoint 3-12x56 T* VM V Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 52 17 47 9900 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 56 mm | | Field of View | 3x: 37.5' @ 100 yd / 12.5 m @ 100 m
12x: 10.5' @ 100 yd / 3.4 m @ 100 m | | Exit Pupil Diameter | 3x: 14.7 mm
12x: 4.7 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | #0 Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/3 MOA per Click | | Windage Adjustment | 36.7 MOA | | Elevation Adjustment | 36.7 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.1" / 35.8 cm | | Weight | 1.3 lb / 605 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
