User Manual for ZENDURE 26,800mAh A8 QC Portable Charger Click to enlarge the picture
Contents of the user manual for the ZENDURE 26,800mAh A8 QC Portable Charger
- Product category: Portable Battery Packs ZENDURE
- Brand: ZENDURE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZENDURE Portable Battery Packs
 |
User manual for the ZENDURE 26,800mAh A8 QC Portable Charger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZENDURE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZENDURE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZENDURE product will considerably shorten its lifespan!
|

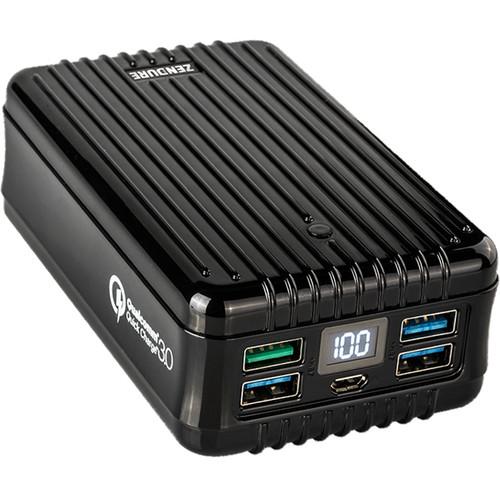

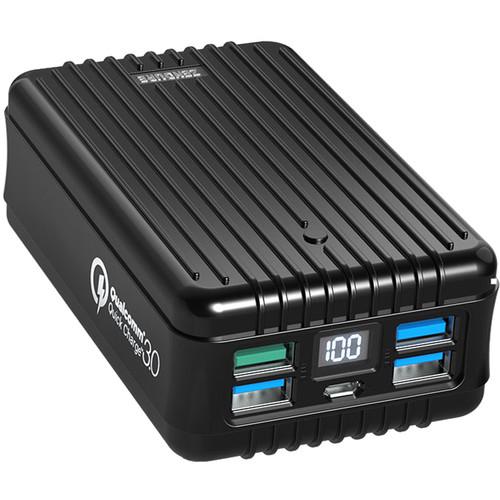

Product description Keep your USB-enabled mobile devices charged all day with the black A8 QC Portable Charger from Zendure. This 26,800mAh power bank is equipped with four USB Type-A ports for simultaneous charging. With a 3.1A pass-through, the A8 QC portable charger adjusts and delivers power to your connected devices for maximum charge efficiency. Moreover, the A8 QC supports fast charging and Quick Charge 3.0 technology when the compatible devices are connected, which delivers up to 15.5 and 18W respectively.

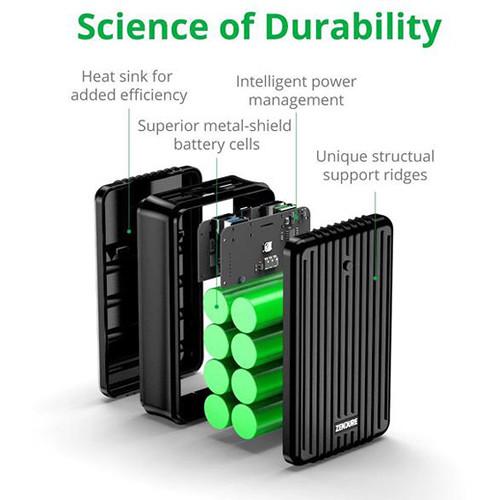

Additional features include a built-in LED battery level display, a heat sink, and a metal shield for its battery cells, which all work to help you see how much power the A8 QC charger has remaining while also maintaining a cool and secure charge environment. If you have a rugged and busy lifestyle, you can rest easy since the A8 QC portable charger is designed with an impact absorbing rubber belt. Furthermore, you can take this charger with you anywhere because Zendure includes a 20" micro USB cable and carrying pouch. - Quick-Charging Support
- The A8 QC utilizes certified Qualcomm Quick Charge 3.0 technology for a single USB Type-A port, which can output 3A, 2A, and 1.5A (18W max) of power when connected to a compatible device.
- Charge-Through
- This power bank has a charge-through function that allows you to charge the external battery while it's charging your devices, which works when you use a Quick Charge 3.0 charger.
- Auto-On
- The A-Series battery will automatically turn itself on when connected to a compatible device for charging, then switches back to standby when charging is complete.
- Long-Term Standby Mode
- The A-Series battery can maintain up to 95% of its charge after six months without use, making it a helpful emergency backup.
- Compatibility
- The Zendure A-Series is compatible with almost all Apple and Android smartphones, tablets, and other USB-chargeable devices. However, some low-power devices are not supported if they draw less than 120mAh of power.
UPC: 853805005547 In the Box ZENDURE 26,800mAh A8 QC Portable Charger (Black) Micro USB Cable (20") Cloth Carrying Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZENDURE 26,800mAh A8 QC Portable Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZENDURE A8 QC Portable Charger Specs | | | Input Charging Port | Micro-USB | | Output Ports | 4 x USB Type-A | | Cable Length | 20" / 50.8 cm | | | | Battery Chemistry | Lithium-Ion | | Capacity (Wh) | 99.1 Wh | | Capacity (mAh) | 26,800 mAh | | | | DC Input Power | 5 VDC at 2.1 A
5 VDC at 2 A
9 VDC at 2 A
12 VDC at 1.5 A | | Port Output Power | 5 V, 3.1 A
6 V, 3 A
9 V, 2 A
12 V, 1.5 A | | AC Power Output | 18 W | | | | Dimensions (W x H x D) | 4.7 x 2.9 x 1.6" / 11.9 x 7.4 x 4.1 cm | | Weight | 1.1 oz / 31.0 g |
