User Manual for Zenelli CARBON Z Carbon Fiber Gimbal Head Click to enlarge the picture
Contents of the user manual for the Zenelli CARBON Z Carbon Fiber Gimbal
- Product category: Tripod Heads Zenelli
- Brand: Zenelli
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zenelli Tripod Heads
 |
User manual for the Zenelli CARBON Z Carbon Fiber Gimbal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zenelli product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zenelli user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zenelli product will considerably shorten its lifespan!
|

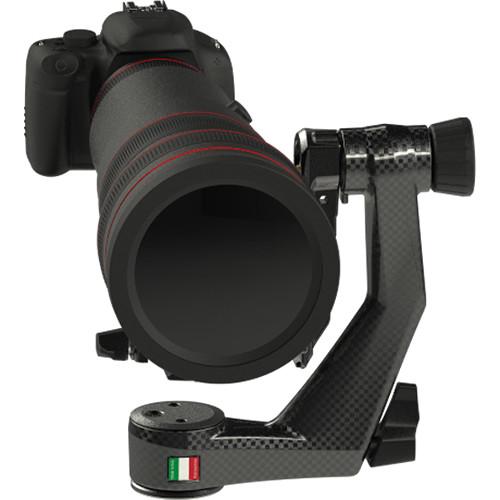

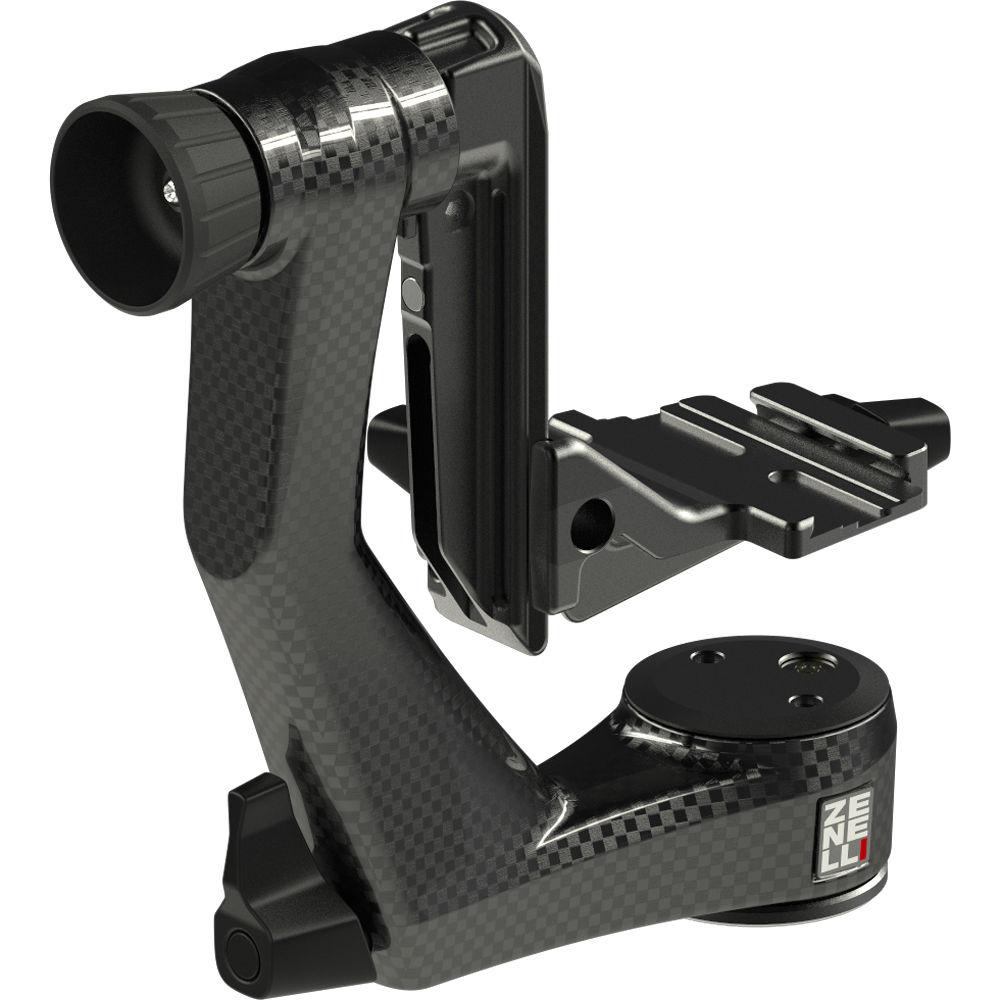

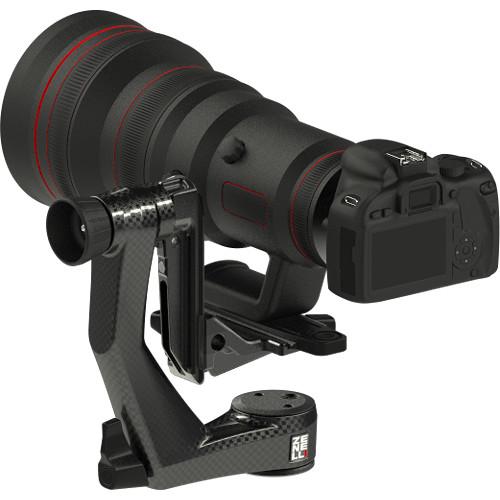

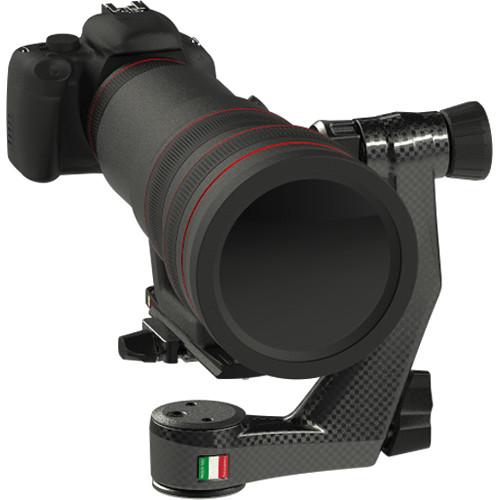

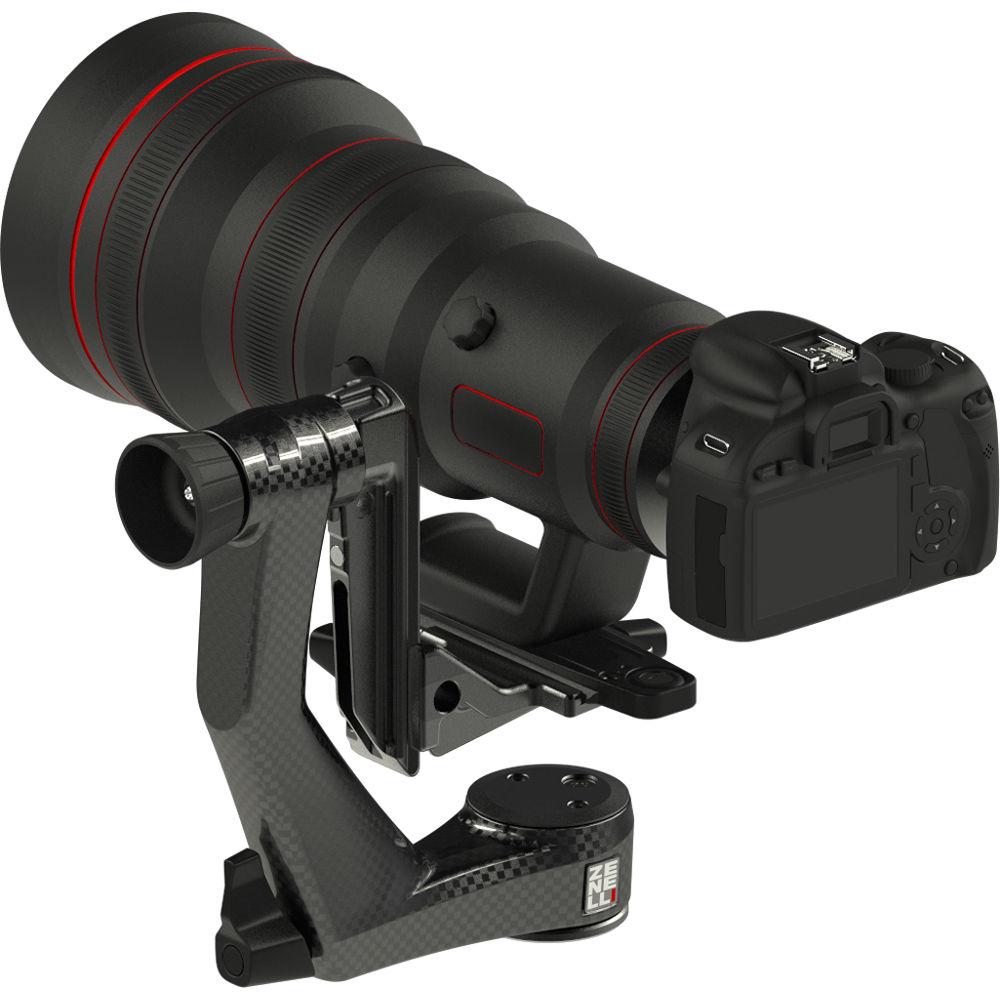

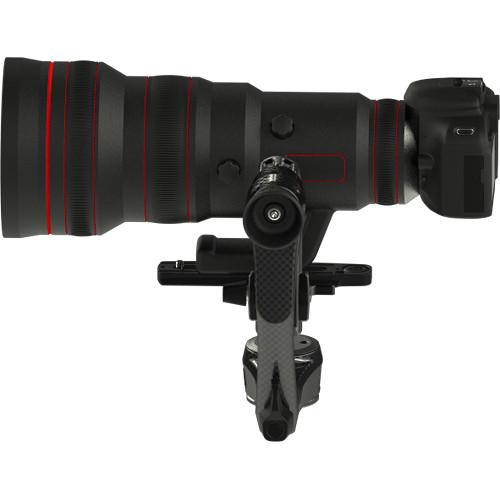

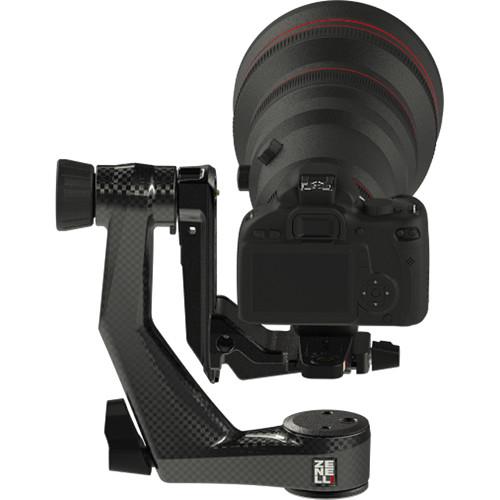

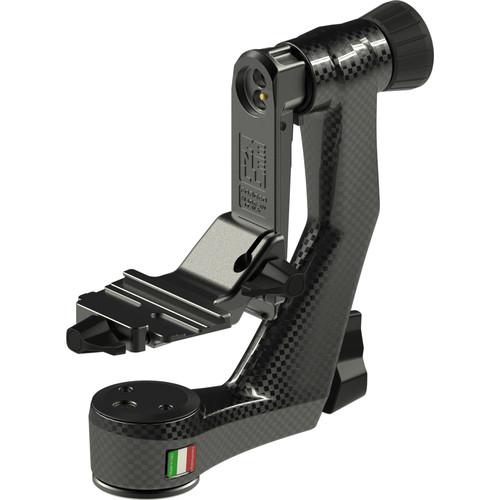

Product description Made of a carbon fiber alloy including aluminum and magnesium, the CARBON Z Gimbal Head from Zenelli is a capable Arca-type compatible head that can hold up to 154 lb of gear while weighing only 2 lb. It offers 360° panning and tilting up to 110° depending on the lens, with an independent knob for each axis so you can control your framing with accuracy. To facilitate use, the CARBON Z comes equipped with a tension control knob that helps you regulate the amount of friction on the head as you adjust it. Also available is a bubble level for precise composition, located at the top of a cylinder below the clamping surface. The gimbal head can be mounted on any tripod with a 3/8"-16 screw, and comes with a bag to help protect it from dust. -
- Carbon fiber gimbal head with construction materials such as aluminum and magnesium
- Holds equipment up to 154 lb while weighing only 2 lb
- Compatible with Arca-type quick release system, plate not included
- Pans 360° and tilts up to 110°
- Independent pan knob allows for precise movement along a single axis
- Tension control knob offers control over the friction of the head as it moves
- For making the camera parallel with the ground, a small bubble level is found below the clamping surface
- Mounts to any tripod with a 3/8"-16 screw
- An anti-dust bag is included for storage and transport
In the Box Zenelli CARBON Z Carbon Fiber Gimbal Head Anti-Dust Bag Limited 2-Year Warranty Limited 3-Year Warranty Extension after Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Zenelli CARBON Z Carbon Fiber Gimbal Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZenelli CARBONZ Specs | Materials | Carbon fiber
Anodized aluminum
Magnesium | | Finish | Anti-UV varnish | | Load Capacity | 154 lb (70 kg) | | Tension Control | Yes | | Separate Panning Lock | Yes | | Spirit Level | Yes | | Pan Range | 360° | | Tilt Range | Up to 110°, depending on lens used | | Tripod Mount Thread Size | 3/8"-16 | | Quick Release System | Arca-type | | Dimensions | 9.1 x 9.1 x 3.5" (23 x 23 x 9 cm) | | Weight | 2 lb (0.9 kg) | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 8.8 x 4.3 x 1.6" |
