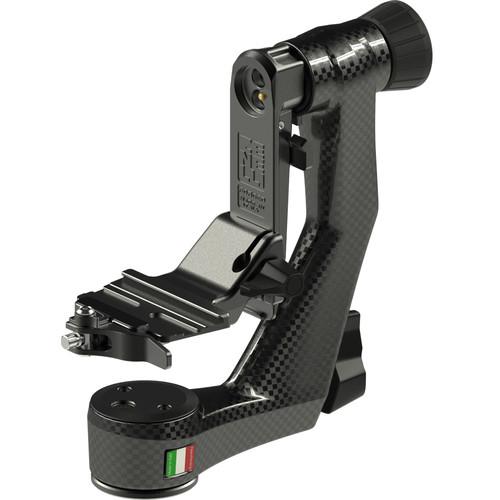

User Manual for Zenelli CARBONZX Carbon Fiber Gimbal Head with Accessories Click to enlarge the picture
Contents of the user manual for the Zenelli CARBONZX Carbon Fiber Gimbal Head
- Product category: Tripod Heads Zenelli
- Brand: Zenelli
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zenelli Tripod Heads
 |
User manual for the Zenelli CARBONZX Carbon Fiber Gimbal Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zenelli product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zenelli user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zenelli product will considerably shorten its lifespan!
|

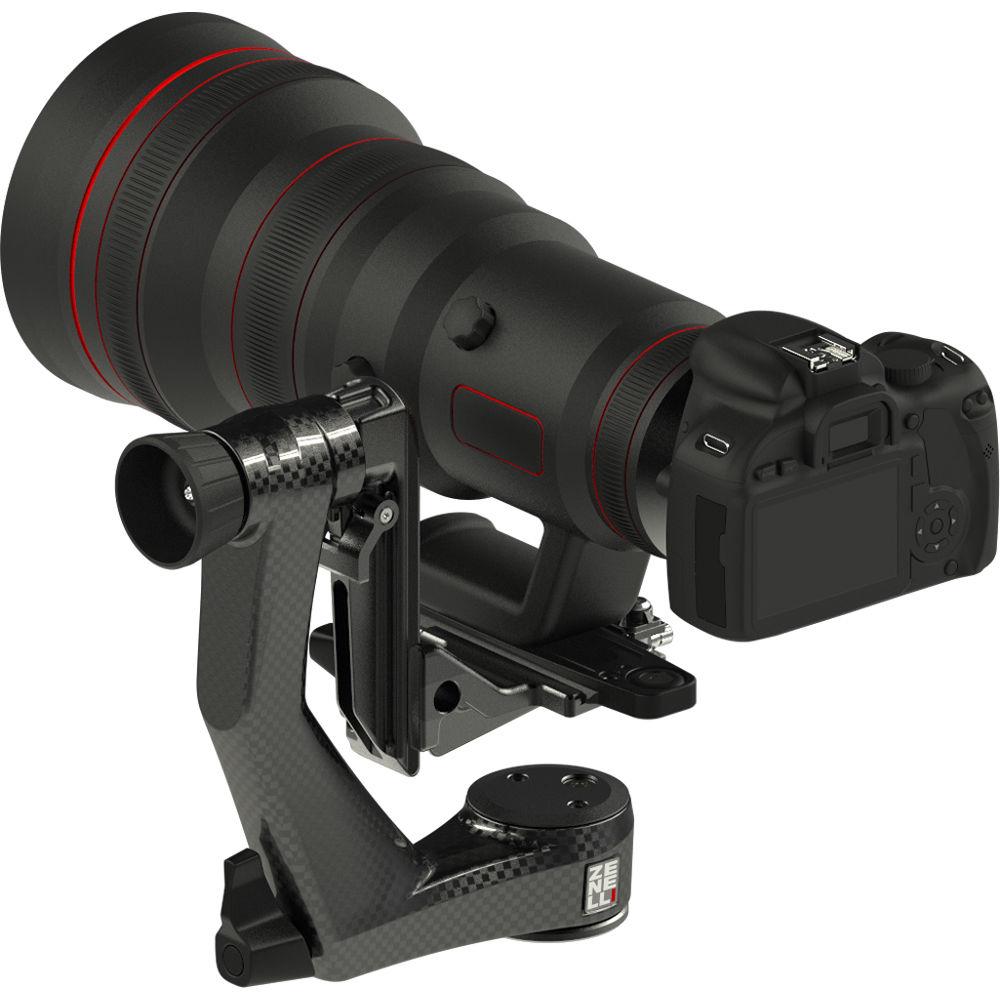

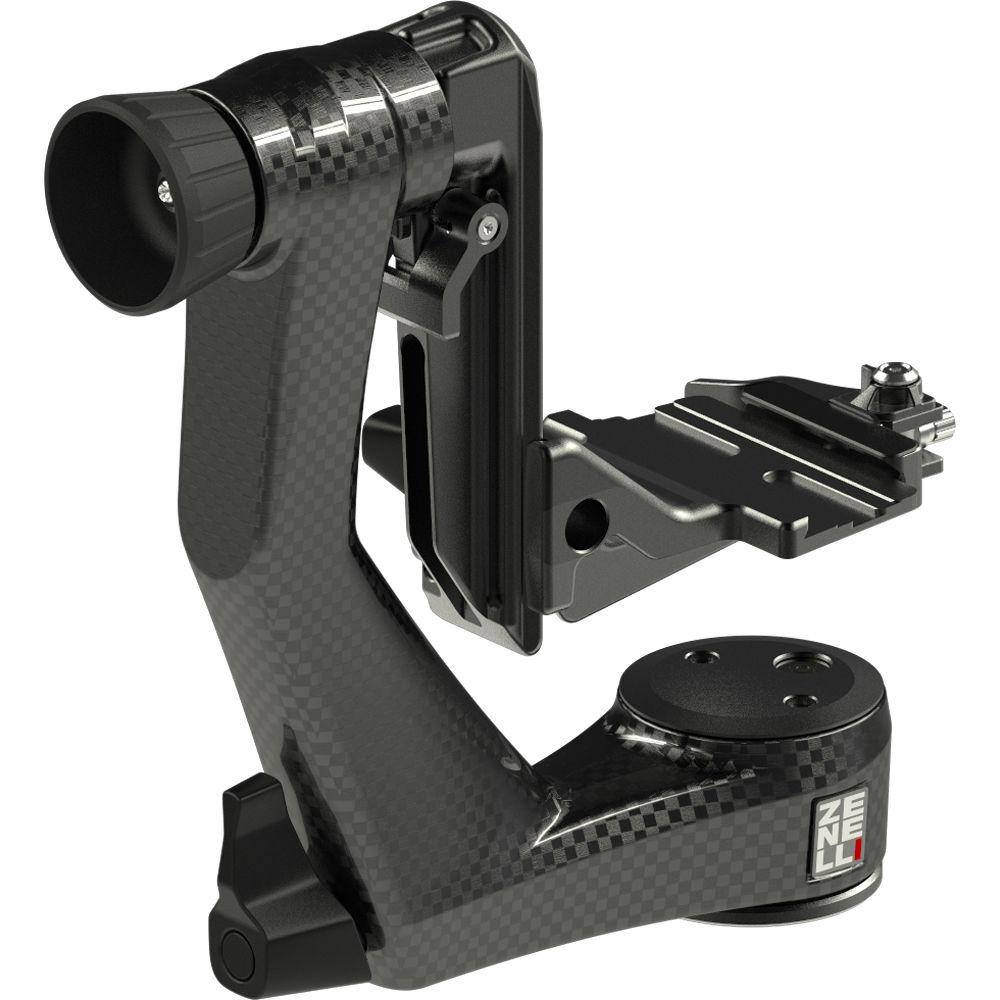

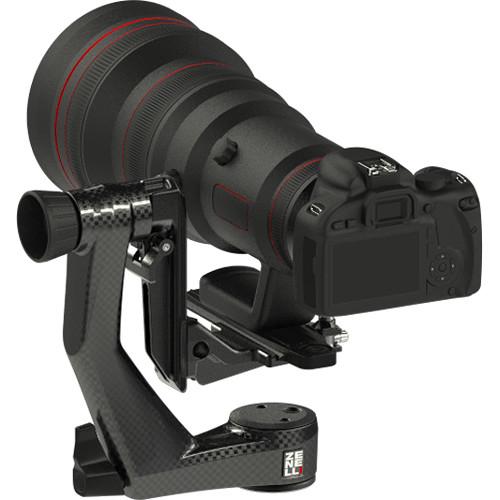

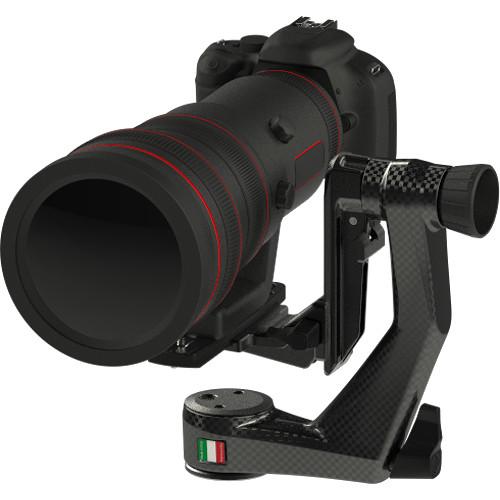

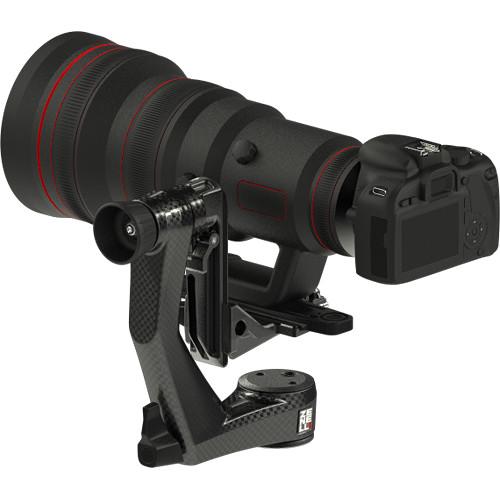

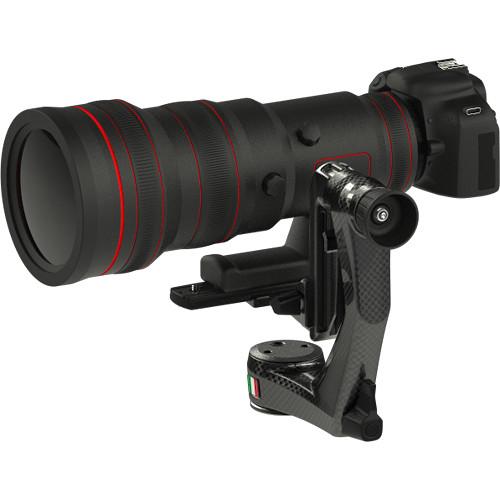

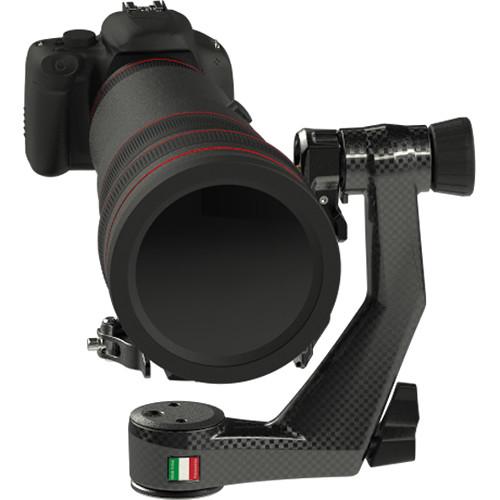

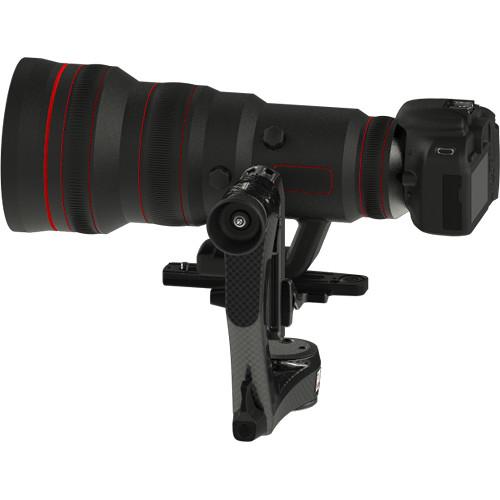

Product description The CARBONZX Carbon Fiber Gimbal Head with Accessories from Zenelli is a lightweight head made from 100% completely hollow carbon fiber. It includes a Save Lenses Lever, and a Quick-Release Lever. Hard-anodized aluminum and stainless steel hardware help ensure high resistance to wear and tear, and corrosion.
The gimbal has a full 360° range of motion for both the pan and tilt, and separate locks with tension control for each. The clamp is compatible with most Arca-type dovetail plates, and is opened and closed via a thumb screw. Grooves in the clamp allow for use of plates with safety stop screws. The base of the clamp can be adjusted 4.8" up and down to balance and adjust the nodal point.
The Quick-Release Lever allows you to quickly open and close the gimbal head's Arca-type clamp. The width of the lever can be adjusted and locked in place for different width plates, and a safety lock prevents the clamp from accidentally opening and releasing the plate. The Save Lenses Lever is mounted onto the vertical arm of the clamp and when activated, prevents the clamp from tilting forward, which might smash the lens into the tripod. This is especially useful when changing camera bodies. A padded shock absorber on the lever protects the carbon fiber from being damaged. - 2mm thick hollow carbon fiber body
In the Box Zenelli CARBONZX Carbon Fiber Gimbal Head with Accessories Quick-Release Lever for CARBONZ Gimbal Head Save Lenses Lever for CARBONZ Gimbal Head Limited 2-Year Warranty, Extendable to 5-Year Warranty with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Zenelli CARBONZX Carbon Fiber Gimbal Head with Accessories in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZenelli CARBONZX Specs | | | Head Type | Gimbal Head | | Base Mount | 3/8"-16 Thread | | Number of Bubble Levels | 1 | | Friction Control | Yes | | Independent Pan Lock | Yes | | Material | Aluminum, Carbon Fiber, Stainless Steel | | | | Dimensions | H: 9.2 x W: 3.6 x L: 9.3" / H: 23.5 x W: 9.1 x L: 23.7 cm | | Weight | 2.0 lb / 0.9 kg | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 11.8 x 11.2 x 3.4" |
