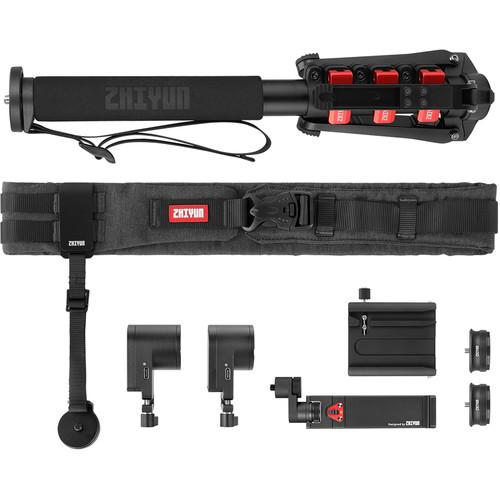

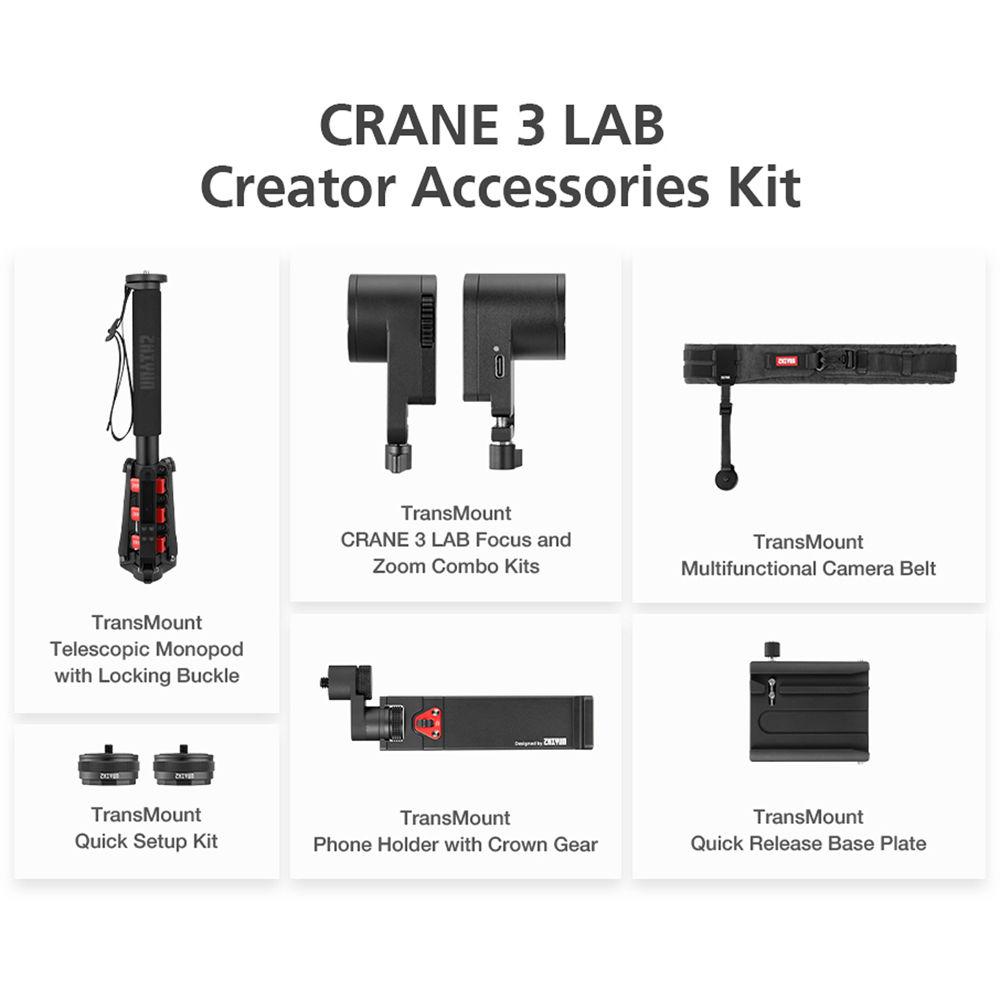

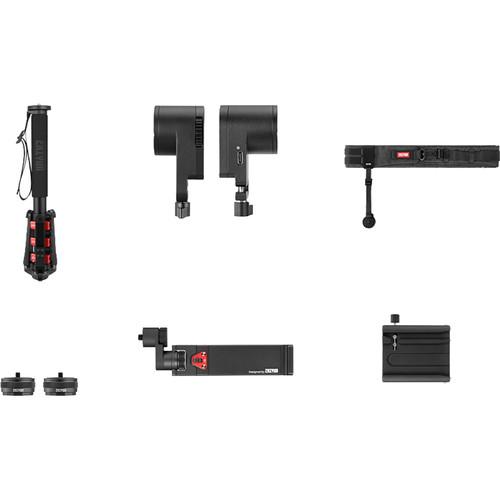

Product description This Zhiyun-Tech Crane 3 Lab Creator Accessories Kit has everything you need to get started with your Zhiyun Crane 3 Lab gimbal. It consists of a smartphone holder, focus and zoom combo kit, a small handheld tripod, a large multifunctional camera belt, a quick setup kit, and a quick release baseplate.

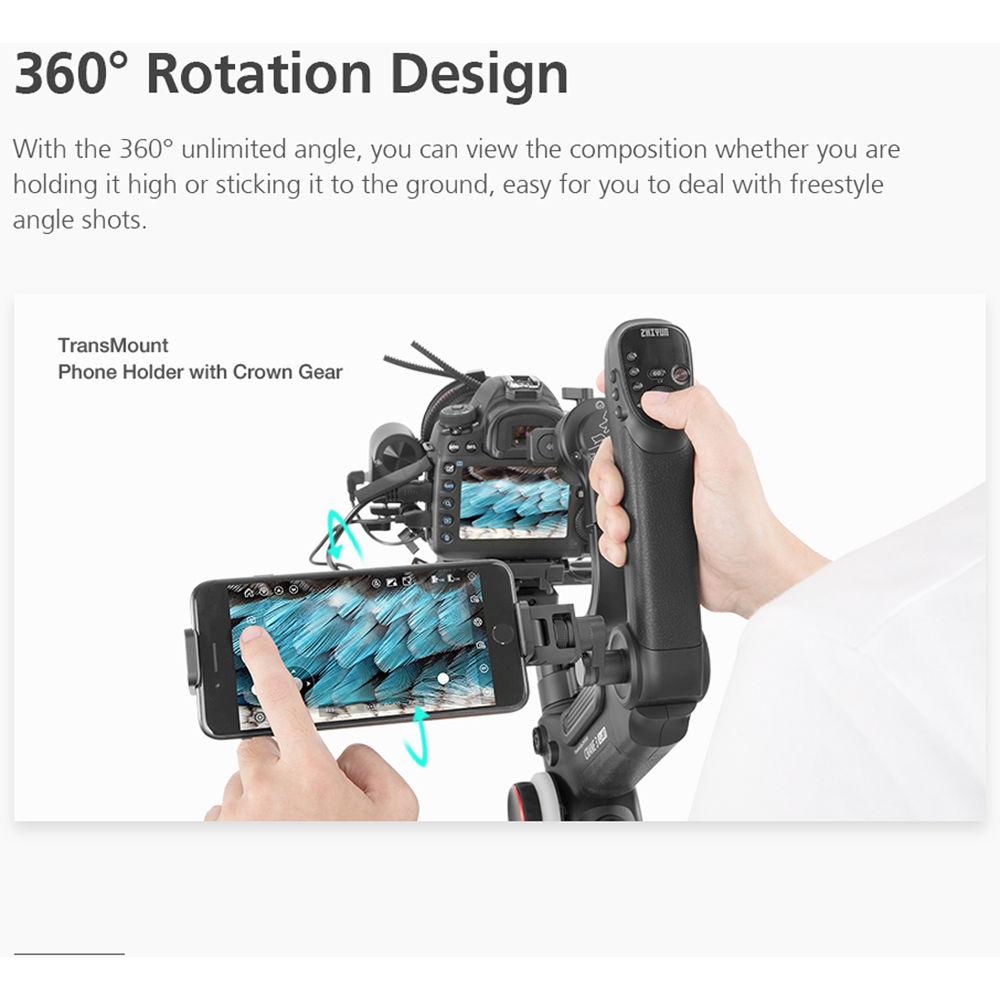

The articulating smartphone holder secures phones up to 6.3" wide to the Crane 3 Lab, and it folds up when not in use. The quick setup kit consists of two adapters that allow you to put together and break down your gimbal quickly, rather than screwing the joints together. The handheld tripod is a compact tripod that can also be used as a handgrip on the top or bottom of your Crane 3 Lab when folded up.

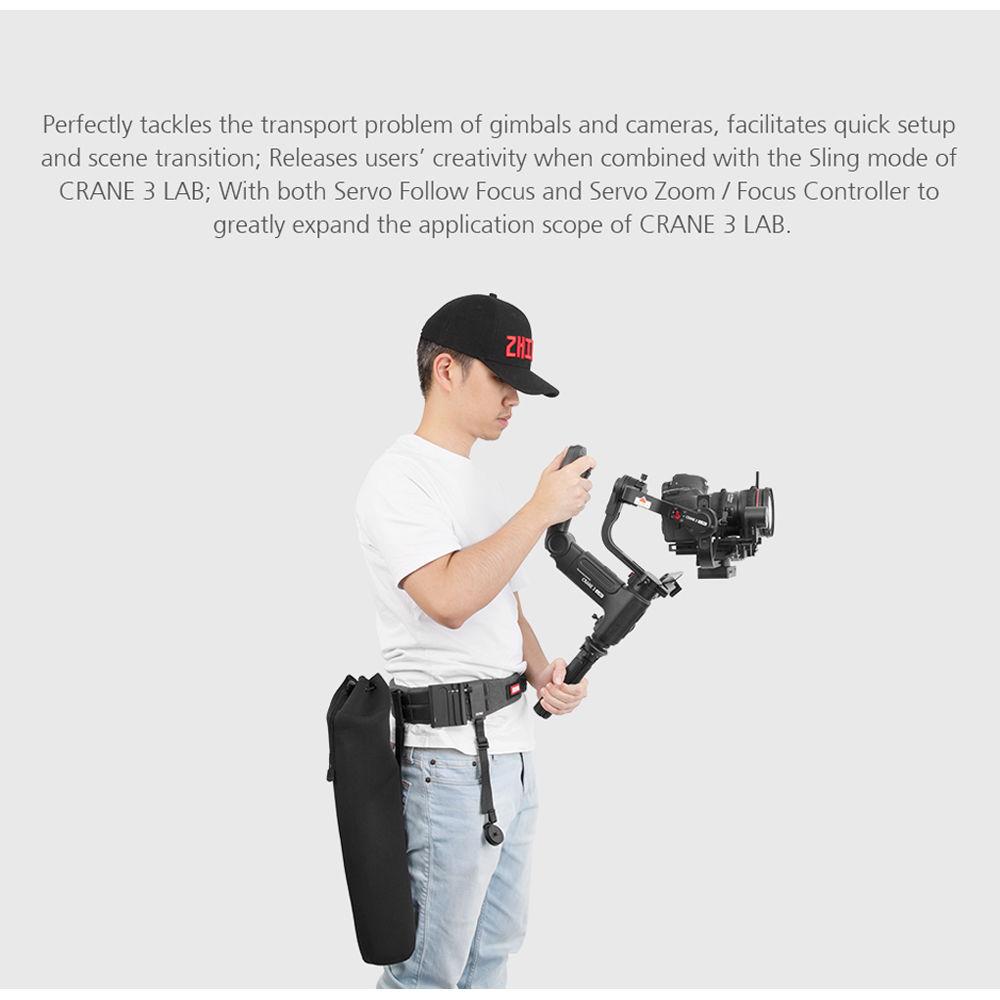

The large camera belt allows you to conveniently mount various accessories to keep your hands free and offers additional support for your Crane 3 Lab. The quick release baseplate can attach to the camera belt or tripod to allow for quick camera changes to and from the Crane 3 Lab. Finally, the focus and zoom combo kit allows you to control your camera's focus and zoom from your smartphone while mounted on the Crane 3 Lab. - TransMount Phone Holder with Crown Gear for Crane 3-Lab & WEEBILL LAB The TransMount Phone Holder with Crown Gear from Zhiyun-Tech is compatible with the Crane 3-Lab and WEEBILL LAB. It secures on the side of the gimbal and is adjustable to hold phones up to 6.3" wide when the phone is held in landscape orientation. It also articulates forward/backward and can be folded up when not in use. UPC: 191493001077

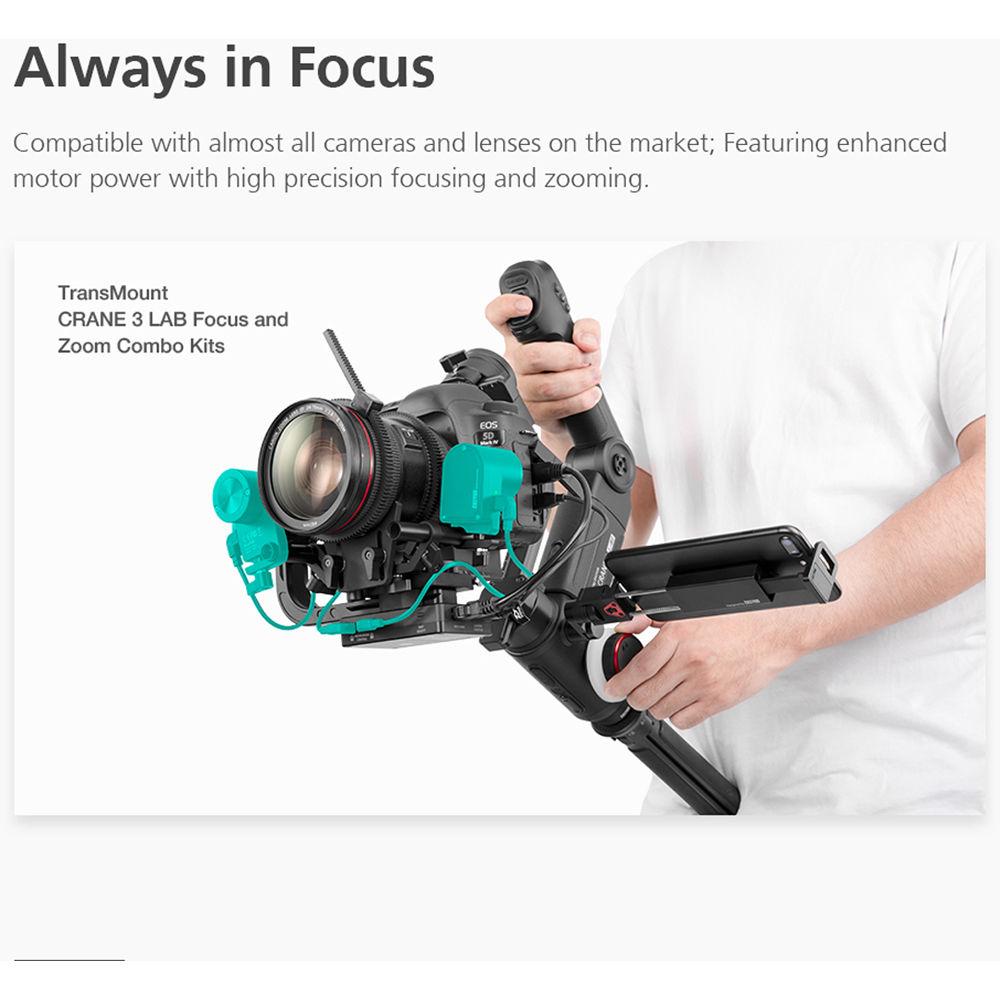

- TransMount Focus & Zoom Servo Combo Kit for Crane 3-Lab The Crane 3-Lab gimbal supports up to two motors at the same time. The Zhiyun-Tech TransMount Focus & Zoom Servo Combo Kit includes the TransMount Max zoom/focus servo and slightly lighter TransMount Lite focus servo. Together these two motors allow you to control both focus and zoom with zero latency. The motors attach to the bottom of the Crane's baseplate without any tools using just the included brackets, rods, and thumbscrews. UPC: 191493001121
- TransMount Crane 3-Lab Handheld Tripod The Zhiyun-Tech TransMount Crane 3-Lab Handheld Tripod is a replacement mini tripod that attaches to the bottom of the Crane 3-Lab gimbal. UPC: 191493001053

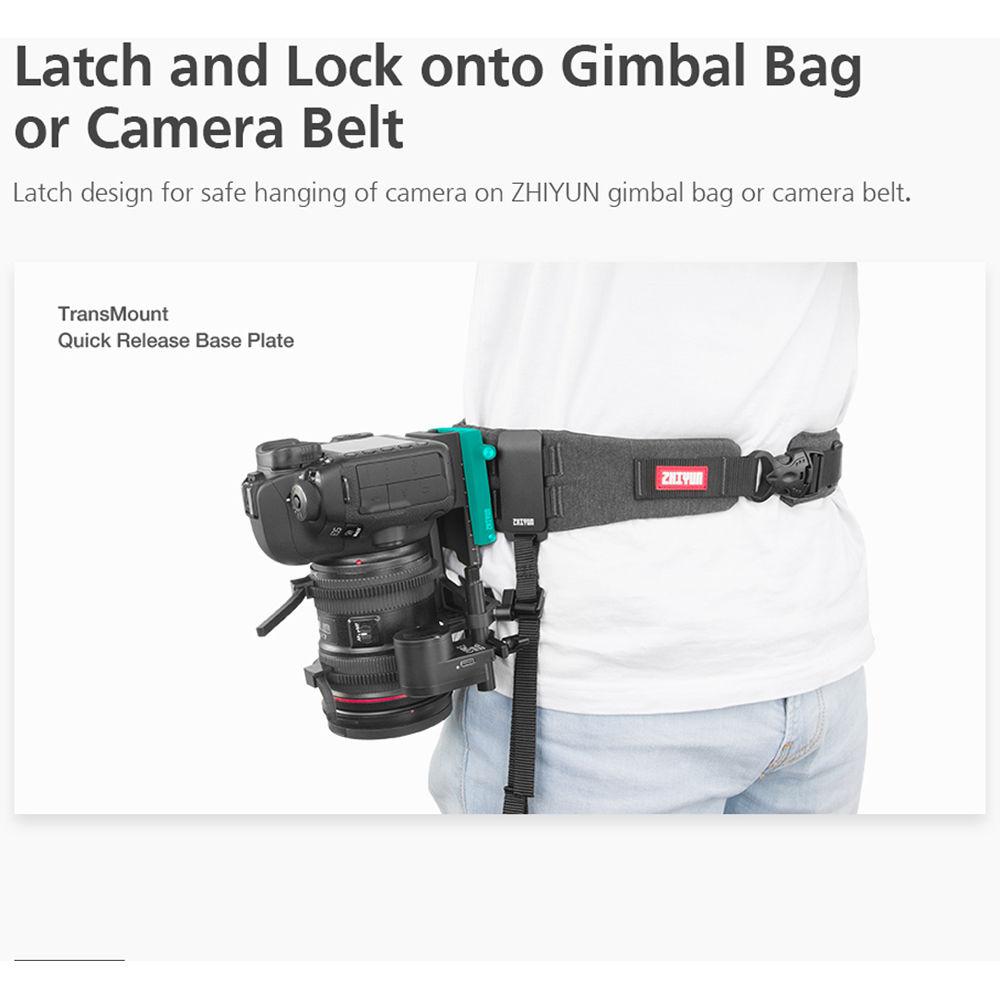

- TransMount Quick Release Baseplate for WEEBILL LAB, Crane 3-Lab & Crane 2 The TransMount Quick Release Baseplate from Zhiyun-Tech is designed to let you easily move your camera between the gimbal and the TransMount Multifunctional Camera Belt or Gimbal Bag. On one side, the baseplate accepts the mounting plate of the WEEBILL LAB, Crane 3-Lab, or Crane 2, and on the other side it features a latch that lets you attach onto the straps provided on the outside of the belt and bag. In this way, when you pack away your gimbal or put it away temporarily, you can keep the camera handy without having to remove the gimbal mounting plate. The latch, which is made of metal, securely locks when you push it in and unlocks at the press of two pins on the sides. UPC: 191493001114

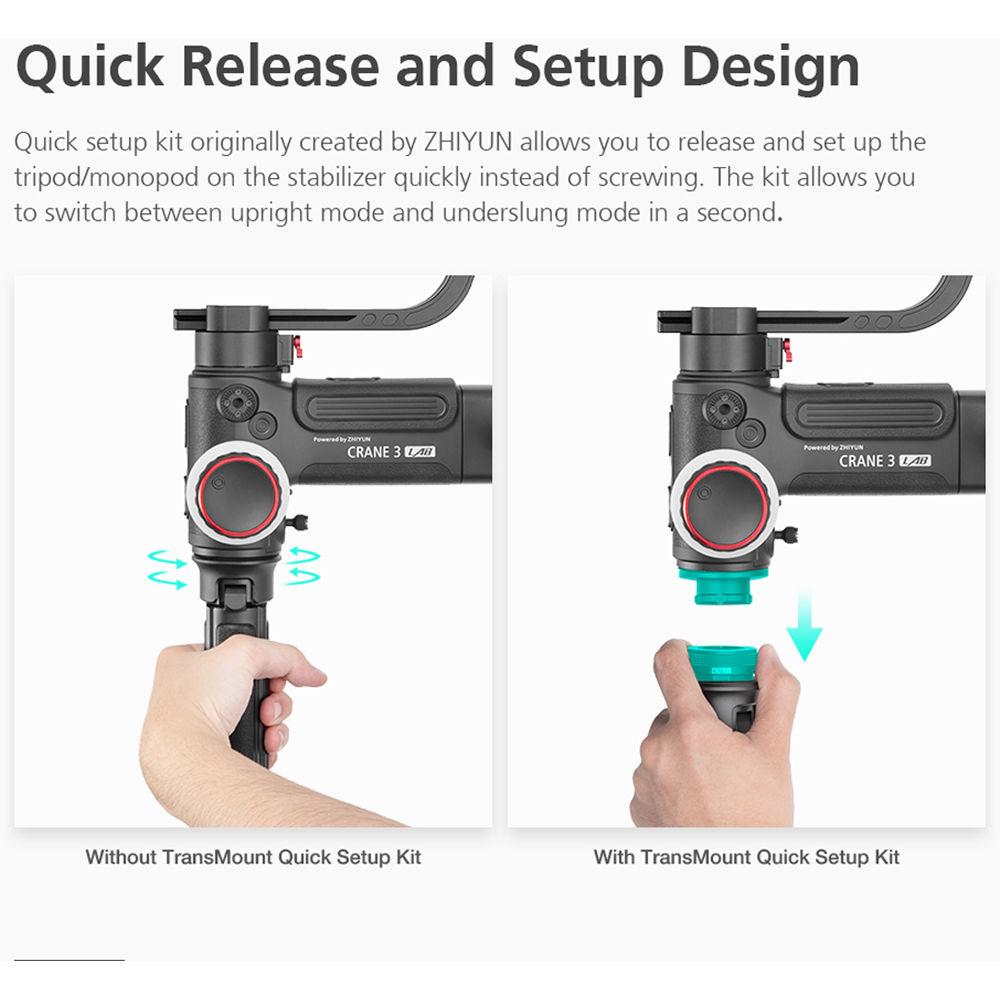

- TransMount Quick Setup Adapter for Crane 3-Lab & WEEBILL LAB The TransMount Quick Setup Adapter from Zhiyun-Tech is a quick release adapter for instantly attaching mini tripods and monopods to the Crane 3-Lab or WEEBILL LAB gimbal. It consists of two parts—one screws onto the tripod/monopod and the other to the gimbal's tripod mount, and the two simply click into each other. To detach them, you just need to pull back on a collar. The adapter prevents having to screw and unscrew a tripod/monopod each time. Featuring a 1/4"-20 male/female design, the adapter can also be used independent of the gimbal for various accessories, such as monitors.
Two units are recommended for the WEEBILL LAB because the WEEBILL offers two locations for attaching a mini tripod—one on top and one on the bottom. With an adapter attached at each of the two locations, your mini tripod can easily be moved between one and the other to switch between standard and underslung modes.
The Quick Setup Adapter features a robust aluminum construction. - Key Features
-
- Quick release adapter for attaching mini tripods and monopods to the Crane 3-Lab or WEEBILL LAB gimbal
- Consists of two parts—one secures to the tripod/monopod and the other to the gimbal; the two click into each other
- Detachable by pulling back on a collar
- Can also be used separately from the gimbal with various other 1/4"-20 accessories
- Aluminum construction

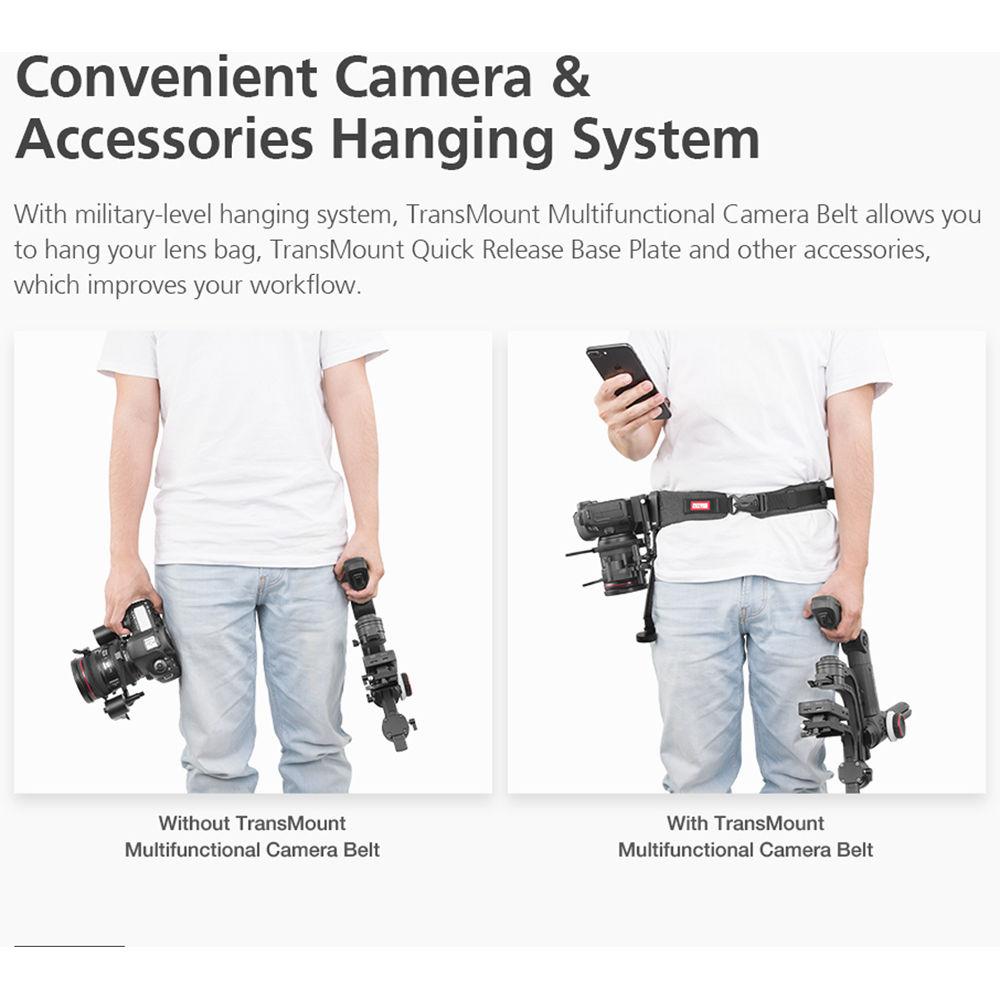

UPC: 191493001046 - TransMount Multifunctional Camera Belt (Large) Designed to support the TransMount Mini and Telescopic monopods, the large-sized Zhiyun-Tech TransMount Multifunctional Camera Belt provides a point of stability for anything you mount on the monopod, including a gimbal. When the belt is used with a monopod and gimbal such as the WEEBILL LAB, the additional point of balance allows for substantially more stable and comfortable jib-type shots and lets you control the gimbal's focus wheel more easily. The belt also has military-grade strips along its length for hanging accessories such as lens bags and the TransMount Baseplate.
For securing the monopod, the belt features a receptacle suspended on a hanging strap. The receptacle has a removable quick release 1/4"-20 mounting platform that screws into the bottom of the monopod and then pops in and out of the receptacle by quick release functionality. Two registration pins on the receptacle lock into a groove on the 1/4"-20 mounting platform to lock the two together. - Key Features
-
- Designed to support the Zhiyun-Tech TransMount Mini and Telescopic monopods via a receptacle with a quick release mounting platform (dual registration pins)
- Provides an additional point of stability for jib-type shots and much more
- Allows the user to more easily control the focus wheel of gimbals such as the Crane 3-Lab or WEEBILL LAB
- Military grade strips for hanging lens bags and other accessories
In the Box Bundle Items TransMount Phone Holder with Crown Gear for Crane 3-Lab & WEEBILL LAB wbyqfbwwutdruxvzwwuzd TransMount Focus & Zoom Servo Combo Kit for Crane 3-Lab - TransMount Max Servo Zoom/Focus Controller for Crane 3-Lab & WEEBILL LAB
- TransMount Lite Servo Focus Controller for Crane 3-Lab & WEEBILL LAB
TransMount Crane 3-Lab Handheld Tripod TransMount Quick Release Baseplate for WEEBILL LAB, Crane 3-Lab & Crane 2 2 x TransMount Quick Setup Adapter for Crane 3-Lab & WEEBILL LAB TransMount Multifunctional Camera Belt (Large) - 1/4"-20 Mounting Platform
Table of Contents
|
Upload User Manual
Have you got an user manual for the Zhiyun-Tech Crane 3 Lab Creator Accessories Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - TransMount Phone Holder with Crown Gear for Crane 3-Lab & WEEBILL LAB
| Supported Smartphone Dimensions | Up to 6.3" / 16 cm in Width When Held in Landscape Orientation | | Dimensions | 2.5 x 3.9 x 1.1" / 6.3 x 9.9 x 2.8 cm | | Weight | 5.2 oz / 148 g | | | | Box Dimensions (LxWxH) | 5.3 x 2.5 x 1.1" | - TransMount Focus & Zoom Servo Combo Kit for Crane 3-Lab
| | | Box Dimensions (LxWxH) | 12.6 x 9.2 x 2.55" | - TransMount Crane 3-Lab Handheld Tripod
| Dimensions | 2 x 2 x 6.7" / 5 x 5 x 17 cm | | Weight | 9 oz / 255 g | | | | Box Dimensions (LxWxH) | 7.6 x 2.1 x 2.0" | - TransMount Quick Release Baseplate for WEEBILL LAB, Crane 3-Lab & Crane 2
| Dimensions | 3 x 0.7 x 3.1" / 7.7 x 1.7 x 7.9 cm | | Weight | 4 oz / 113 g | | | | Box Dimensions (LxWxH) | 4.0 x 3.0 x 0.7" | - TransMount Quick Setup Adapter for Crane 3-Lab & WEEBILL LAB
| Mount Types | 1/4"-20 Threaded Screw on Top
1/4"-20 Hole on the Bottom | | Material of Construction | Aluminum | | Dimensions | 1.6 x 1 x 1.6" / 40.5 x 26.5 x 40.5 mm | | Weight | 2 oz / 56 g | | | | Box Dimensions (LxWxH) | 2.75 x 1.65 x 1.05" | - TransMount Multifunctional Camera Belt (Large)
| Mount Type | 1/4"-20 Screw-On Removable Mounting Platform
Two Registration Pins for Groove on the Included 1/4"-20 Mounting Platform | | Dimensions | 36 x 2.4" / 92 x 6 cm | | | | Box Dimensions (LxWxH) | 6.3 x 5.0 x 3.3" |
