User Manual for Zhiyun-Tech Crane-M 3-Axis Handheld Gimbal Stabilizer Click to enlarge the picture
Contents of the user manual for the Zhiyun-Tech Crane-M 3-Axis Handheld Gimbal Stabilizer
- Product category: See All Gimbal Stabilizers Zhiyun-Tech
- Brand: Zhiyun-Tech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zhiyun-Tech See All Gimbal Stabilizers
 |
User manual for the Zhiyun-Tech Crane-M 3-Axis Handheld Gimbal Stabilizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zhiyun-Tech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zhiyun-Tech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zhiyun-Tech product will considerably shorten its lifespan!
|

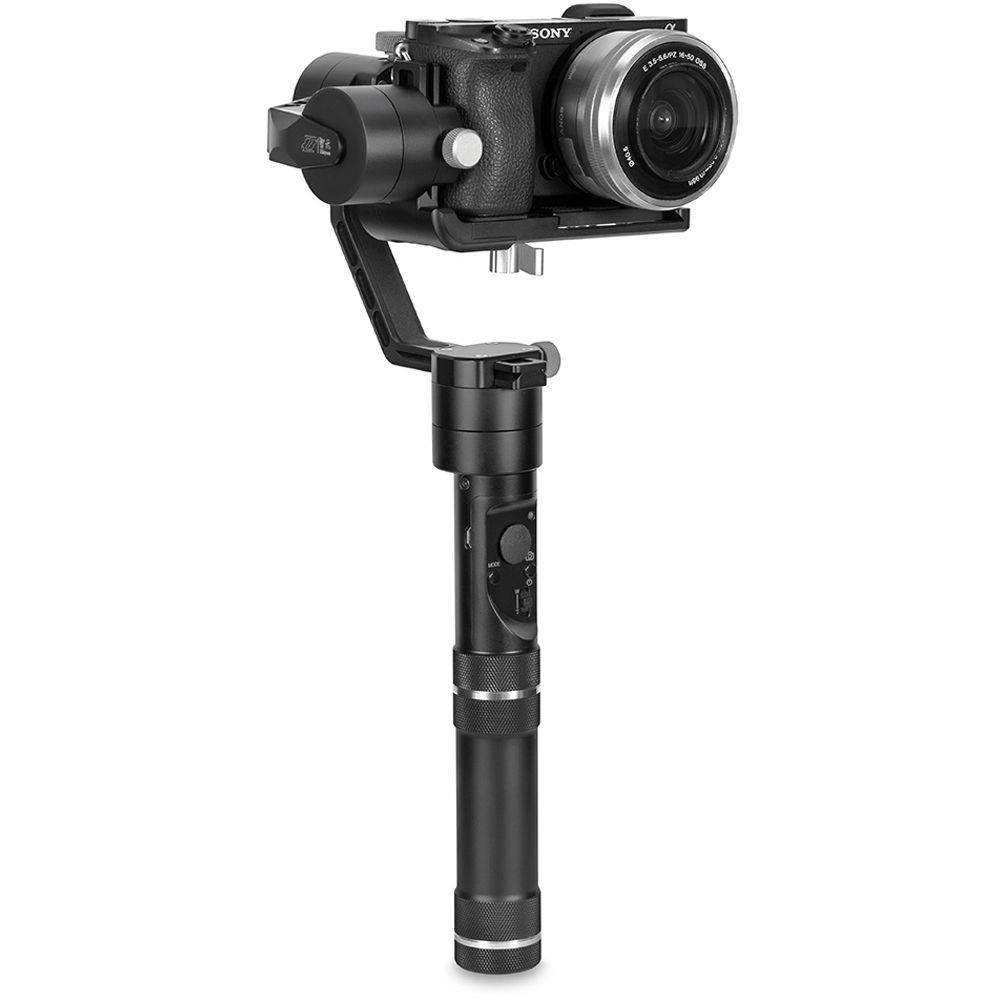

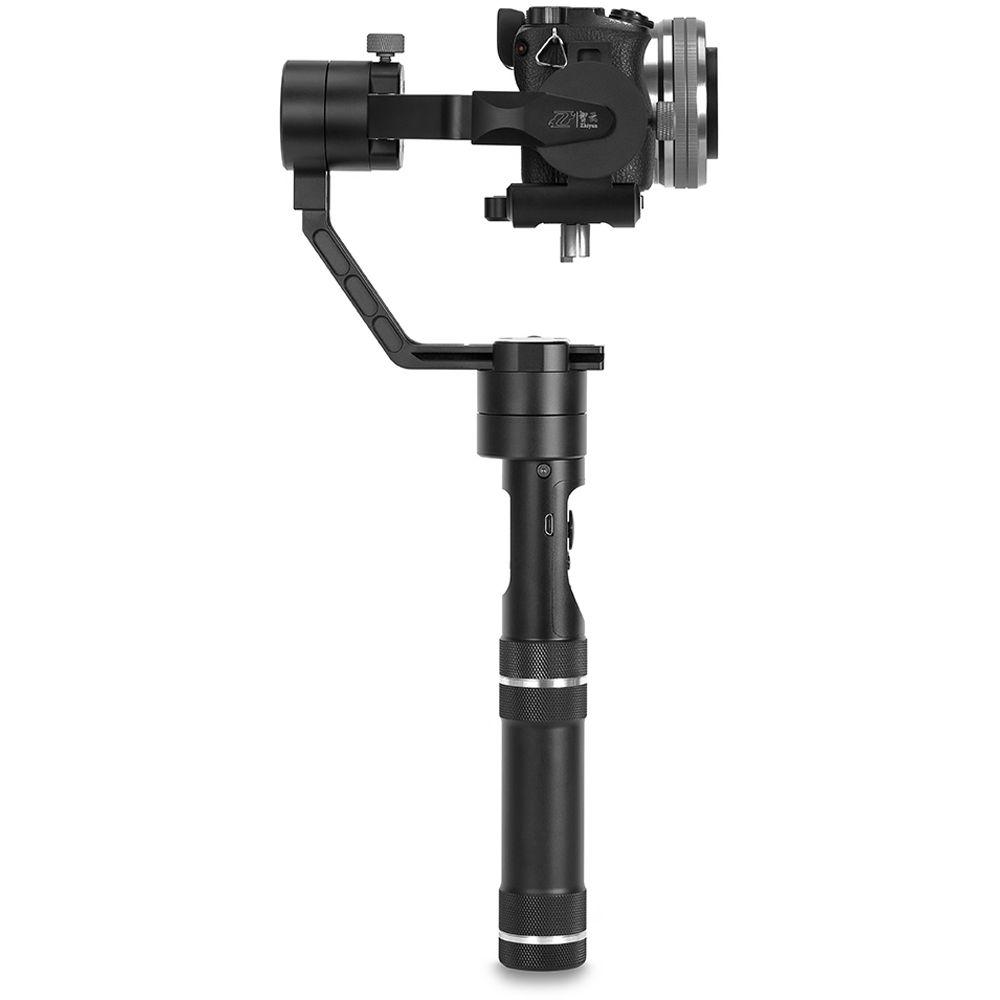

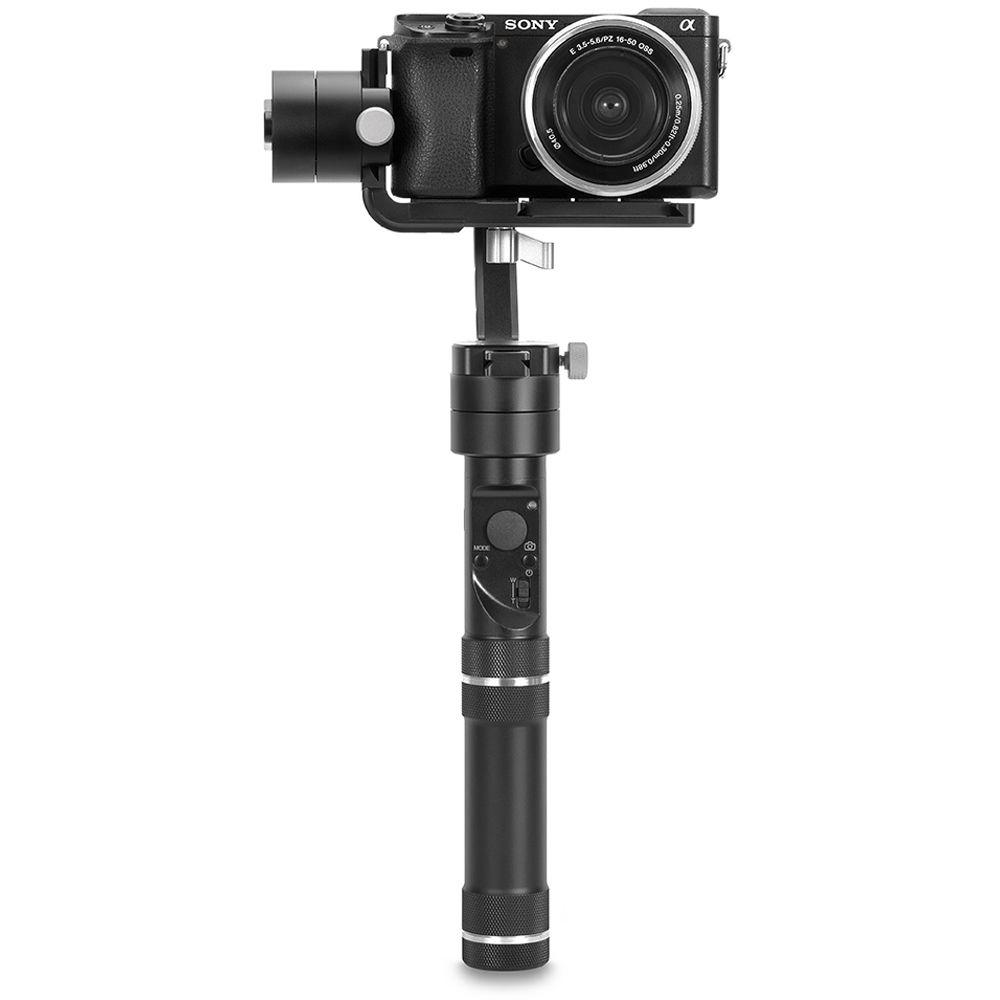

Product description The Zhiyun-Tech Crane-M is a smaller, lighter version of the original Crane. It is designed for small mirrorless cameras, smartphones, and action cameras weighing between 4.4 oz and 1.4 lb. At the same time, it has the advanced features of the original as well as improvements over it. (Separately sold adapters from Zhiyun Tech are required for mounting phones and action cams.)

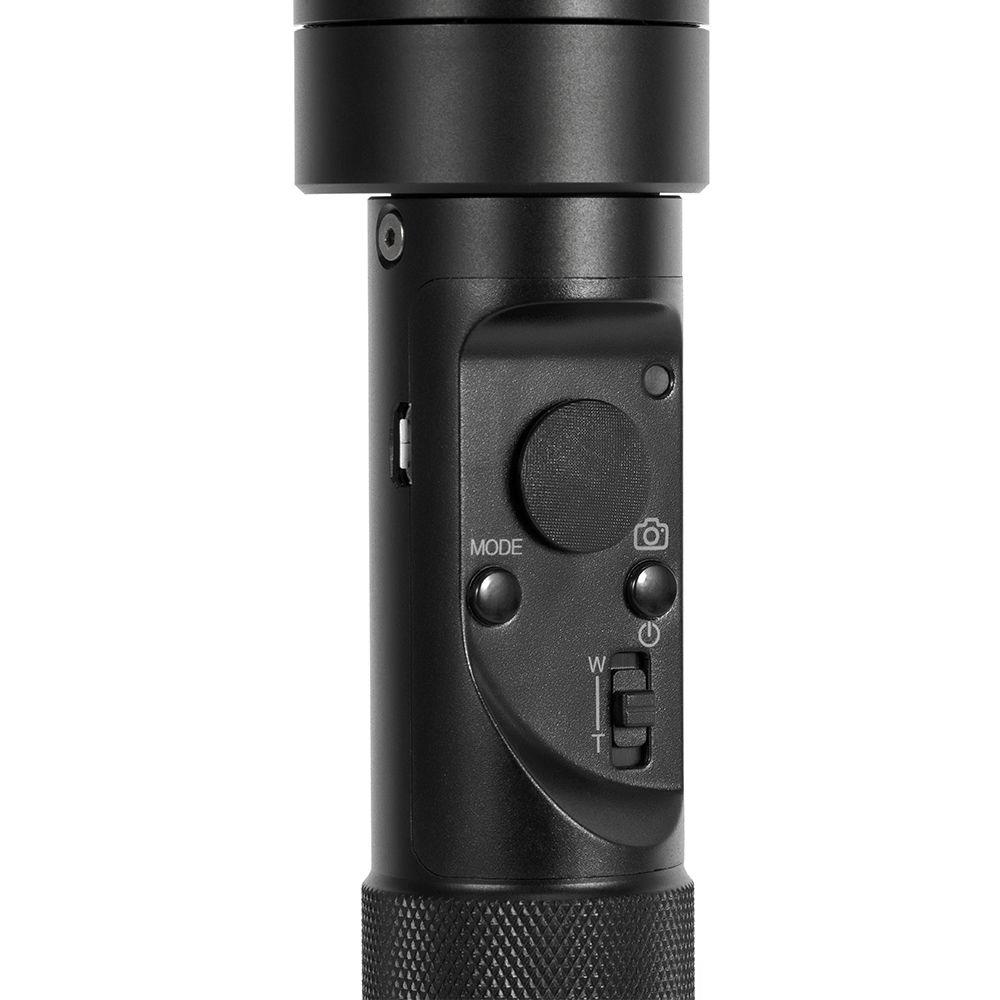

The Crane-M provides 360° rotation along the pan, tilt, and roll axes via a large 4-way joystick. It can also be controlled remotely over Bluetooth using the free Zhiyun Assistant app from your mobile device (iOS/Android).
The Crane-M operates on 32-bit triple-MCUs running in parallel at 4 kHz frequency. It also features brushless motors offering high accuracy while maintaining low vibration and increasing torque. Accuracy is ensured with a magnetic encoder in each motor and advanced stabilization algorithms. The Crane-M can achieve up to 0.01° of accuracy within 0.25 millisecond.
Featuring a quick-release plate and thumbscrew at the mounting platform, the Crane-M balances very easily without any tools. All three axes can be adjusted to your preferences in about one minute.
Multiple modes are available to select from. In Lock Mode, all three axes work together to keep the camera pointed in one position. The camera will stay still no matter how you move the handle. In Yaw-Axis Follow Mode, the Crane-M will only follow your pan movements, while in Pitch/Yaw-Axis Follow Mode, it will follow your pan and tilt movements. You can also switch to Inverted Mode at any time by simply flipping the handle over the camera. Inverted mode can be operated in conjunction with the Lock and Follow modes. In addition, the gimbal also has a Camera Control function with which shutter release can conveniently be triggered over a USB cable for select Sony cameras.
A 1/4"-20 mounting thread on the bottom of the gimbal allows mounting on tripods, monopods, and other support gear. Having the Crane-M mounted is also the ideal way of using it when controlling it remotely over the mobile app. The Crane-M runs for approximately 12 hours on included 26500 lithium-ion batteries, which take about 3 hours to fully charge. - Key Features
-
- Smaller version of the original Crane
- Designed for small mirrorless cameras, smartphones, and action cameras between 4.4 oz and 1.4 lb
- 360° rotation along the pan, tilt, and roll axes
- Large 4-way joystick
- Can be controlled remotely via a free iOS/Android app
- Operates on 32-bit triple-MCUs running in parallel at 4 KHz frequency
- Brushless motors offering high accuracy while maintaining low vibration and increasing torque
- Accuracy is ensured with a magnetic encoder in each motor and advanced stabilization algorithms
- Up to 0.01° of accuracy within 0.25 millisecond
- Features a quick-release plate and thumbscrew; toolless adjustment of all three axes
- Lock Mode, Yaw-Axis Follow Mode, Pitch/Yaw-Axis Follow Mode, Inverted Mode
- Shutter release camera control over a USB cable for select Sony cameras
- 1/4"-20 mounting thread on the bottom
- Approximately 12-hour runtime on included batteries
UPC: 191493000094 In the Box Zhiyun-Tech Crane-M 3-Axis Handheld Gimbal Stabilizer 2 x 3.7V 3600mAh 26500 Li-Ion Batteries 26500 Li-Ion Battery Charger Micro USB Cable Black Bag Limited 1-Year Warranty Specification PDF 228.5kbcbbesxufaybqwcewurta Table of Contents
|
Upload User Manual
Have you got an user manual for the Zhiyun-Tech Crane-M 3-Axis Handheld Gimbal Stabilizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZhiyun-Tech Crane-M Specs | | | Number of Axes | 3-Axis | | Rotation Range | Yaw (Pan): 360
