User Manual for Zhiyun-Tech Smooth-II 3-Axis Handheld Gimbal Stabilizer for Smartphones Click to enlarge the picture
Contents of the user manual for the Zhiyun-Tech Smooth-II 3-Axis Handheld Gimbal Stabilizer
- Product category: Gimbal Stabilizers Zhiyun-Tech
- Brand: Zhiyun-Tech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zhiyun-Tech Gimbal Stabilizers
 |
User manual for the Zhiyun-Tech Smooth-II 3-Axis Handheld Gimbal Stabilizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zhiyun-Tech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zhiyun-Tech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zhiyun-Tech product will considerably shorten its lifespan!
|

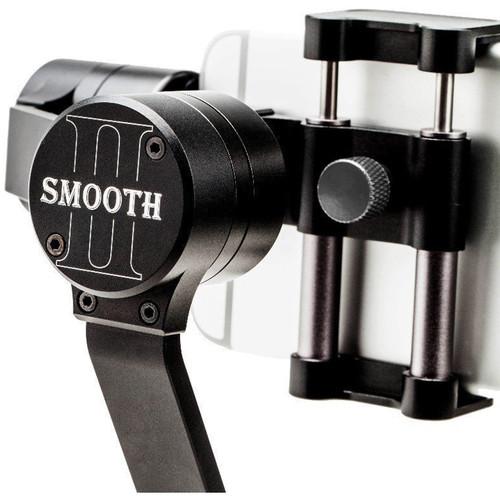

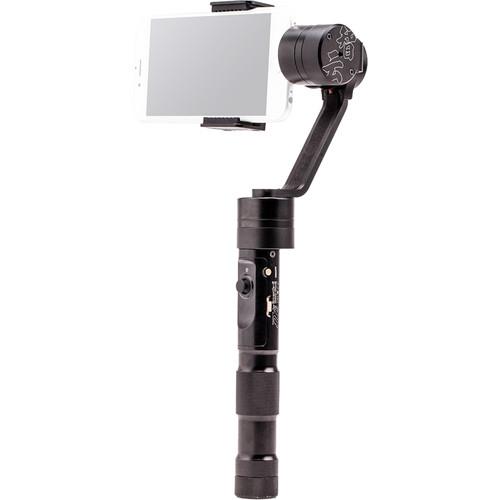

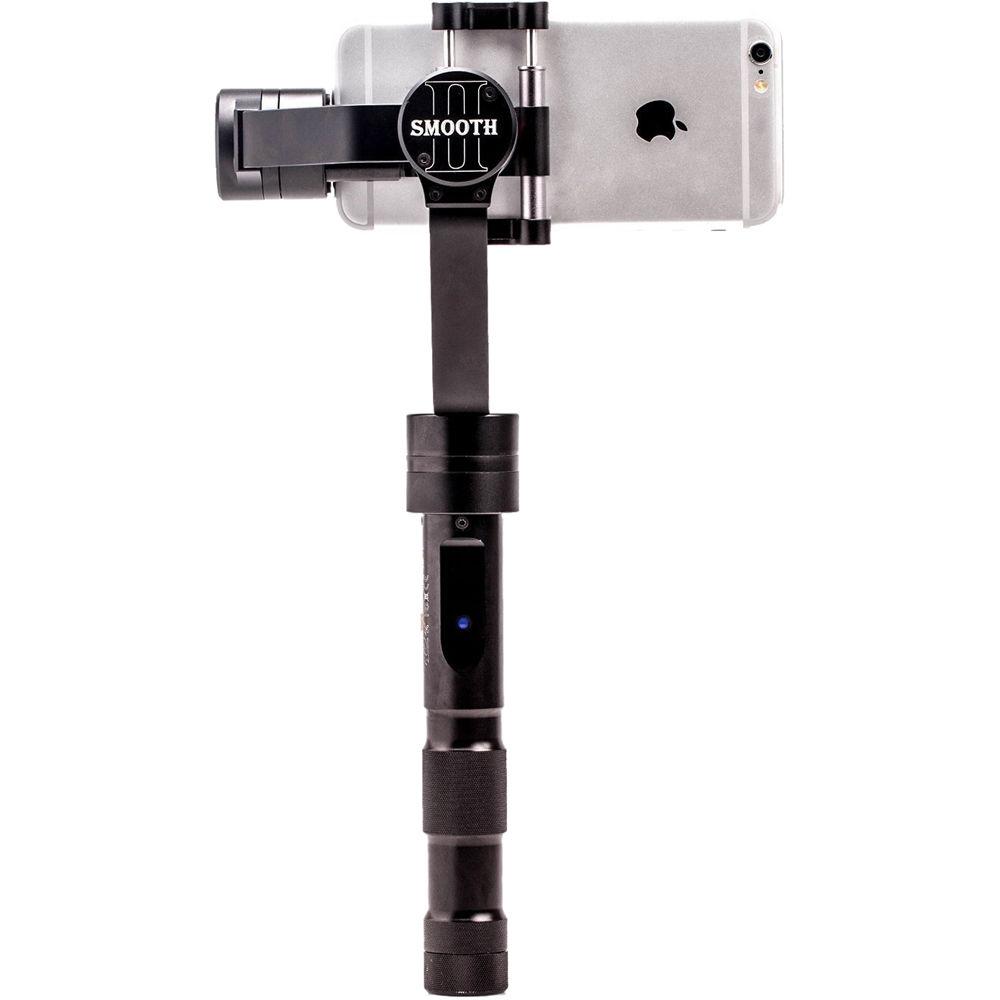

Product description The Zhiyun-Tech Smooth-II is a 3-axis handheld gimbal stabilizer for most smartphones (measuring between 2.2 and 3.2" in width). The Smooth-II offers unlimited 360° rotation along the pan axis and allows for vertical and panoramic image capture. It features a 5-way joystick right at your fingertips that allows you to quickly switch between modes and perform other controls.
The Smooth-II starts up very quickly to full functionality and is designed with short-circuit, reverse, and over-discharge protection to ensure continued safe start-up. This stabilizer comes with an approximately 5-hour runtime battery and also charges your phone during operation.
The Smooth-II also supports wireless control via a free-download iOS/Android app or optional ZW-BO1 Bluetooth remote control unit. The app lets you perform functions such as switching between the front and main cameras, switching between photo and video modes, setting focus, and recording. The Smooth-II also has a 1/4"-20 mounting thread on the bottom that allows you to use it with support gear such as monopods. - Key Features
-
- 3-axis handheld gimbal stabilizer for smartphones
- Smartphones between 2.2 and 3.2" in width supported
- Unlimited 360° rotation along the pan axis
- 5-way joystick
- Short-circuit, reverse, and over-discharge protection
- 5-hour runtime battery
- Supports wireless control via a free-download iOS/Android app
- Supports optional ZW-BO1 Bluetooth remote control unit
- 1/4"-20 mounting thread on the bottom for use with support gear such as monopods
In the Box Zhiyun-Tech Smooth-II 3-Axis Handheld Gimbal Stabilizer for Smartphones Camera Protection Sticker for Pan Axis Motor Counterweight Micro USB Cable 18650 Li-Ion Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zhiyun-Tech Smooth-II 3-Axis Handheld Gimbal Stabilizer for Smartphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZhiyun-Tech ZYSII Specs | | | Payload | 0.44 lb (200 g) | | Phone Support | Supported Widths: 2.2 - 3.2" (5.5 - 8.2 cm)
*Width is the distance from left to right when the phone is held in portrait mode. | | Rotation Range | Tilt Axis Mechanical Movement: 270°
Roll Axis Mechanical Movement: 90°
Pan Axis Mechanical Movement: 360° | | Battery Runtime | Approximately 5 hours | | Operating Temperature | 14 to 113°F (-10 to 45°C) | | Operating Current | 250 mA | | Material of Construction | Aviation grade aluminium alloy | | Dimensions | 4.5 x 1.4 x 11.2" (11.5 x 3.5 x 28.5 cm) | | Weight | Without Battery: 0.9 lb (395 g) | | | | Model | 18650 Li-ion | | Capacity | 3400 mAh | | Voltage | 3.7 V | | Charging Temperature | 32 to 113°F (0 to 45°C) | | Discharging Temperature | 14 to 113°F (-10 to 45°C) | | Storage Temperature | 77°F (25°C) room temperature | | Charging Current | 800 mAh (max) | | | | Model | 18650 Li-ion battery charger | | Input Voltage | 5 V | | Charging Current | 800 mA | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 12.55 x 6.2 x 2.1" |
