User Manual for Zhiyun-Tech TransMount 5.5'' On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the Zhiyun-Tech TransMount 5.5'' On-Camera Monitor
- Product category: On Camera Monitors Zhiyun-Tech
- Brand: Zhiyun-Tech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zhiyun-Tech On Camera Monitors
 |
User manual for the Zhiyun-Tech TransMount 5.5'' On-Camera Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zhiyun-Tech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zhiyun-Tech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zhiyun-Tech product will considerably shorten its lifespan!
|

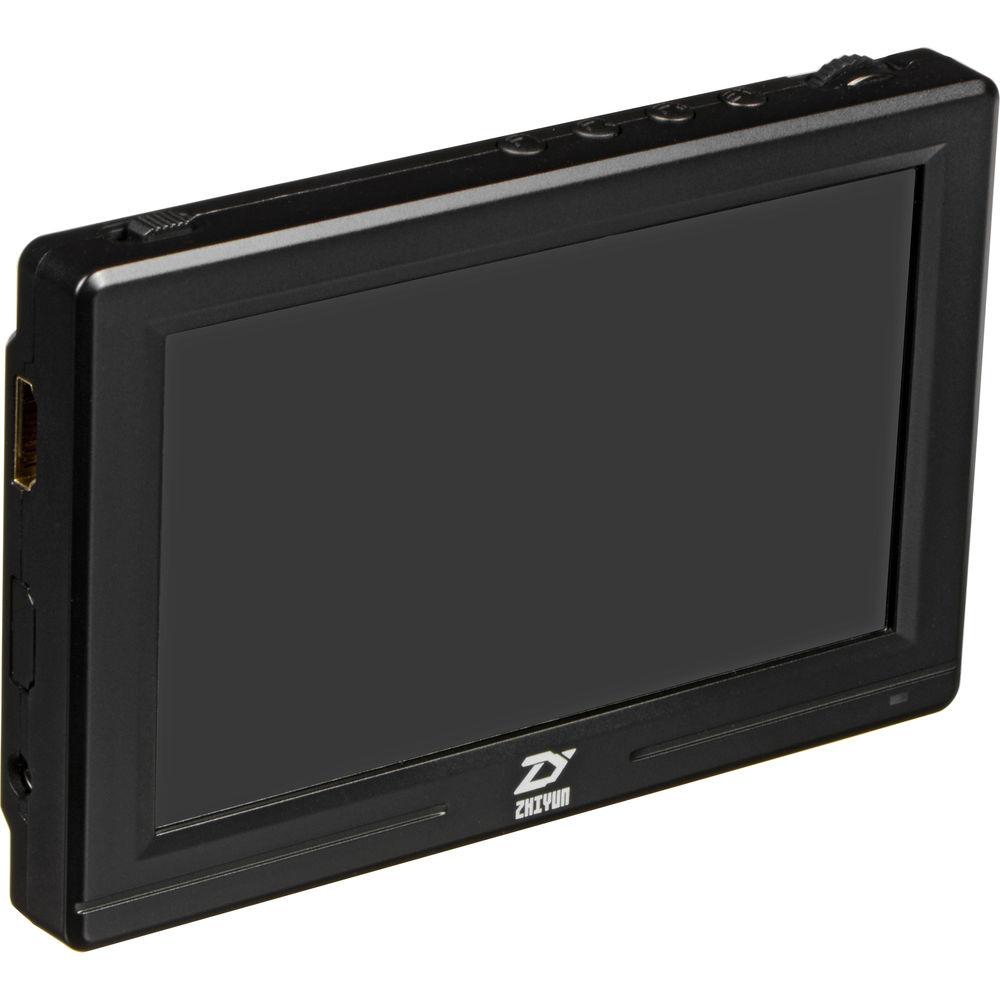

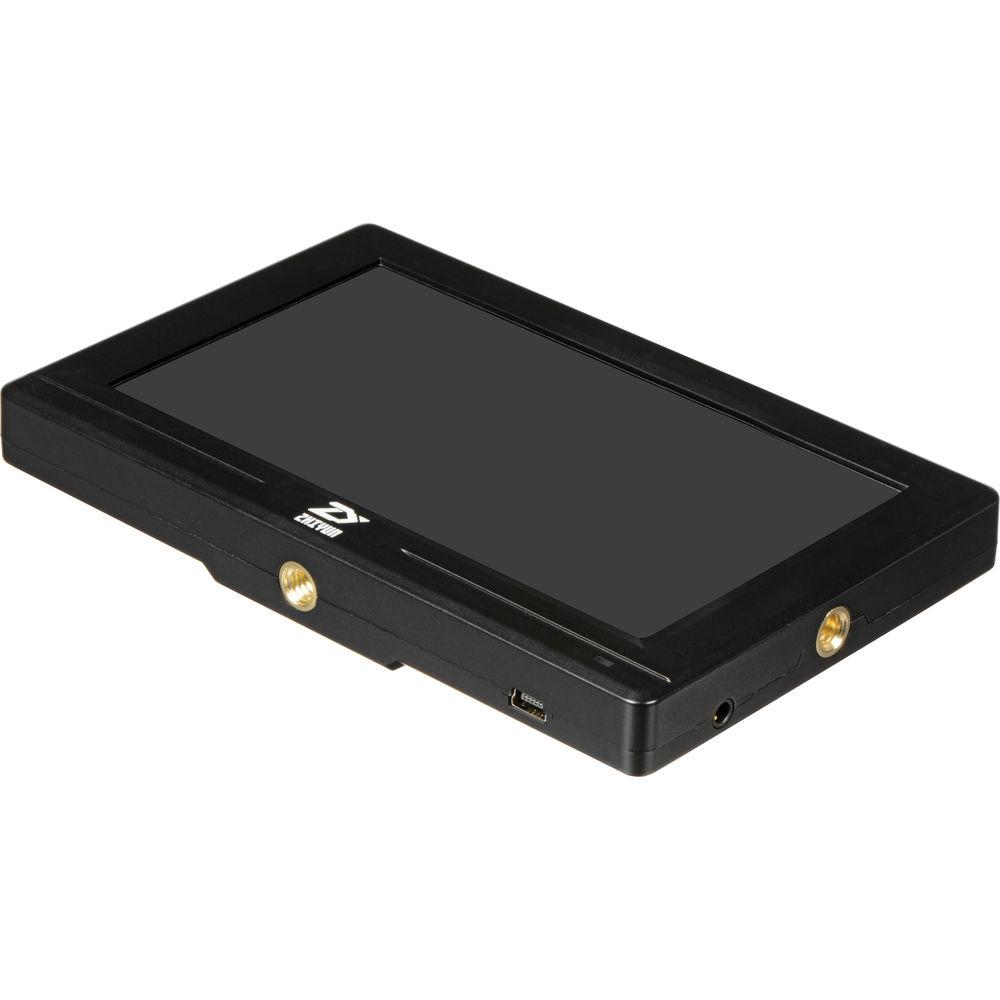

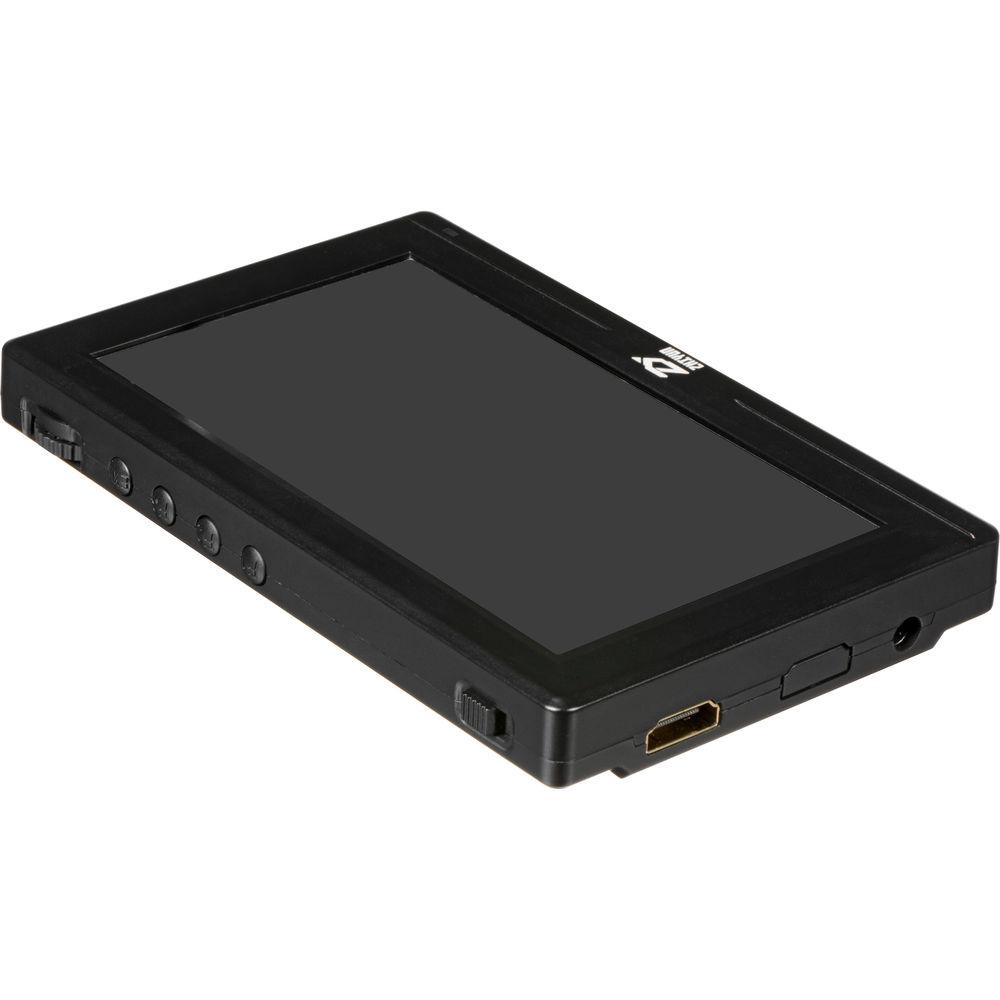

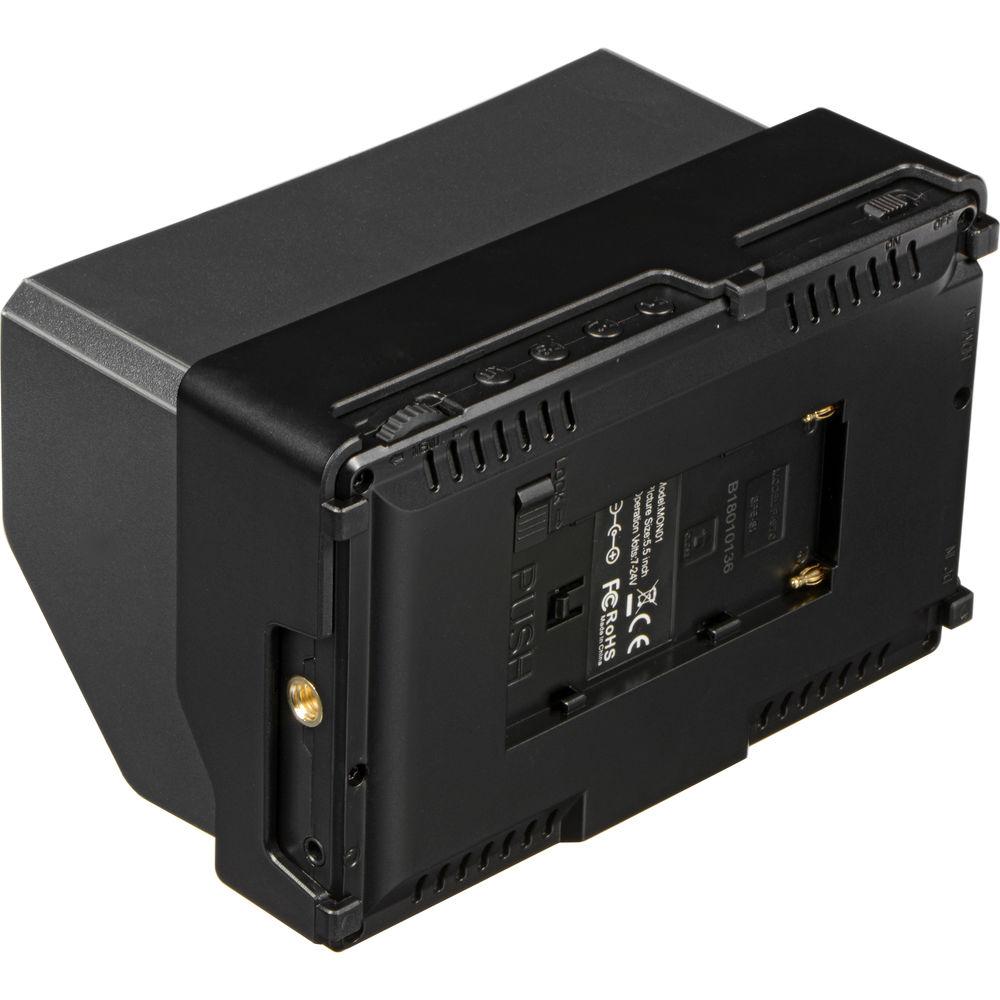

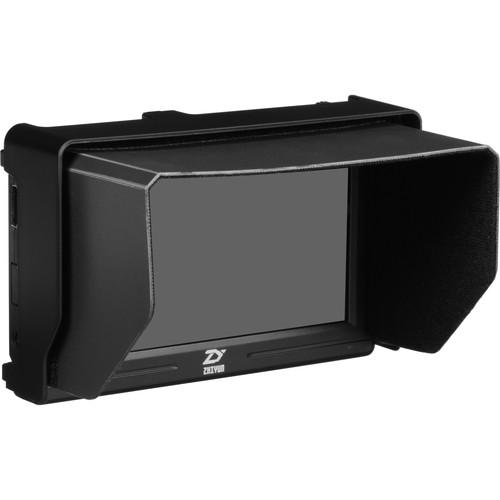

Product description The Zhiyun-Tech TransMount 5.5" On-Camera Monitor features a 1920 x 1080 Full HD IPS LCD display with a 160° viewing angle, and supports up to 4K HDMI input signals. This compact monitor offers a headphone output for monitoring audio and also has multiple monitoring functions, such as peaking and histogram, for measuring focus and other factors. Included with the monitor are a removable sun hood, HDMI cables with silicone cases for uncluttered storage, a DC power cable, and a carry pouch for storing everything. - Monitoring Functions
-
- RGB focus peaking
- Peaking color
- False color
- Zebra
- Brightness histogram
- Volume bar
- Safe area
- Camera mode
- Monochrome display
UPC: 191493000803 In the Box Zhiyun-Tech TransMount 5.5'' On-Camera Monitor Sun Hood Sunshade Micro-HDMI Cable Mini HDMI Cable 2 x Silicone HDMI Cable Case DC Barrel Power Cable Dustcloth Carry Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zhiyun-Tech TransMount 5.5'' On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZhiyun-Tech GMB-C31 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 5.5" / 14.0 cm | | Active Area | 4.8 x 2.7" / 12.1 x 6.8 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160°
Vertical: 160° | | Maximum Brightness | 330 cd/m2 | | Contrast Ratio | 1000:1 | | Image Controls | False Color, Focus Peaking, Screen Markers | | | | Video | 1 x HDMI Type A Input | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Card Slot | None | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 1 x L-Series | | Power Consumption | 9 W (Typical) | | | | Mounting | 2 x 1/4"-20 Female | | | | Dimensions (W x H x D) | 6 x 4 x 0.8" / 15 x 10 x 2 cm | | Weight | 0.7 lb / 312 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 6.0 x 4.0 x 3.0" |
