User Manual for Zhiyun-Tech TransMount Lite Servo Focus Controller for Crane 3-Lab & WEEBILL LAB Click to enlarge the picture
Contents of the user manual for the Zhiyun-Tech TransMount Lite Servo Focus Controller
- Product category: Stabilizers & Gimbals Zhiyun-Tech
- Brand: Zhiyun-Tech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zhiyun-Tech Stabilizers & Gimbals
 |
User manual for the Zhiyun-Tech TransMount Lite Servo Focus Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zhiyun-Tech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zhiyun-Tech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zhiyun-Tech product will considerably shorten its lifespan!
|

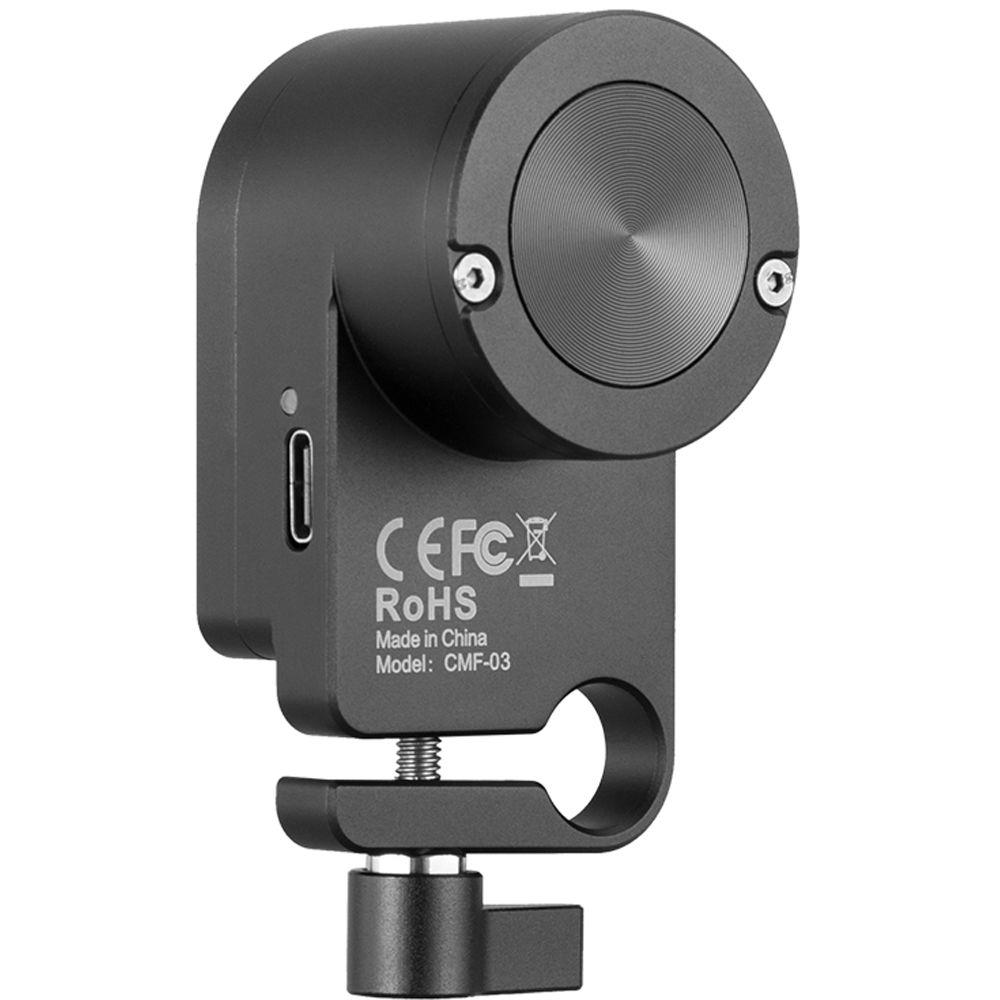

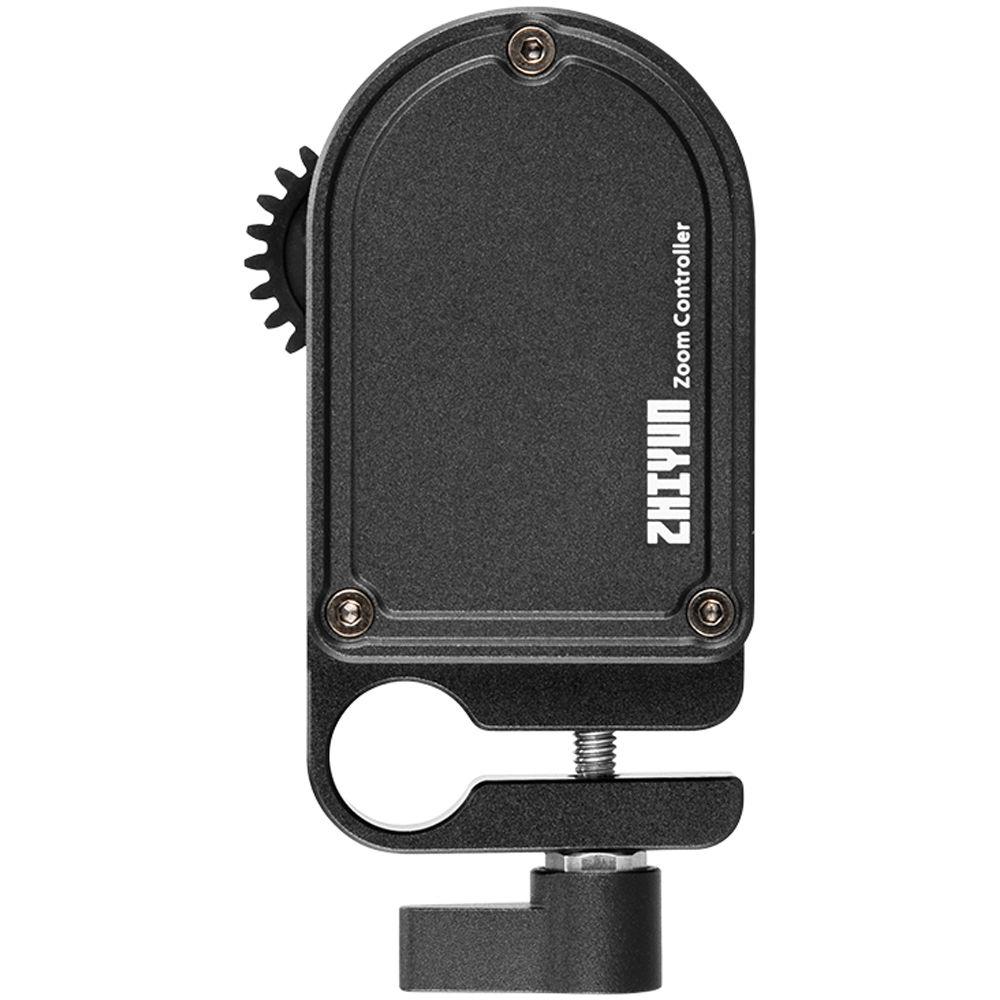

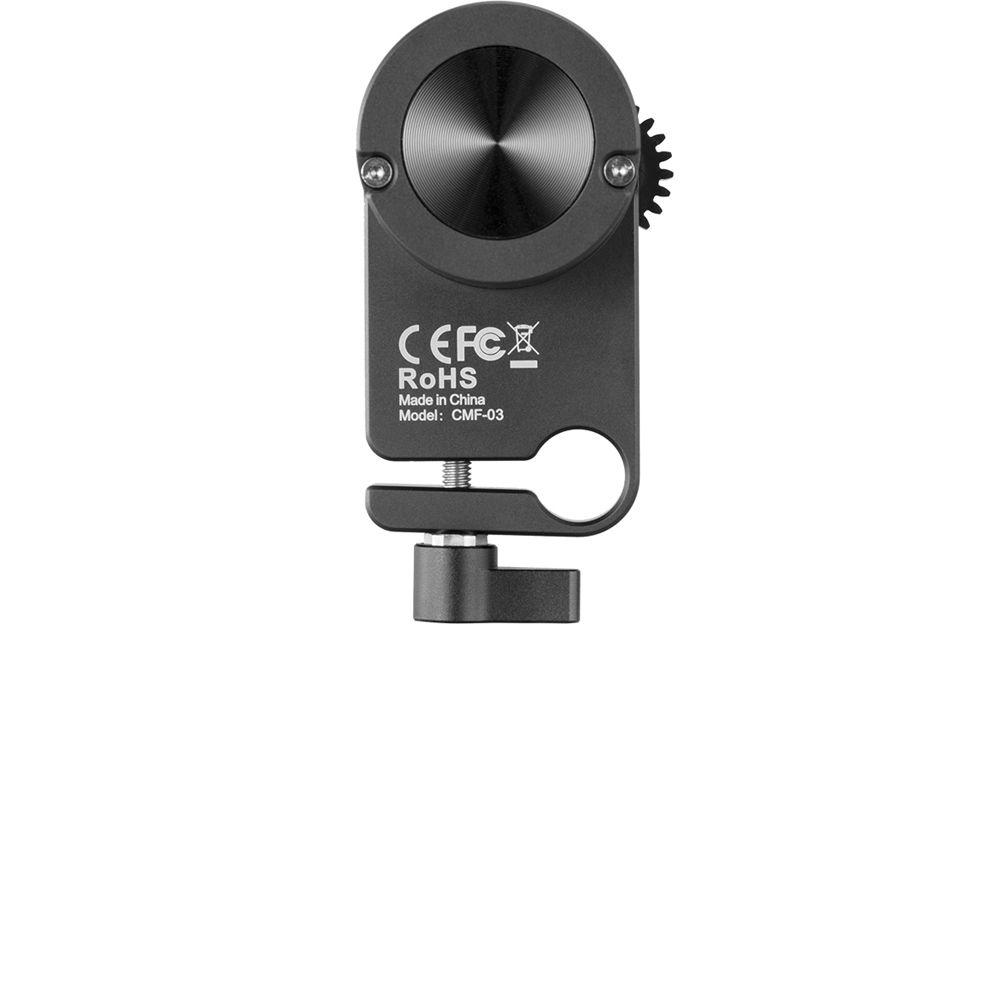

Product description The Zhiyun-Tech TransMount Lite Servo Focus Controller is designed specifically for focus control. For zoom control please see the TransMount Max, which has a stronger motor that's capable of handling zoom adjustments.
The TransMount Lite is intended for use with the Crane 3-Lab, although it's also compatible with the WEEBILL LAB. The Crane supports two motors at the same time; ideally, you would use the slightly lighter TransMount Lite for focus control and the optional TransMount Max for zoom control. The WEEBILL LAB, however, supports only one motor, so the better option for it would be the TransMount Max, because it can be used interchangeably between focus and zoom control.

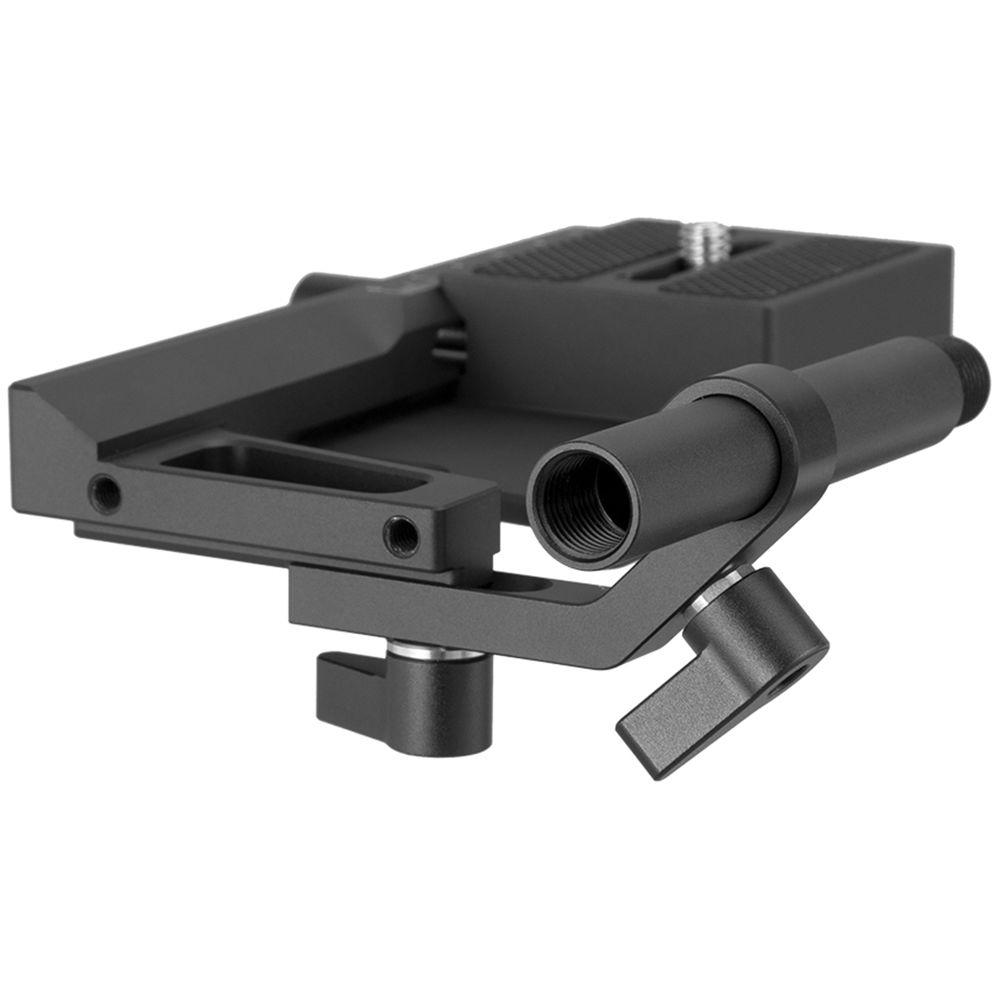

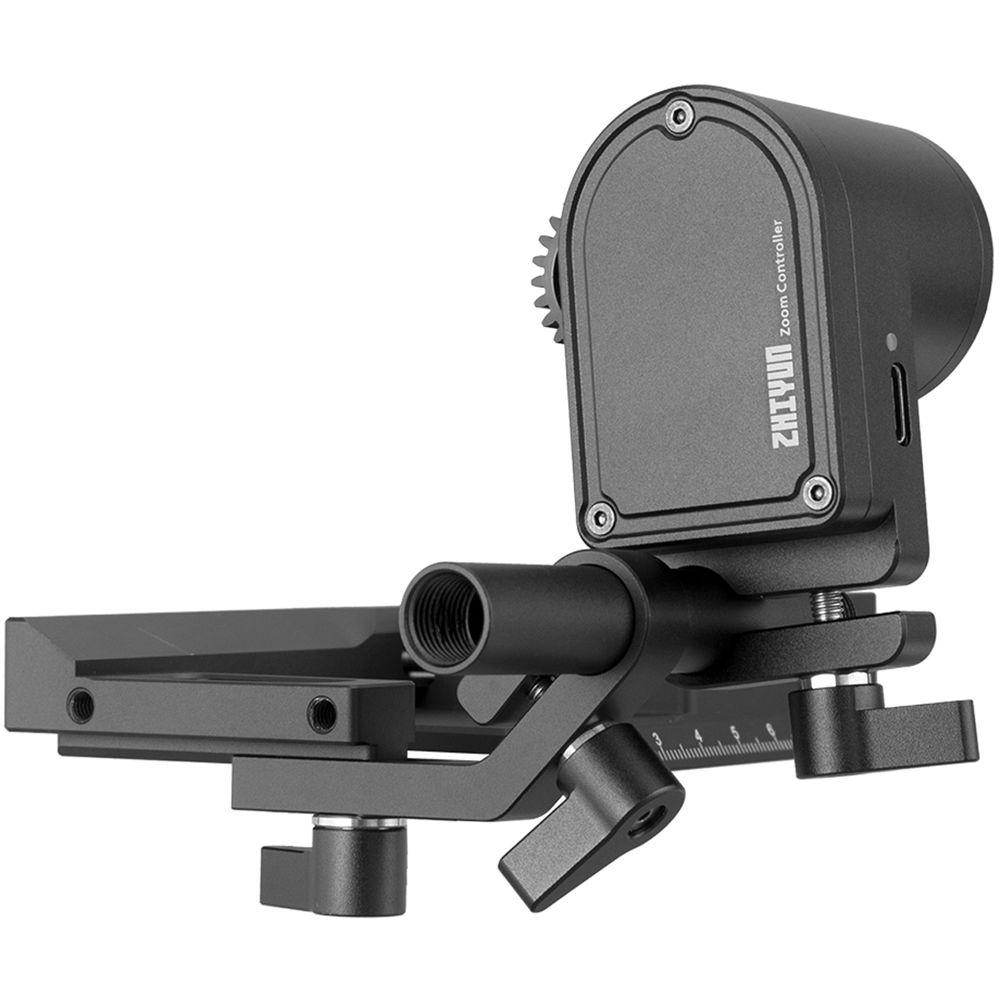

Featuring a toolless design, the TransMount Lite attaches on the gimbal using just the included thumbscrews. It can be controlled via the gimbal handwheel or the companion smartphone app. Secure it to the supplied support bracket and mounting rod using two thumbscrews, and attach this assembly to the bottom of the gimbal's baseplate with the third thumbscrew. Then connect the servo to the gimbal with the provided USB cable, and connect the camera to the gimbal with one of the camera control cables the gimbal comes with. The USB cable connection provides zero-latency signal transmission. - Key Features
-
- Designed for focus control only
- Ideal for use on the Crane 3-Lab, which supports two motors at the same time, one for focus and one for zoom (the optional TransMount Max zoom/focus controller)
- Toolless design — assembles with the included support bracket and mounting rod and attaches to the bottom of the gimbal's baseplate using included thumbscrews

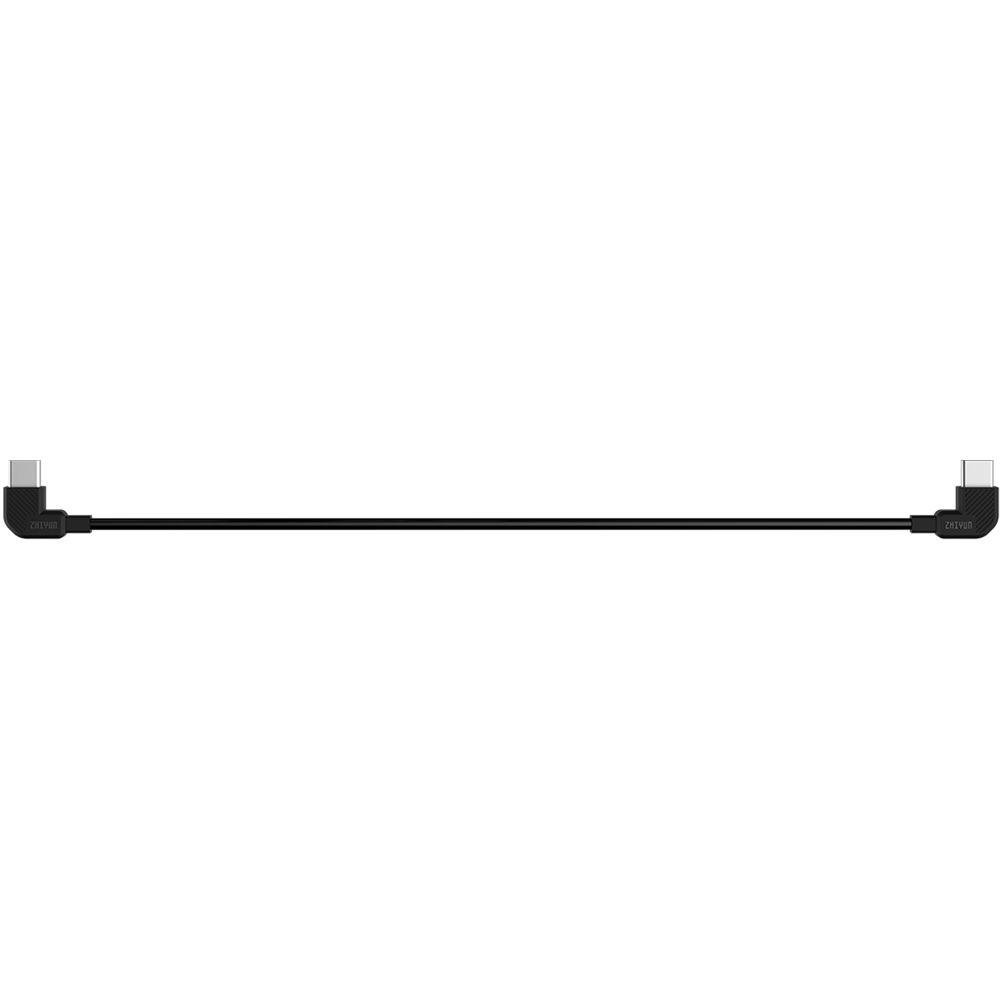

- Connects to the gimbal via a USB cable and controls focus with zero latency

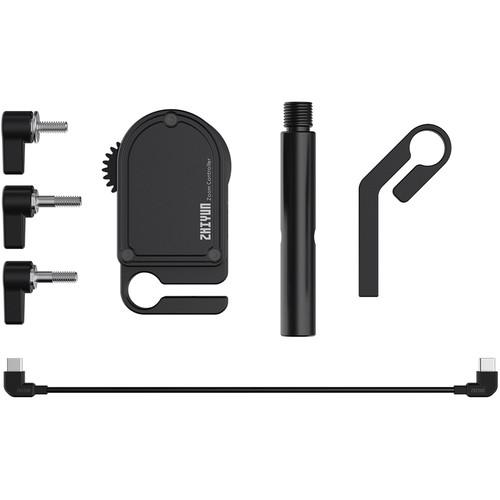

UPC: 191493001015 In the Box Zhiyun-Tech TransMount Lite Servo Focus Controller for Crane 3-Lab & WEEBILL LAB Large Lens Gear Ring Small Lens Gear Ring USB Cable Support Bracket Mounting Rod 3 x Thumbscrew Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zhiyun-Tech TransMount Lite Servo Focus Controller for Crane 3-Lab & WEEBILL LAB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZhiyun-Tech GMB-CMF-03 Specs | Interface | USB Type-C | | Dimensions | 4.8 x 5.4 x 2.6" / 12.2 x 13.6 x 6.5 cm | | Weight | 11 oz / 312 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 5.4 x 5.0 x 2.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
