User Manual for Zhiyun-Tech Z1-Pround 3-Axis Handheld Gimbal for GoPro HERO 3 4 Click to enlarge the picture
Contents of the user manual for the Zhiyun-Tech Z1-Pround 3-Axis Handheld Gimbal for
- Product category: Gimbal Stabilizers Zhiyun-Tech
- Brand: Zhiyun-Tech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zhiyun-Tech Gimbal Stabilizers
 |
User manual for the Zhiyun-Tech Z1-Pround 3-Axis Handheld Gimbal for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zhiyun-Tech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zhiyun-Tech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zhiyun-Tech product will considerably shorten its lifespan!
|

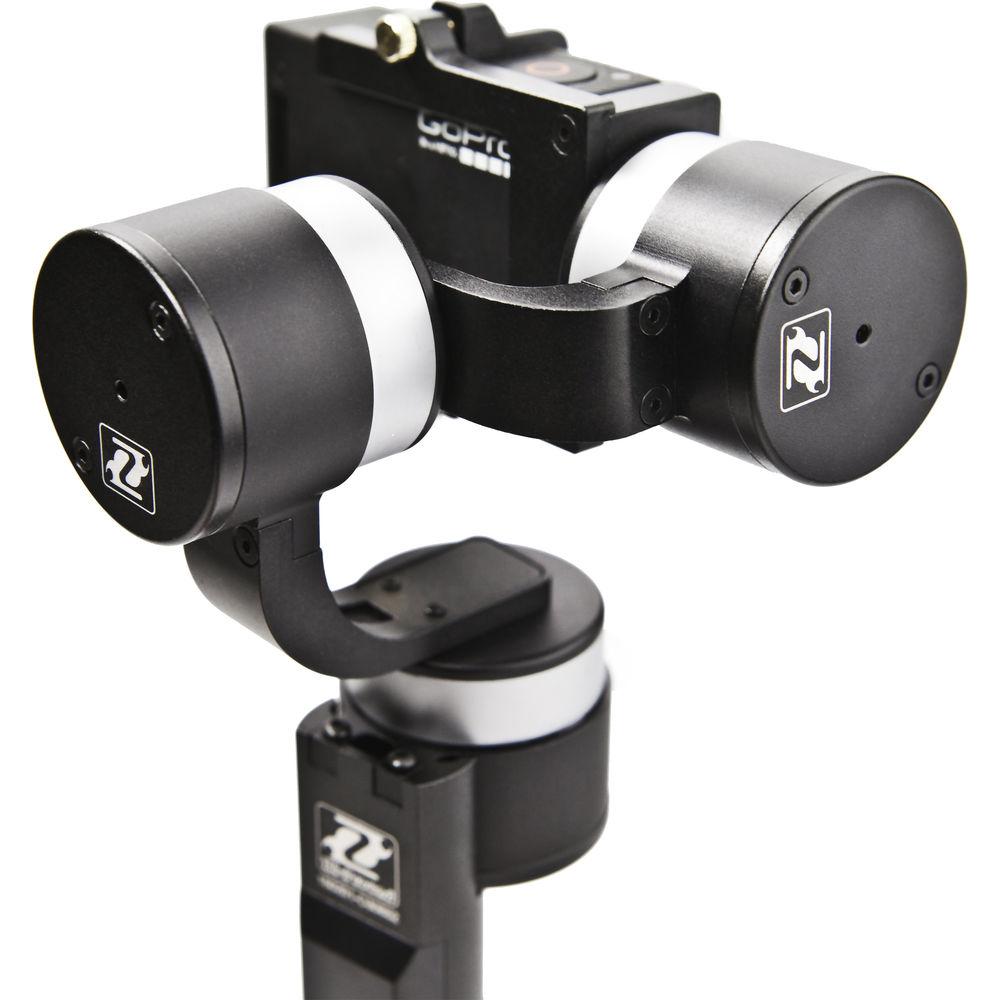

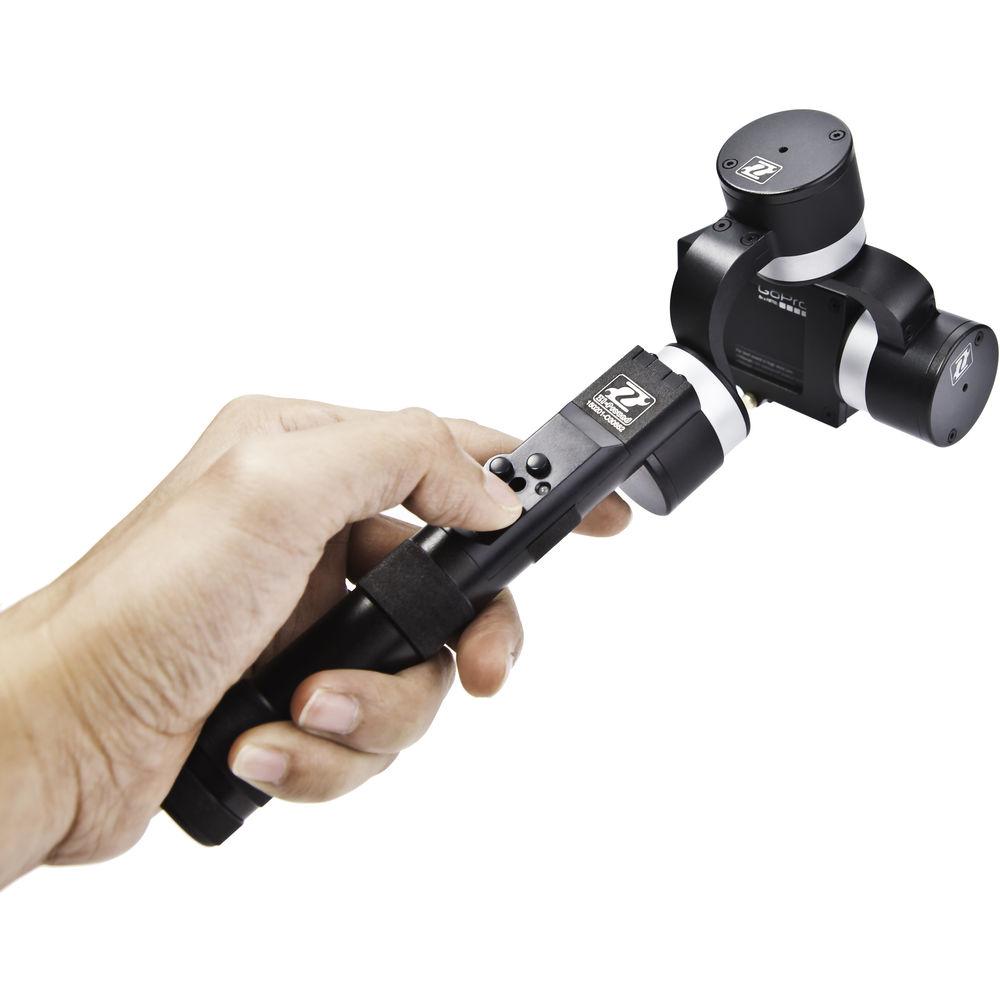

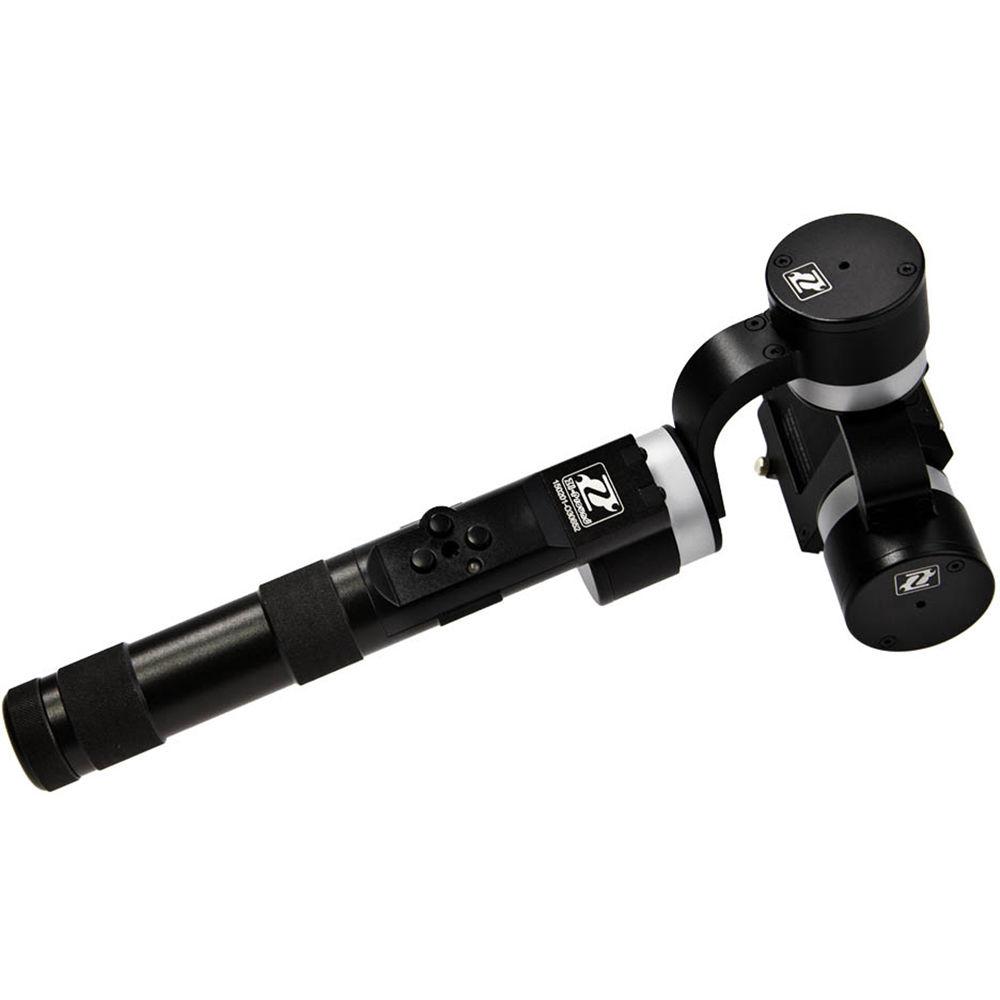

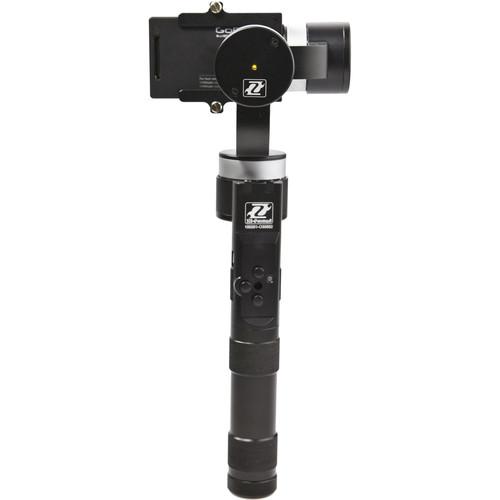

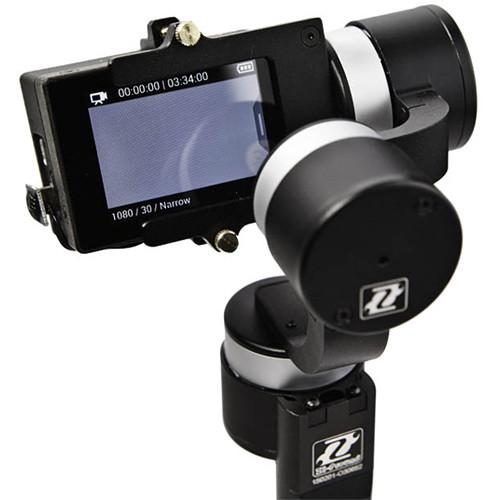

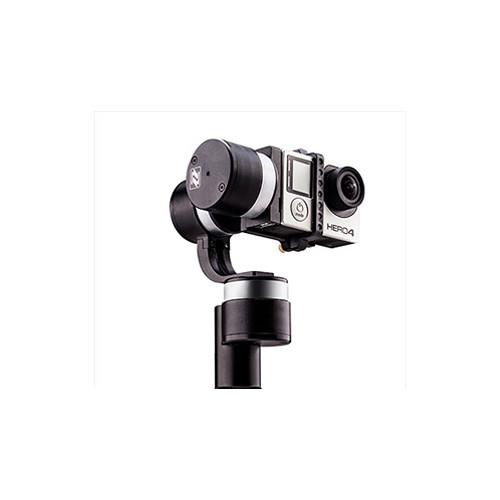

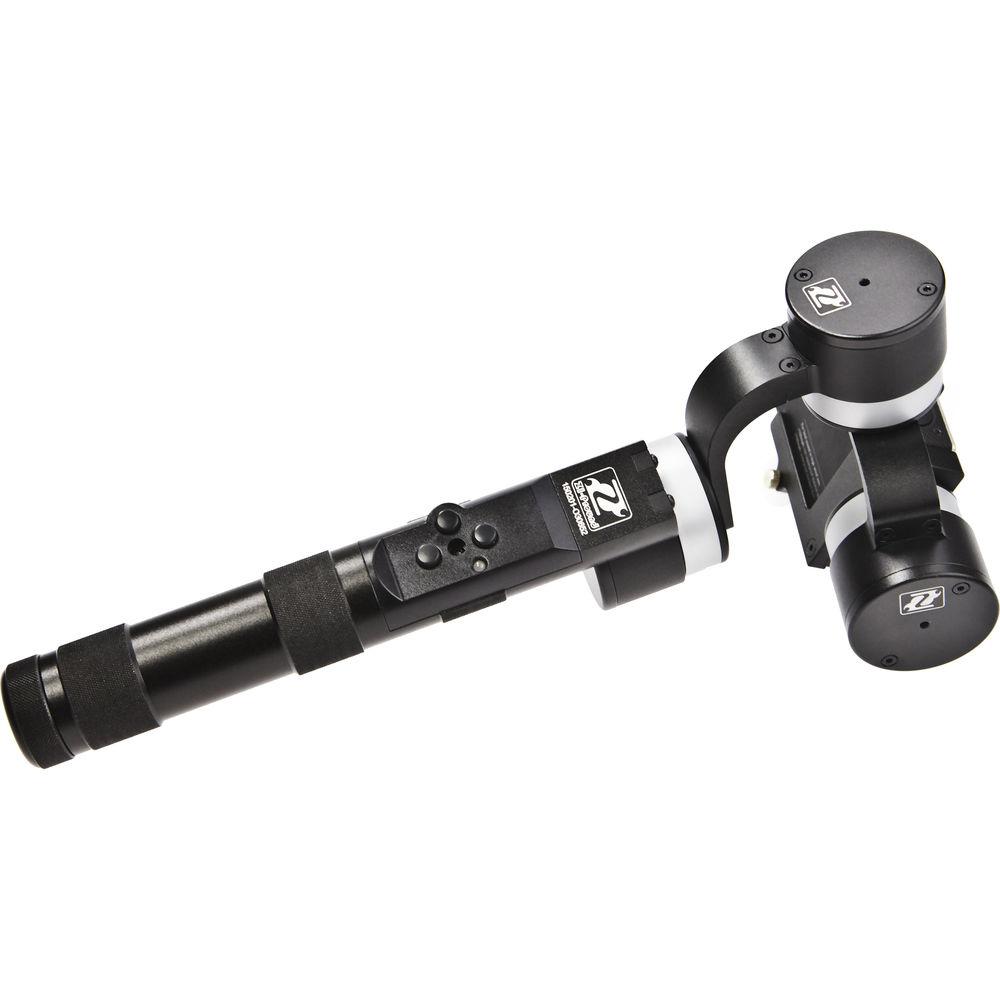

Product description The Zhiyun-Tech Z1-Pround 3-Axis Handheld Gimbal lets you capture smooth, stabilized shots with the GoPro HERO3/4 action camera. Three buttons on the handle let you control pan, tilt, and roll motion and change the operating mode. You can choose to lock the camera in place along all three axes, or select modes where the camera will smoothly follow as you pan and tilt the handle. In the Box Zhiyun-Tech Z1-Pround 3-Axis Handheld Gimbal for GoPro HERO 3/4 2 x 18350 Li-Po Battery 18350 LiPo Battery Charger Micro-USB Charging Cable Extension Tube Table of Contents
|
Upload User Manual
Have you got an user manual for the Zhiyun-Tech Z1-Pround 3-Axis Handheld Gimbal for GoPro HERO 3 4 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZhiyun-Tech Z1P Specs | Supported Cameras | GoPro HERO 3/4 cameras and similarly sized action cameras | | Pan Angle | -135 to +135° (handle positioned vertically)
-45 to +45° (handle positioned horizontally) | | Tilt Angle | -90 to +180° (handle positioned vertically) | | Roll Angle | -45 to +45° | | Tilt Speed | 1°/s to 50°/s | | Panning Speed | 1°/s to 80°/s | | Following Accuracy | Motionless: ±0.01° (minimum), ±0.04° (maximum)
Motion: ±0.1° (minimum), ±0.2° (standard), ±0.5° (maximum) | | USB | 1 x Micro-USB port for setting and firmware upgrade | | Battery | Output Voltage: 4.2 V, 2 x 400 mA
18350 LiPo battery x 2 (900 mAh) | | Charger | 18350 LiPo Battery Charger
Input Voltage: 5 V, 800 mA
Output Voltage: 4.2 V. 2 x 400 mA | | Battery Life | At 77°F / 25°C
3 hours (minimum), 4 hours (standard), 5 hours (maximum) | | Working Voltage | 8.4 VDC (6.8 to 12.6 VDC) | | Working Current | 120 mA (50 mA to 2 A) | | Operating Temperature | -4 to 113°F / -20 to 45°C | | Dimensions | Without Extension Tube
Length: 9.25" / 235 mm
Width: 3.77" / 96 mm
Height: 3 to 3.46" / 78 to 88 mm
With Extension Tube
Length: 11.6" / 295 mm
Width: 3.77" / 96 mm
Height: 3 to 3.46" / 78 to 88 mm | | Weight | 11.8 oz / 335 g (without camera or battery) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 12.7 x 5.1 x 2.3" |
